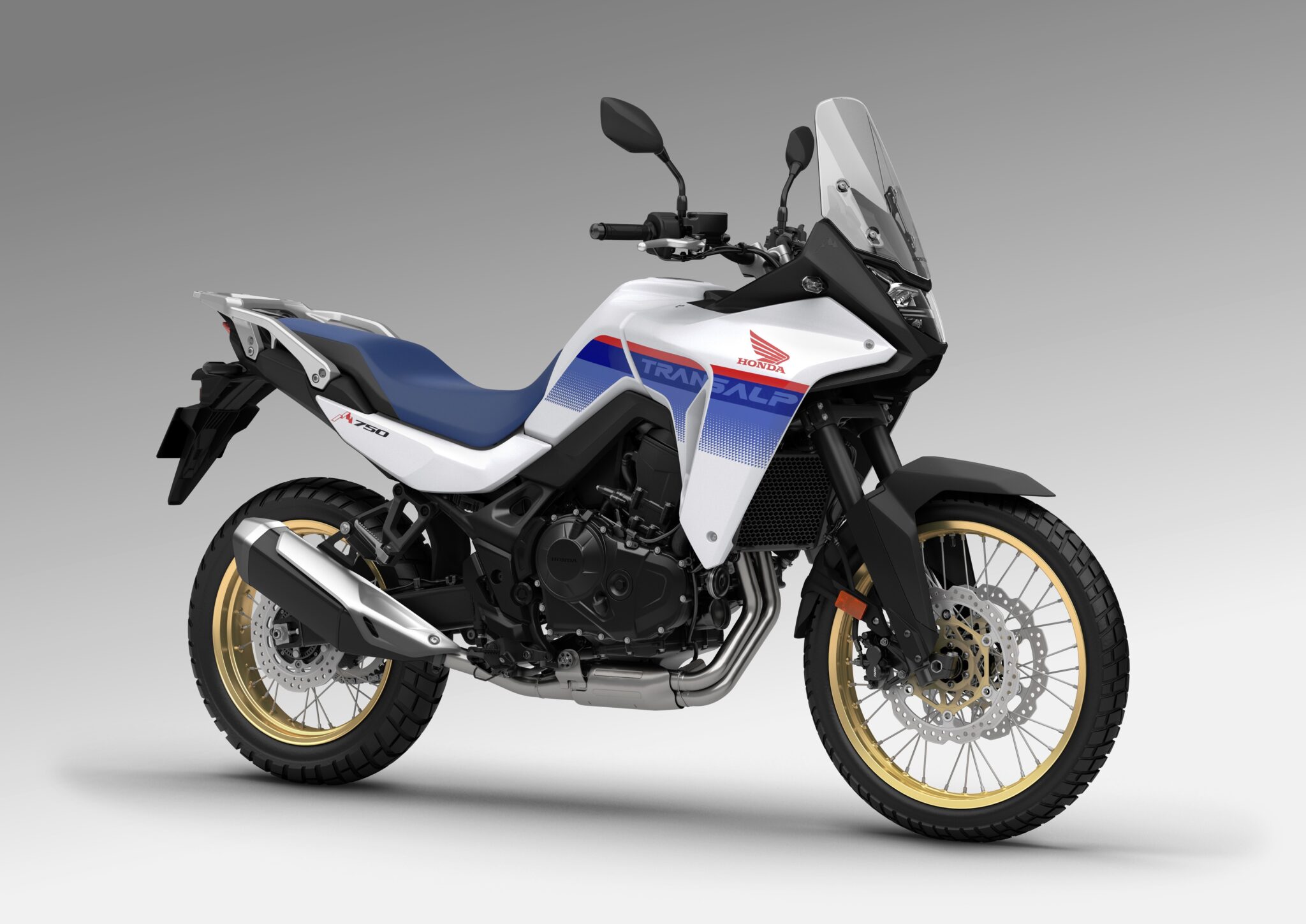

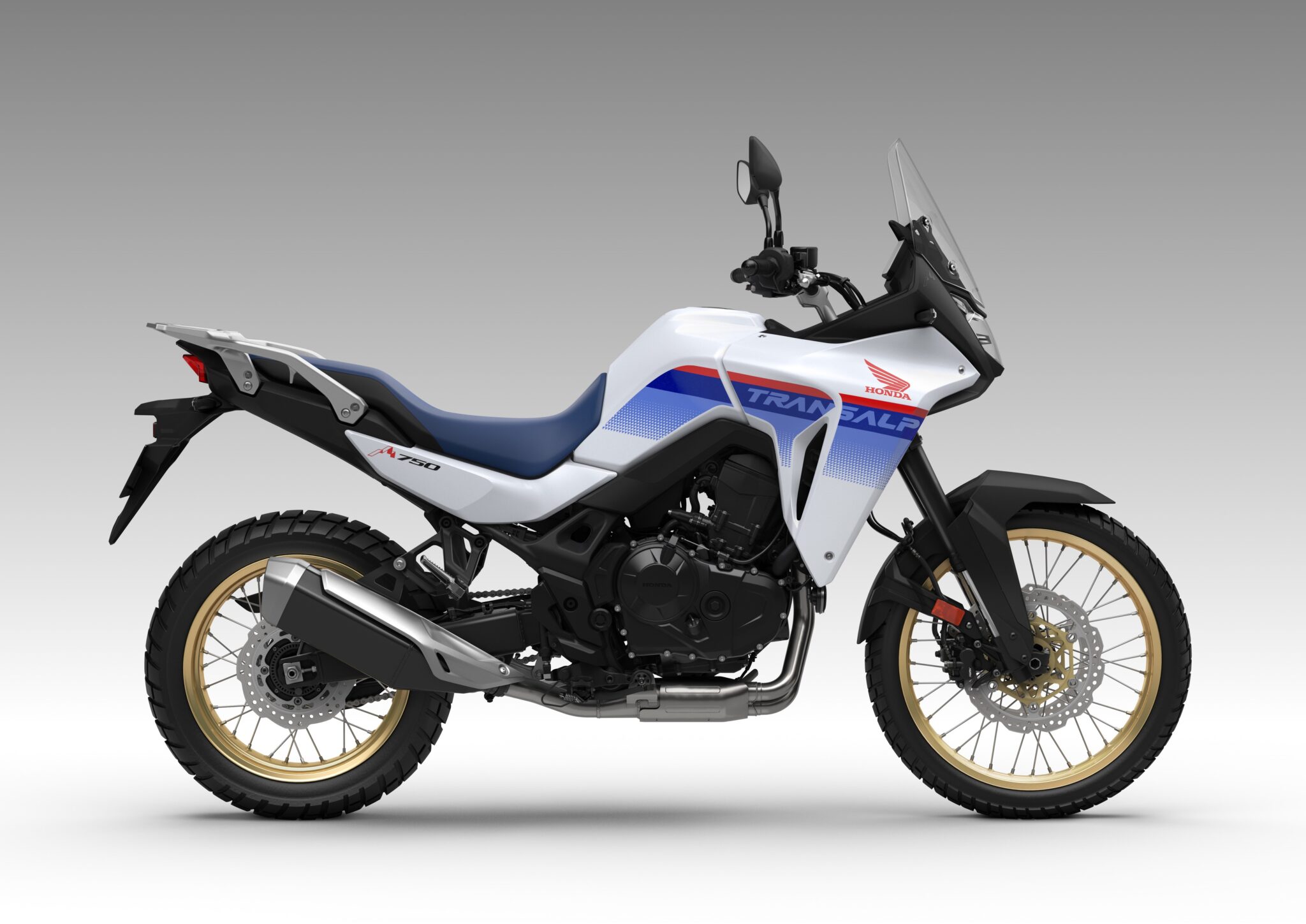

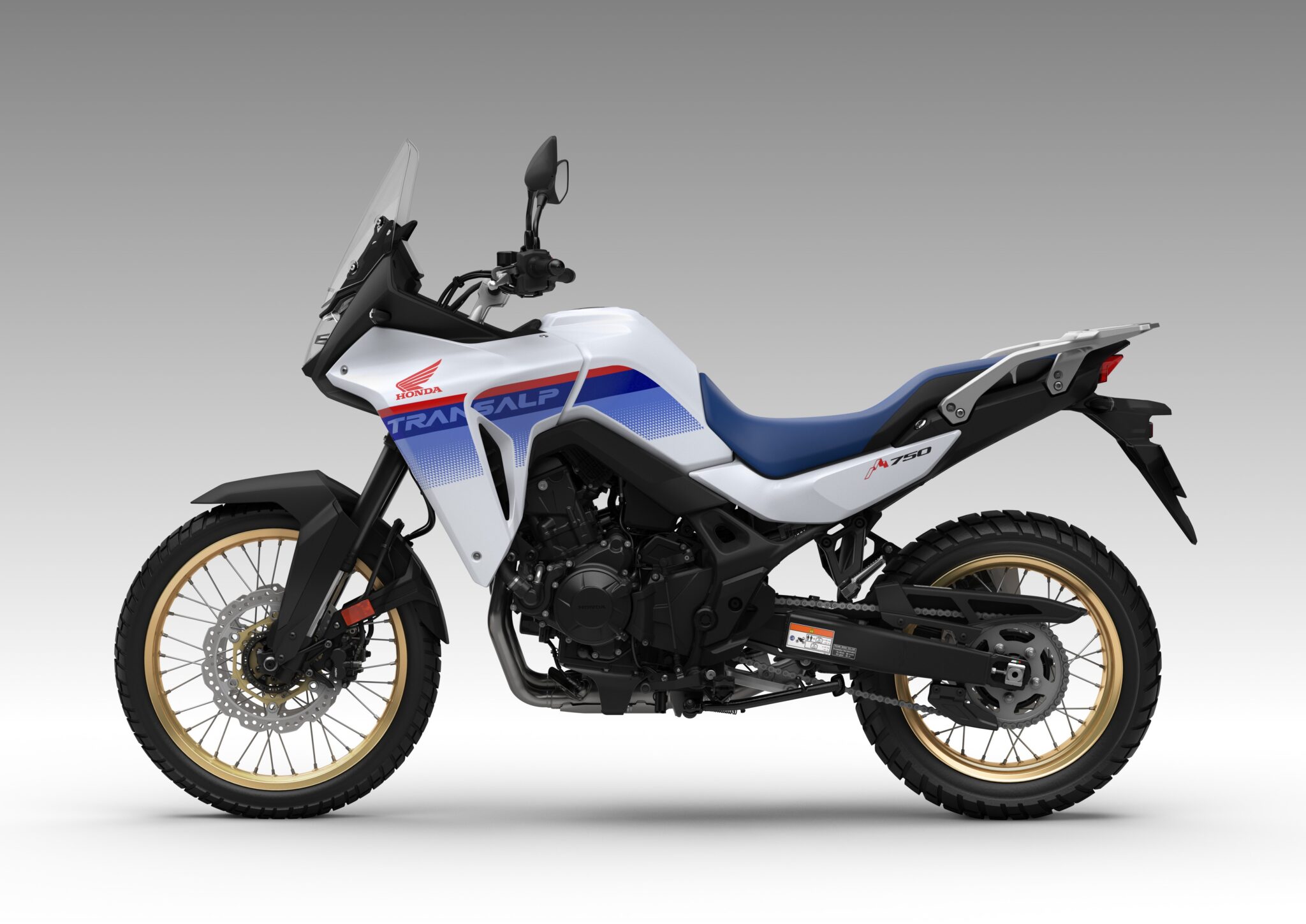

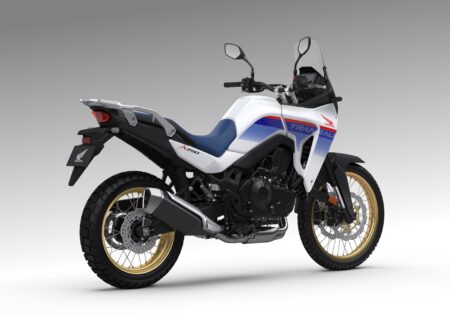

23YM Honda XL750A Transalp

12,499.00

Around town or around the world, Honda’s brand-new XL750 Transalp carries the adventure forward from the iconic original, ready for a fresh generation of riders looking to travel wherever the road leads. Its eight-valve, parallel twin-cylinder engine delivers 67.5kW and 75Nm; Throttle By Wire (TBW) serves up 4 default riding modes plus User option, 5-level Honda Selectable Torque Control (HSTC) with integrated Wheelie Control and 3 levels of Engine Braking and Power. The steel frame wears full Showa suspension: 43mm SFF-CATM USD forks and rear shock working through Pro-Link. Dual, two-piston calipers bite hard up front and 21/18-inch wheels wear tubed tyres. The premium specification includes 5-inch colour TFT instrument display, with Honda Smartphone Voice Control, full LED lighting, auto-indicator cancel and Emergency Stop Signals (ESS) technology. An A2 licence option will also be available.



**Prices correct as of January 2023 and are subject to change.

Contact us on +353 (0)53 94 22415 or fill in the form below for a callback to find out more about stock and Special offers.

SKU: N/A Category: Tags: , ,

Description

Fill in the below for a call-back









    Model Overview

    The Transalp’s design projects an unmistakeable feeling of adventure touring in a package that works superbly on the road. The long-legged stance makes a strong statement of adventurous intent, while the fairing and screen work together to deliver wind protection without bulk. The overall look is sleek, simple and clean.

    The engine packs a great deal of Honda’s engineering prowess into a small space and provides strong response across the rev-range – just what’s needed for either solo or two-up touring. The all new 755cc, parallel twin-cylinder unit (shared with the new CB750 Hornet) produces 67.5kW top power and a strong helping of torque right through the rev range, peaking at 75Nm. Refined settings of the Throttle By Wire (TBW) system orientate the engine character towards touring and comfort.

    Compact, competition CRF-derived Unicam eight-valve cylinder heads employ downdraft air intakes and Vortex flow duct to ensure optimal combustion. The 270° crank delivers feel and character. Electronic rider aids run via Throttle By Wire (TBW) and include 5 riding modes, 4 of which contain pre-set combinations of Engine Power, Engine Braking, ABS and Honda Selectable Torque Control (HSTC) with integrated Wheelie Control. The 5th ‘User’ mode allows the rider to fix their own preferred combination.

    Handling is light, nimble and confidence inspiring. The steel diamond frame is light weight thanks to optimisation of wall/pipe thickness and stiffness. For supple on-road performance and off-road bump absorption, suspension is top quality: Showa 43mm SFF-CA USD forks and rear shock operating through Pro-Link. Dual two-piston calipers provide efficient stopping power while the tyres – 90/90-21/150/70-18 front and rear – deliver versatility on or off-road.

    The rich specification list is headlined by a 5-inch TFT colour display which supplies vivid information delivery and management of all systems, as well as the connectivity of Honda Smartphone Voice Control system (HSVCs) for Android and IOS devices. All lighting is LED; the indicators auto-cancel and also include Emergency Stop Signal (ESS) technology to warn other road users of sudden braking.

    A range of accessories, including quickshifter, soft and hard luggage, rally/touring equipment and cosmetic enhancements are ready to go for an owner’s preference (see full list below: Accessories).

    The 23YM XL750 Transalp will be available three striking colour options including, of course, the beautiful Tricolour paying homage to the original XL600V, marking the return of an icon.

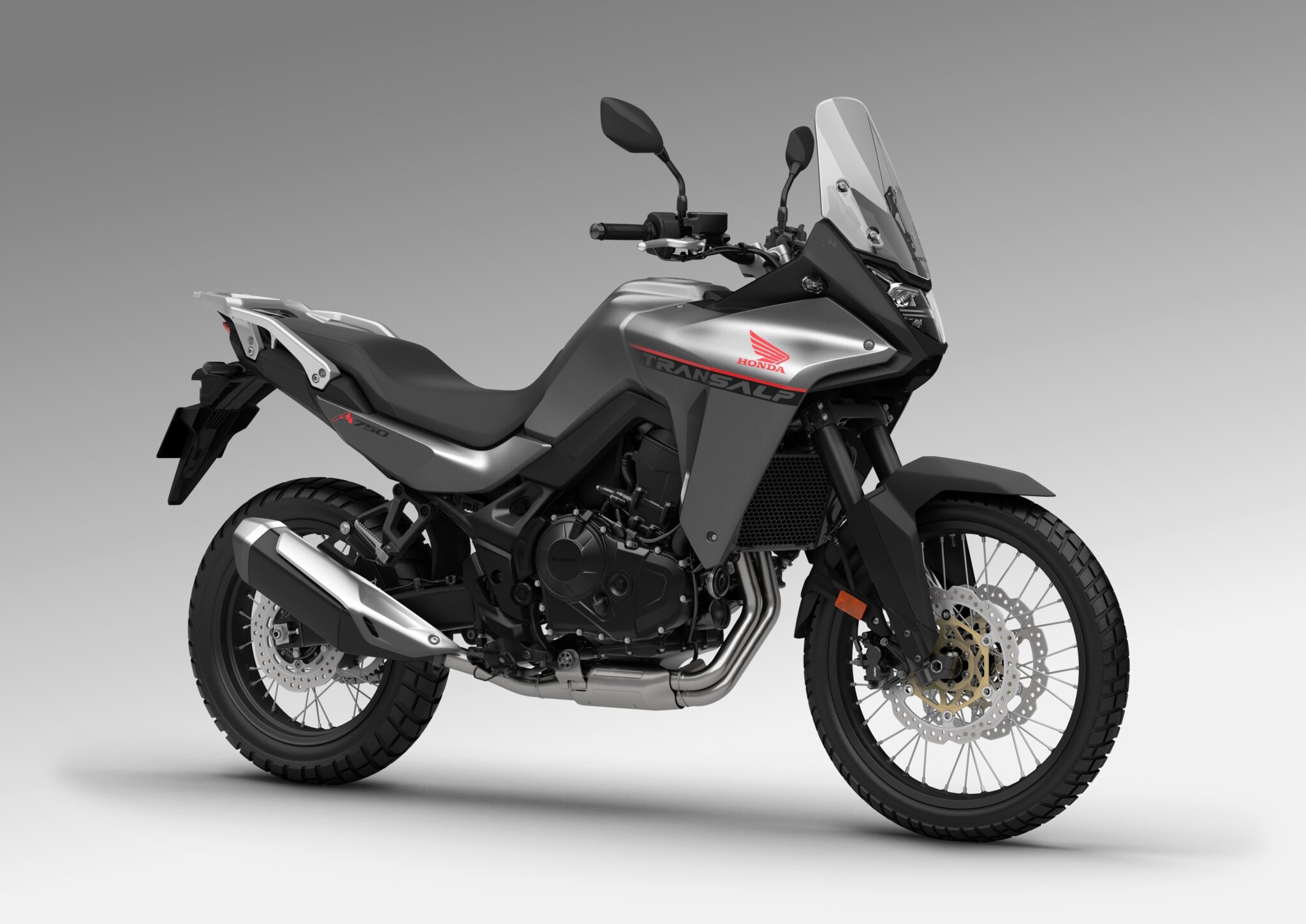

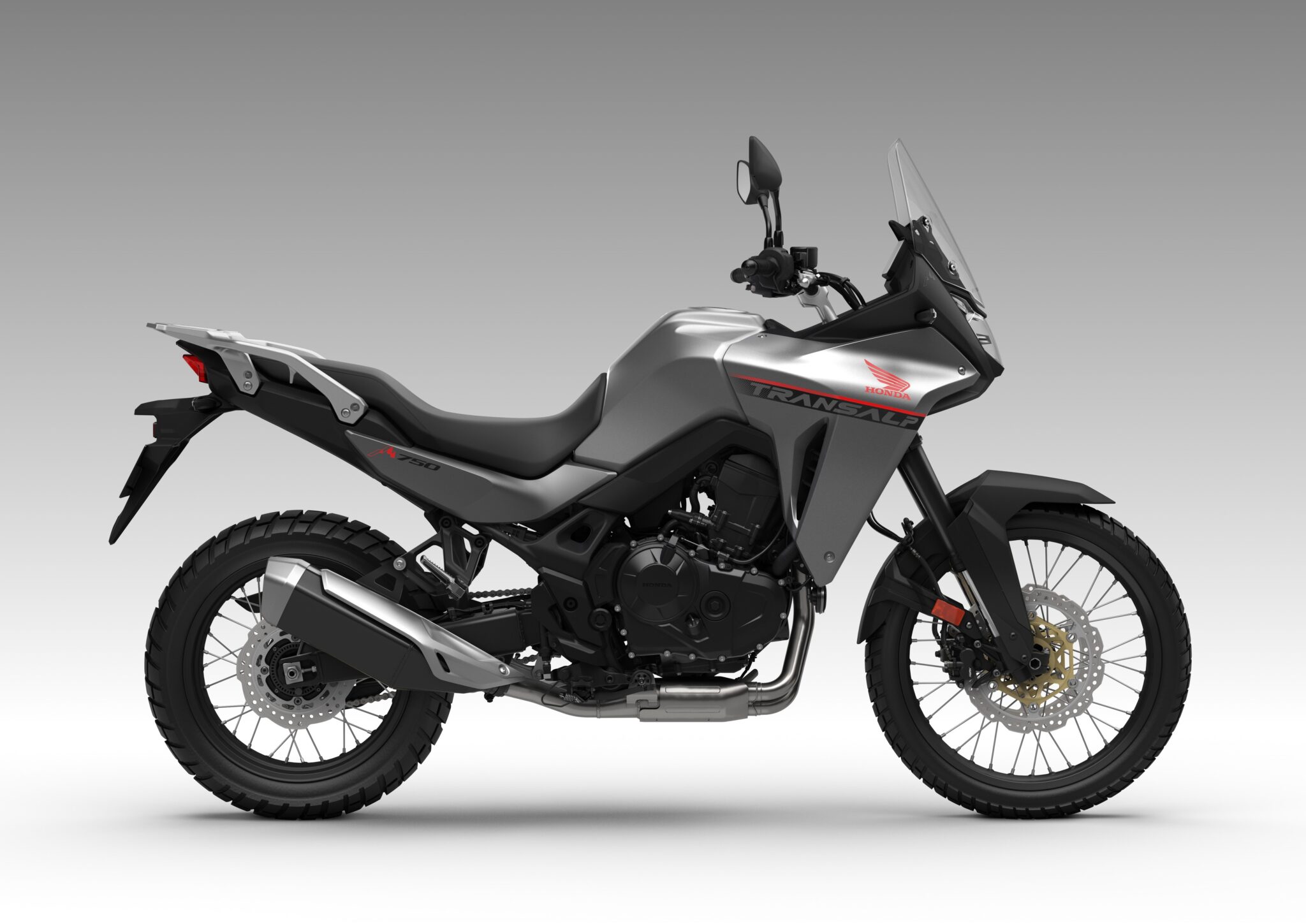

    1. Matte Iridium Gray Metallic

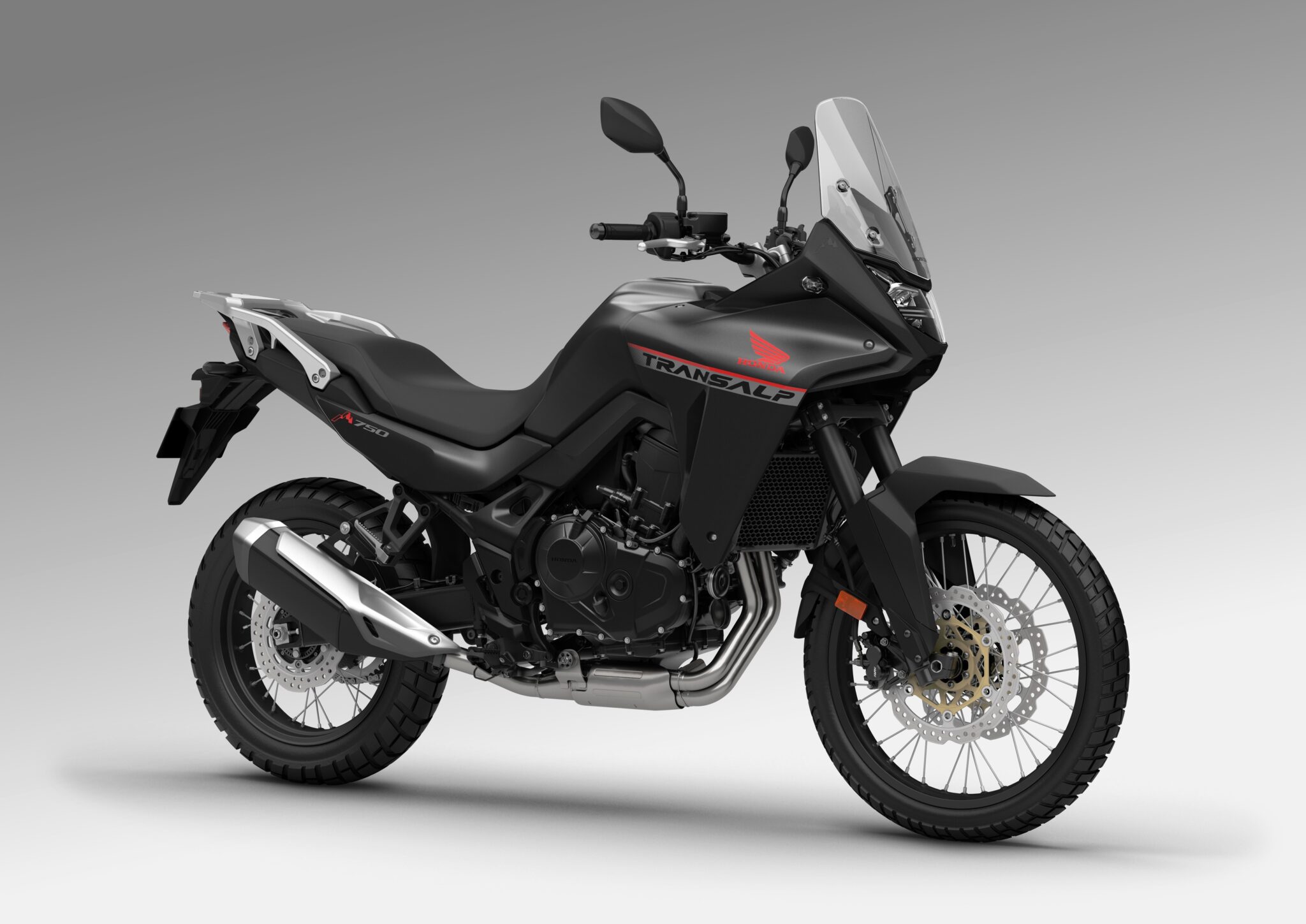

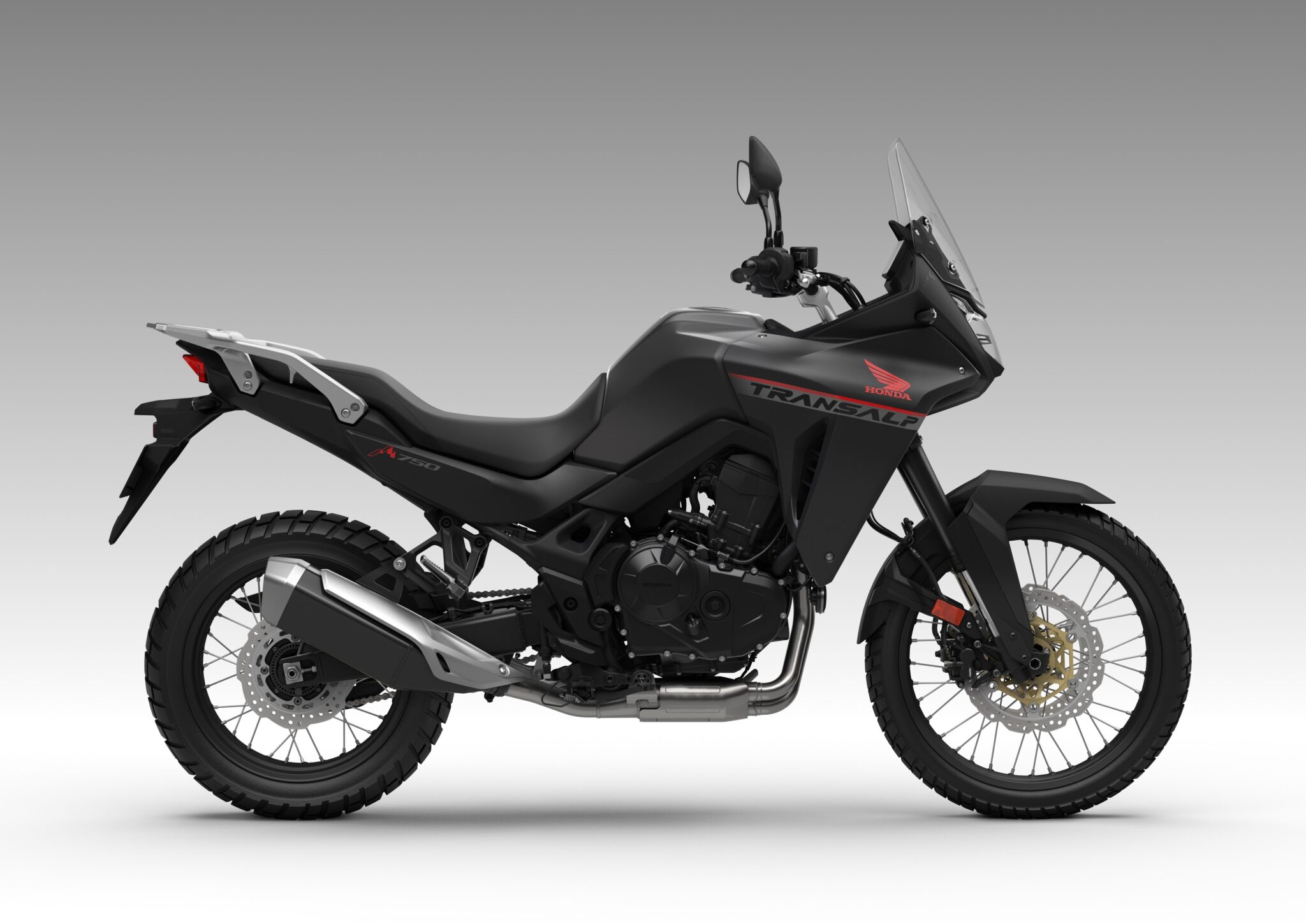

    2. Mat Ballistic Black Metallic

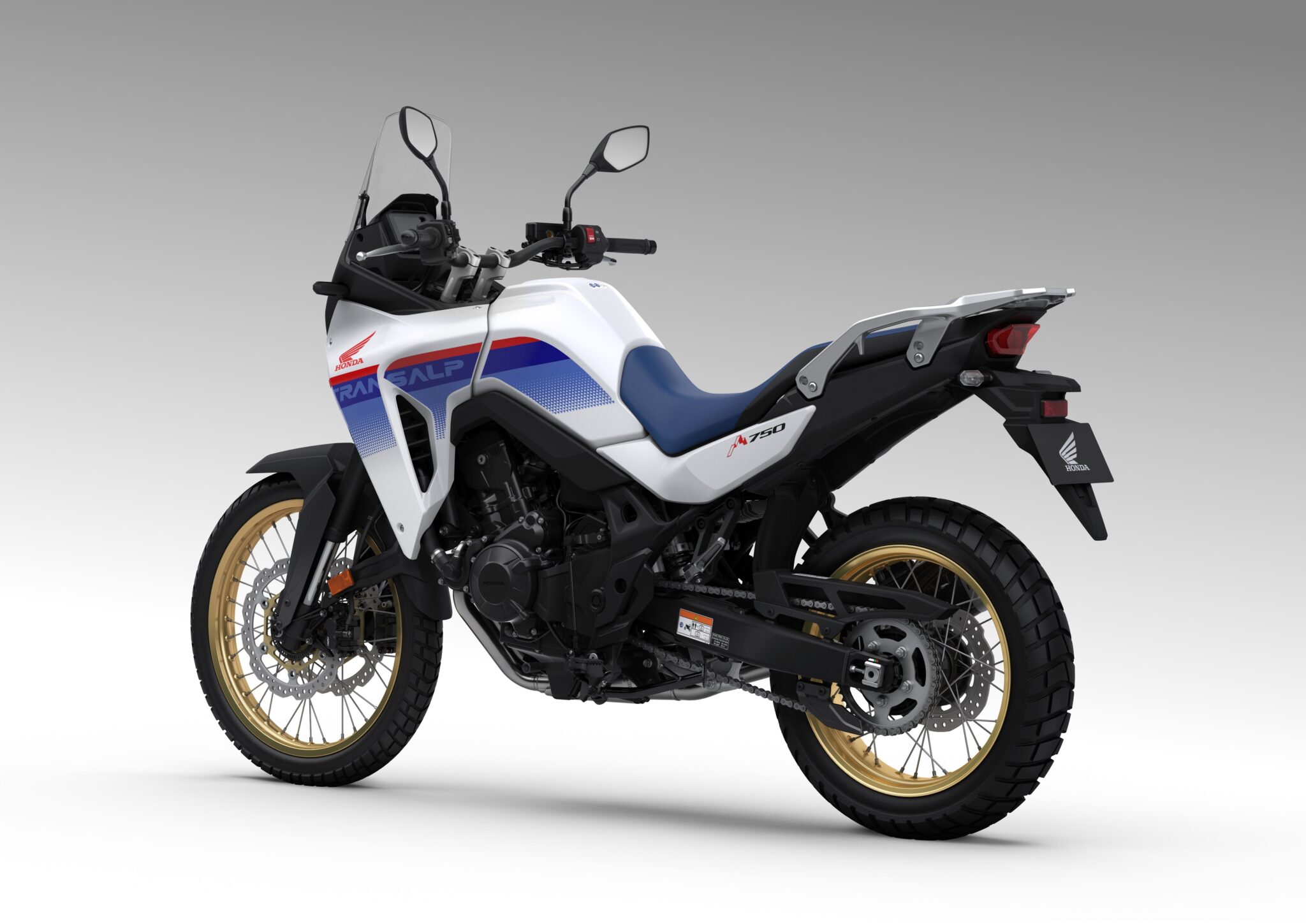

    3. Ross White Tricolour



    Styling & Equipment

    • Fairing and bodywork balance aerodynamic wind protection, on-road comfort and off-road ability

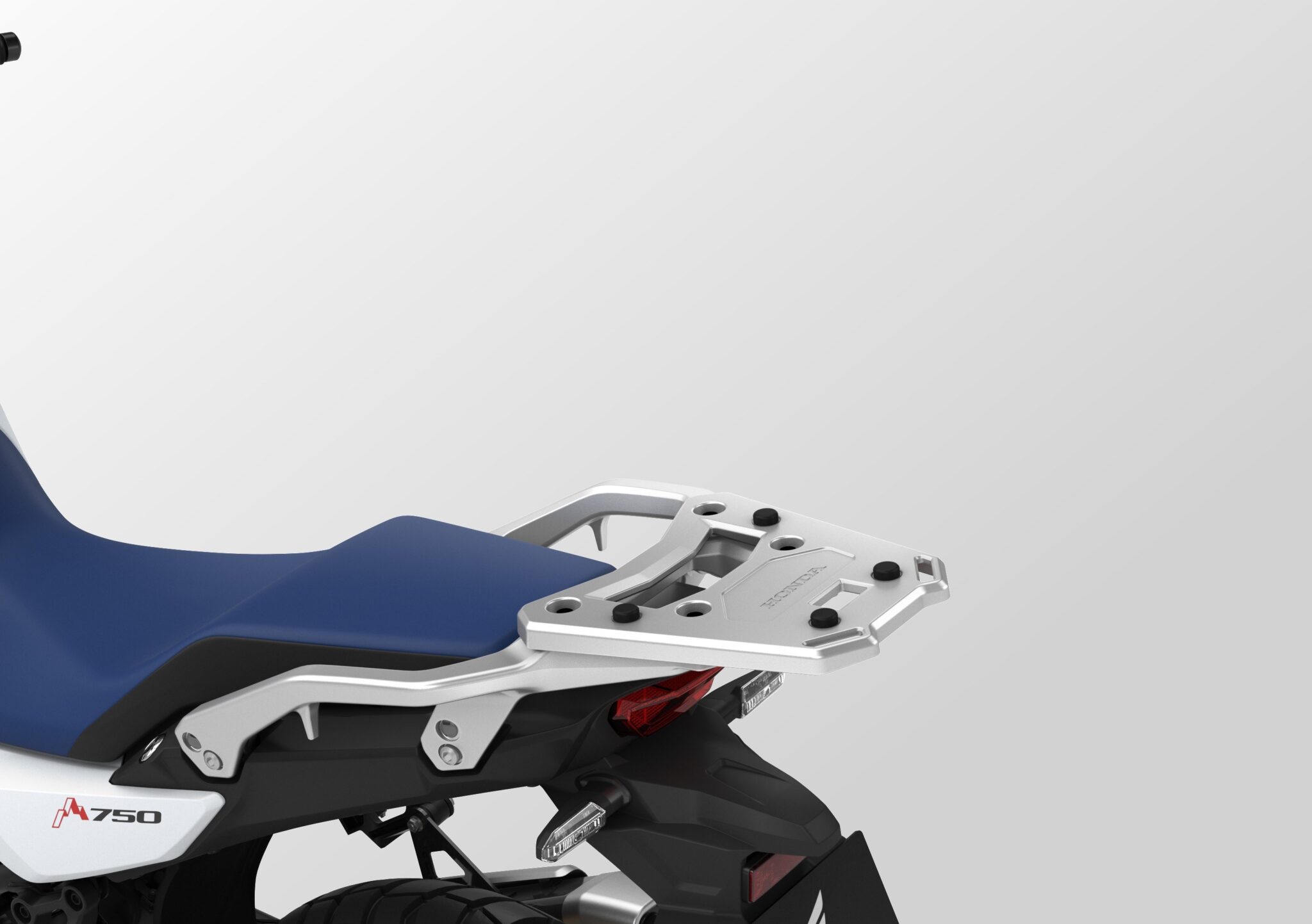

    • Practicality from 850mm seat height, USB socket and rear carrier

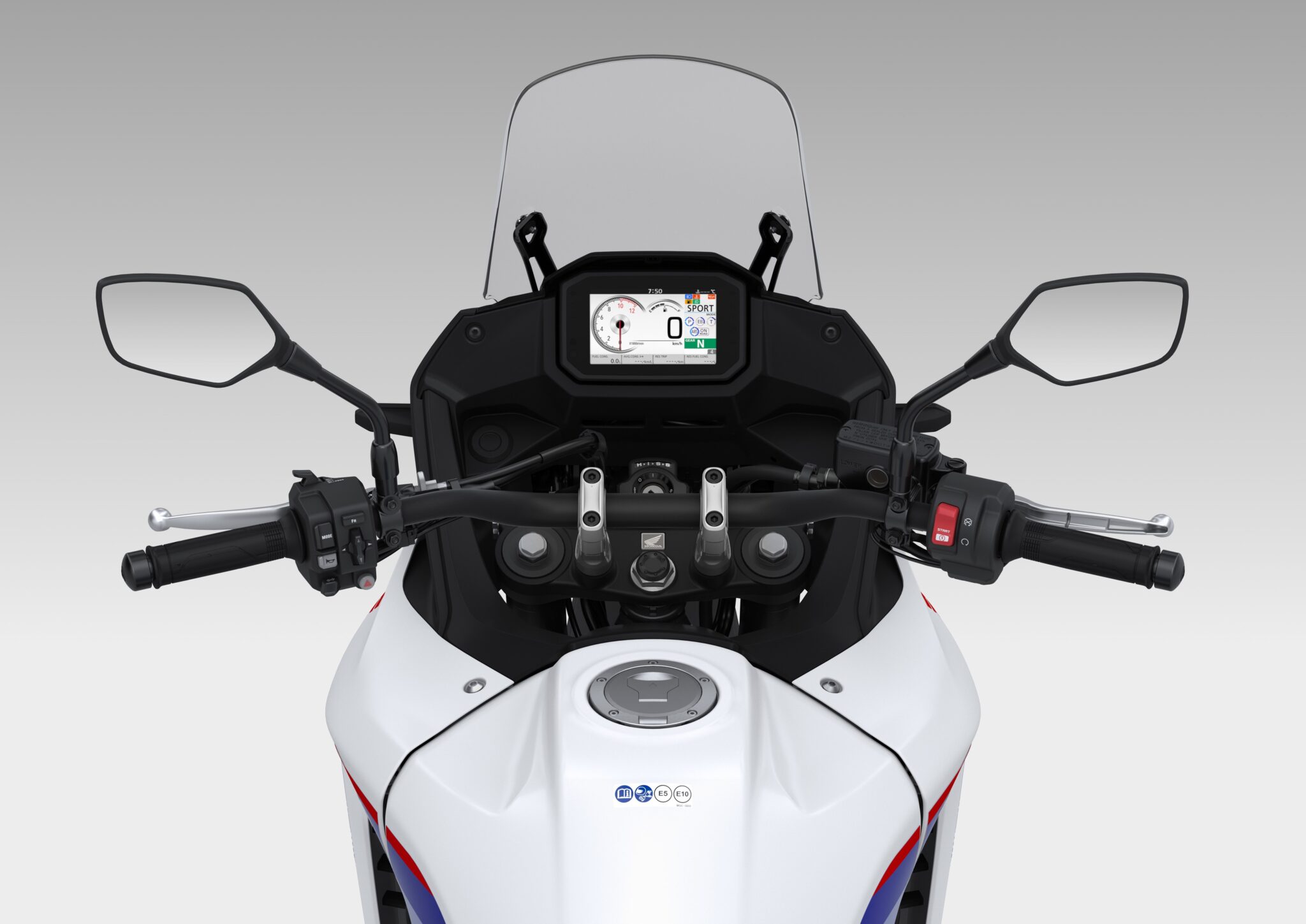

    • Premium feel of a 5-inch full colour TFT screen with Honda Smartphone Voice Control system (HSVCs)
    • Full LED lighting and Emergency Stop Signal (ESS) technology for the rear indicators



    Engine

    • 755cc, 8-valve Unicam parallel twin-cylinder engine with 270° crank
    • 5kW @ 9,500rpm, 75Nm torque @ 7,250rpm and 35kW A2 licence option
    • Transalp-specific TBW mapping for touring focus
    • Patented Vortex flow intake ducts and tuned exhaust note
    • Assist/slipper clutch



    Engine Electronics

    • Four default rider modes; SPORT, STANDARD, RAIN and GRAVEL
    • USER customisation option between all levels
    • Four levels of Engine Power and three of Engine Brake
    • Five stage Honda Selectable Torque Control with integrated Wheelie Control
    • Off-road ABS brake setting allows rear caliper to be switched off in USER mode



    Chassis

    • Lightweight 18.3kg steel diamond frame with integrated subframe
    • Showa 43mm SFF-CA USD forks and Pro-link rear shock; both spring preload adjustable
    • Two-piston front calipers/310mm wave discs; single piston caliper/256mm rear disc
    • 21/18-inch wheel combination wearing 90/90-21/150/70-18 front and rear tyres

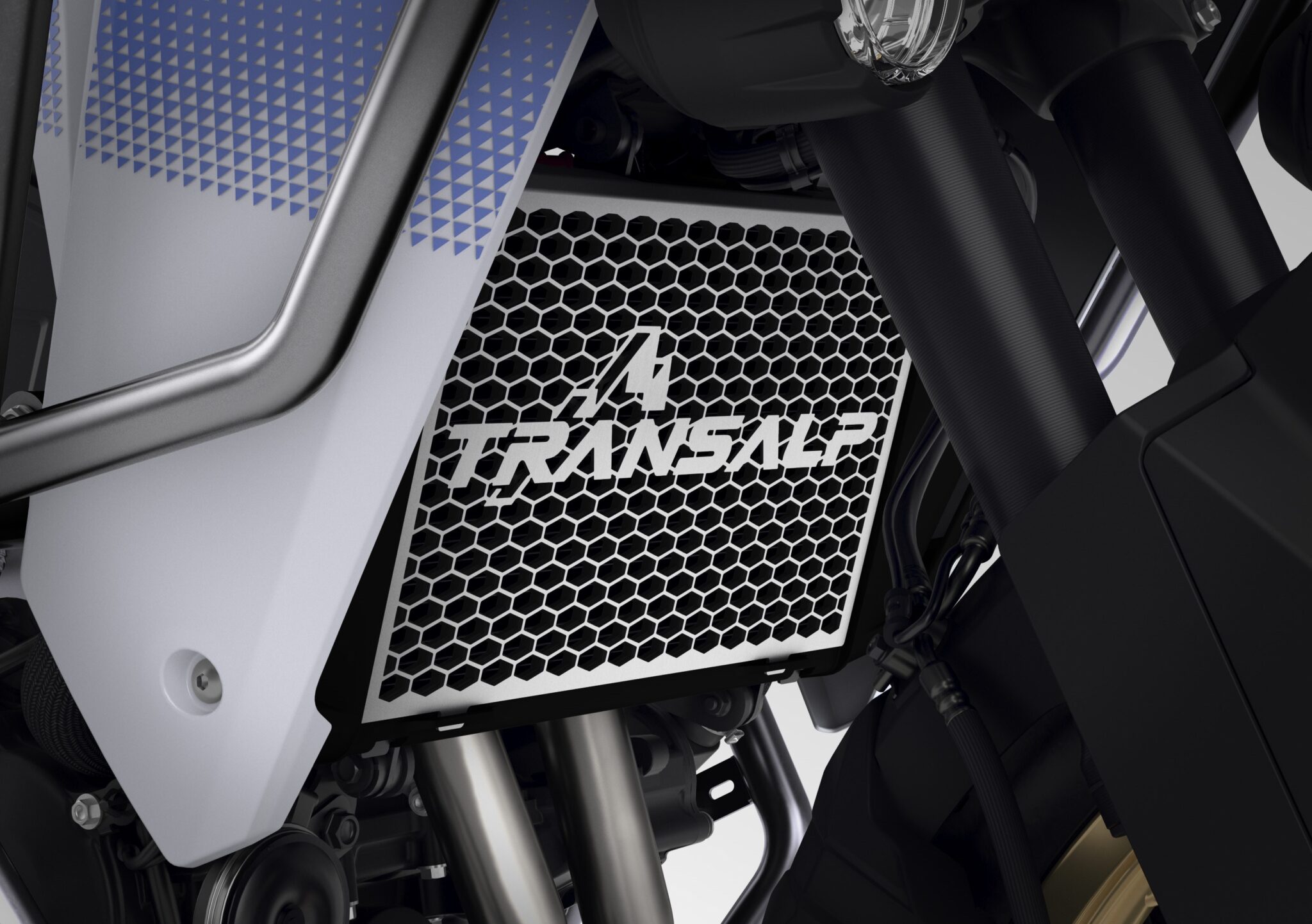

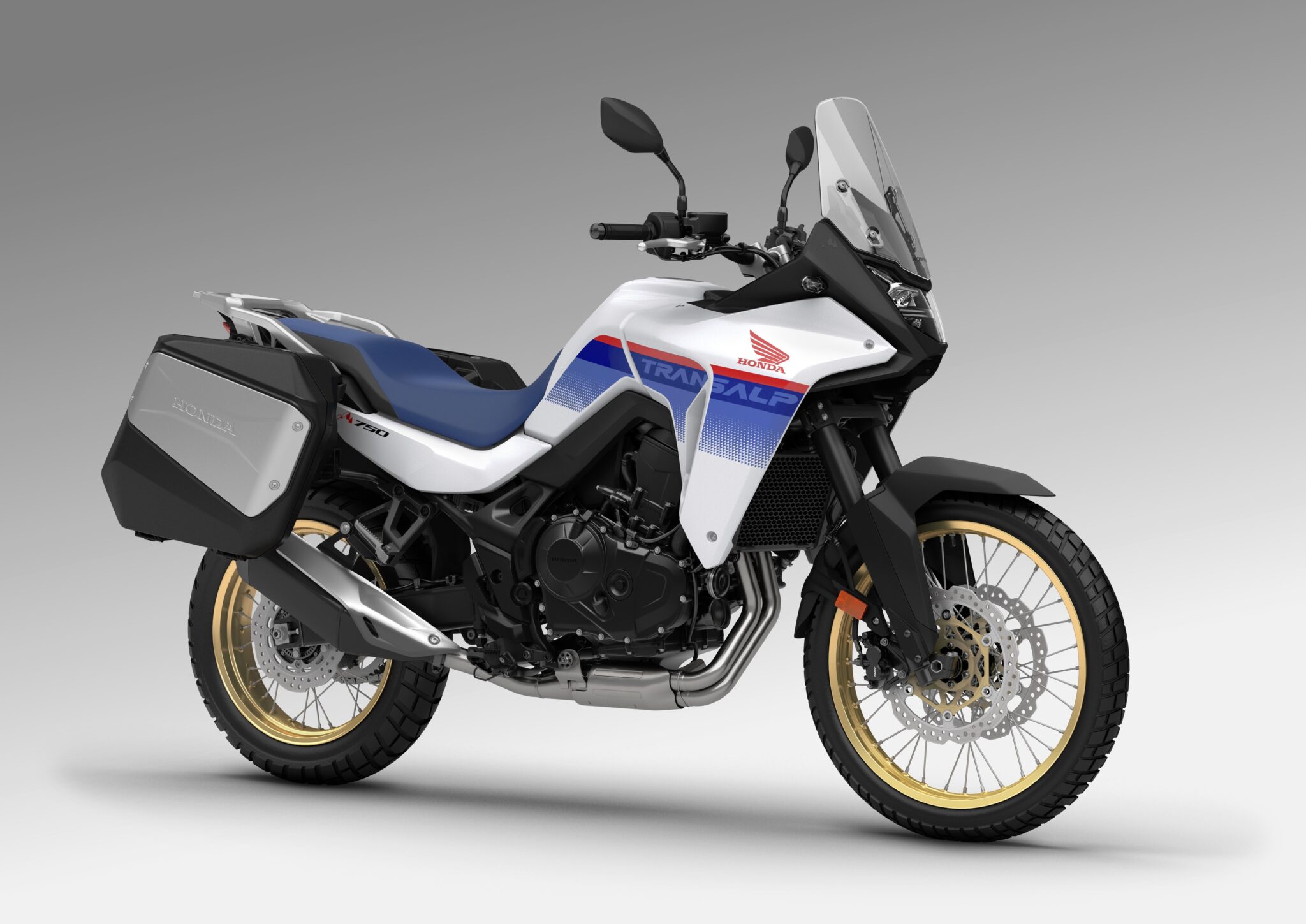

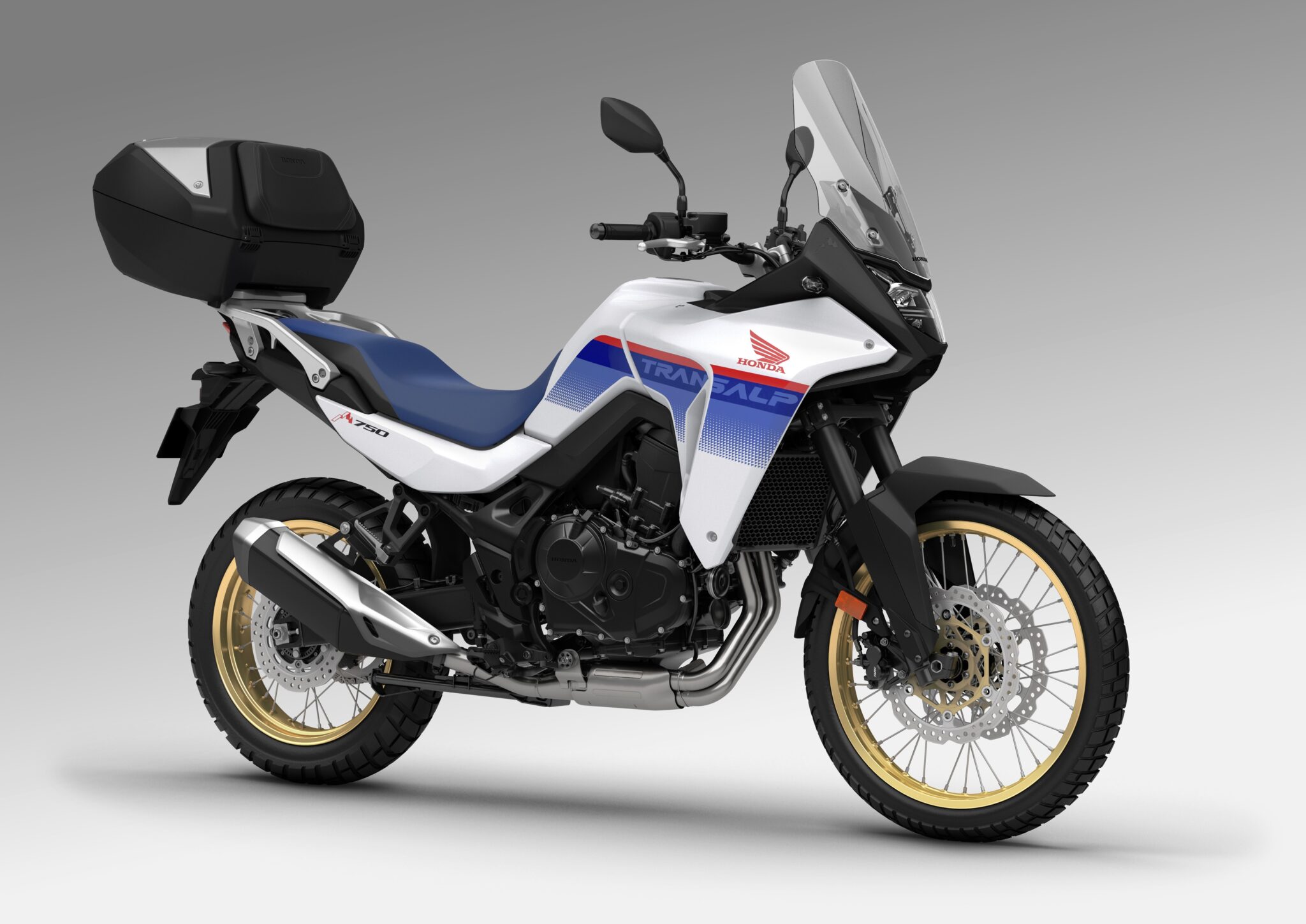

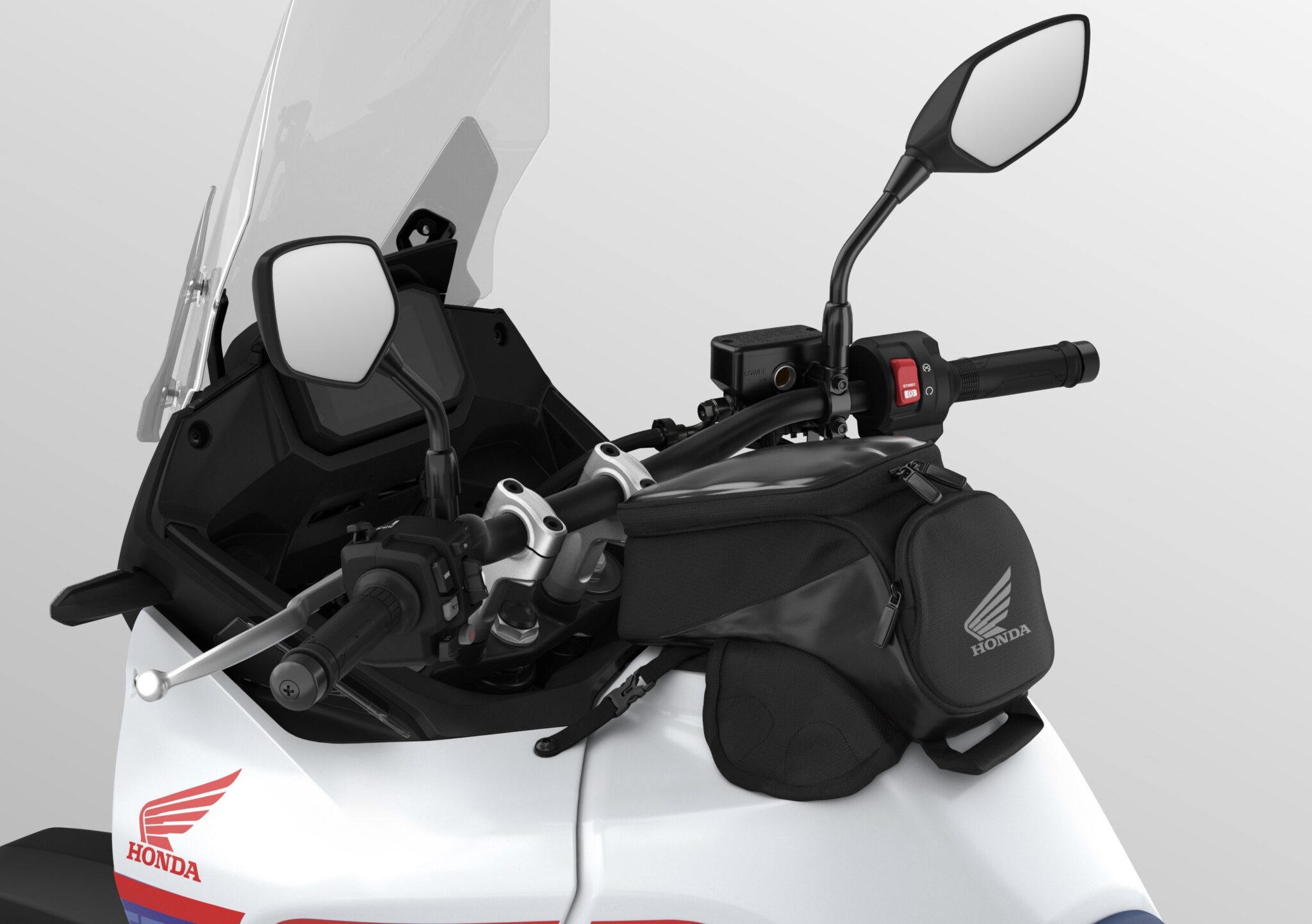

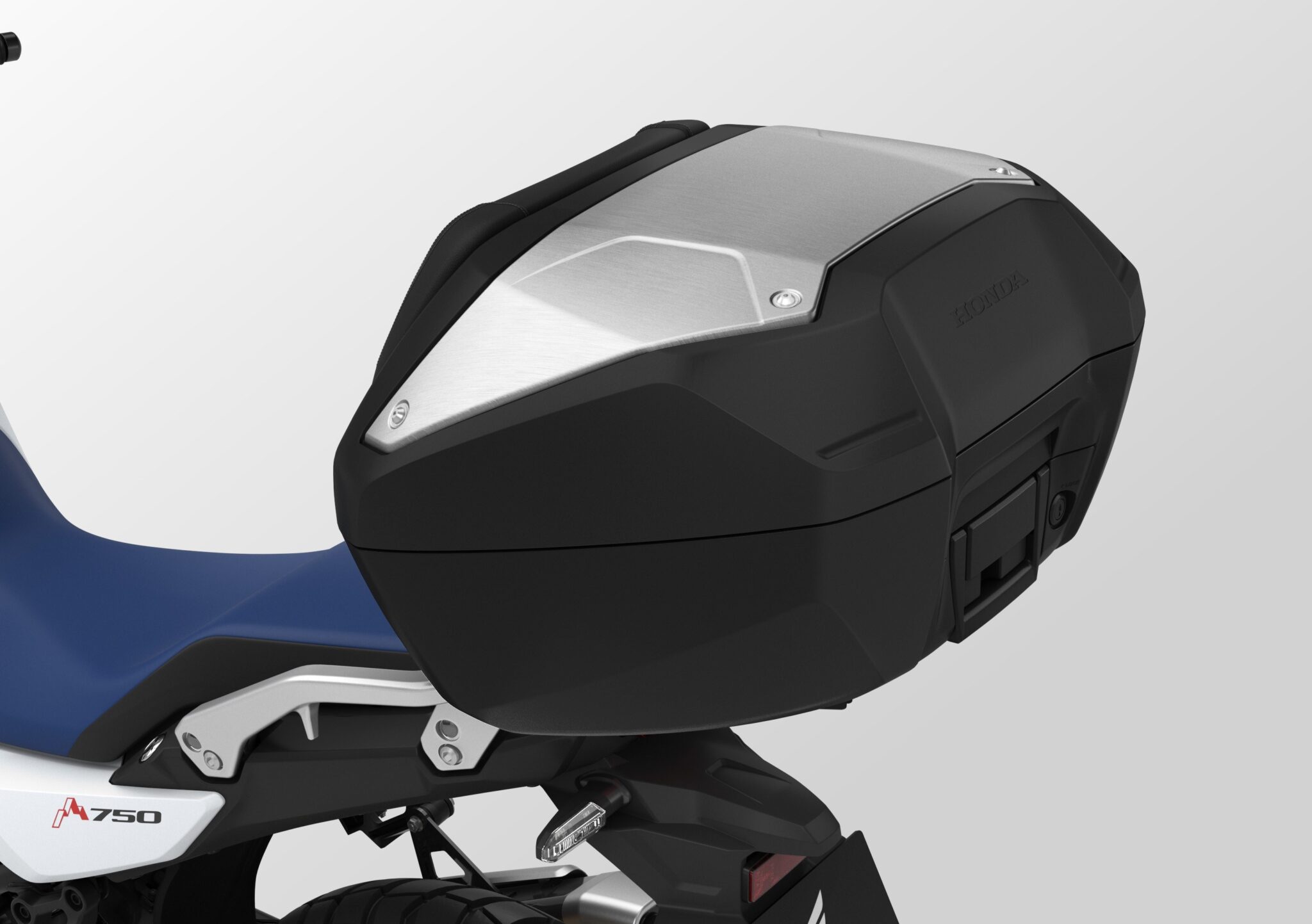

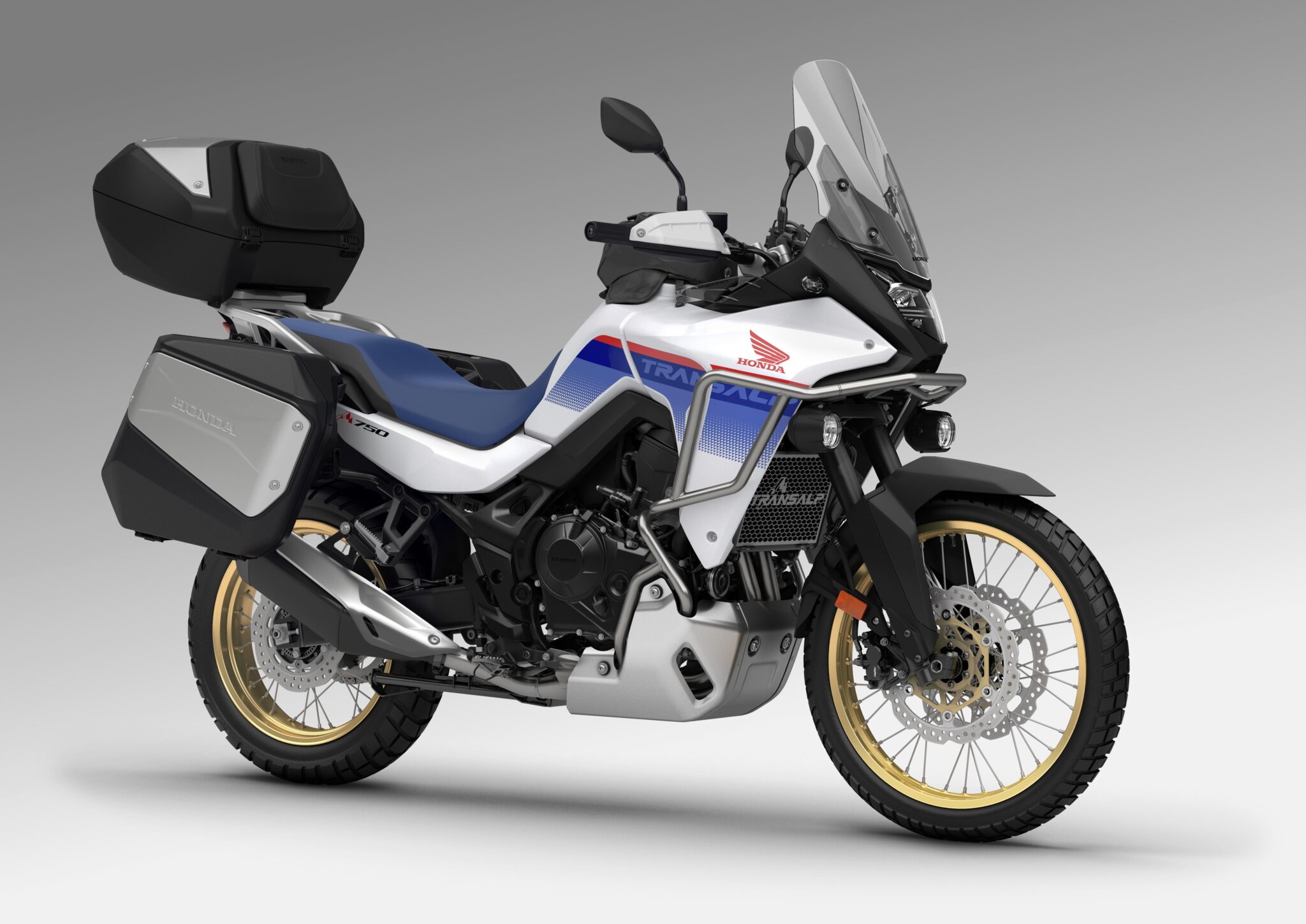

    Accessories

    A full range of accessories are available for the XL750 Transalp, ready for personalisation to an owner’s preference and use, including a quickshifter and low seat option.

    To make it easy there are 5 packs that group the accessories neatly together: URBAN PACK, TOURING PACK, ADVENTURE PACK, RALLY PACK and COMFORT PACK.

    Additional accessories include side tank pads and colour matched wheel stripes and all accessories are also available separately.



    Technical Specification



    ENGINE

    Engine Type

    Liquid-cooled OHC 4-stroke 8-valve parallel twin with 270° crank and Unicam

    Engine Displacement

    755cc

    Bore x Stroke (mm)

    87mm x 63.5mm

    Compression Ratio

    11.0:1

    Max. Power Output

    67.5kW @ 9,500rpm

    Max. Torque

    75Nm @ 7,250rpm

    Noise Level (dB)

     Lwot – 79.4; Lurban – 75

    Oil Capacity

     3.9L

    Starter

    Electric

    FUEL SYSTEM

    Carburation

    PGM-FI electronic injection

    Fuel Tank Capacity

    16.9L

    CO2 Emissions WMTC

    103g/km

    Fuel Consumption

    23km/l (4.4 l/100km)

    ELECTRICAL SYSTEM

    Battery Capacity

    12v 8.6Ah

    DRIVETRAIN

    Clutch Type

    Wet multiple, assist slipper clutch

    Transmission Type

    6 speed Manual Transmission

    Final Drive

    Chain

    FRAME

    Frame Type

    Steel diamond

    CHASSIS

    Dimensions (L´W´H)

    2,325mm x 838mm x 1,450mm

    Wheelbase

    1560mm

    Caster Angle

    27°

    Trail

    111mm

    Seat Height

    850mm

    Ground Clearance

    210mm

    Kerb Weight

    208kg

    Turning radius

    2.6m

    SUSPENSION

    Suspension Front

    Showa 43mm SFF-CA USD – 200mm travel

    Suspension Rear

    Monoshock damper, Pro-Link swingarm, 190mm travel

    WHEELS

    Wheels Front

    21in (stainless steel) spoked wheels

    Wheels Rear

    18in (stainless steel) spoked wheels

    Tyres Front

    90/90-R21 M/C 54H

    Tyres Rear

    150/70-R18 M/C 70H

    BRAKES

    ABS Type

    2 channel

    Brakes Front

    Dual 310mm x 4.5mm ‘wave’ discs with axial mounted

    2 piston calipers

    Brakes Rear

    Single 256mm x 6.0mm ‘wave’ disc is operated by a single-piston caliper

    INSTRUMENTS & ELECTRICS

    Instruments

    TFT

    Headlight

    LED

    Taillight

    LED

    Connectivity

    Honda Smartphone Voice Control

    USB

    Type C (under the pillion seat)

    12V Socket

    Optional

    Auto Winker Cancel

    Yes

    Quickshifter

    Optional

    Security System

    HISS



    ** Please note that the figures provided are results obtained by Honda under standardised testing conditions prescribed by WMTC. Tests are conducted on a rolling road using a standard version of the vehicle with only one rider and no additional optional equipment. Actual fuel consumption may vary depending on how you ride, how you maintain your vehicle, weather, road conditions, tire pressure, installation of accessories, cargo, rider and passenger weight, and other factors.

    Additional information

    Colour Options

    Ross White Tricolour, Mat Ballistic Black Metallic, Matte Iridium Gray Metallic
