Model Overview
The parallel twin-cylinder engine blends strong low-to mid-range performance with easy manners and excellent fuel efficiency. Peak power is set at 43.1kW with an impressive 69Nm torque. Throttle By Wire (TBW) serves 4 default rider modes plus a custom USER choice, while Honda Selectable Torque Control (HSTC) features refined input over 3 levels. The Dual Clutch Transmission (DCT) has Automatic shifting schedules that integrate with the riding modes, as well as USER input.
A tough chassis comprises of a tubular steel frame, 41mm USD front forks, rear monoshock (with Pro-Link) and aluminium swingarm. A 17-inch front wheel is matched to a 15-inch rear with dual, radial-mount four-piston calipers braking up front.
The bodywork has a sharp, aggressive edge; dual LED headlights also feature Daytime Running Lights (DRL), as used by the CRF1100L Africa Twin, improving visibility to other road users. For easy ground reach the seat is carefully contoured at the shoulders. The under-seat storage has a 22L volume and also houses a USB charging point; there’s also a useful glovebox. The TFT instrument display features Honda Smartphone Voice Control system.
The 23YM X-ADV will be available in the following colour options:

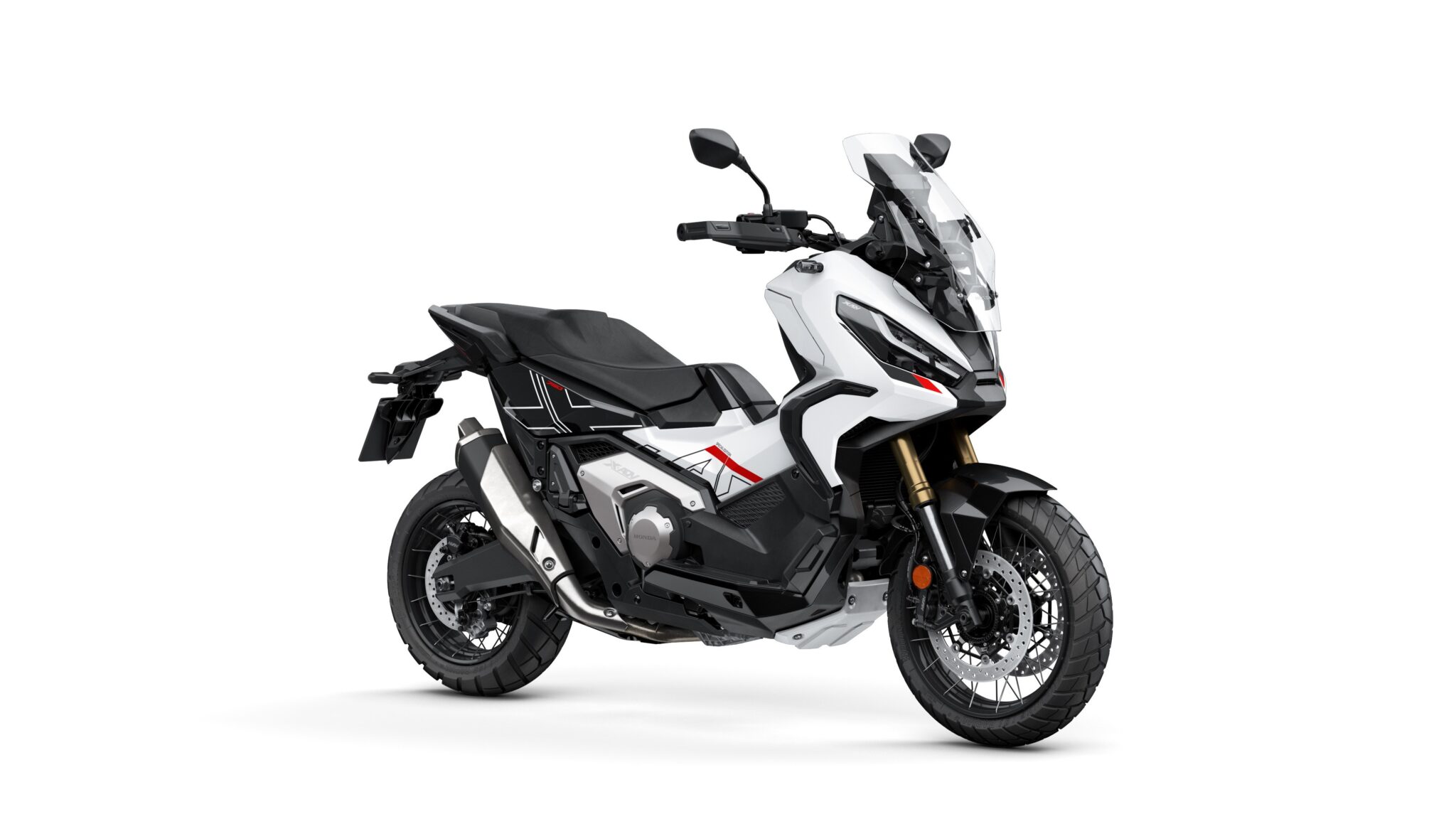

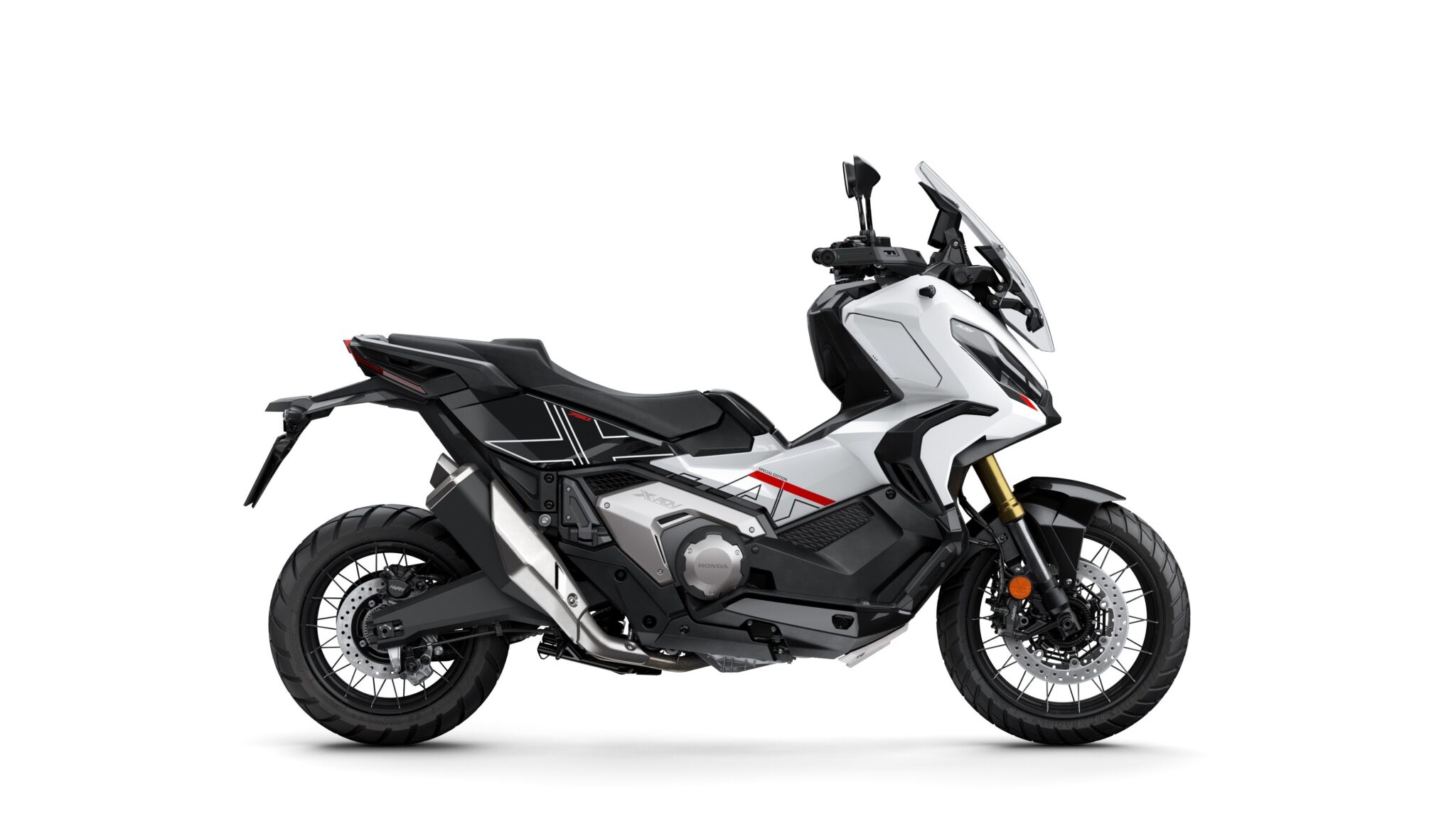

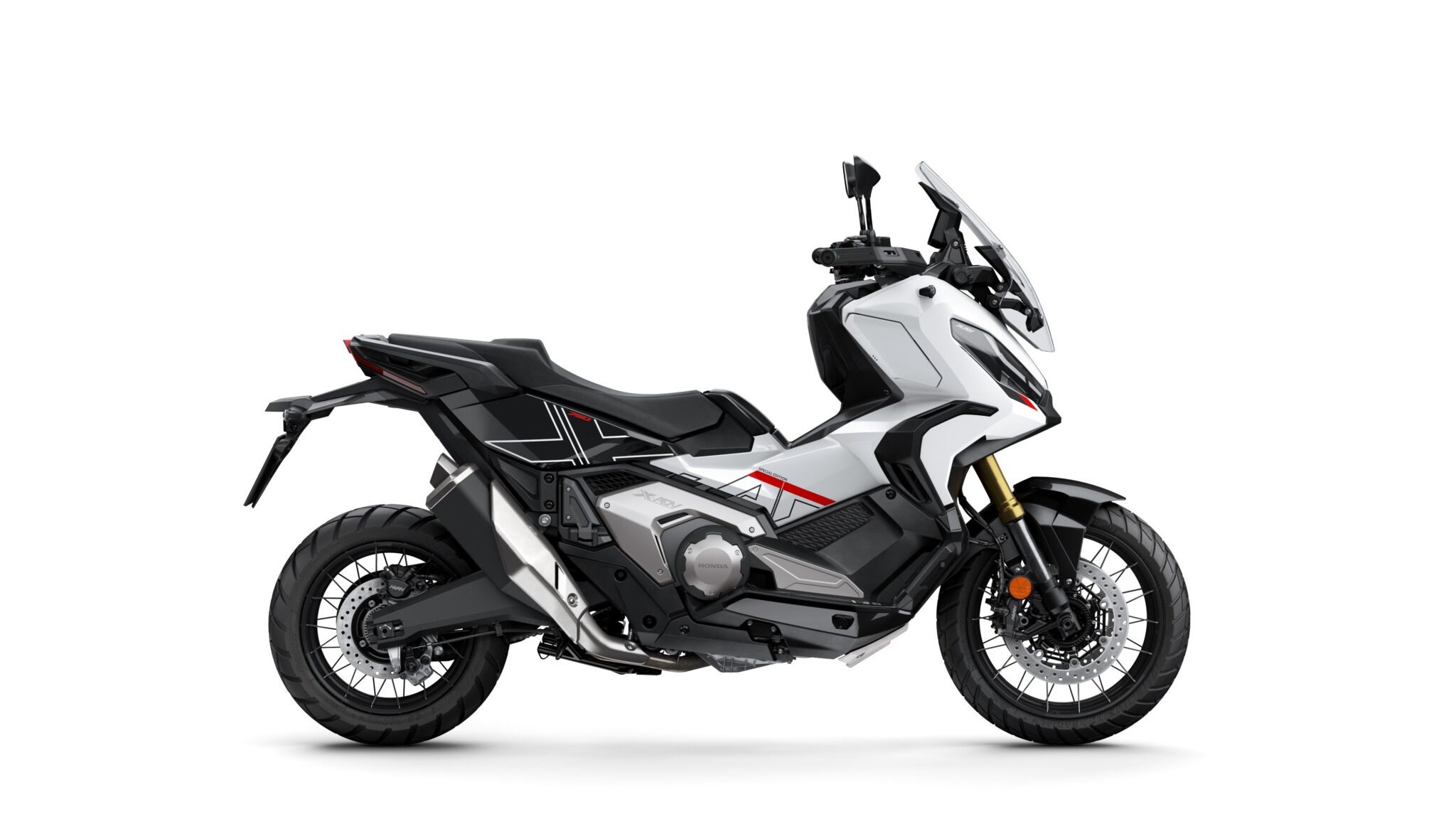

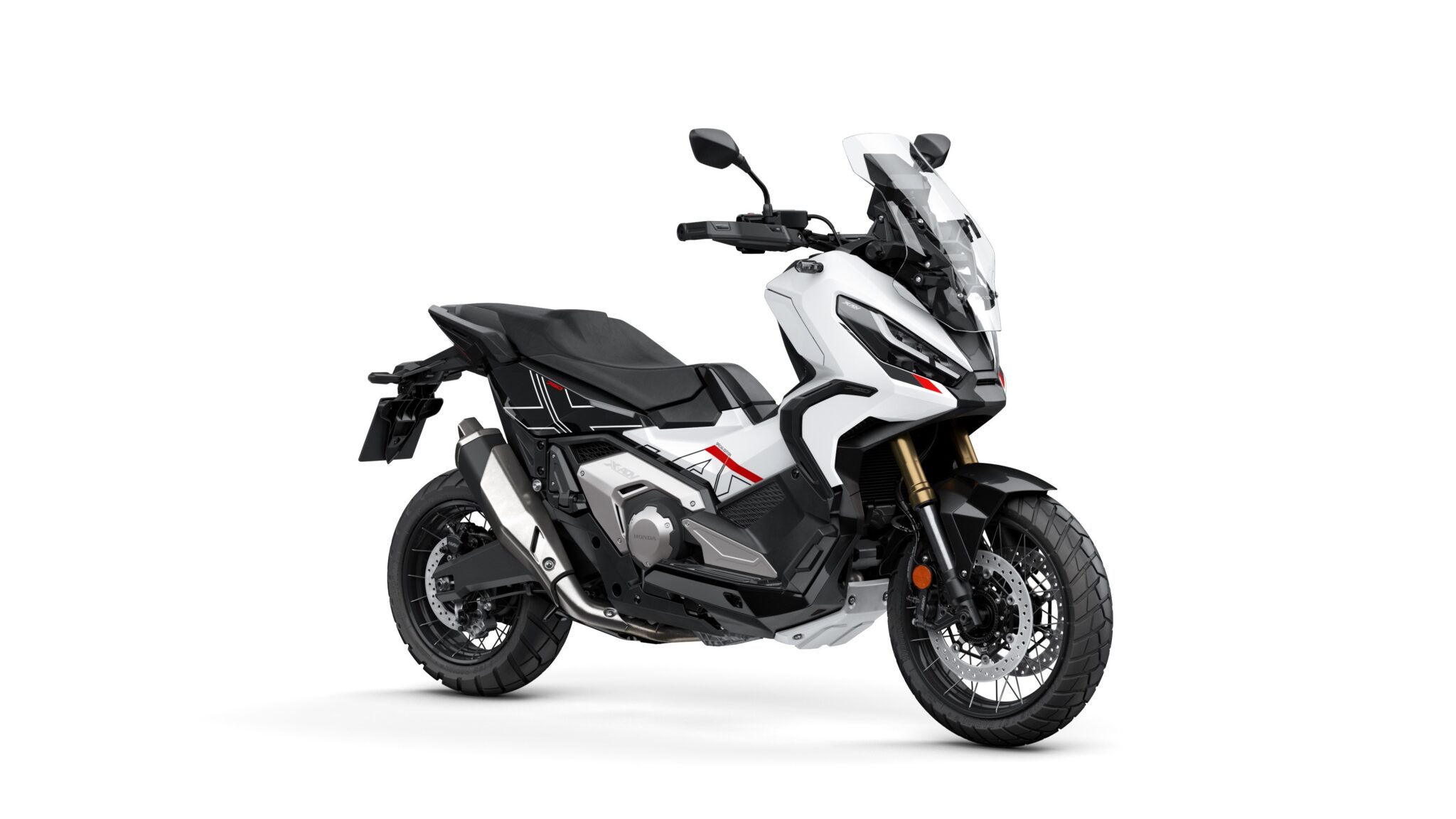

- **NEW** Shasta White with Graphite Black Trim

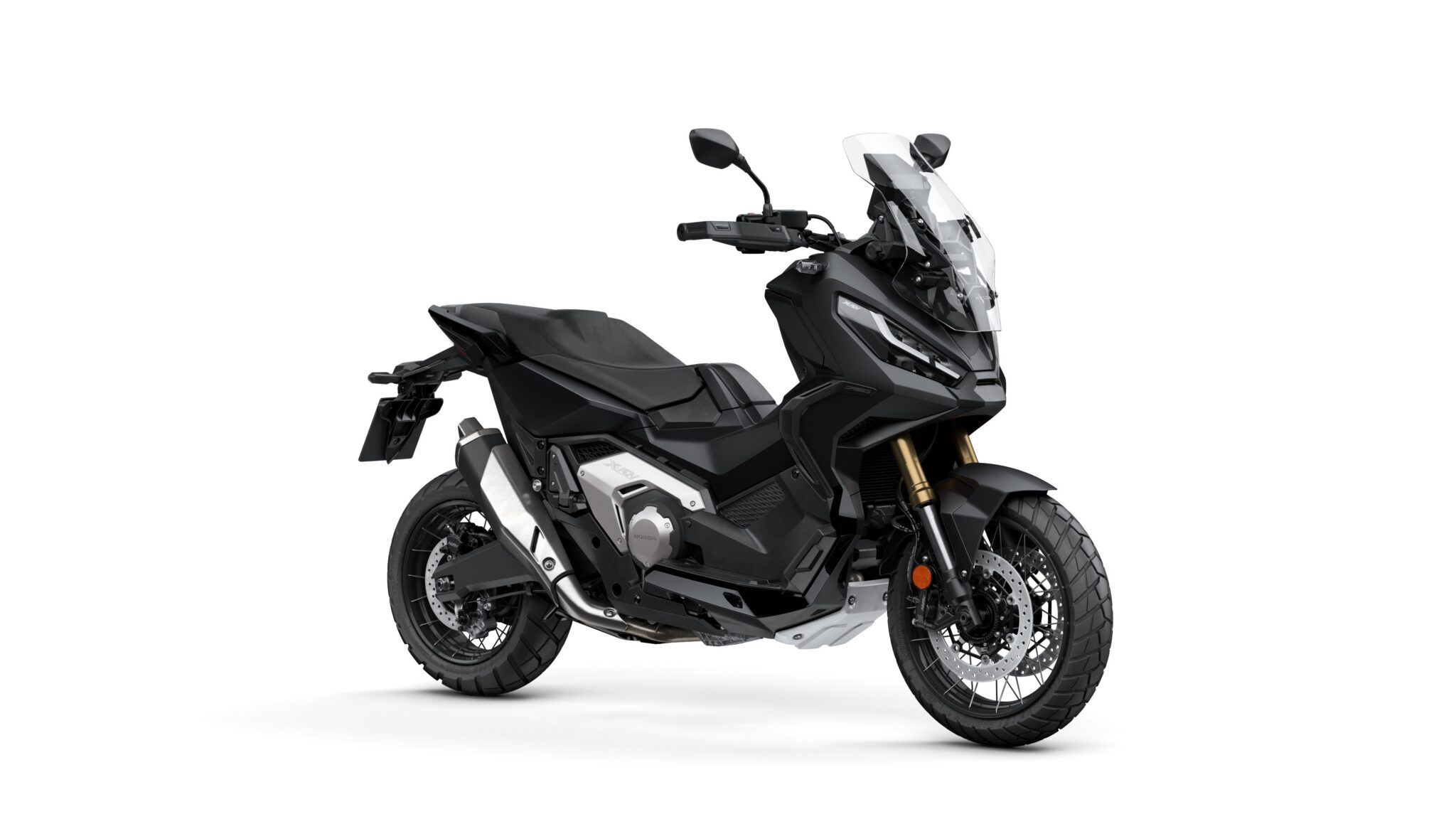

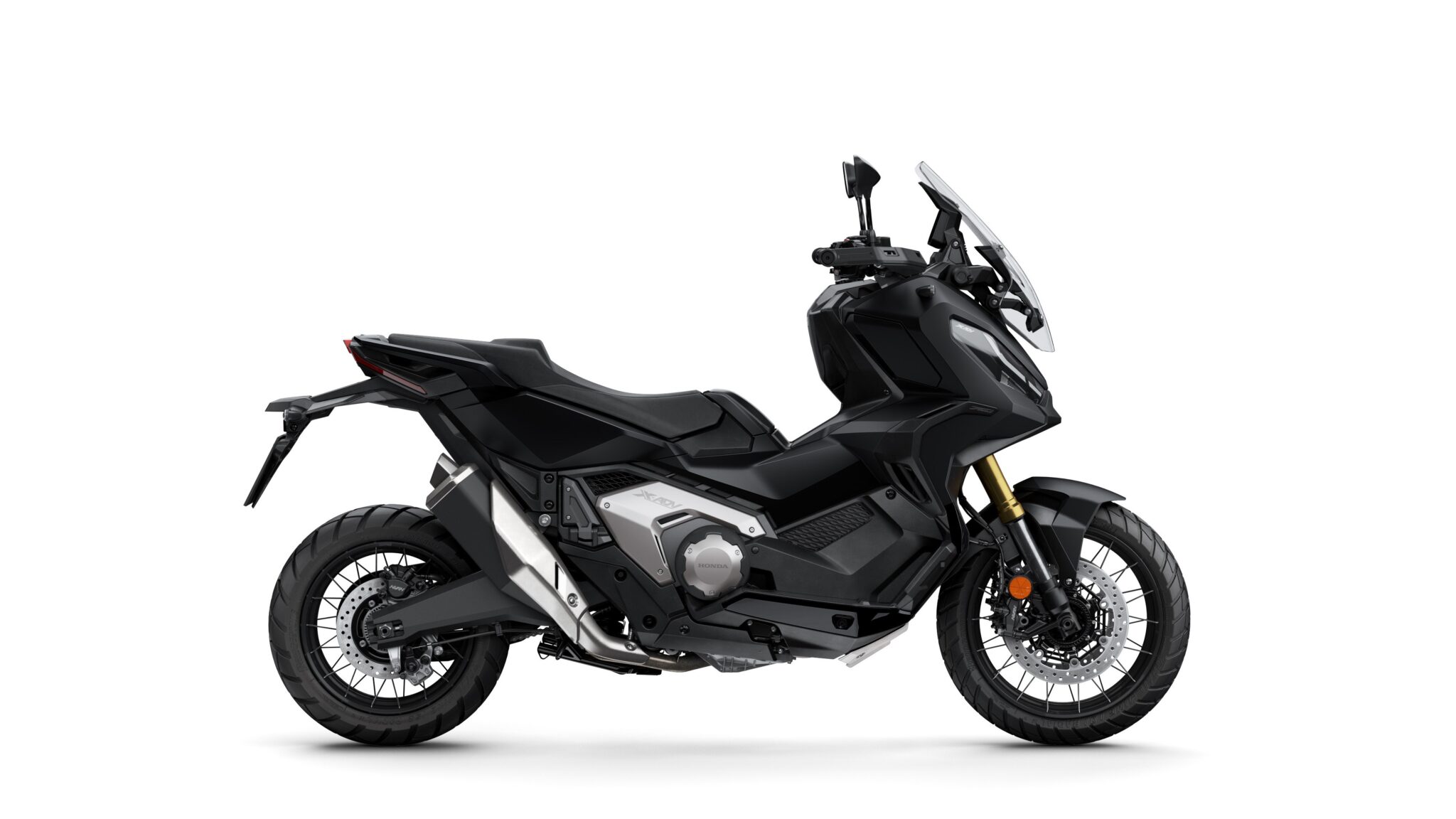

- Mat Ballistic Black Metallic with new Graphite Black trim

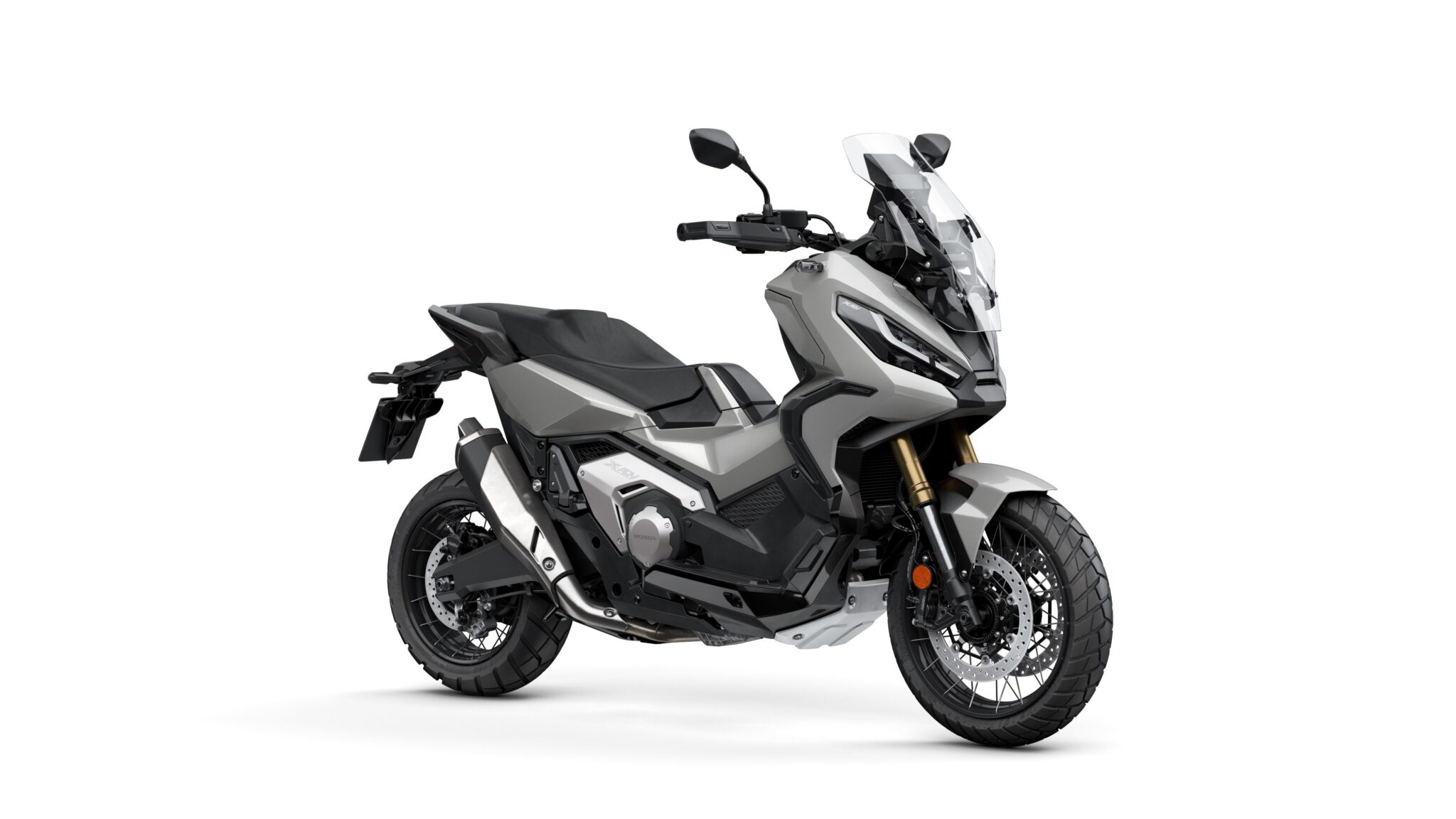

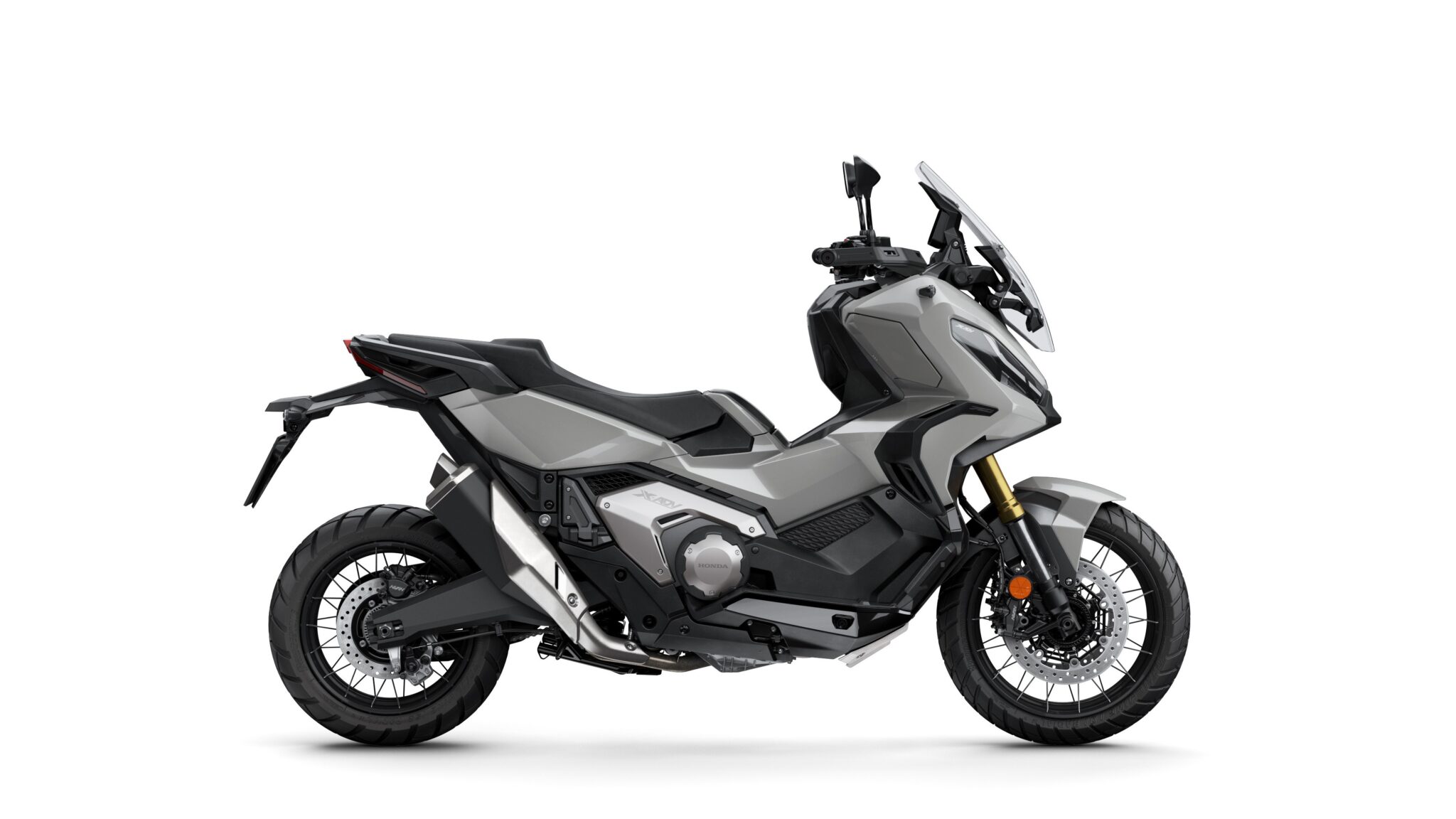

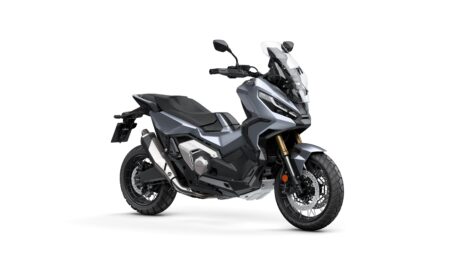

- Mat Iridium Gray Metallic with new Graphite Black trim

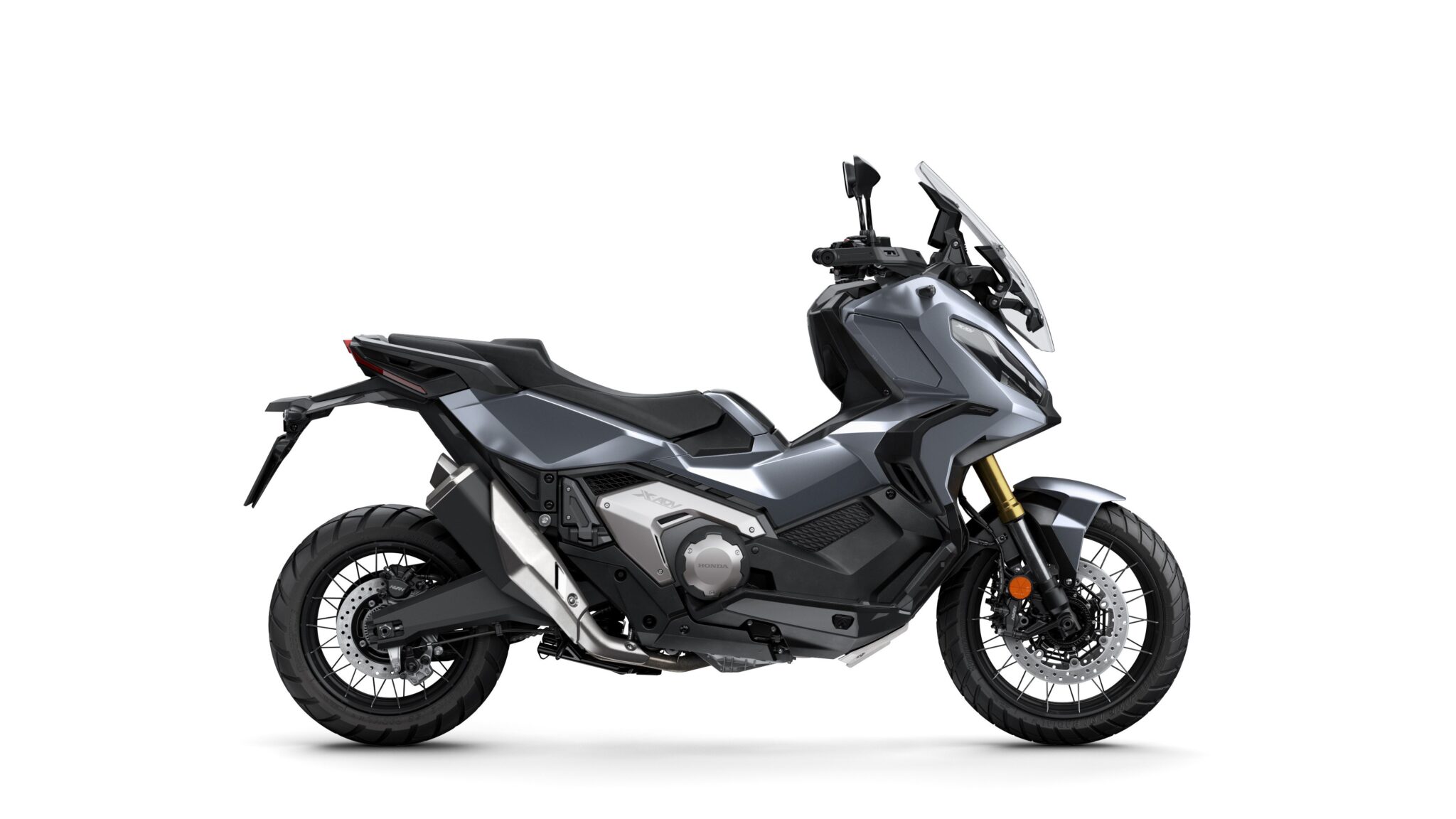

- Pearl Deep Mud Gray with new Graphite Black trim
Engine
- Throttle By Wire control; peak power figure of 43.1kW with 69Nm torque
- EURO5 compliant, with 3.6l/100km fuel efficiency
- 35kW A2 licence version available
Engine Electronics
- Throttle By Wire delivers 4 default riding modes, plus USER customisation
- Honda Selectable Torque Control features 3 levels of intervention
Dual Clutch Transmission (DCT)
- Differing shifting schedules link with riding modes
- USER mode allows choice of 4 settings, from smooth to aggressive
Styling & Equipment
- Sharp, slim and aggressive SUV styling
- Honda Smartphone Voice Control System offers smartphone link through 5-inch TFT display
- Twin LED headlights include Daytime Running Lights
- Large 22L storage space includes a glovebox, and houses a USB charger
Chassis
- Lightweight tubular steel diamond frame
- 41mm cartridge-style USD fork and Pro-Link swingarm
- Radial mount four-piston front brake calipers, 296mm discs and ABS
- 120/70 R17 and 160/60 R15 front and rear tyres
Accessories
A full range of Honda Genuine Accessories are available for the X-ADV either individually or in packs for convenience. These include: Adventure Pack, Style Pack, and Travel Pack
Additional accessories are also available and include:
- 50L Manual top box
- 38L Top box
Technical Specifications
|
ENGINE |
|
|
Type |
Liquid-cooled 4-stroke 8-valve, SOHC parallel 2-cylinder. EURO5 compliant. |
|
Displacement |
745cc |
|
Bore & Stroke |
77mm x 80mm |
|
Compression Ratio |
10.7 : 1 |
|
Max. Power Output |
43.1kW @ 6,750rpm |
|
Max. Torque |
69Nm @ 4,750rpm |
|
Oil Capacity |
4.0L |
|
Noise Level (dB) |
L-wot – 77 L-urban – 72 |
|
FUEL SYSTEM |
|
|
Carburation |
PGM-FI electronic fuel injection |
|
Fuel Tank Capacity |
13.2 litres |
|
Fuel Consumption |
3.6L/100km |
|
ELECTRICAL SYSTEM |
|
|
Starter |
Electric |
|
Battery Capacity |
12V/11AH |
|
DRIVETRAIN |
|
|
Clutch Type |
Wet multiplate hydraulic 2-clutch |
|
Transmission Type |
6-speed Dual Clutch Transmission |
|
Final Drive |
Chain |
|
FRAME |
|
|
Type |
Diamond; steel pipe |
|
CHASSIS |
|
|
Dimensions (L´W´H) |
2215mm x 940mm x 1370mm |
|
Wheelbase |
1590mm |
|
Caster Angle |
27° |
|
Trail |
104mm |
|
Seat Height |
820mm |
|
Ground Clearance |
165mm |
|
Kerb Weight |
236kg |
|
SUSPENSION |
|
|
Type Front |
41mm USD,153.5mm fork stroke (137mm axle travel) |
|
Type Rear |
Monoshock damper, Pro-Link swingarm, 150mm axle travel (53mm cushion stroke) |
|
WHEELS |
|
|
Type Front |
Spoke wheel |
|
Type Rear |
Spoke wheel |
|
Rim Size Front |
17M/C x MT3.50 |
|
Rim Size Rear |
15M/C x MT4.50 |
|
Tyres Front |
120/70-R17M/C |
|
Tyres Rear |
160/60-R15M/C |
|
BRAKES |
|
|
ABS System Type |
2-channel |
|
Type Front |
296mm dual discs with 4-piston calipers |
|
Type Rear |
240mm single disc with single-piston caliper |
|
INSTRUMENTS & ELECTRICS |
|
|
Instruments |
5 inch colour TFT Meter |
|
Security System |
Smart key system |
|
Headlight |
LED DRL |
|
Taillight |
LED |
All specifications are provisional and subject to change without notice.
# Please note that the figures provided are results obtained by Honda under standardised testing conditions prescribed by WMTC. Tests are conducted on a rolling road using a standard version of the vehicle with only one rider and no additional optional equipment. Actual fuel consumption may vary depending on how you ride, how you maintain your vehicle, weather, road conditions, tire pressure, installation of accessories, cargo, rider and passenger weight, and other factors.
