Model Overview
The SH350i’s eSP+ engine makes peak power of 21.5Kw and is strong all the way through the rev-range, delivering the fast acceleration for which it is justifiably famous.
Sleek styling highlights the SH formula of compact, usable practicality – easy to both ride and park. It also wraps a lightweight mainframe; 16-inch wheels roll smoothly. A USB Type-C socket can be found under the seat, and the dash is LCD.

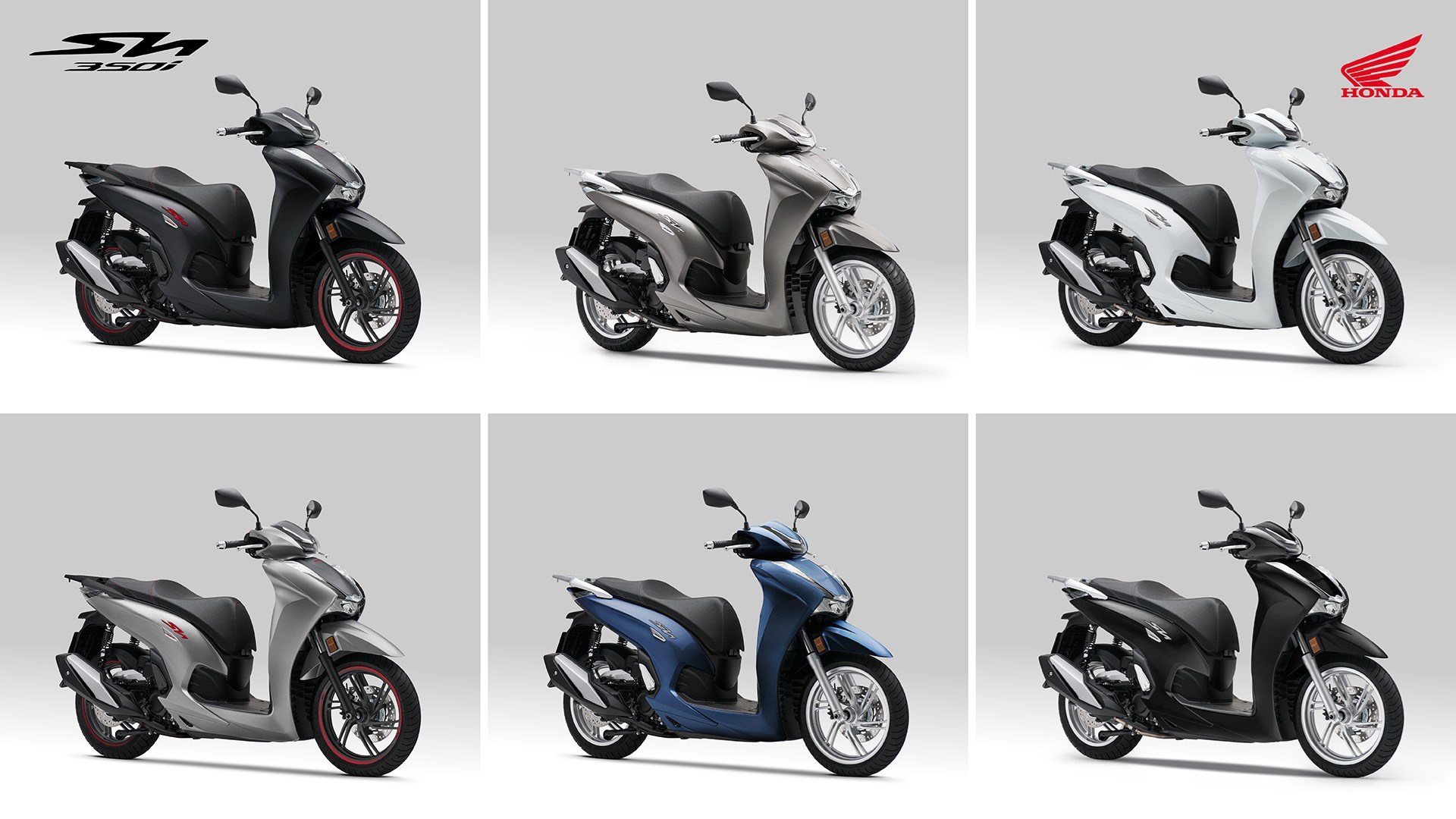

For 23YM the SH350i will be available in the following colour options:

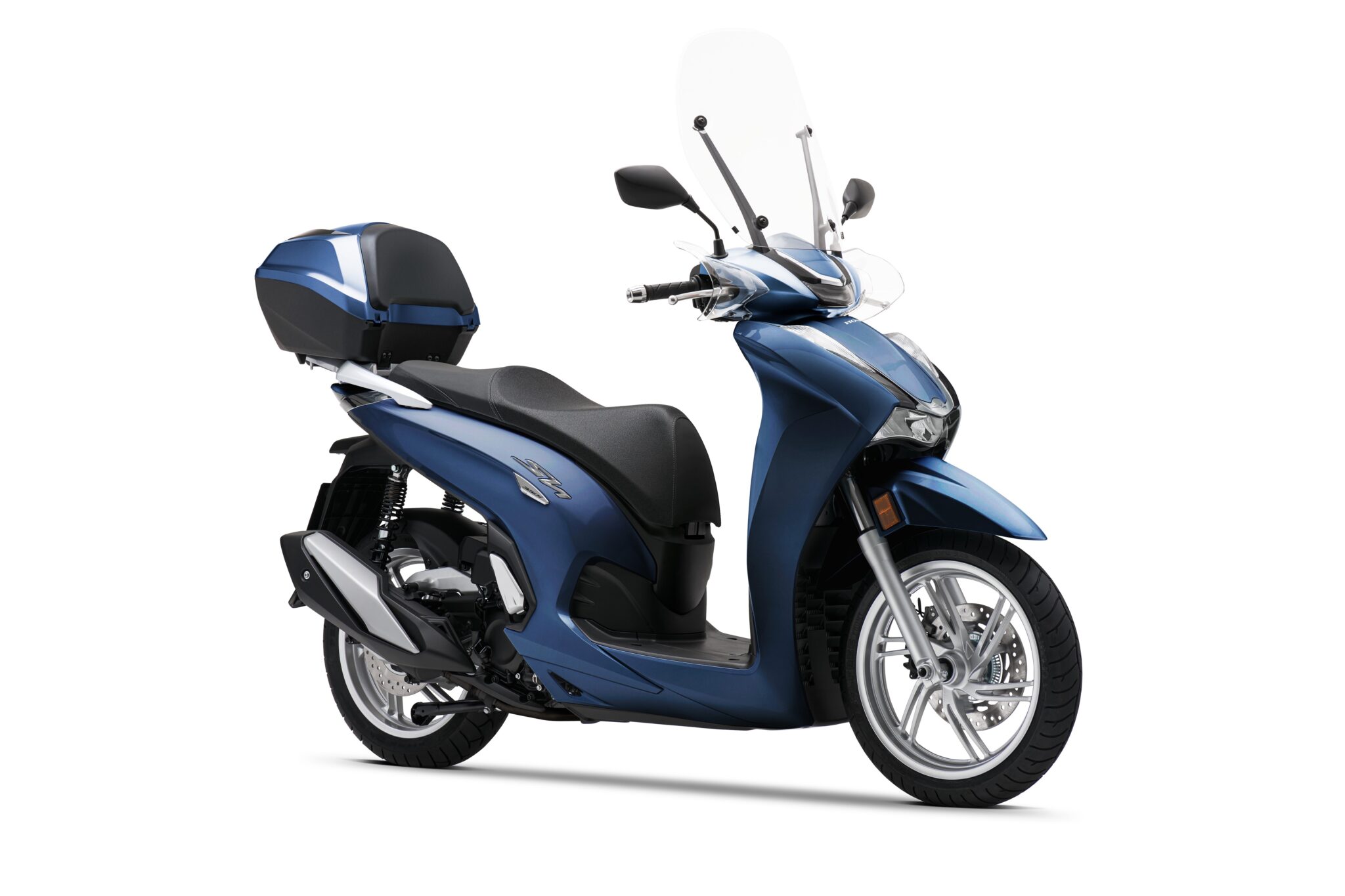

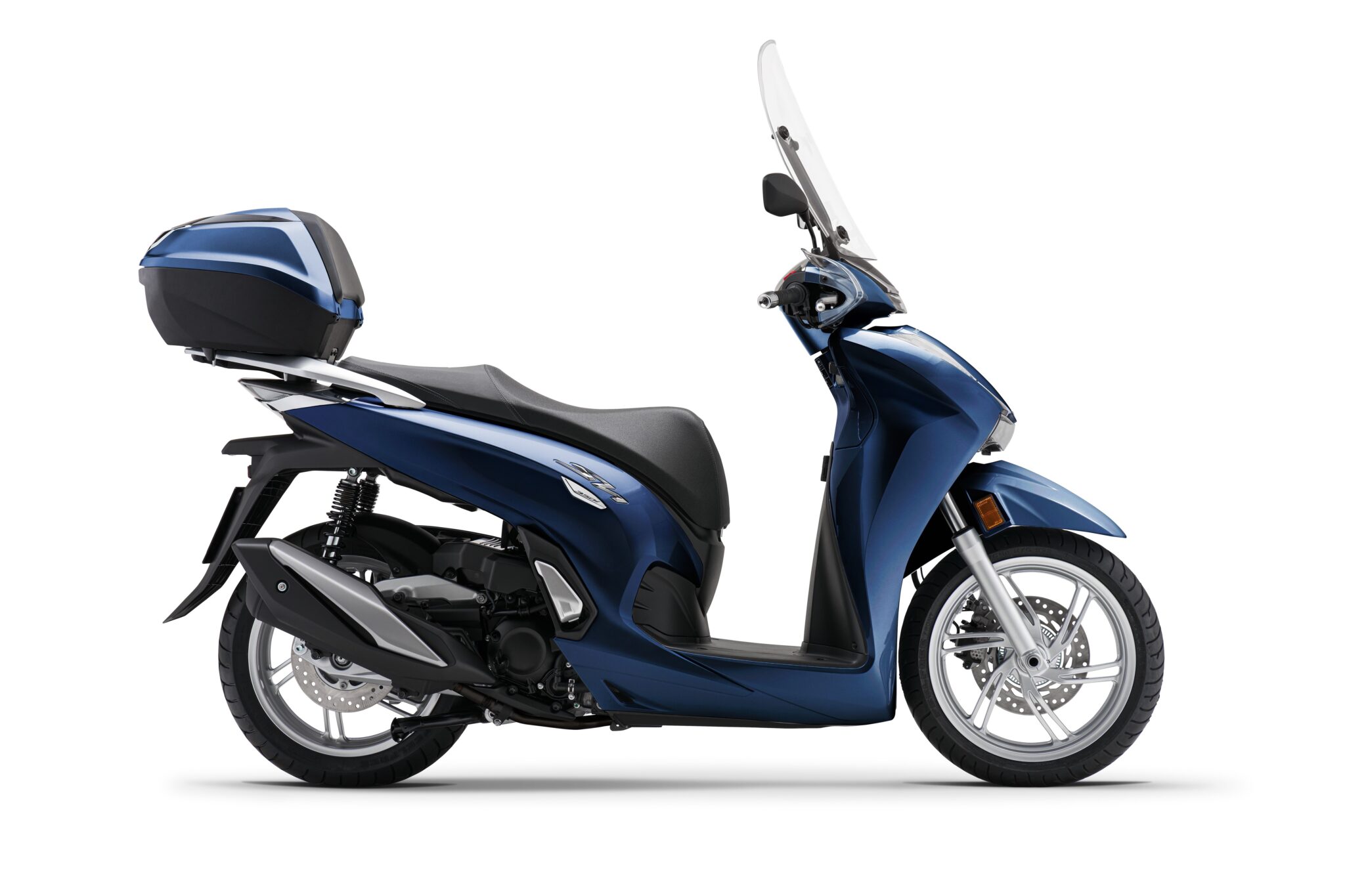

- Crescent Blue Metallic **NEW**

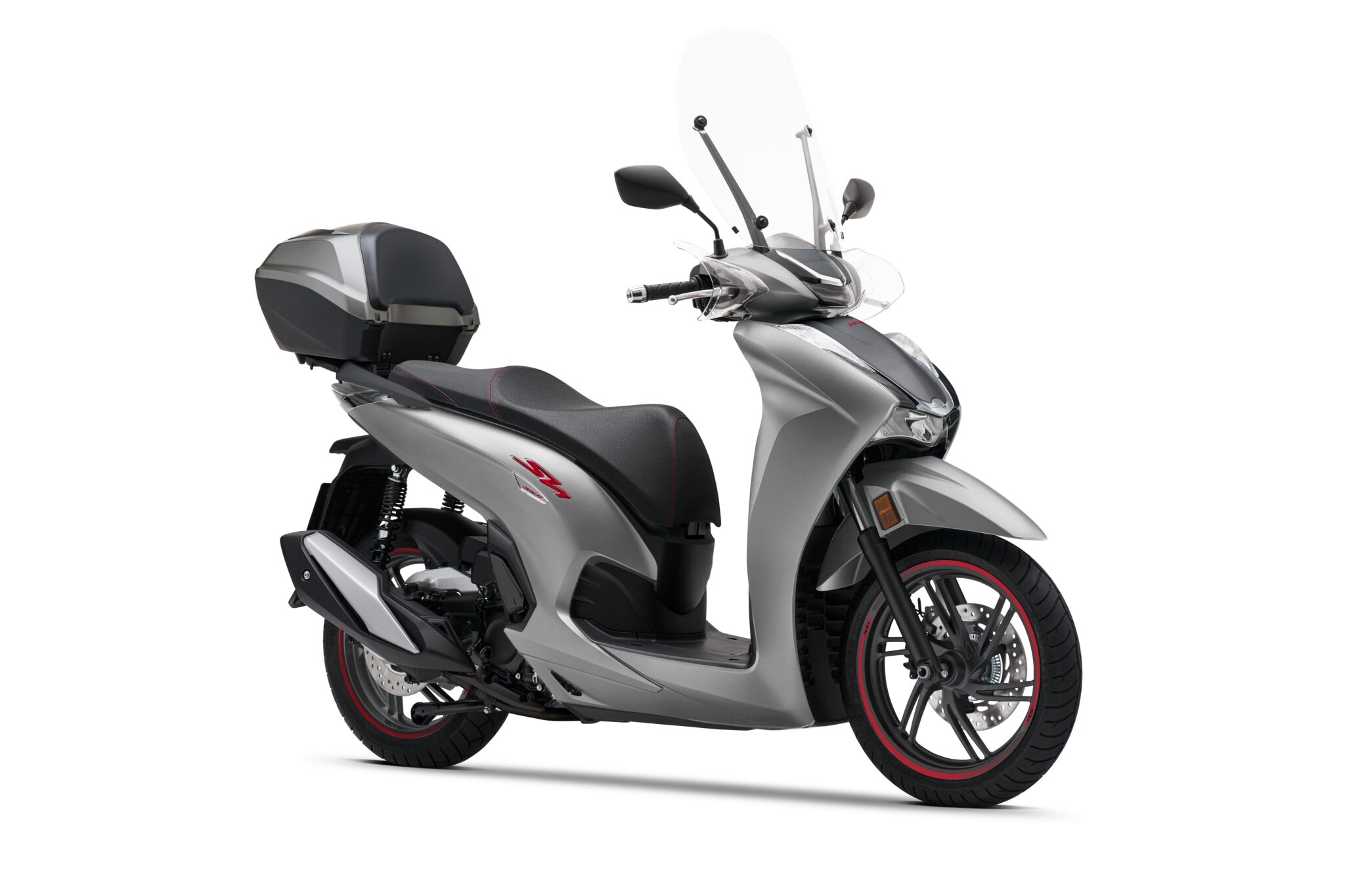

- Matt Lucent Silver Metallic **NEW**

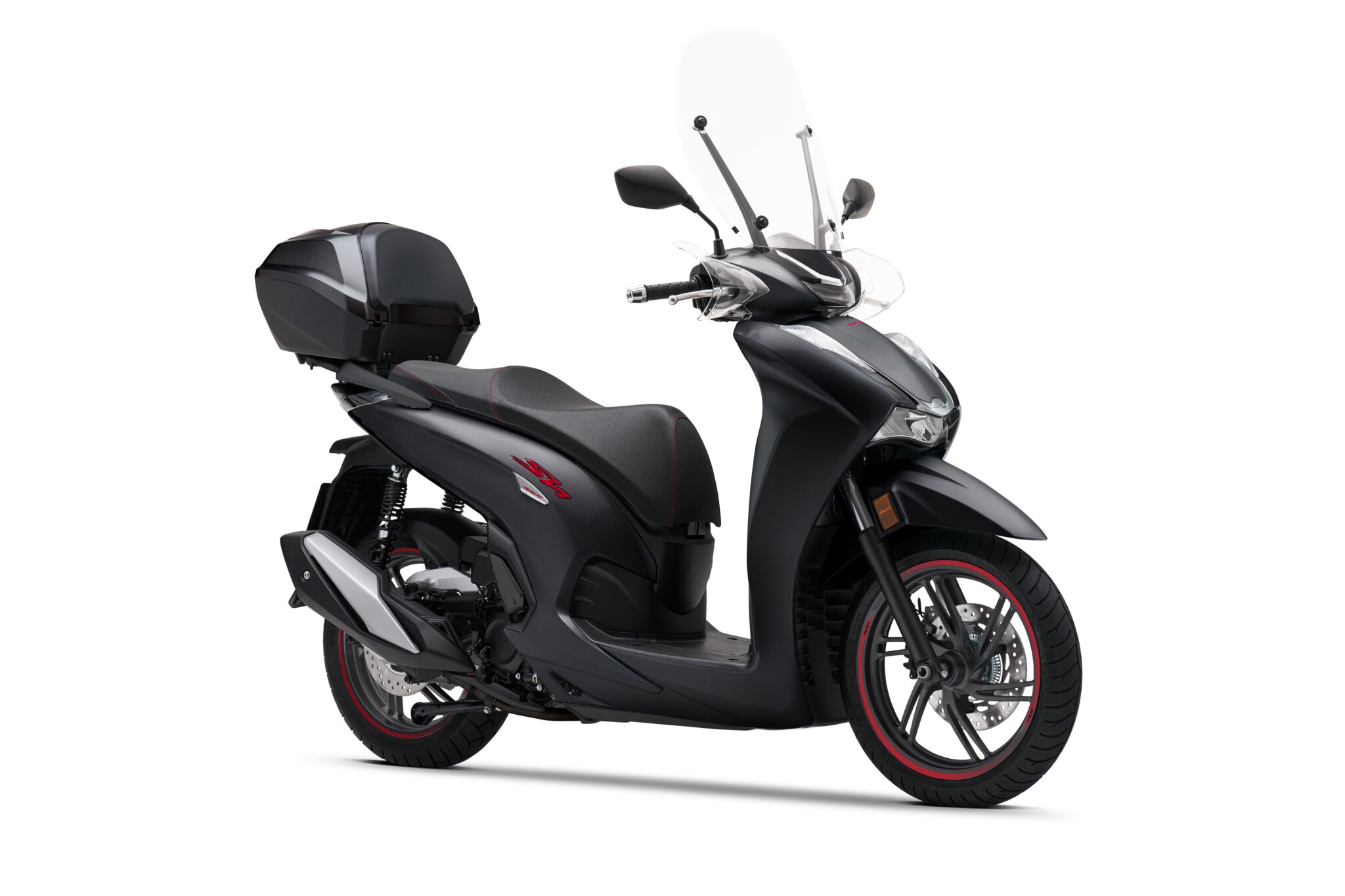

- Matt Coal Black Metallic **NEW**

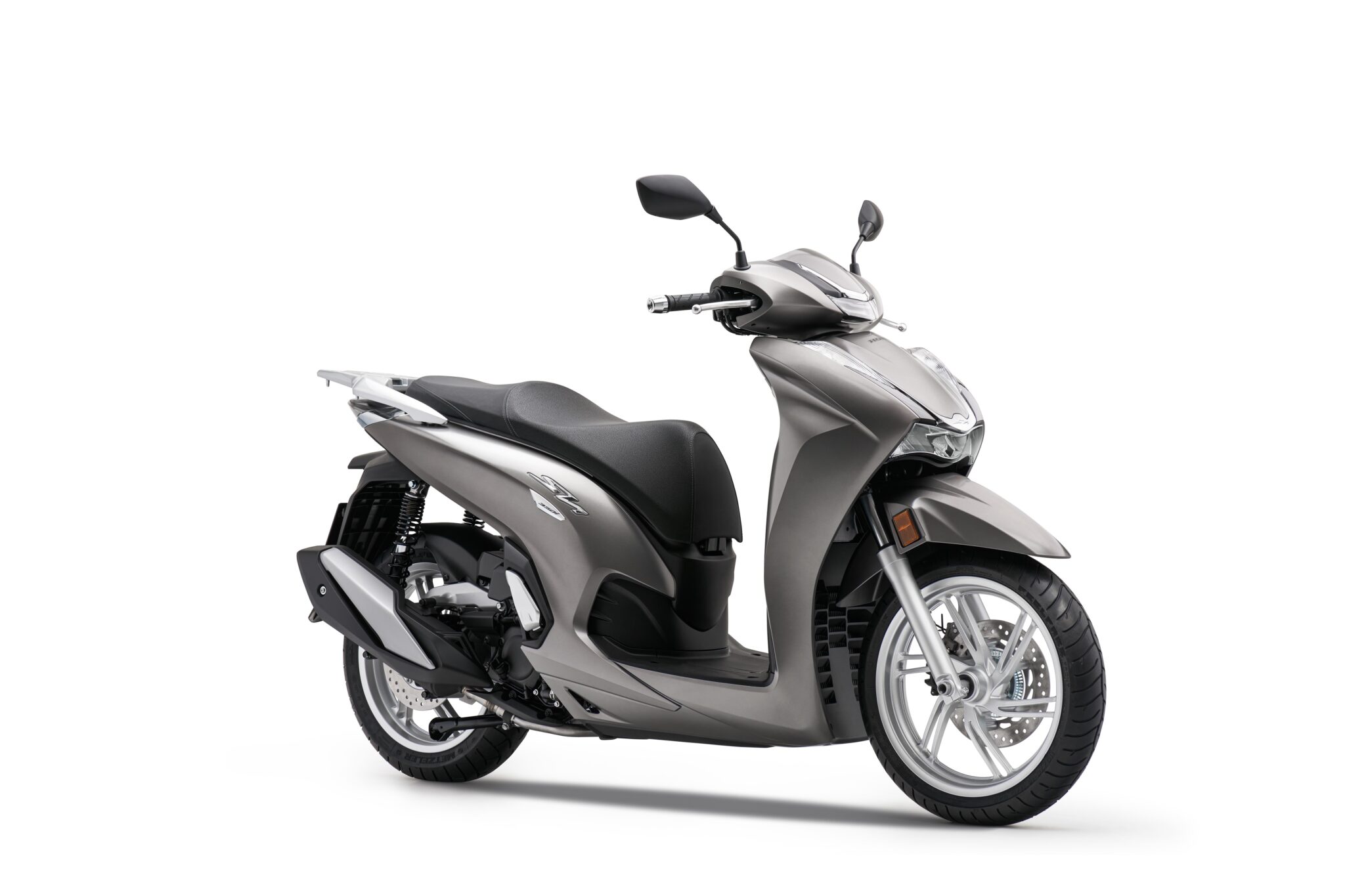

- Matt Ruthenium Silver Metallic

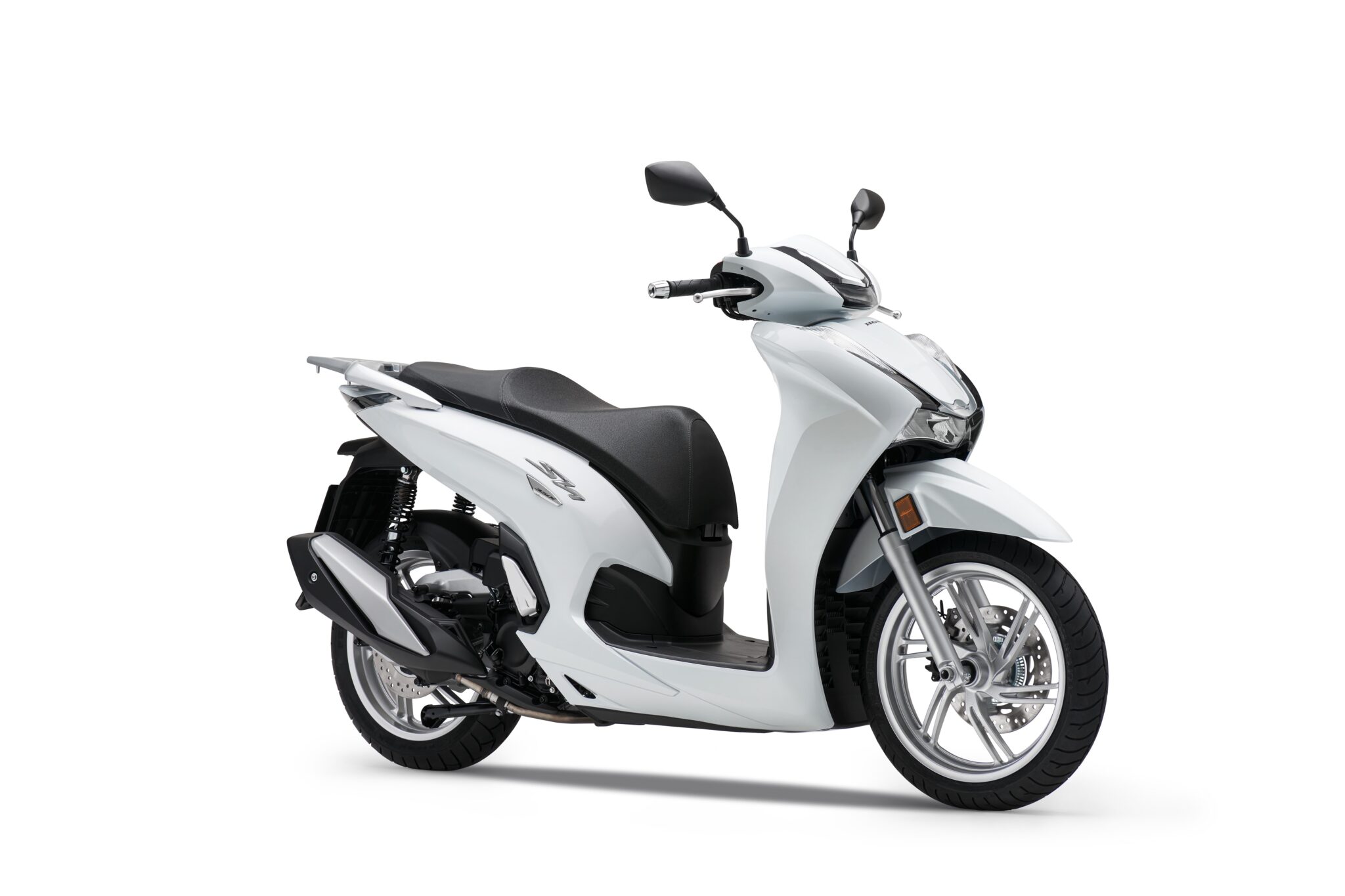

- Pearl Cool White

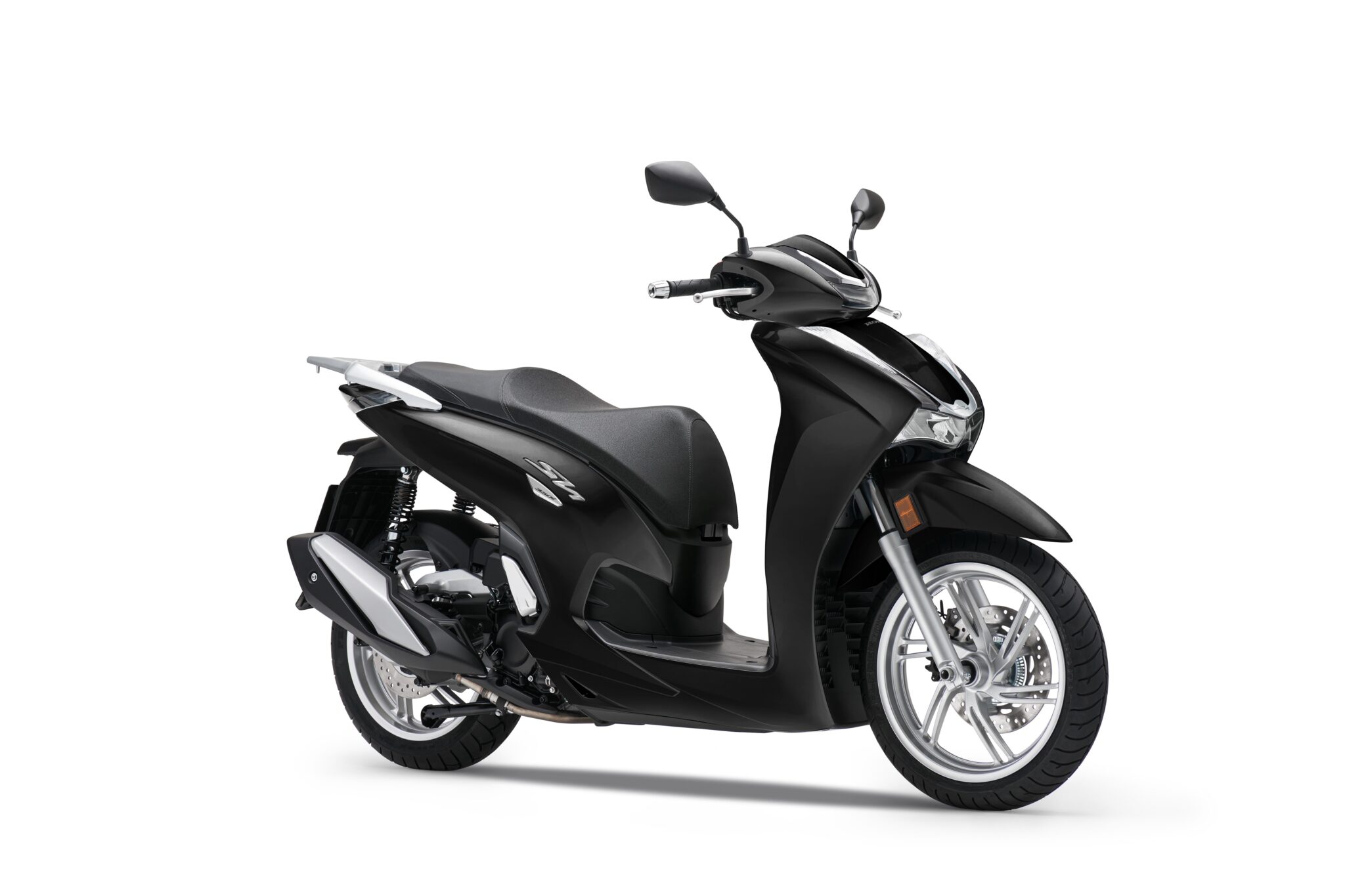

- Black
Styling & Equipment
- Sophisticated SH style includes signature flat floor
- USB Type-C socket under the seat
- Smart Key operation, LCD instrumentation
- Emergency Stop Signal (ESS) function warns other road users of sudden braking
- Three all new colours for 23YM
Engine
- 330cc engine produces 21.5Kw peak power with 32Nm torque
- eSP+ technology ensures fuel economy of 30km/l (WMTC mode)
Chassis
- Lightweight steel underbone frame
- 35mm telescopic forks and twin rear shock absorbers
- Stability from 16-inch front and rear wheels
Accessories
A range of Genuine Honda Accessories are available for the SH350i. The main accessories have been combined to form a practical pack for convenience.

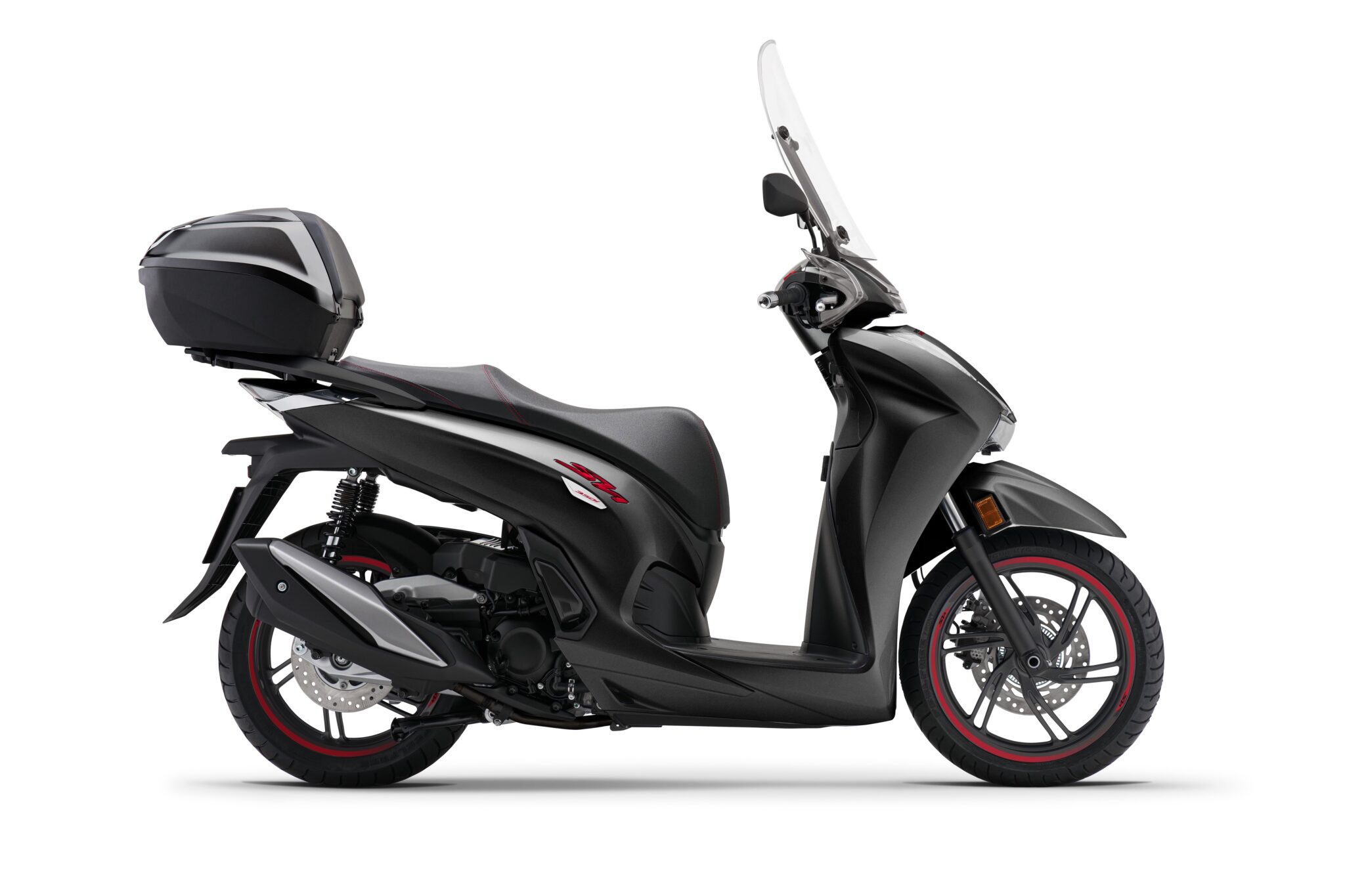

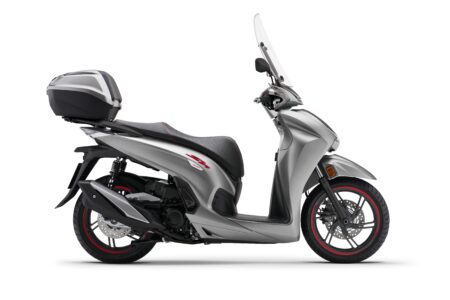

The colour matched City Pack is intended to enhance the practicality and comfort of the SH350i, without losing any style cues. The pack includes:
- 35L Smart Top Box
- Windshield
- Clear Knuckle-guards
- Heated Grips
All accessories are available individually and also include:
- Outdoor cover,
- Top box inner bag
- U-Lock.
Technical Specification
|
ENGINE |
|
|
Type |
Liquid-cooled 4-stroke SOHC single |
|
Engine Displacement (cm³) |
330cc |
|
No. of Valves per Cylinder |
4 |
|
Bore ´ Stroke (mm) |
77 x 70.7mm |
|
Compression Ratio |
10.5:1 |
|
Max. Power Output |
21.5kW @ 7,500rpm |
|
Max. Torque |
32Nm @ 5,250rpm |
|
Oil Capacity |
1.85L |
|
Noise Level (dB) |
Lurban 73.6, Lwot 79.3 |
|
FUEL SYSTEM |
|
|
Carburation |
PGM-FI electronic fuel injection |
|
Fuel Tank Capacity |
9.1L |
|
CO2 Emissions WMTC |
77.8 g/km |
|
Fuel Consumption |
30km/litre |
|
ELECTRICAL SYSTEM |
|
|
Starter |
Electric |
|
Battery Capacity |
12V-11.6AH |
|
DRIVETRAIN |
|
|
Clutch Type |
Automatic; centrifugal |
|
Transmission Type |
V-Matic |
|
Final Drive |
V-Belt |
|
FRAME |
|
|
Type |
Tubular steel underbone |
|
CHASSIS |
|
|
Dimensions (LxWxH) |
2,160 x 742 x 1,161mm |
|
Wheelbase |
1,452 mm |
|
Caster Angle |
27.5° |
|
Trail |
99mm |
|
Seat Height |
805mm |
|
Ground Clearance |
157.8mm |
|
Kerb Weight |
174kg |
|
Turning radius |
2.2m |
|
SUSPENSION |
|
|
Type Front |
35mm telescopic fork |
|
Type Rear |
Dual-damper unit swingarm |
|
WHEELS |
|
|
Rim Size Front |
16 x MT2.75 U-section 6-spoke cast aluminium |
|
Rim Size Rear |
16 x MT2.75 U-section 6-spoke cast aluminium |
|
Tyres Front |
110/70-16 |
|
Tyres Rear |
130/70-16 |
|
BRAKES |
|
|
ABS System Type |
2 channel |
|
Front |
256mm single disc with two piston caliper |
|
Rear |
256mm single disc with single piston caliper |
|
INSTRUMENTS & ELECTRICS |
|
|
Instruments |
LCD with speedometer, fuel gauge and temperature gauge, pointer-type, clock, two trip meters, fuel consumption gauge, Honda SMART Key indicator. |
|
Headlight |
LED |
|
Taillight |
LED |
All specifications are provisional and subject to change without notice.
*Please note that the figures provided are results obtained by Honda under standardised testing conditions prescribed by WMTC. Tests are conducted on a rolling road using a standard version of the vehicle with only one rider and no additional optional equipment. Actual fuel consumption may vary depending on how you ride, how you maintain your vehicle, weather, road conditions, tire pressure, installation of accessories, cargo, rider and passenger weight, and other factors.
