Model Overview
A brand-new front fairing gives the Forza 125 a new even more elegant and refined identity – with styling cues taken directly from the range-topping Forza 750. Led by the new chiselled dual LED headlights, the new front end brings the Forza 125 bang up to date. The redesigned instrument panel attractively mixes analogue and digital displays.
The style is refreshed, and the outstanding practicality remains. The electric screen adjusts through 180mm travel to maximise freedom or wind protection. A USB Type-C socket in the glovebox provides a handy charging point, Smart Key operation adds convenience and there’s room for two full-face helmets under the seat.
The sure-footed chassis is unchanged, as is the four-valve, water-cooled SOHC engine which employs Honda Selectable Torque Control (HSTC) to maintain rear tyre grip.

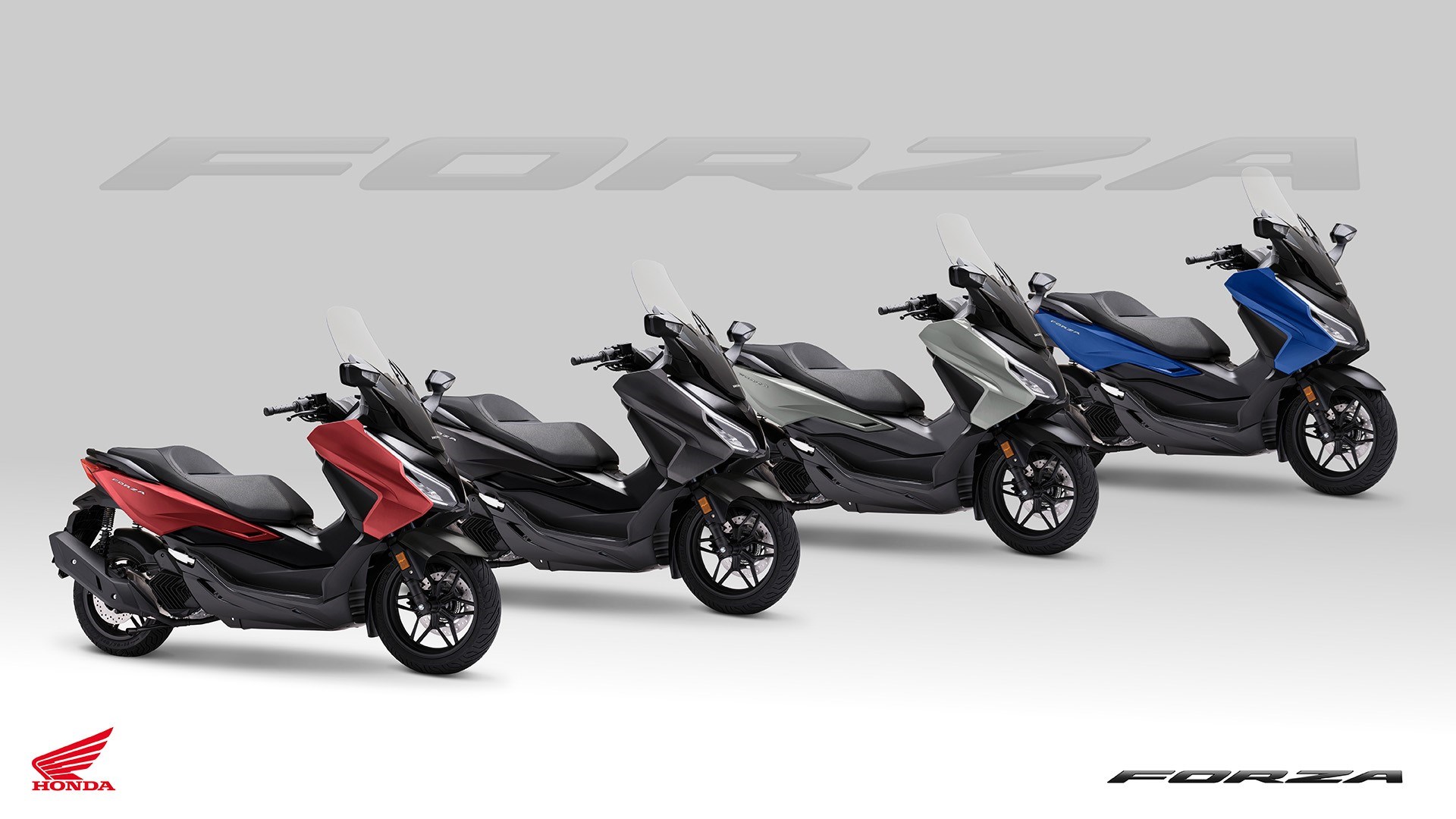

The 23YM Forza 125 will be available in the following colour options:

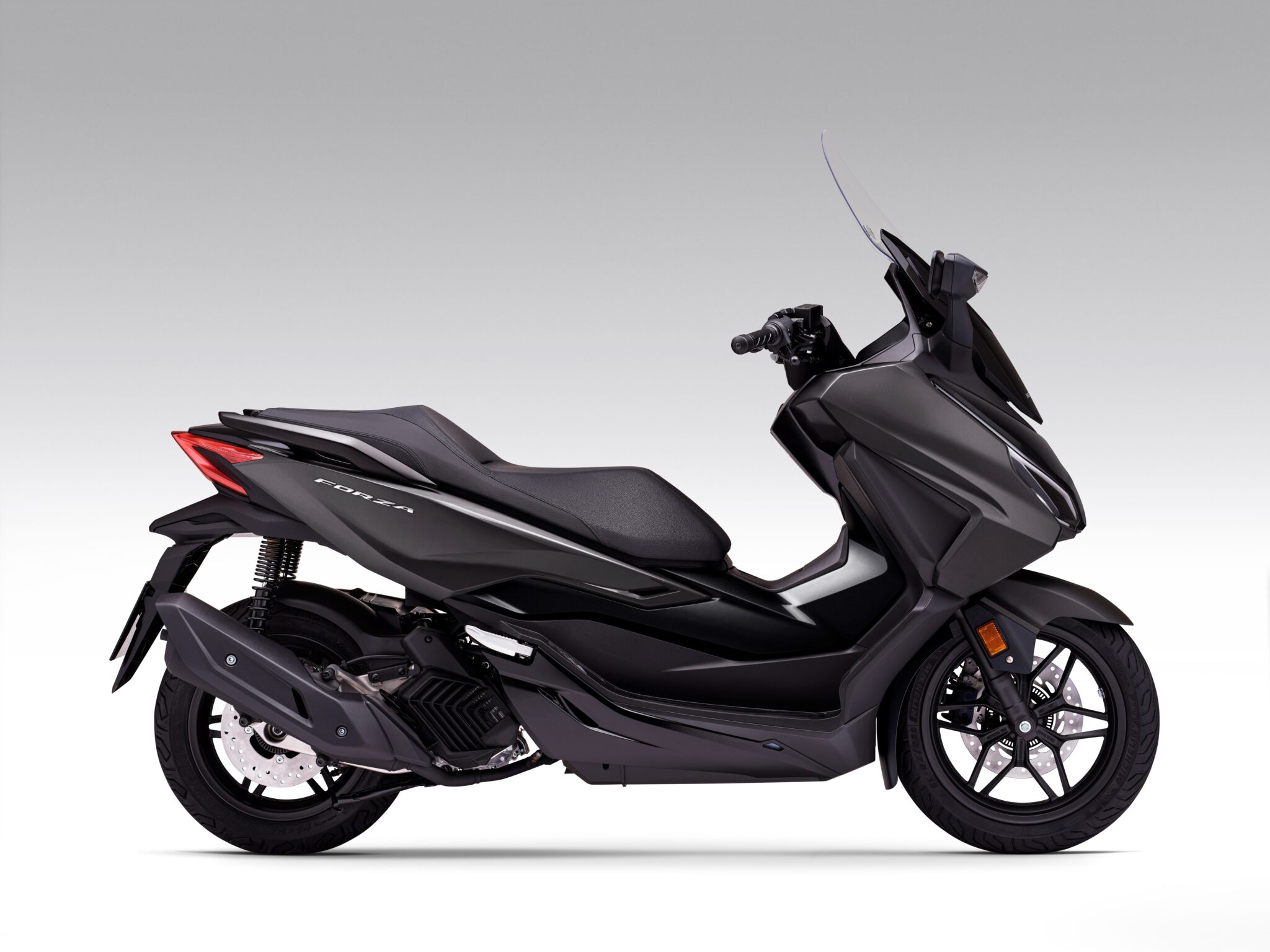

- Matt Cynos Gray Metallic

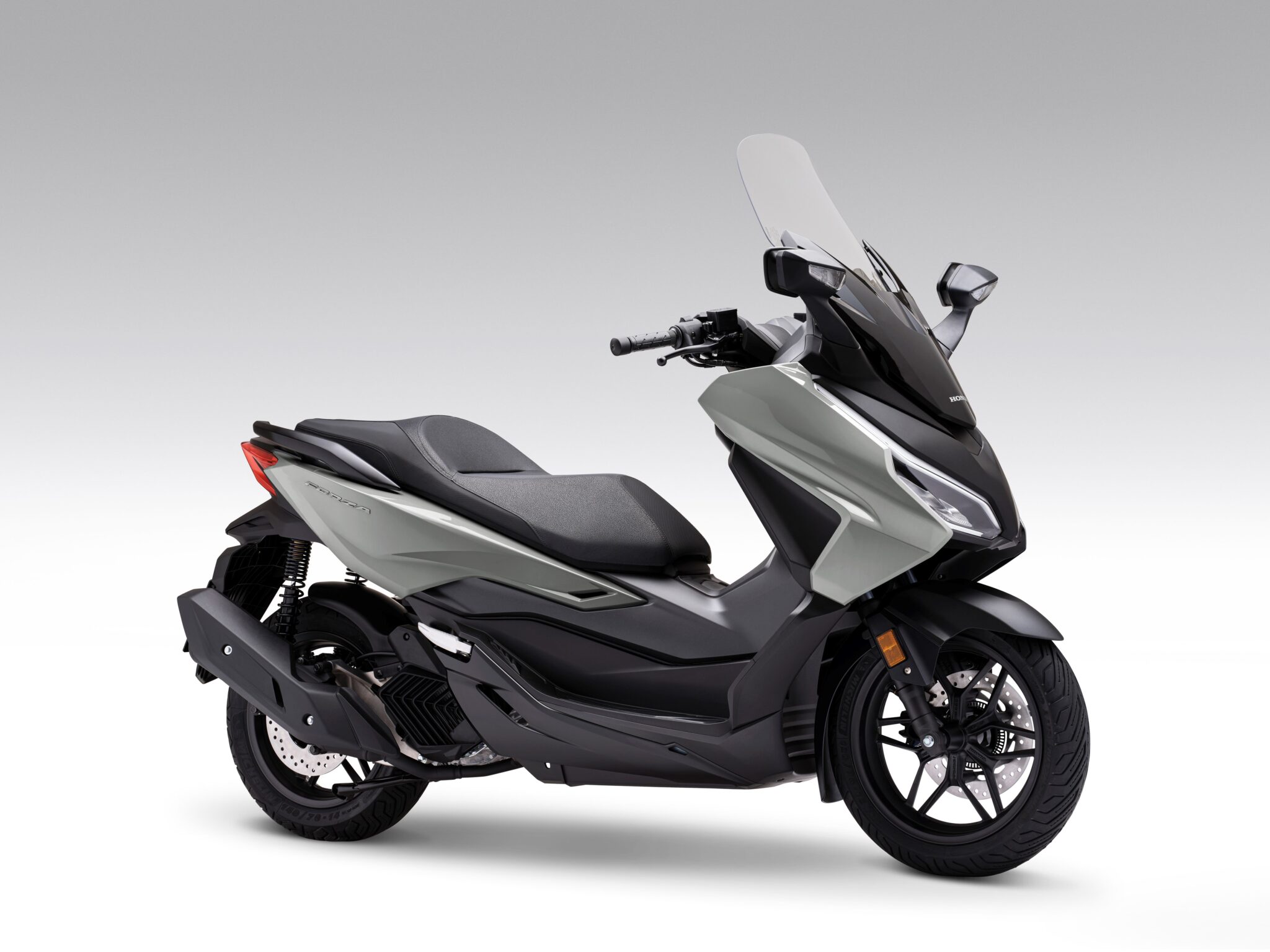

- Pearl Falcon Gray

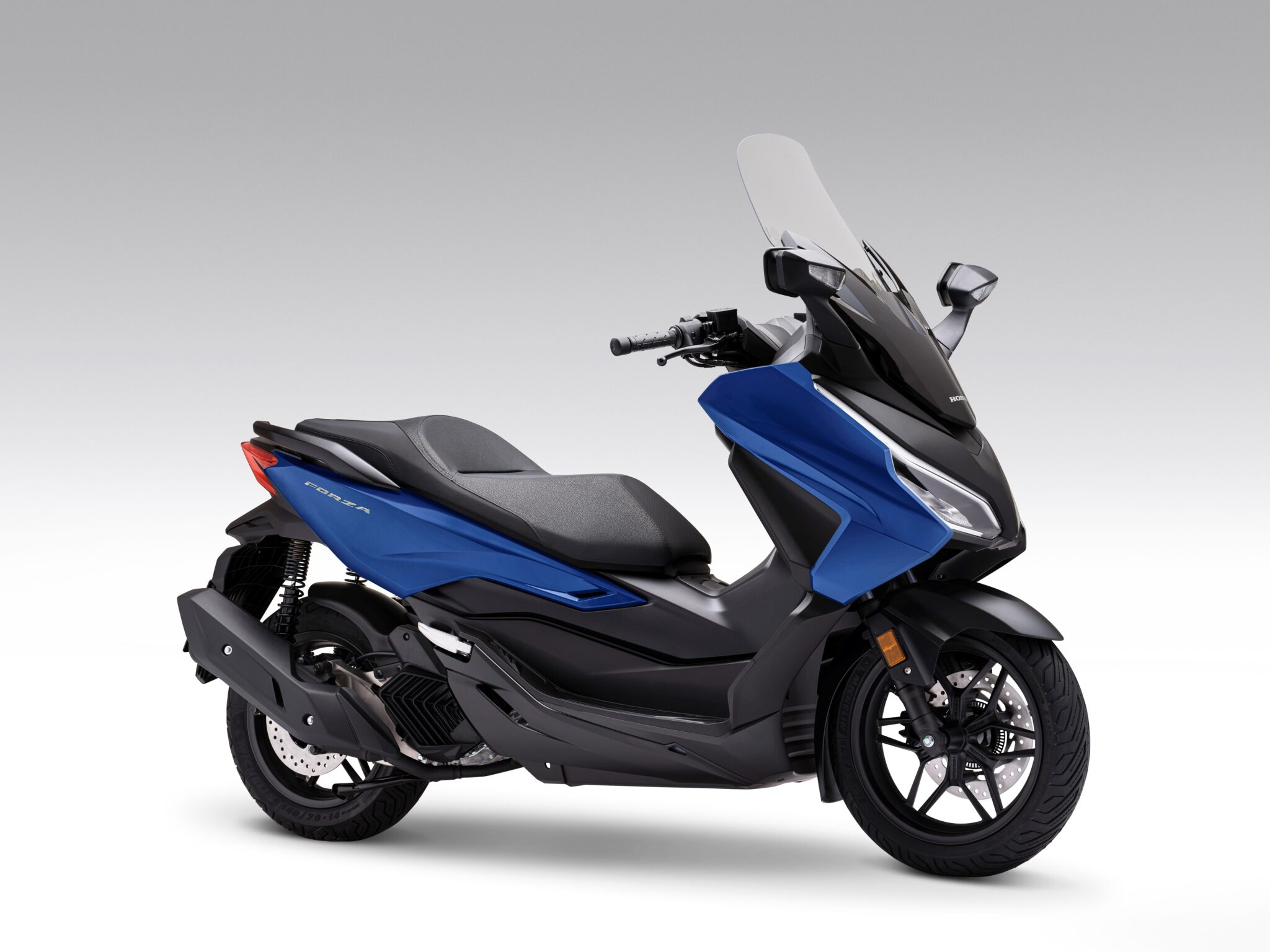

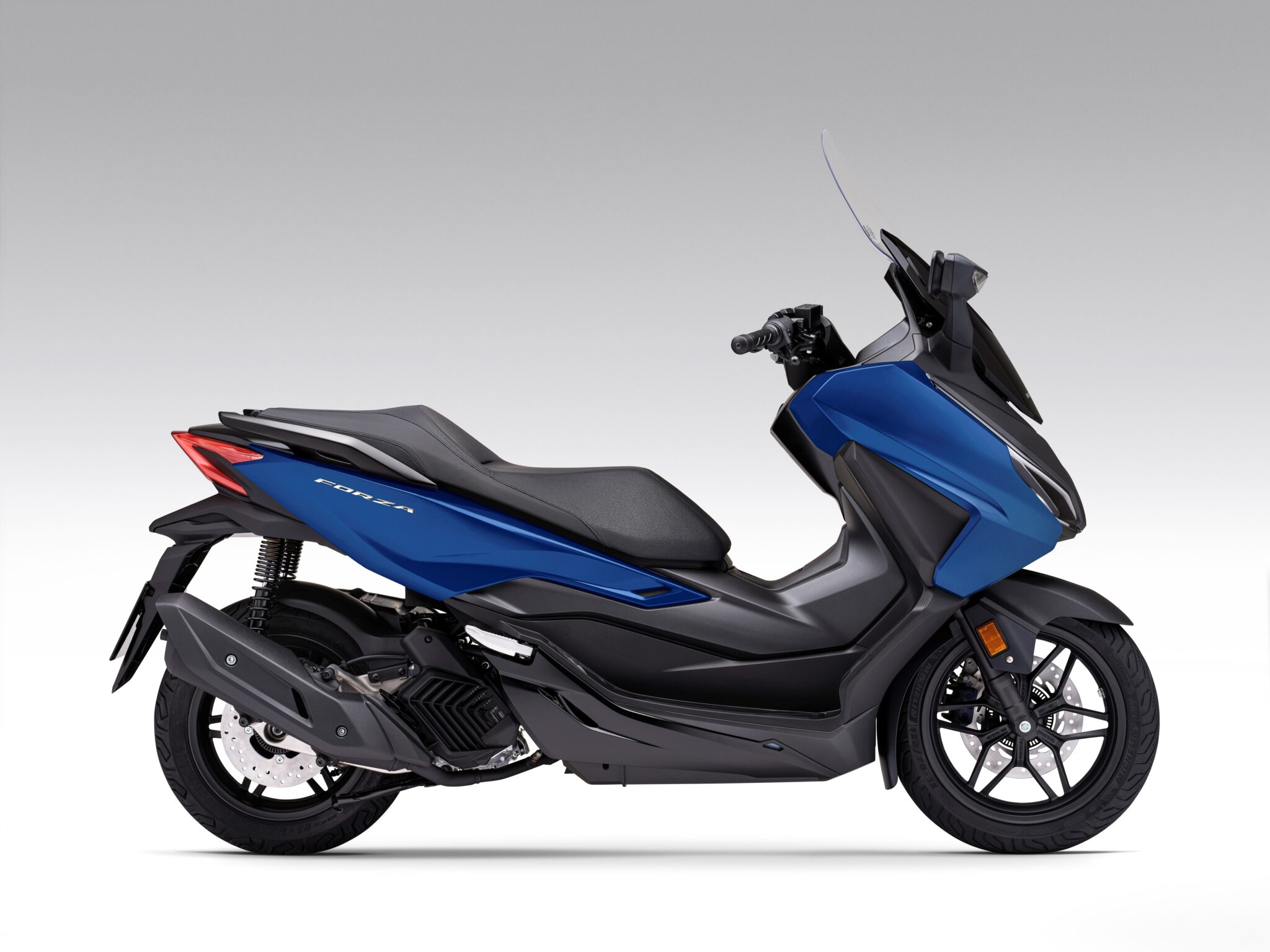

- Matt Pearl Pacific Blue

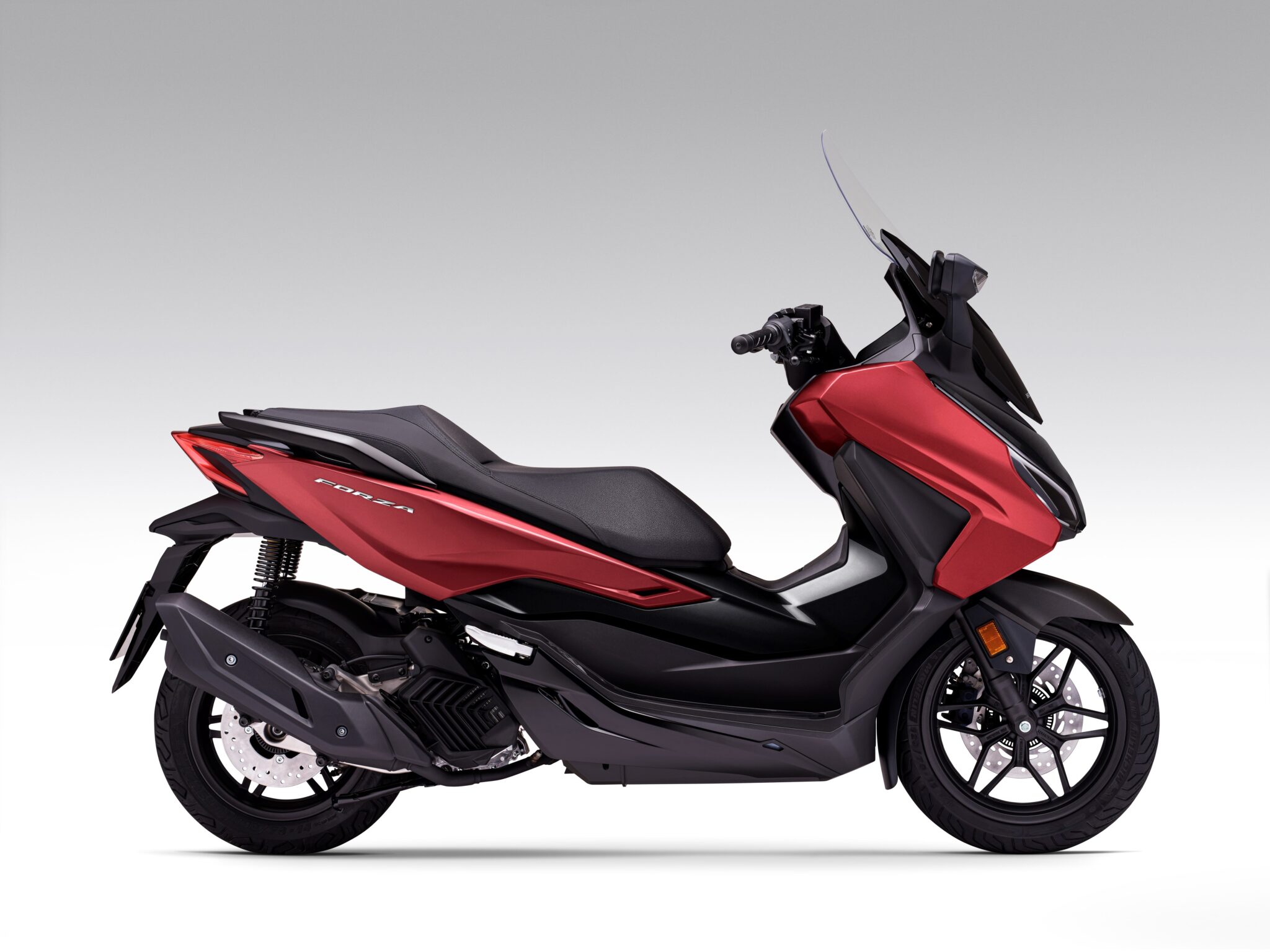

- Matt Carnelian Red Metallic

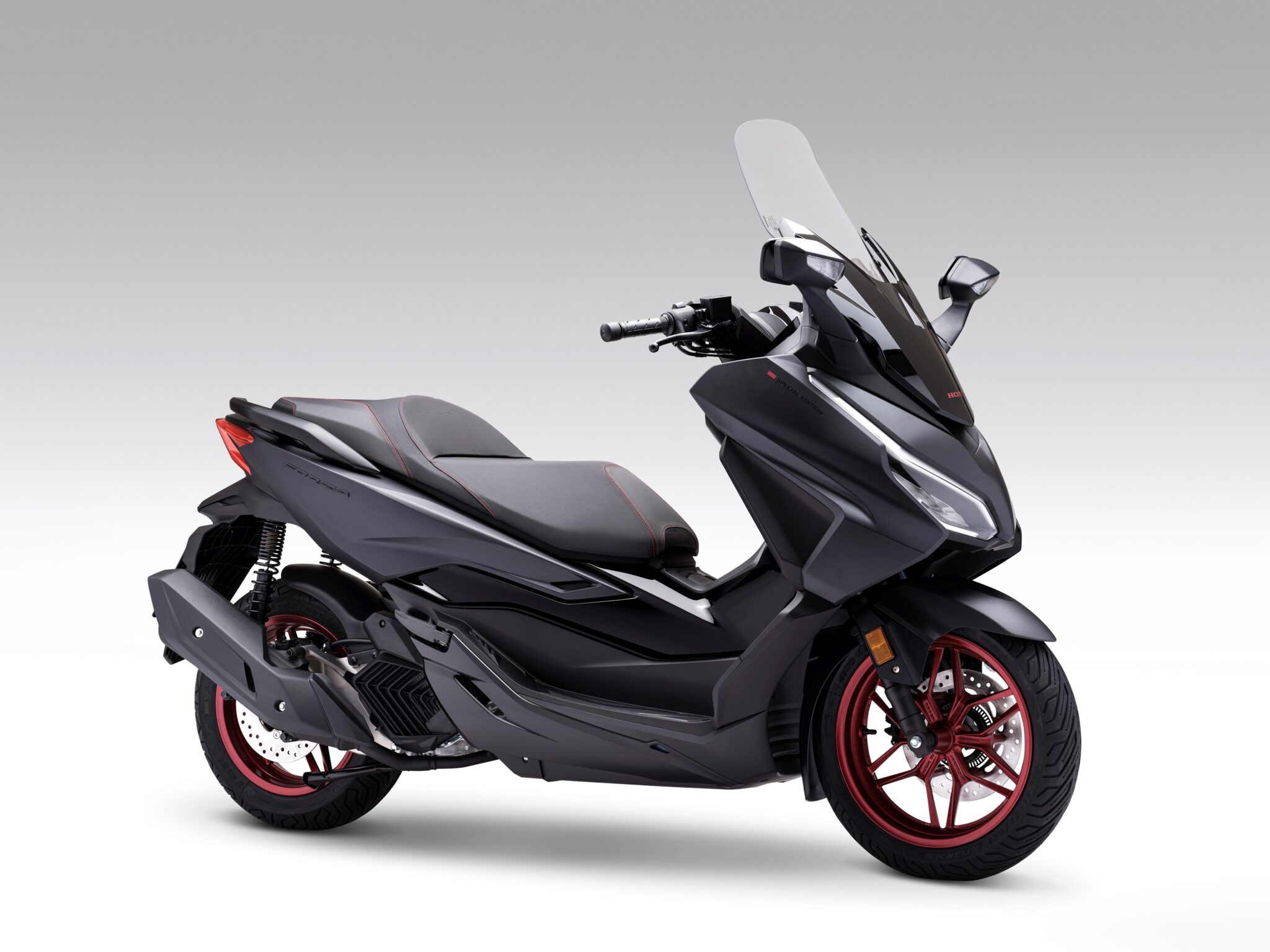

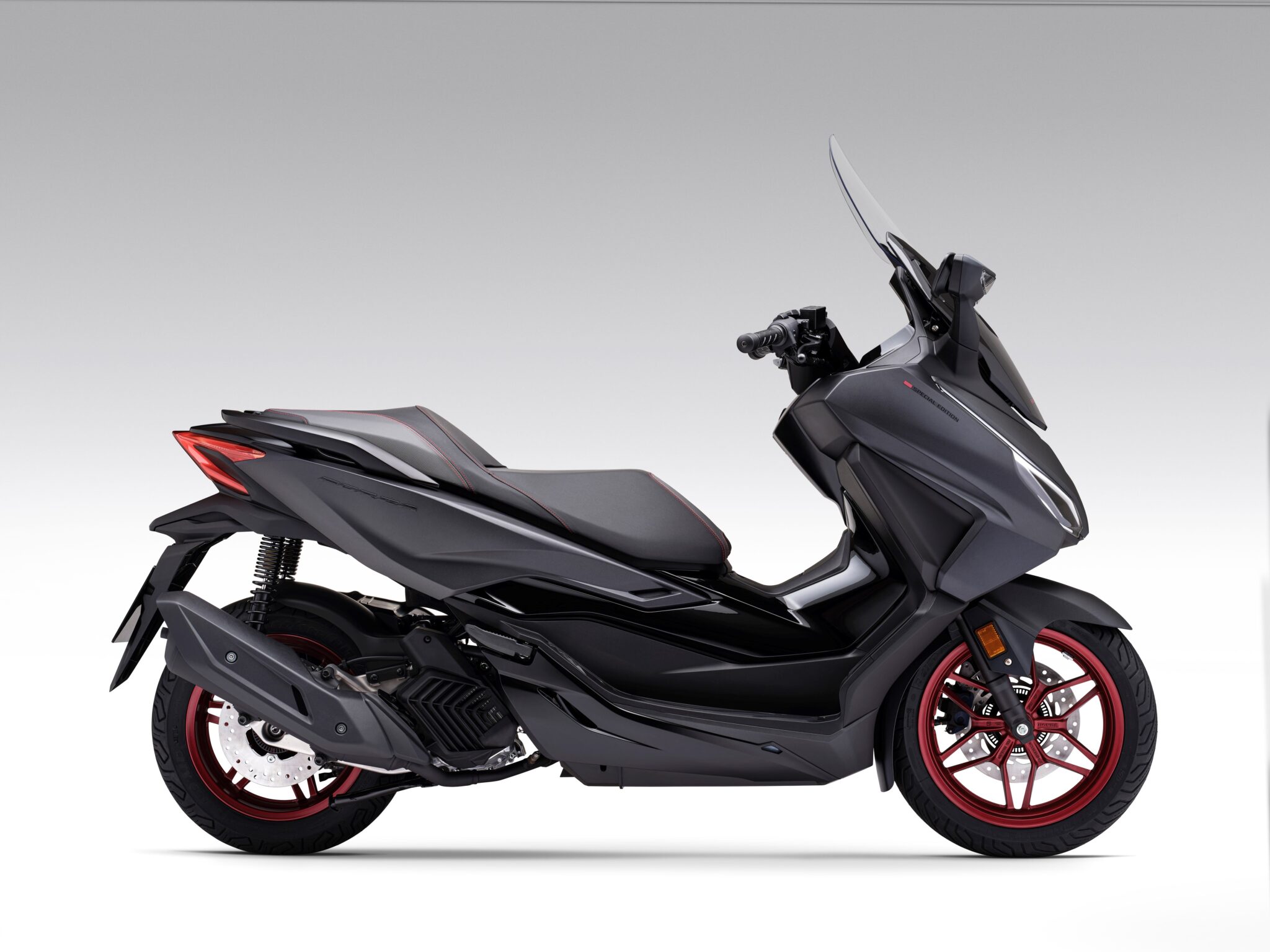

- **New** 23YM Forza 125 Special Edition
Engine
- 125cc engine produces 10.7kW peak power with 12.3Nm torque
- The fuel-efficient unit uses Honda’s eSP technologies, plus Idling Stop
- 7km/l gives range of nearly 500km between fill-ups
- Honda Selectable Torque Control (HSTC) increases rider confidence
Chassis
- Steel frame, 33mm telescopic forks and preload adjustable twin shocks
- Wet weight of just 164kg aids agility and ease of use
- Cast aluminium wheels, front and rear disc brakes, ABS fitted as standard
Styling & Equipment
- All new redesigned front fairing and headlights influenced by Forza 750 highlight the distinctive, elegant new look
- New analogue/LCD dash
- New Special Edition with unique detailing throughout
- Electric screen adjusts through 180mm
- Room for two full-face helmets under the seat; USB Type-C charging socket
- Smart Key operation of ignition, seat, fuel cap cover and (optional) 45-litre top box
- Emergency Stop Signal function (ESS) warns other road users of sudden braking
Accessories
A range of Genuine Honda Accessories are available for the Forza 125. They include:
- Colour matched 45-litre Smart top box
- Colour matched 35-litre top box
- Rear carrier rack (direct fitment)
- Inner bags
- Special comfort seat
- Heated grips
- Stainless steel floor panels
- Outdoor cover
- U-Lock
Technical Specifications
|
ENGINE |
|
|
Type |
4 stroke-4 valve liquid-cooled |
|
Displacement |
125cc |
|
No of valves per cylinder |
4 |
|
Bore x Stroke |
53.5mm x 55.5mm |
|
Compression Ratio |
11.5:1 |
|
Max. Power Output |
10.7kW @ 8,750 r/min |
|
Max. Torque |
12.3Nm @ 6,500r/min |
|
Oil Capacity |
0.9 litres |
|
Noise Level (dB) |
Lurban 73.0, Lwot 74.8 |
|
FUEL SYSTEM |
|
|
Carburation |
PGM-FI electronic fuel injection |
|
Fuel Tank Capacity |
11.7 L |
|
CO2 Emissions WMTC |
54 g/km |
|
Fuel Consumption |
41.7 km/L (2.4L/100KM) |
|
ELECTRICAL SYSTEM |
|
|
Starter |
Electric |
|
Battery |
12V-7A |
|
DRIVETRAIN |
|
|
Clutch Type |
Automatic Centrifugal Clutch Dry Type |
|
Transmission Type |
CVT |
|
Final Drive |
V-belt |
|
FRAME |
|
|
Type |
Underbone type, steel |
|
CHASSIS |
|
|
Dimensions (LxWxH) |
2,145mm x 754mm x 1,350mm |
|
Wheelbase |
1,505mm |
|
Caster Angle |
26.5° |
|
Trail |
89mm |
|
Seat Height |
780mm |
|
Ground Clearance |
141mm |
|
Turning radius |
2.3m |
|
Kerb Weight |
164kg |
|
SUSPENSION |
|
|
Type Front |
33mm Telescopic |
|
Type Rear |
Twin shock |
|
WHEELS |
|
|
Type Front |
Cast aluminium |
|
Type Rear |
Cast aluminium |
|
Tyres Front |
120/70-15 56P |
|
Tyres Rear |
140/70-14 68P |
|
BRAKES |
|
|
ABS TYPE |
2-channel |
|
Type Front |
256mm, single disc |
|
Type Rear |
240mm, single disc |
|
LIGHTING |
|
|
Instruments |
LCD – Fuel meter, Water temperature gauge, Odometer, Dual Trip, Average fuel consumption, Section fuel consumption, Clock, Oil change indicator |
|
Headlight |
LED |
|
Taillight |
LED |
|
USB |
Yes |
|
Security System |
Immobiliser |
|
Additional Features |
Smart Key, HSTC, electronically adjustable windscreen, ESS |
All specifications are provisional and subject to change without notice.
*Please note that the figures provided are results obtained by Honda under standardised testing conditions prescribed by WMTC. Tests are conducted on a rolling road using a standard version of the vehicle with only one rider and no additional optional equipment. Actual fuel consumption may vary depending on how you ride, how you maintain your vehicle, weather, road conditions, tire pressure, installation of accessories, cargo, rider and passenger weight, and other factors.
