Model Overview
The Vision 110’s contemporary styling, which includes the convenience of a flat floor, is wrapped around a lightweight enhanced Smart Architecture Frame (eSAF). Producing 6.4kW 9.0Nm @ the enhanced Smart Power eSP) air-cooled engine returns impressive fuel efficiency of 54.5km/l (WMTC mode).
Smart Key operation of ignition and seat is a premium feature, as is the LCD instrument panel.

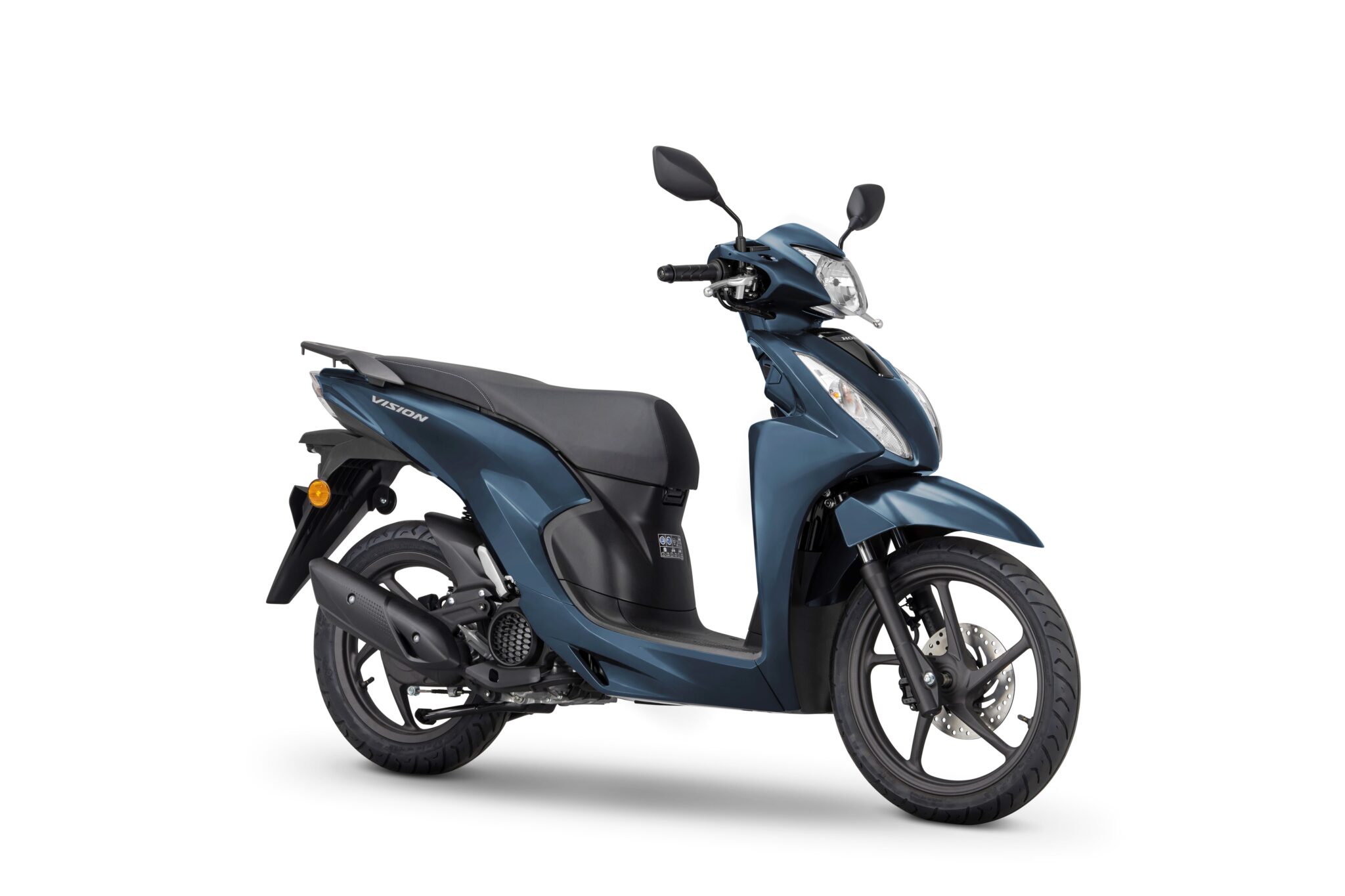

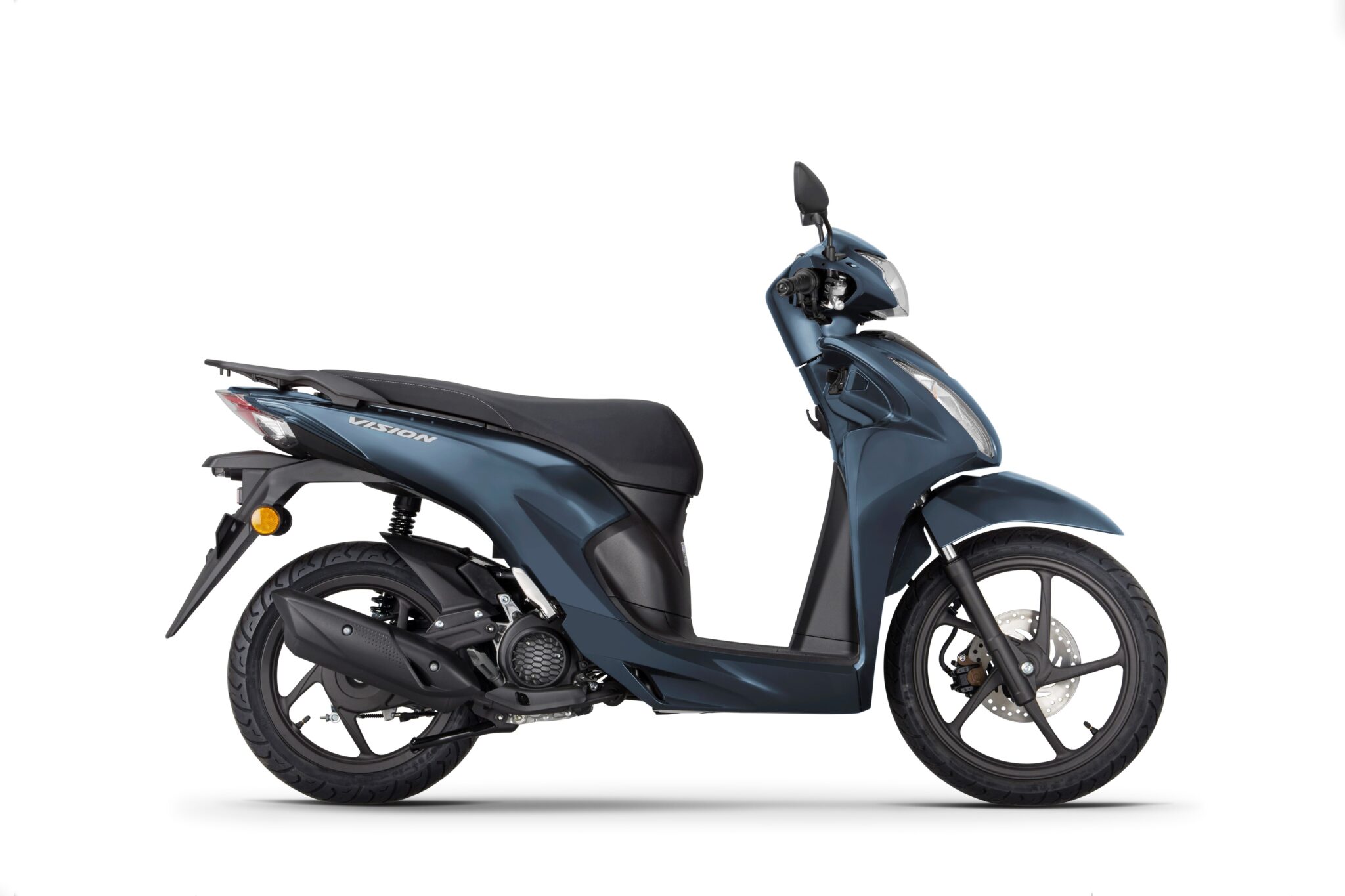

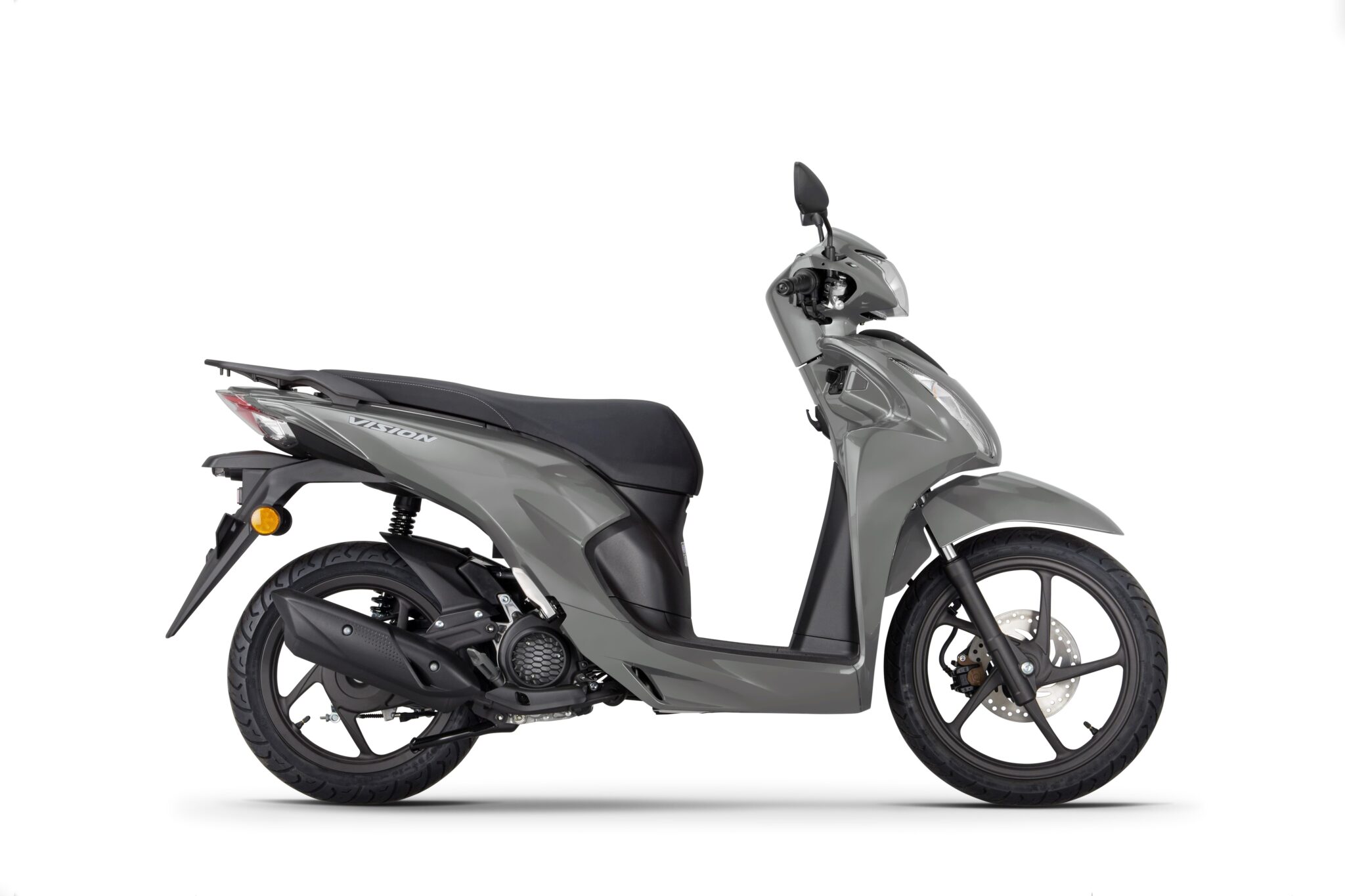

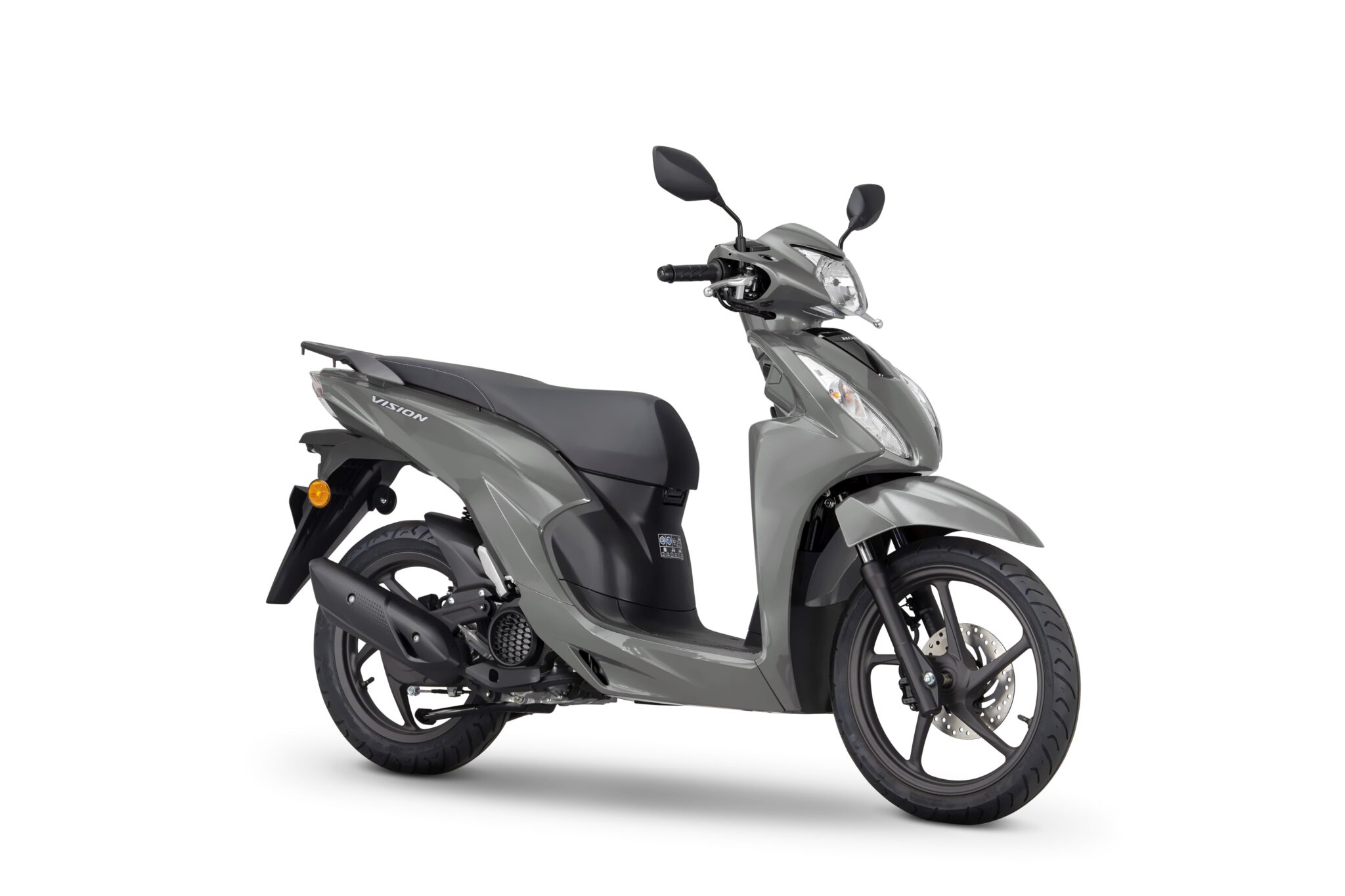

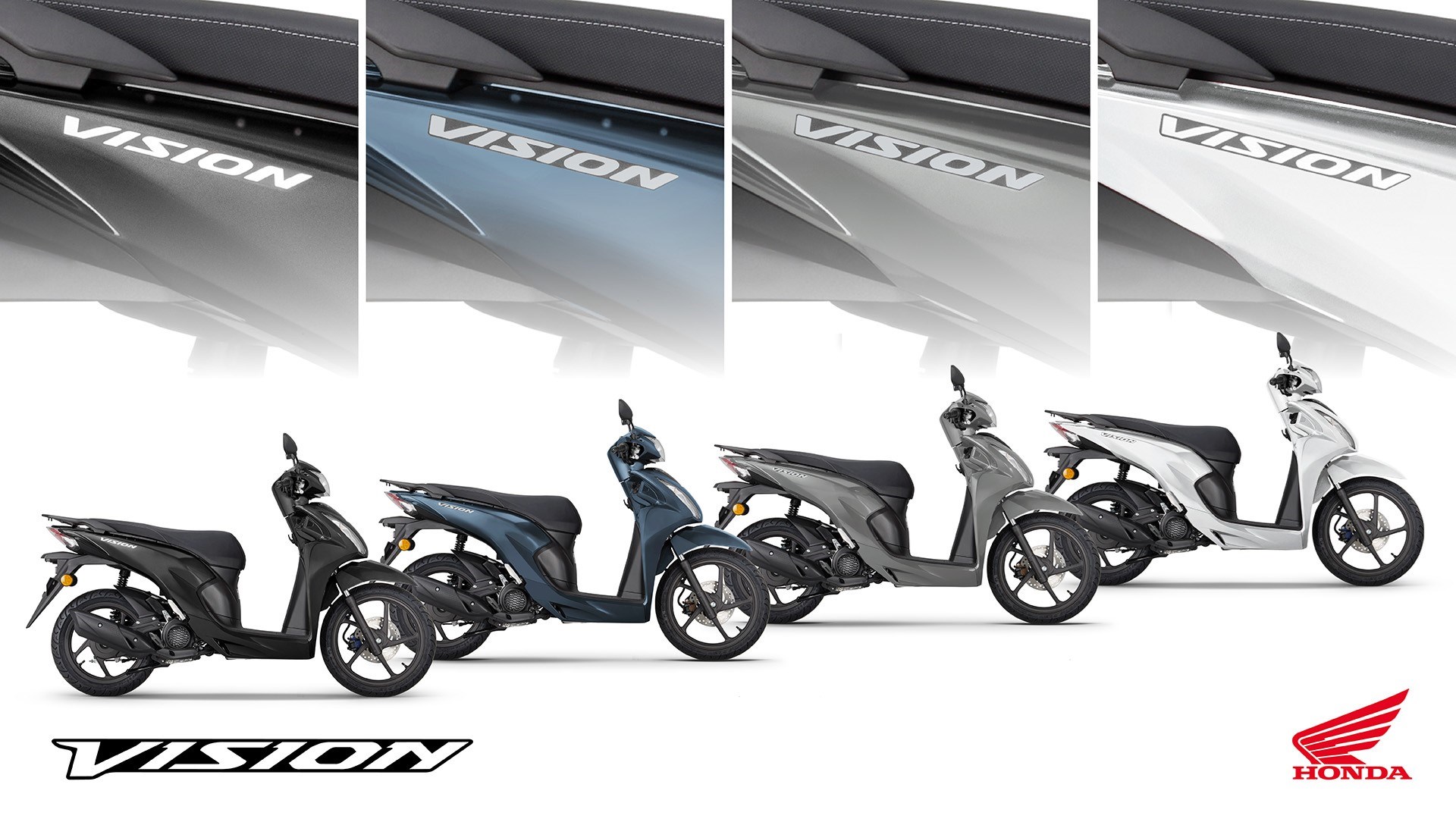

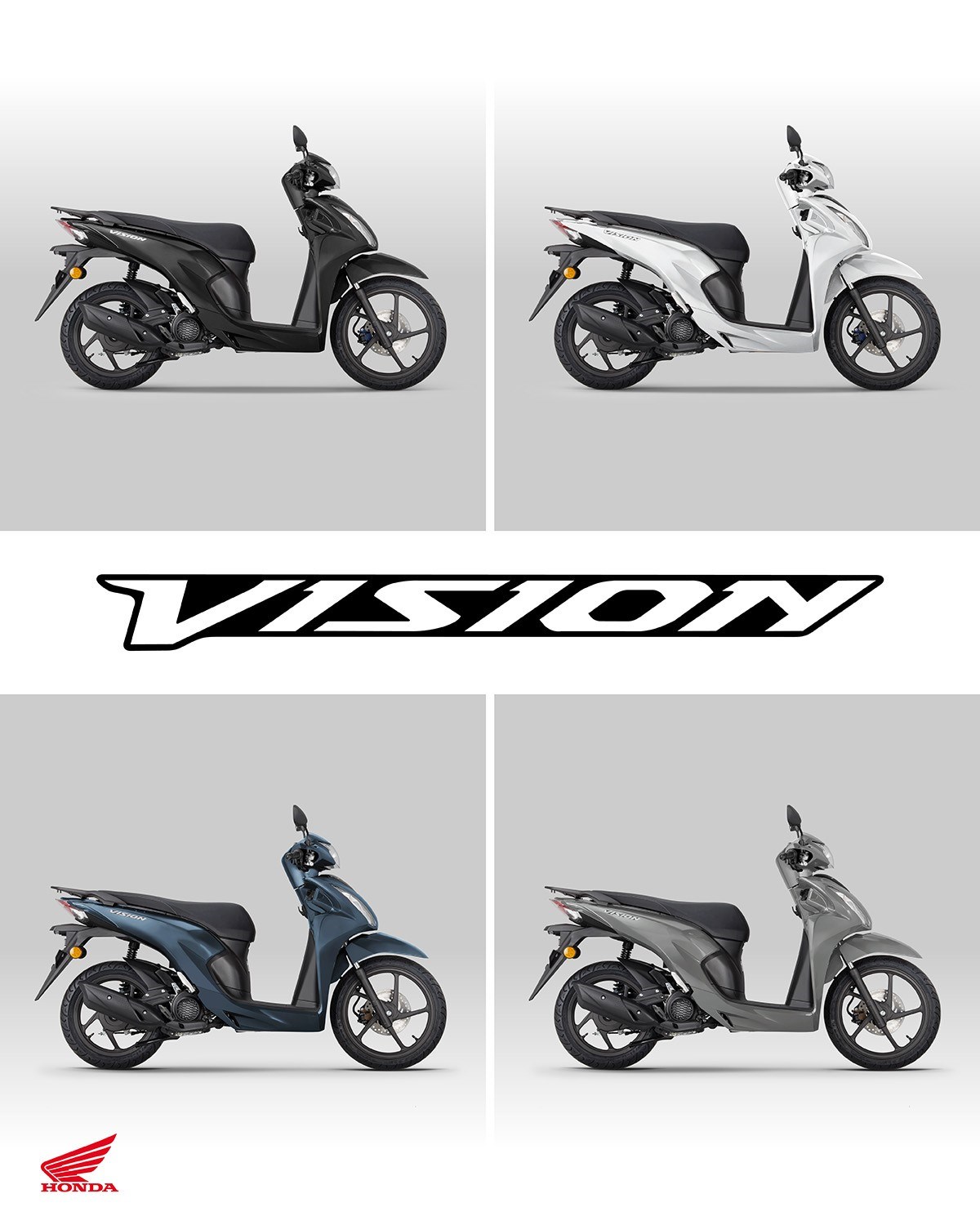

For 23YM, the Vision 110 will be available in the following colour options:
- Pearl Jupiter Gray **NEW**
- Matt Suit Blue Metallic **NEW**
- Pearl Jasmine White
- Matt Galaxy Black Metallic
Engine
- Fuel efficient ‘enhanced Smart Power’two-valve, air-cooled SOHC engine
- Idling Stop technology
Chassis
- Enhanced Smart Architecture Frame (eSAF)
- Stability of 16-inch front wheel and 14” rear wheel
- 100kg kerb weight
Styling & Equipment
- Smart body style with flat floored practicality
- Smart Key operation of ignition and seat
- Analogue/LCD instrumentation
Technical Specifications
|
ENGINE |
|
|
Type |
Air-cooled 4-stroke SOHC single |
|
Engine Displacement (cm³) |
109.5cc |
|
No. of Valves per Cylinder |
2 valve |
|
Bore ´ Stroke (mm) |
47.0 x 63.1mm |
|
Compression Ratio |
10:1 |
|
Max. Power Output |
6.4kW@ 7,500rpm |
|
Max. Torque |
9.0Nm @ 5,750rpm |
|
Oil Capacity |
0.8 |
|
Noise Level |
Lurban 67.8, Lwot 68.5 |
|
FUEL SYSTEM |
|
|
Carburation |
PGM-FI electronic fuel injection |
|
Fuel Tank Capacity |
4.9L |
|
Fuel Consumption |
54.5km/litre |
|
ELECTRICAL SYSTEM |
|
|
Starter |
Electric |
|
Battery Capacity |
GTZ6V 5.3Ah MF |
|
ACG Output |
390w/5,000rpm |
|
DRIVETRAIN |
|
|
Clutch Type |
Automatic; centrifugal |
|
Transmission Type |
CVT (V Belt) |
|
FRAME |
|
|
Type |
Tubular steel underbone |
|
CHASSIS |
|
|
Dimensions (LxWxH) |
1,925mm X 686mm X 1,115mm |
|
Wheelbase |
1,280mm |
|
Caster Angle |
26° 30’ |
|
Trail |
71mm |
|
Seat Height |
785mm |
|
Ground Clearance |
175mm |
|
Kerb Weight |
100kg |
|
Turning radius |
1.8m |
|
SUSPENSION |
|
|
Type Front |
Telescopic Φ31 |
|
Type Rear |
Single damper unit swing arm |
|
WHEELS |
|
|
Rim Size Front |
16M/C X MT1.85 |
|
Rim Size Rear |
14M/C X MT1.85 |
|
Tyres Front |
80/90-16 inch |
|
Tyres Rear |
90/90-14 inch |
|
BRAKES |
|
|
System Type |
Combined Brake System |
|
INSTRUMENTS & ELECTRICS |
|
|
Instruments |
12V socket |
|
Headlight |
Bulb |
|
Taillight |
Bulb |
All specifications are provisional and subject to change without notice.
# Please note that the figures provided are results obtained by Honda under standardised testing conditions prescribed by WMTC. Tests are conducted on a rolling road using a standard version of the vehicle with only one rider and no additional optional equipment. Actual fuel consumption may vary depending on how you ride, how you maintain your vehicle, weather, road conditions, tire pressure, installation of accessories, cargo, rider and passenger weight, and other factors.
