Model Overview
The parallel twin-cylinder engine blends strong low-to mid-range performance with easy manners and excellent fuel efficiency. Peak power is set at 43.1kW with an impressive 69Nm torque. A near 400km fuel range is achievable from the 14.1L fuel tank.
Throttle By Wire (TBW) serves 3 default rider modes plus a custom USER choice, while Honda Selectable Torque Control (HSTC) features refined input over 3 levels. The Dual Clutch Transmission (DCT) option also has Automatic shifting schedules that integrate with the riding modes, as well as USER input.
A tough chassis comprises of a tubular steel frame, 41mm telescopic front forks and Pro-Link rear monoshock. The bodywork is sharp, with a minimalist edge, protective screen design and attractive styling for the LED lighting and LCD dash. Seat height is 800mm; the under-tank storage volume 23L.

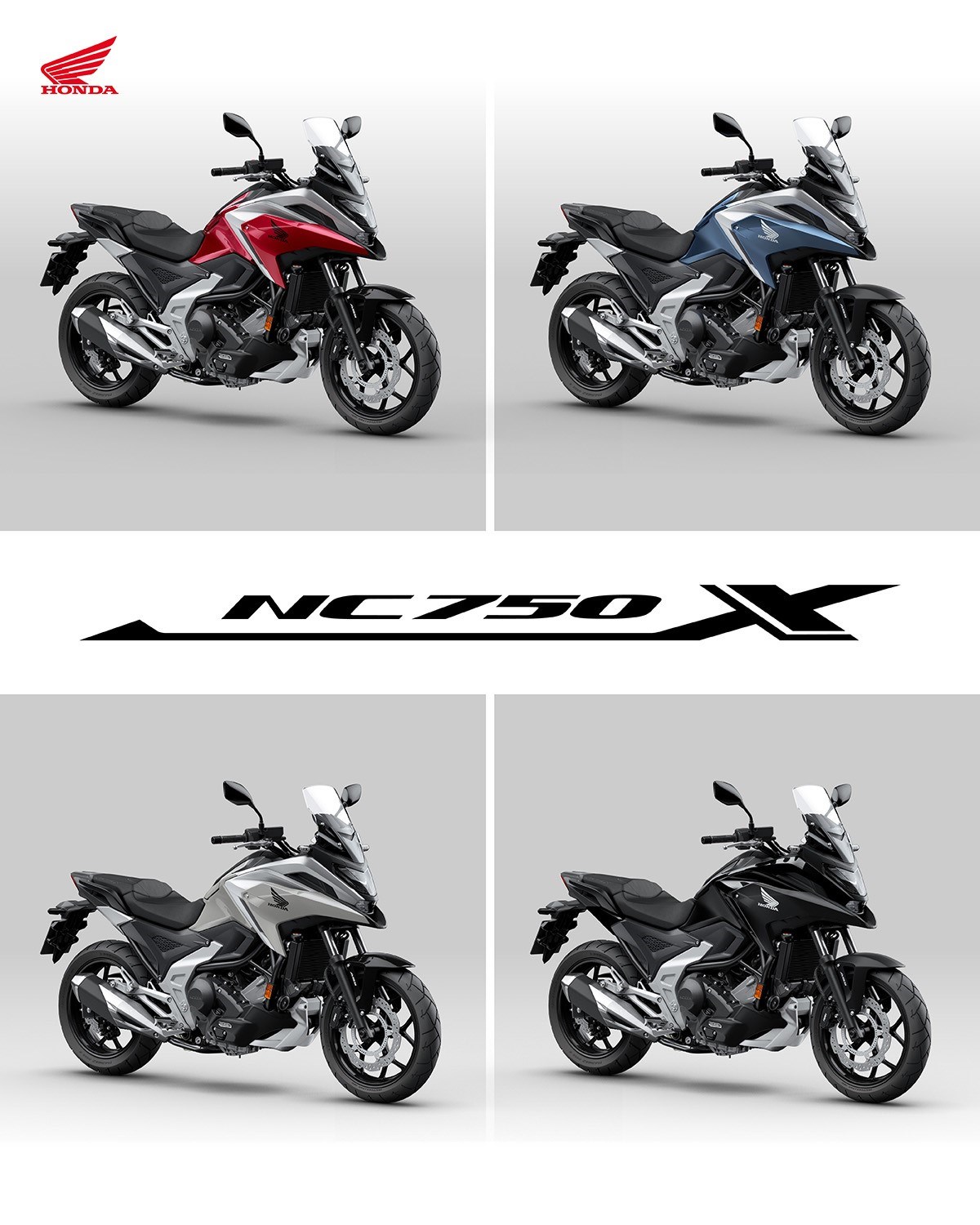

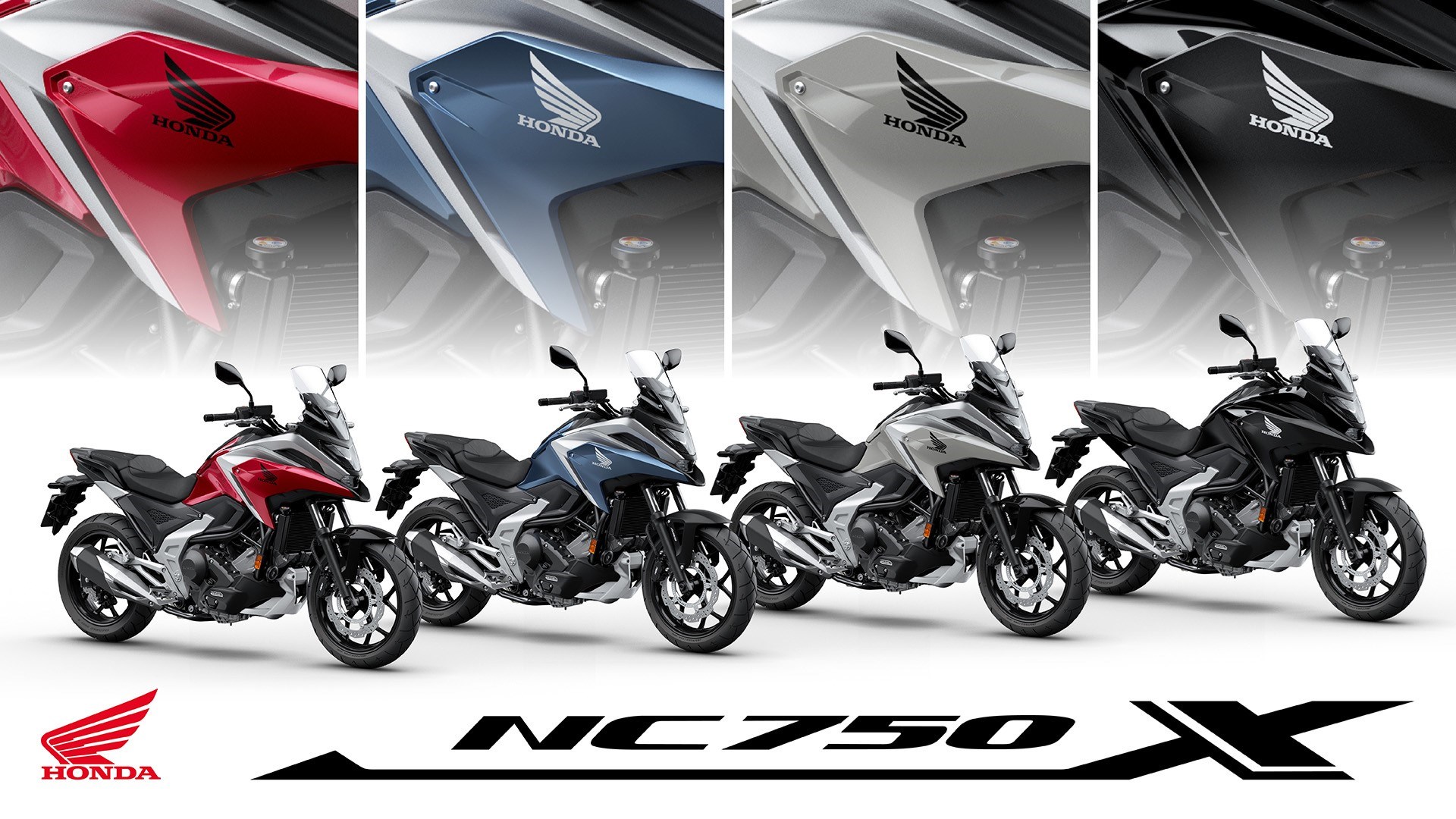

For 23YM the NC750X will be available in the following colour options:

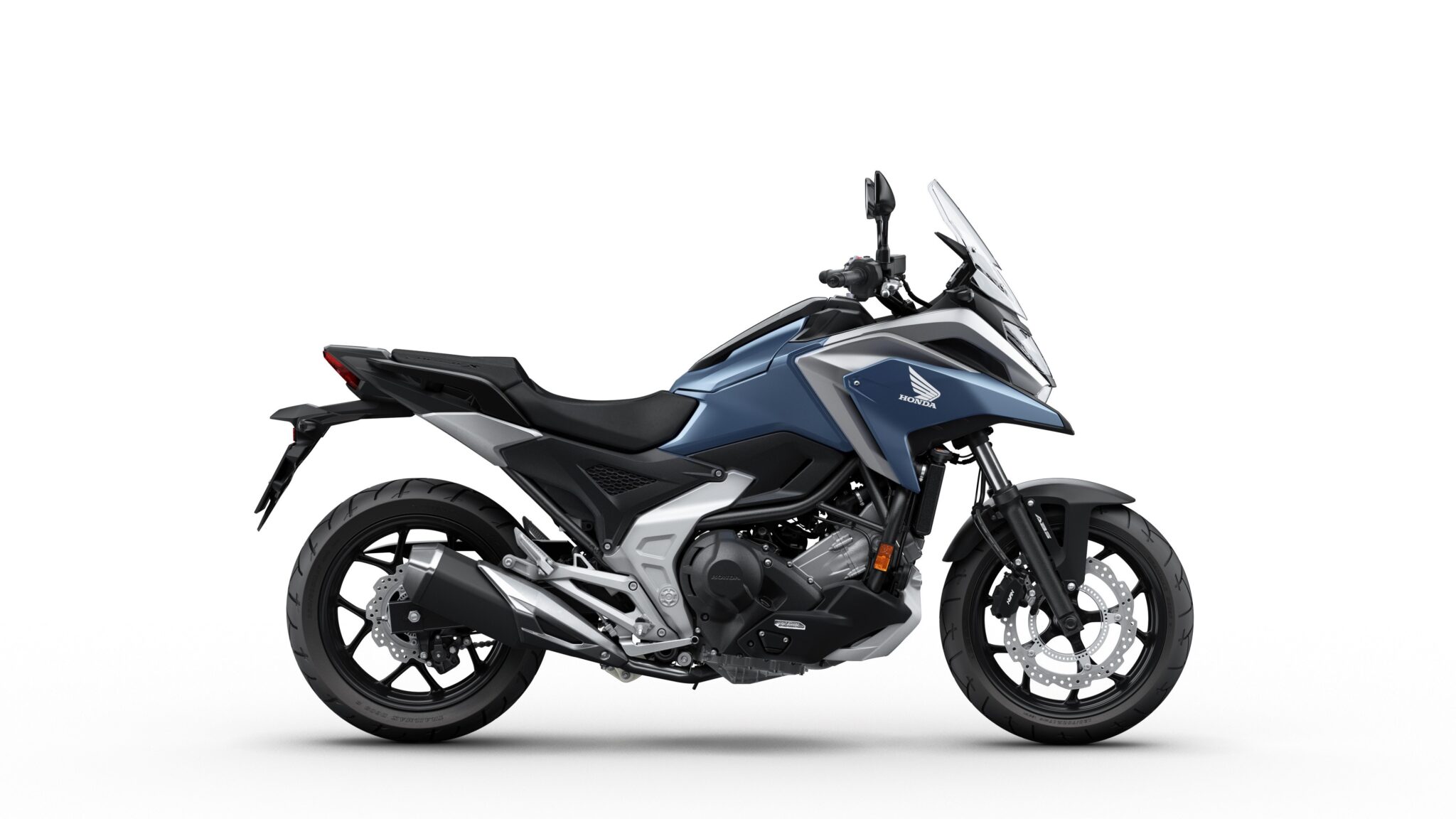

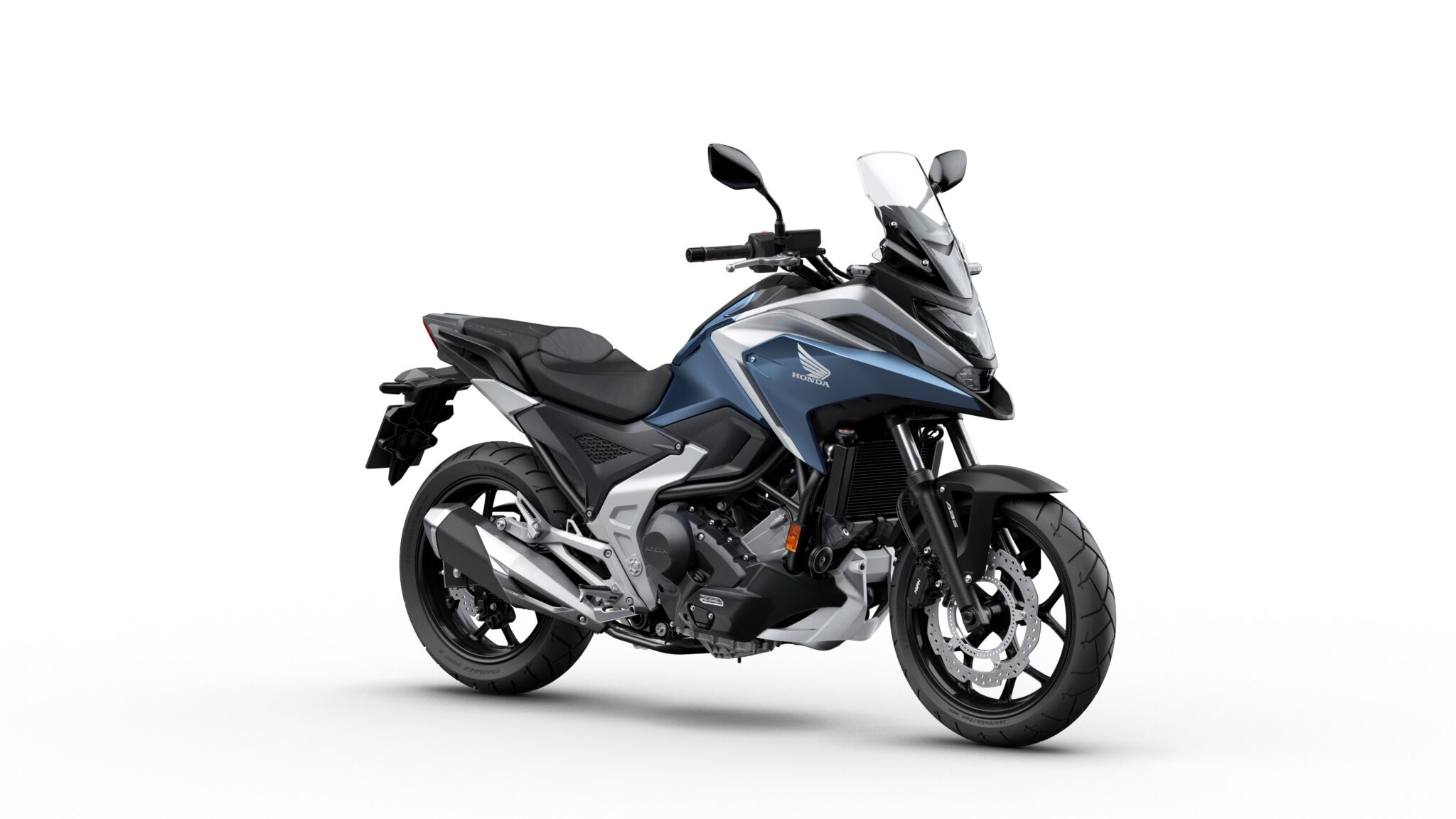

- **NEW** Mat Jeans Blue Metallic with Silver trim

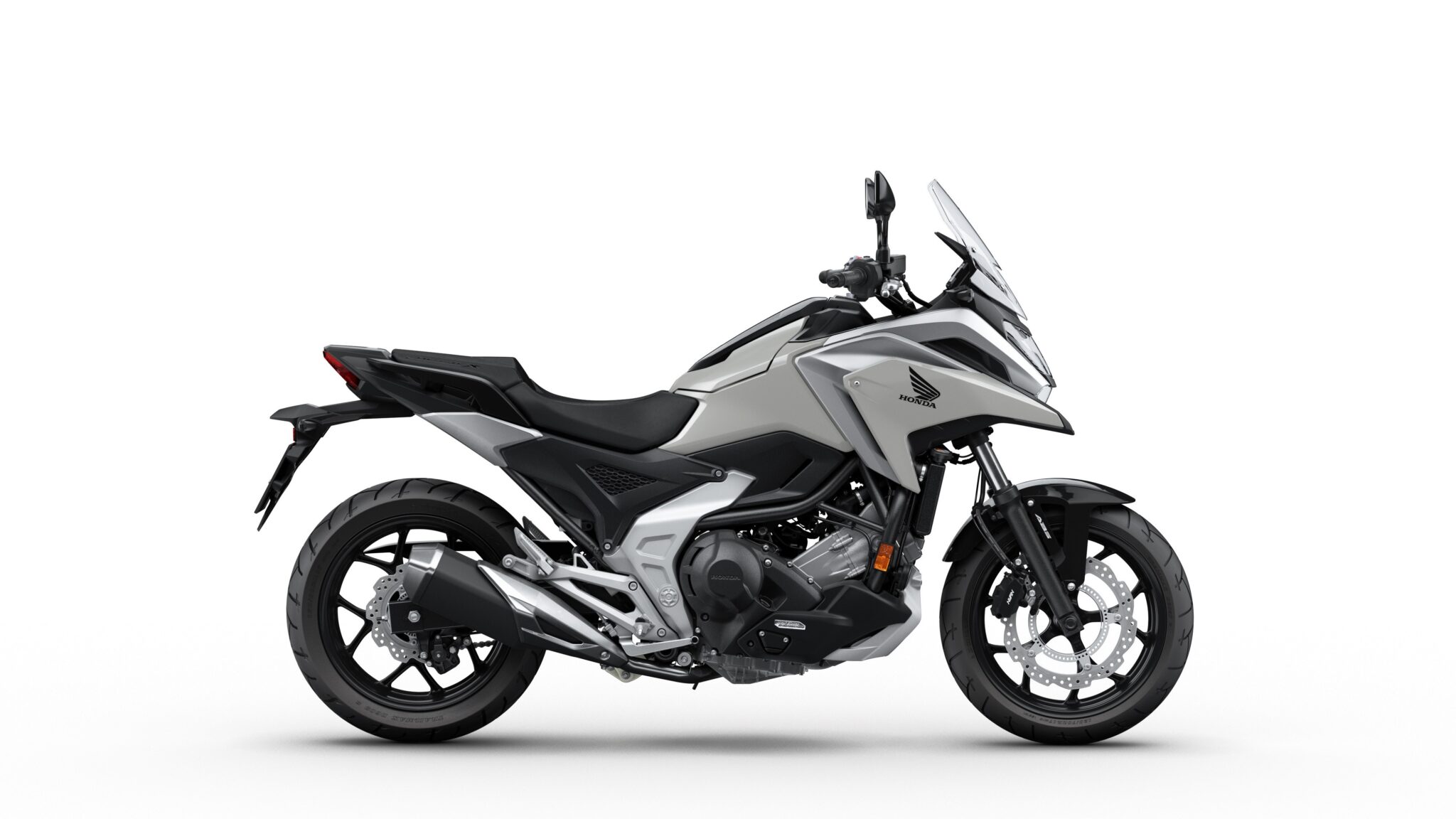

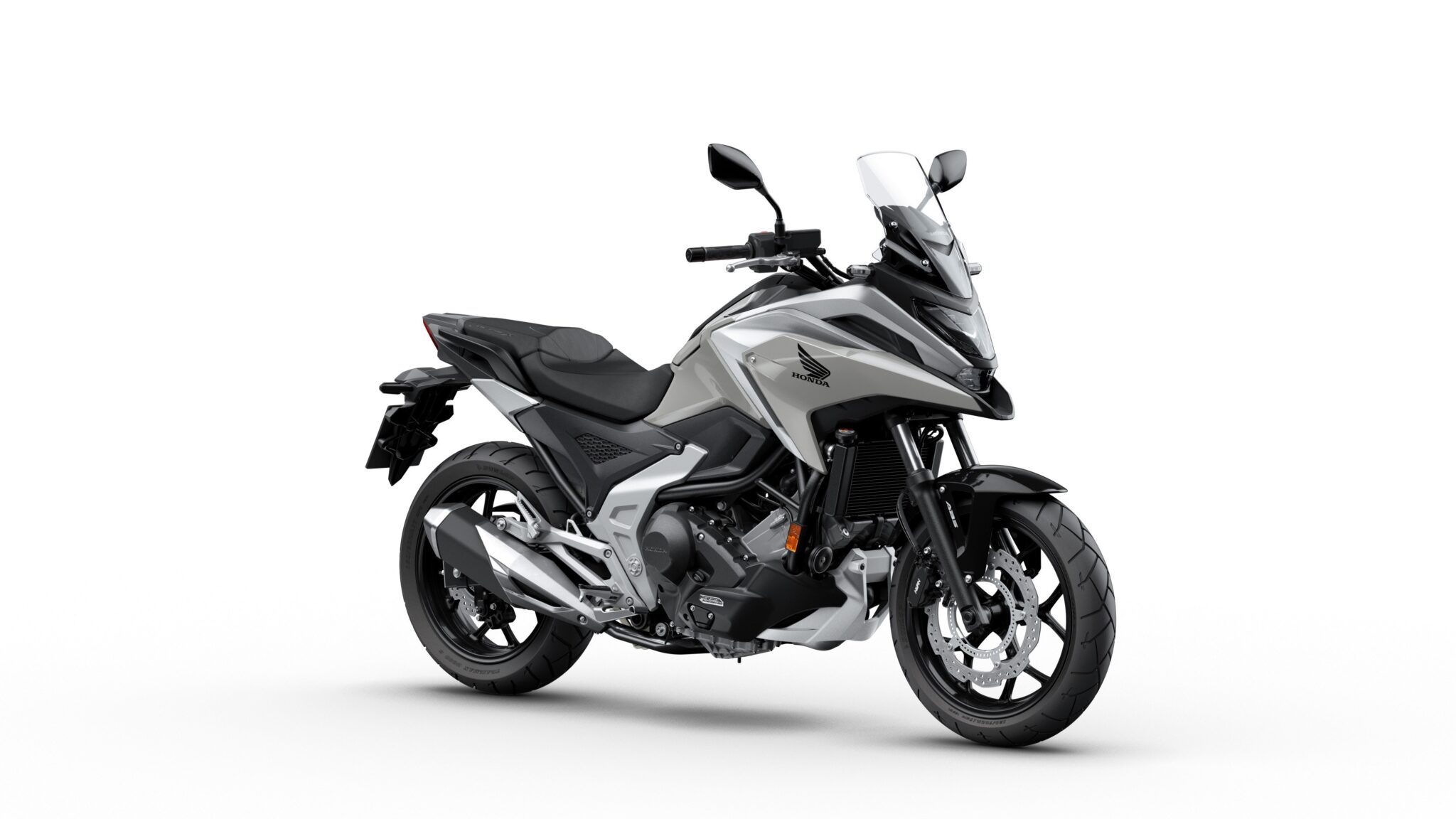

- **NEW** Pearl Deep Mud Gray with Silver trim

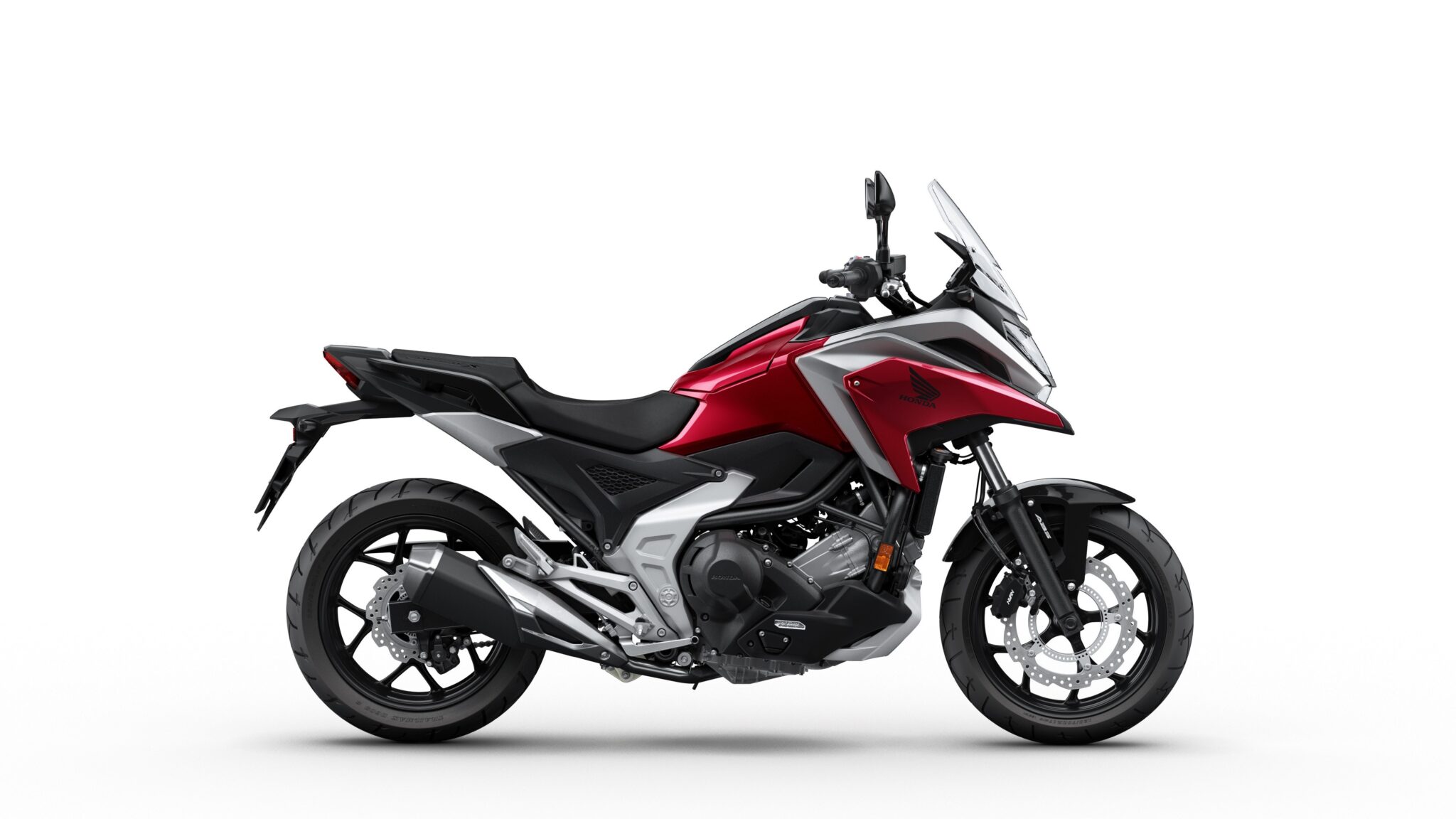

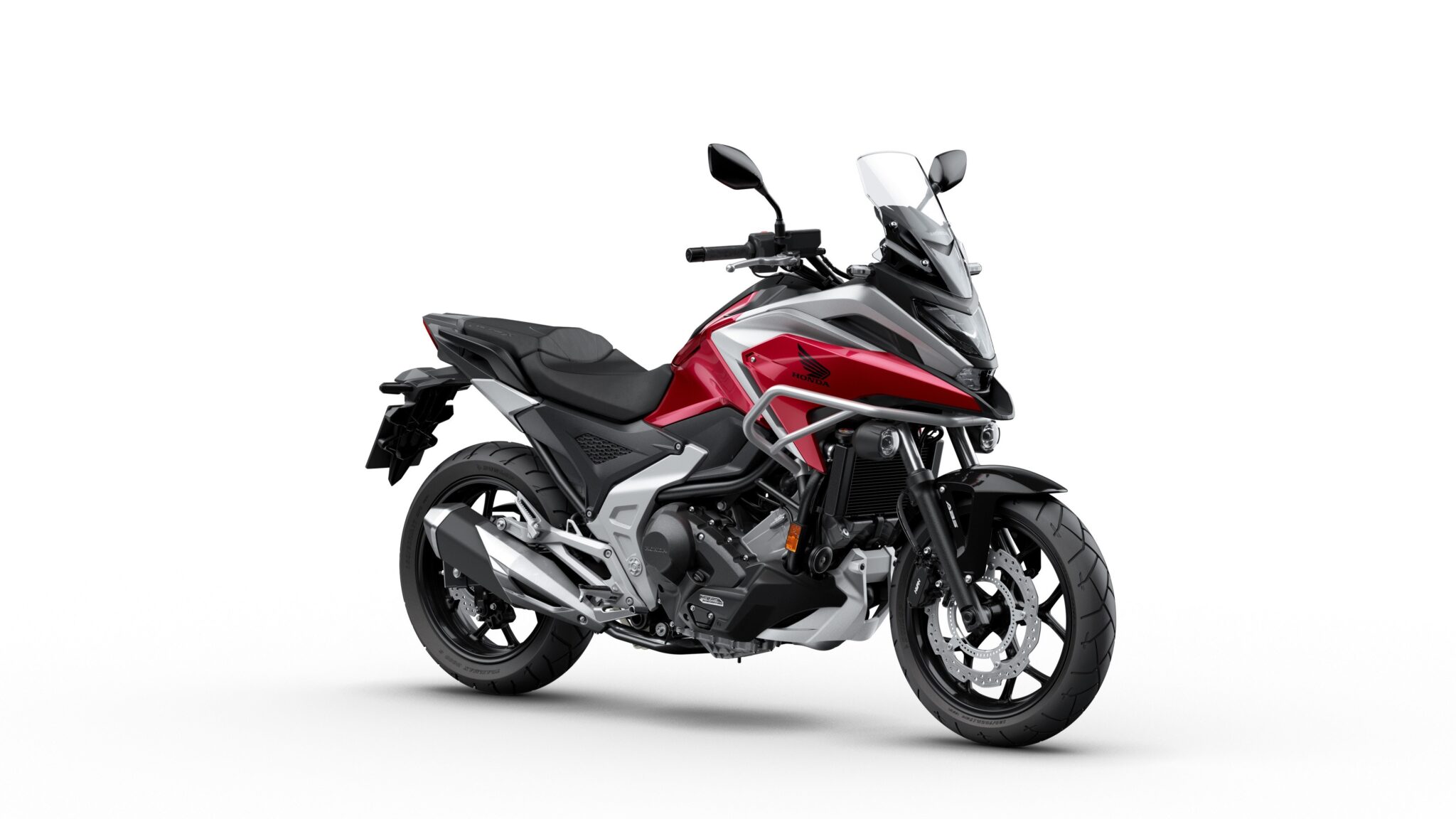

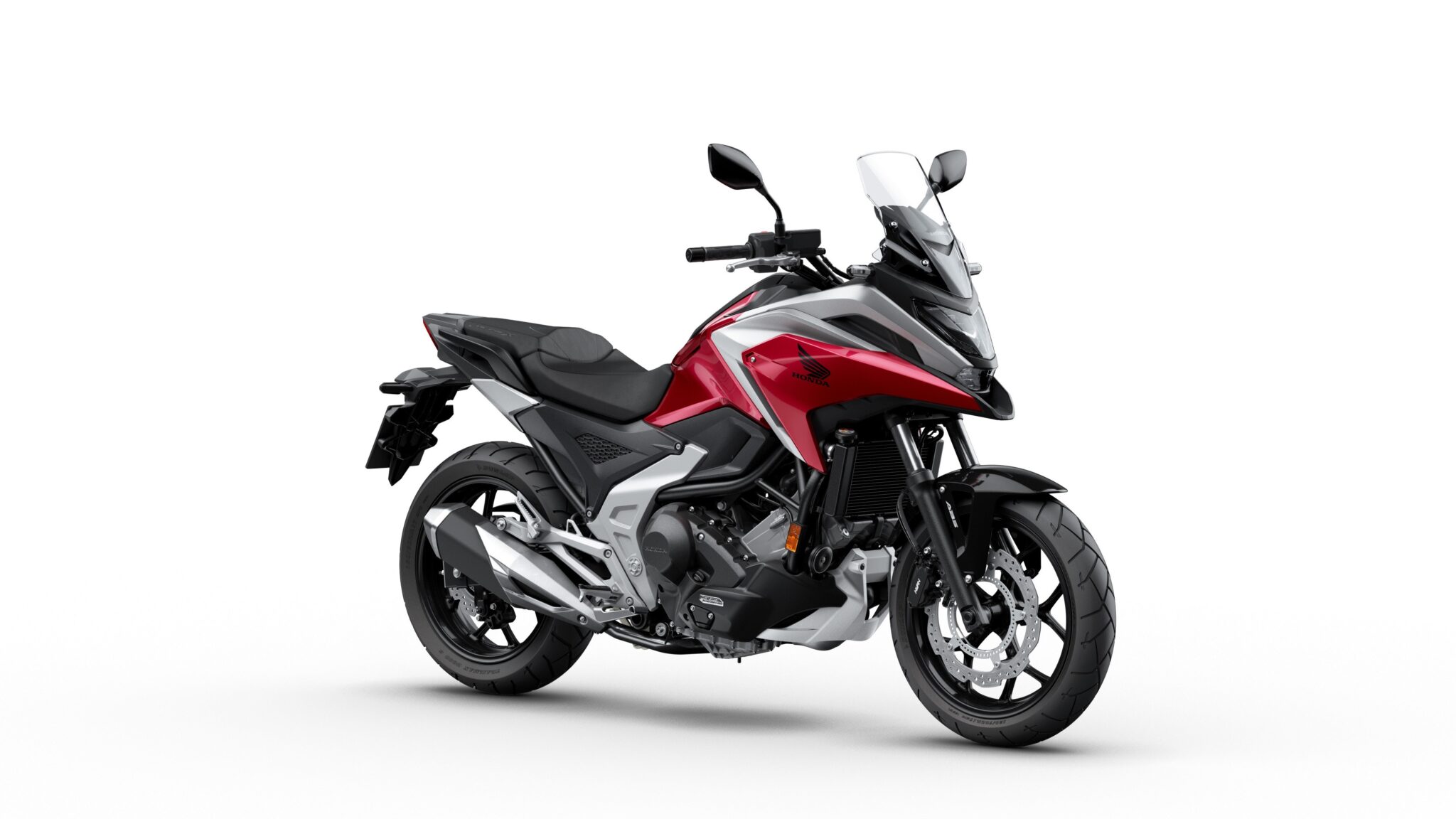

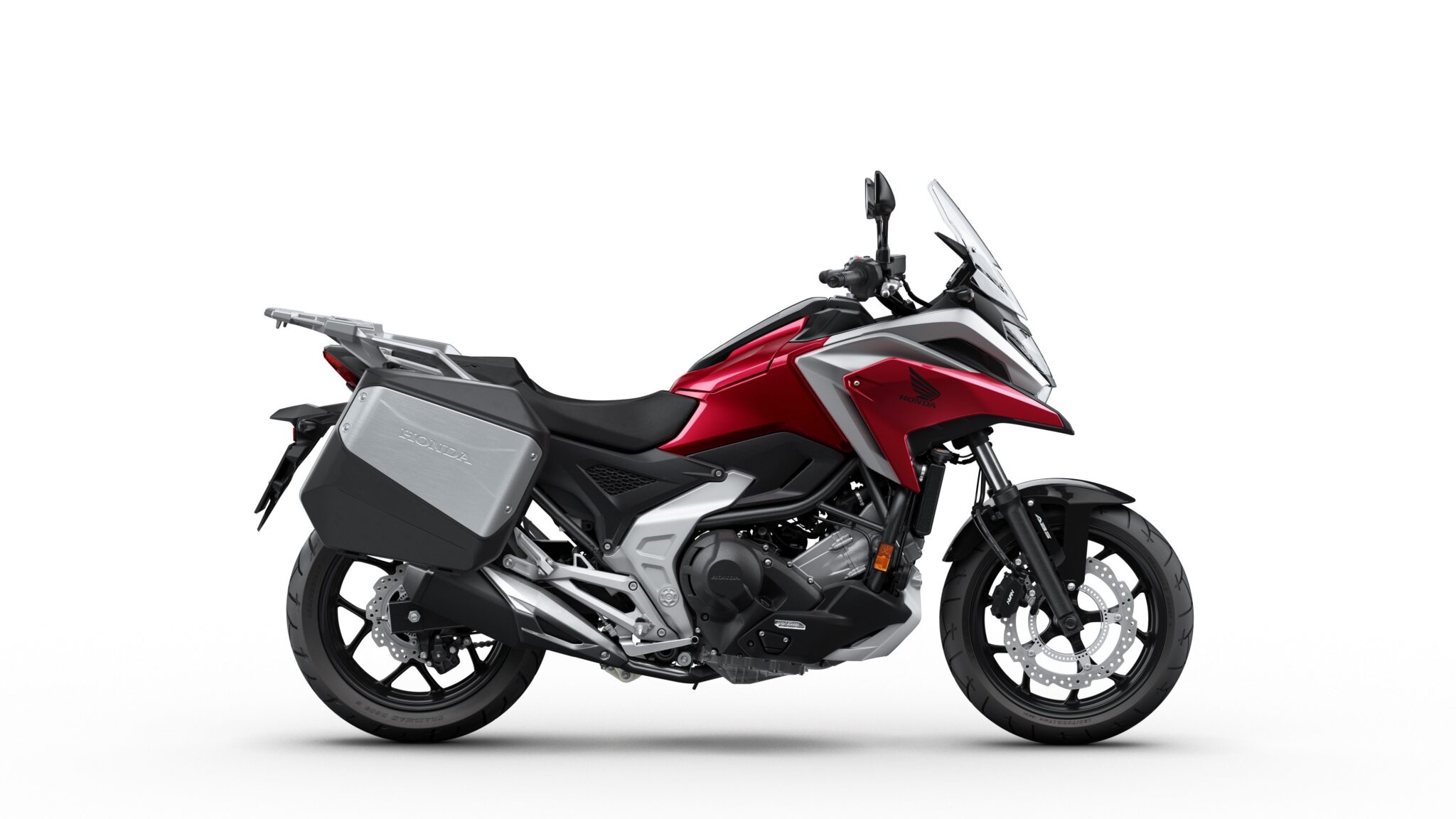

- **NEW** Candy Chromosphere Red with Silver trim

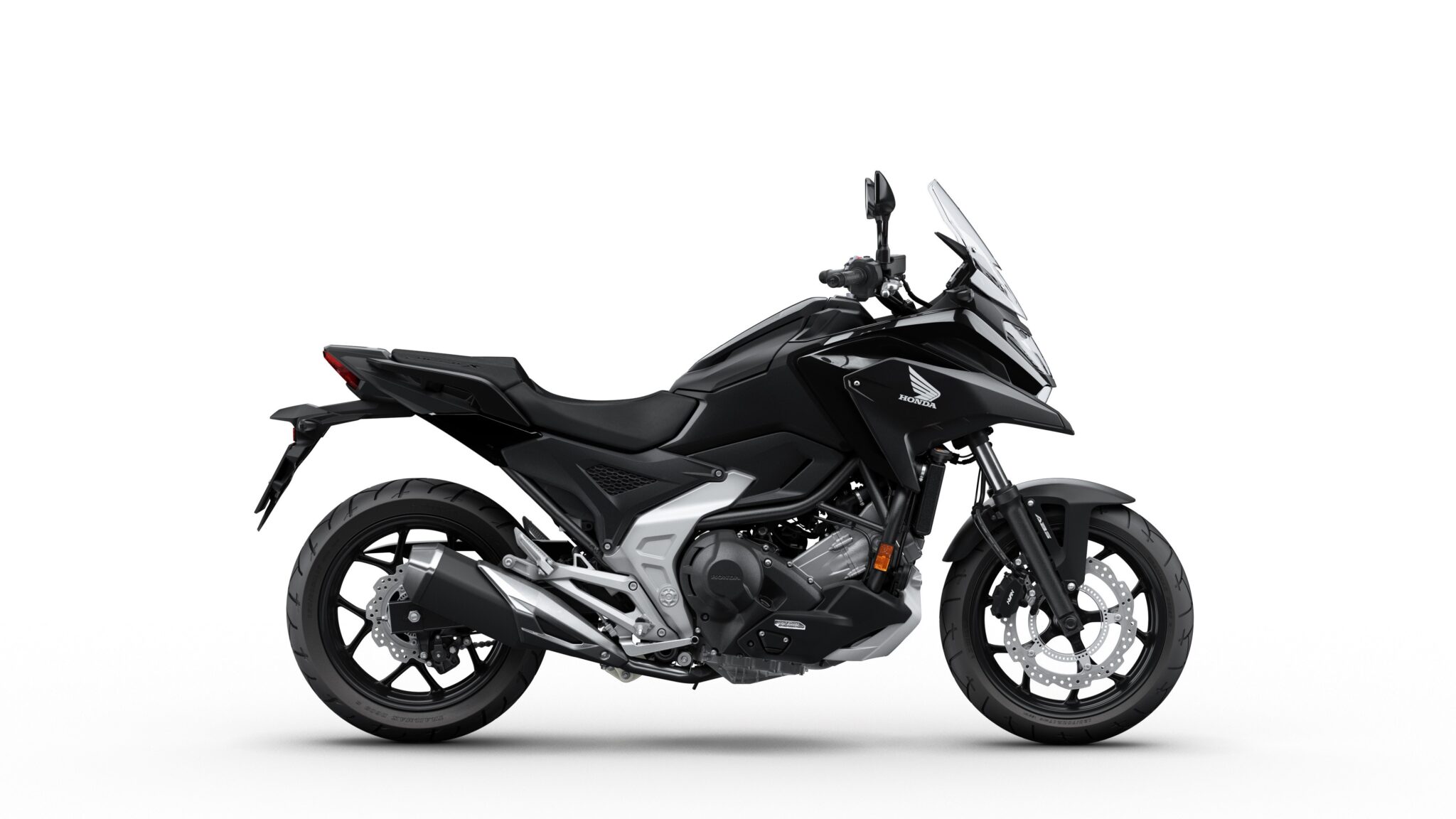

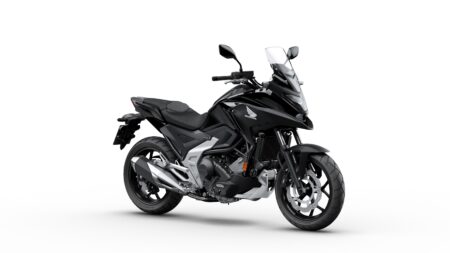

- Mat Ballistic Black Metallic with new Black trim
Engine
- Peak power of 43.1kW with 69Nm torque
- EURO5 compliant, with 3.6l/100km fuel efficiency
- Assist/slipper clutch control
- 35kW A2 licence version available
Engine Electronics
- Throttle By Wire delivers 3 default riding modes, plus USER customisation
- Honda Selectable Torque Control features fine control and 3 levels of intervention
Dual Clutch Transmission
- Differing shifting schedules employed depending on riding mode selected
- USER mode allows choice of 4 settings
- Adaptive Clutch Capability Control gives natural feel
Styling & Equipment
- Aggressively minimal styling
- Full LED lighting and LCD display
- Screen designed for wind and weather protection
- Integral 23L storage space holds an adventure-style full-face helmet
Chassis
- Tubular steel diamond frame
- 800mm seat height
- 41mm Showa Dual Bending Valve front forks and Pro-Link rear monoshock, spring preload adjustable
Accessories
NC750X 23YM presents a full range of Honda Genuine Accessories, available individually or within packs for convenience.
To make it easy there are 4 packs that group the accessories neatly together: URBAN PACK, TRAVEL PACK, ADVENTURE PACK and COMFORT PACK.
The following accessories are also available
- Top box backrest

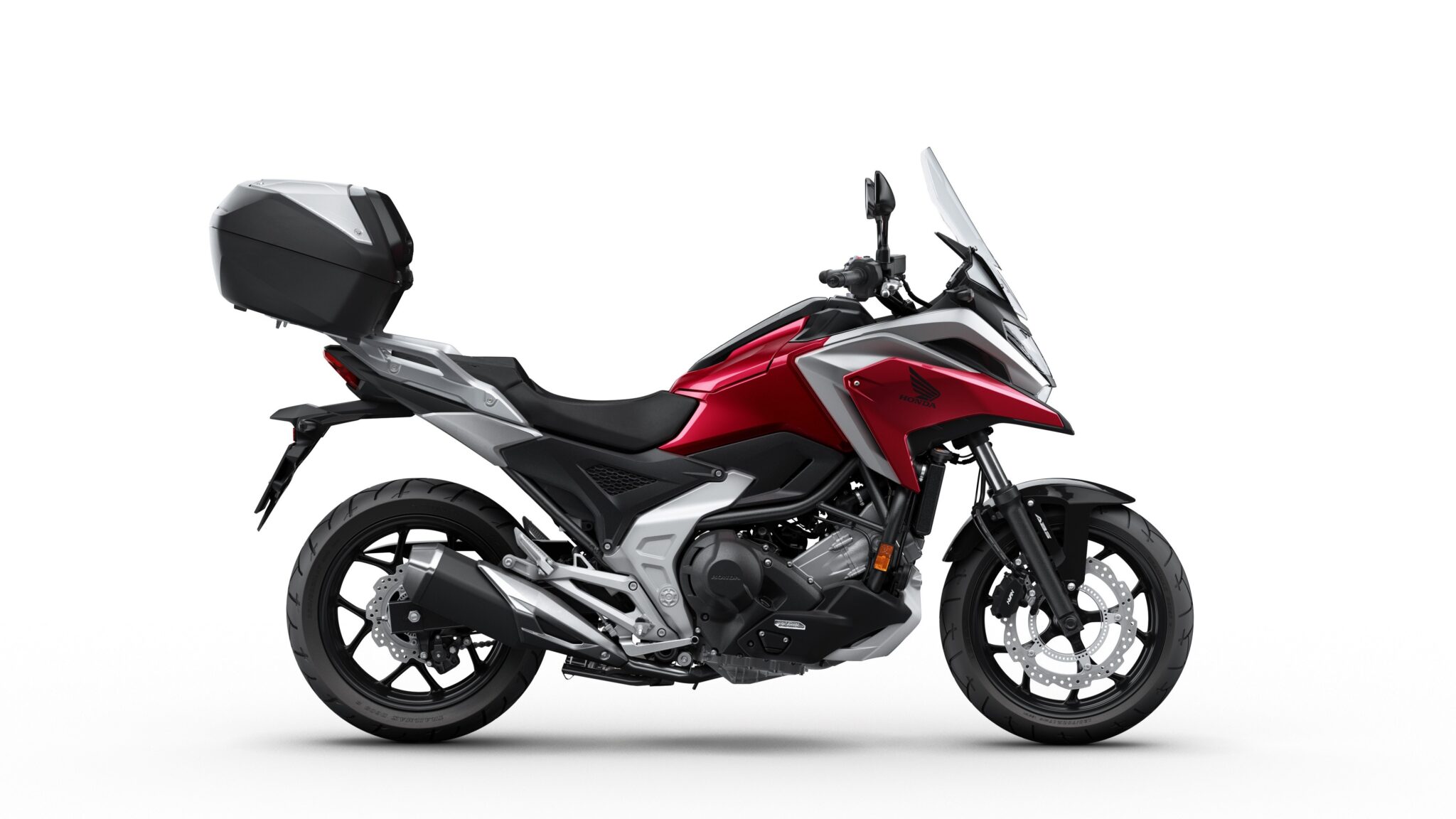

- 38L / 50L top box
- Top Box lock
- Top box inner bag (38L / 50L)
- U-Lock
Technical Specification
ENGINE |
|
Type |
Liquid-cooled 4-stroke 8-valve, SOHC parallel 2-cylinder. EURO5 compliant. |
Displacement |
745cc |
Bore & Stroke |
77mm x 80mm |
Compression Ratio |
10.7: 1 |
Max. Power Output |
43.1kW @6,750rpm |
Max. Torque |
69Nm @ 4,750rpm |
Oil Capacity |
4L |
Noise level (dB) |
L-wot – 77 L-urban – 72 |
FUEL SYSTEM |
|
Carburation |
PGM-FI electronic fuel injection |
Fuel Tank Capacity |
14.1 litres |
Fuel Consumption |
MT: 28.3km/l (WMTC mode) DCT: 28.3km/l (WMTC mode-Tested in D-Mode) |
ELECTRICAL SYSTEM |
|
Starter |
Electric |
Battery Capacity |
12V/11AH |
DRIVETRAIN |
|
Clutch Type |
MT:Wet multiplate clutch DCT: Wet multiplate hydraulic 2-clutch |
Transmission Type |
MT: 6-speed Manual Transmission DCT: 6-speed Dual Clutch Transmission |
Final Drive |
Chain |
FRAME |
|
Type |
Diamond; steel pipe |
CHASSIS |
|
Dimensions (L´W´H) |
2210mm x 846mm x 1330mm |
Wheelbase |
MT: 1535mm DCT: 1535mm |
Caster Angle |
27° |
Trail |
110mm |
Seat Height |
800mm |
Ground Clearance |
145mm |
Kerb Weight |
MT: 214kg DCT: 224kg |
SUSPENSION |
|
Type Front |
41mm telescopic fork, 120mm stroke |
Type Rear |
Monoshock damper, Pro-Link swingarm, 120mm travel |
WHEELS |
|
Type Front |
Multi-spoke cast aluminium |
Type Rear |
Multi-spoke cast aluminium |
Rim Size Front |
17M/C x MT3.50 |
Rim Size Rear |
17M/C x MT4.50 |
Tyres Front |
120/70-ZR17M/C (58W) |
Tyres Rear |
160/60-ZR17M/C (69W) |
BRAKES |
|
ABS System Type |
2-channel ABS |
Type Front |
320mm single wavy hydraulic disc with 2-piston caliper and sintered metal pads |
Type Rear |
240mm single wavy hydraulic disc with single-piston caliper and resin mold pads |
INSTRUMENTS & ELECTRICS |
|
Instruments |
Digital speedometer, digital bar-type tachometer, clock, bar-type fuel meter, two trip meters, gear position indicator, ‘instant’ and ‘average’ fuel consumption and coolant temperature warning light. |
Security System |
HISS |
Headlight |
LED |
Taillight |
LED |
All specifications are provisional and subject to change without notice
Please note that the figures provided are results obtained by Honda under standardised testing conditions prescribed by WMTC. Tests are conducted on a rolling road using a standard version of the vehicle with only one rider and no additional optional equipment. Actual fuel consumption may vary depending on how you ride, how you maintain your vehicle, weather, road conditions, tire pressure, installation of accessories, cargo, rider and passenger weight, and other factors.
