Model Overview
21YM’s completely redesigned bodywork gave the MSX125 Grom a new design language: fresh and fun, and also easily removed ready for an owner’s creativity to get to work. The LCD dash was also updated to include a rev-counter and gear position indicator.
Now approaching its tenth year of sales, the Grom’s air-cooled engine maintains usable, real-world performance with a fifth gear to help longer-range riding. And the chassis – tried and tested – continues to offer small-bike dimensions with big-bike suspension, braking and handling qualities.
The 23YM MSX125 Grom will be available in the following colour options:

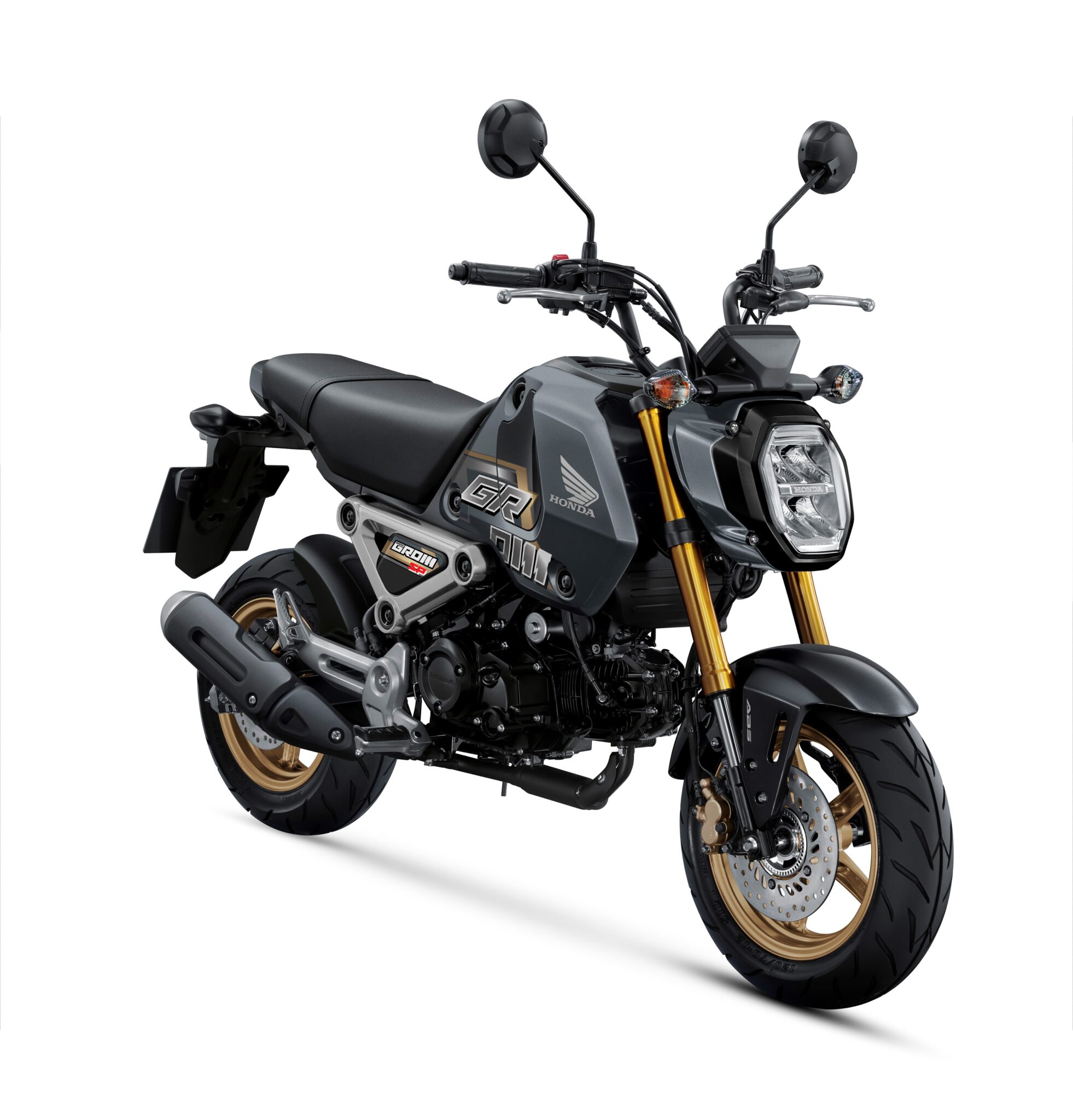

- Matt Dim Gray Metallic with unique gold wheels and ‘Big Logo’ graphics **NEW**

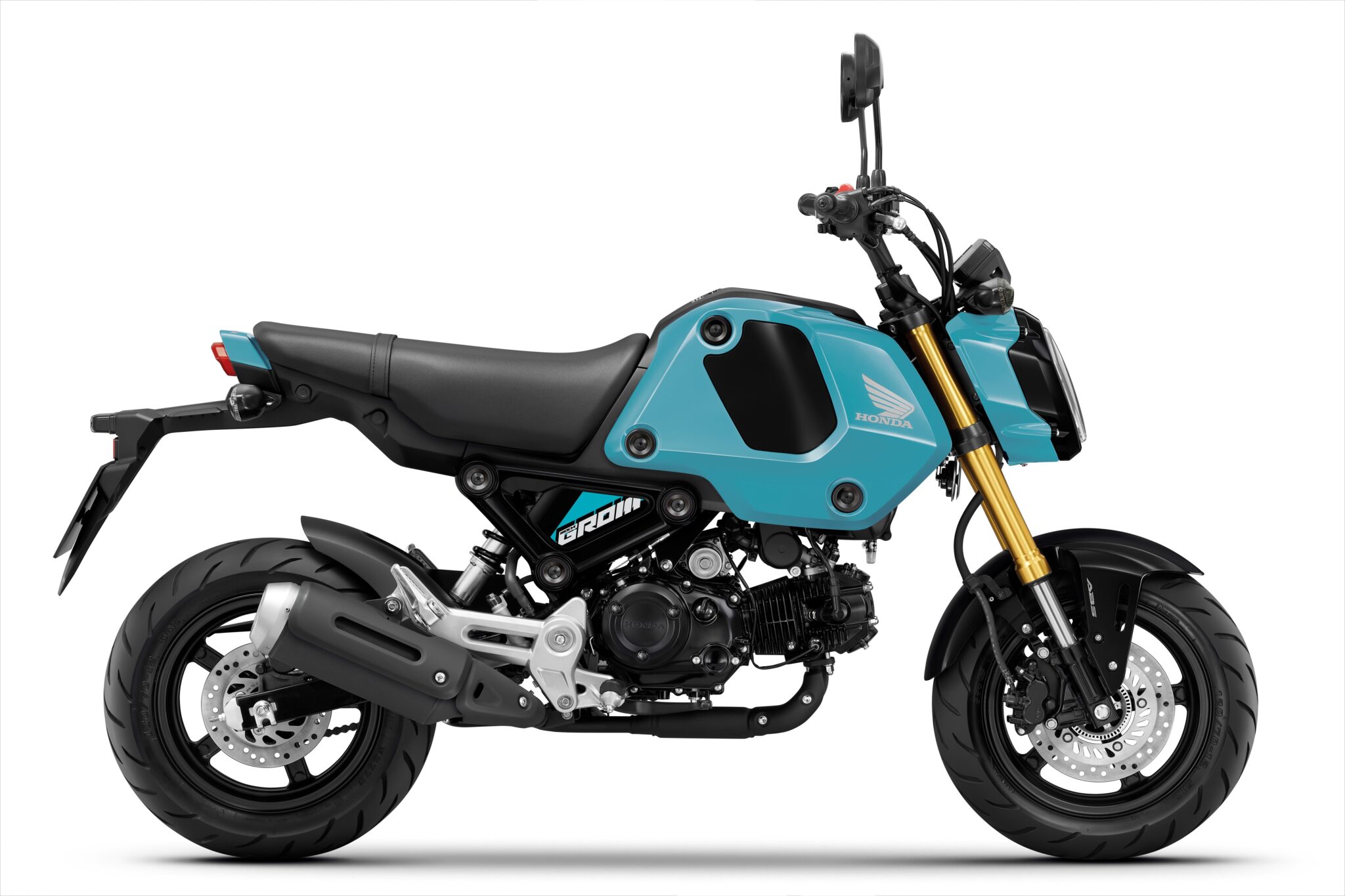

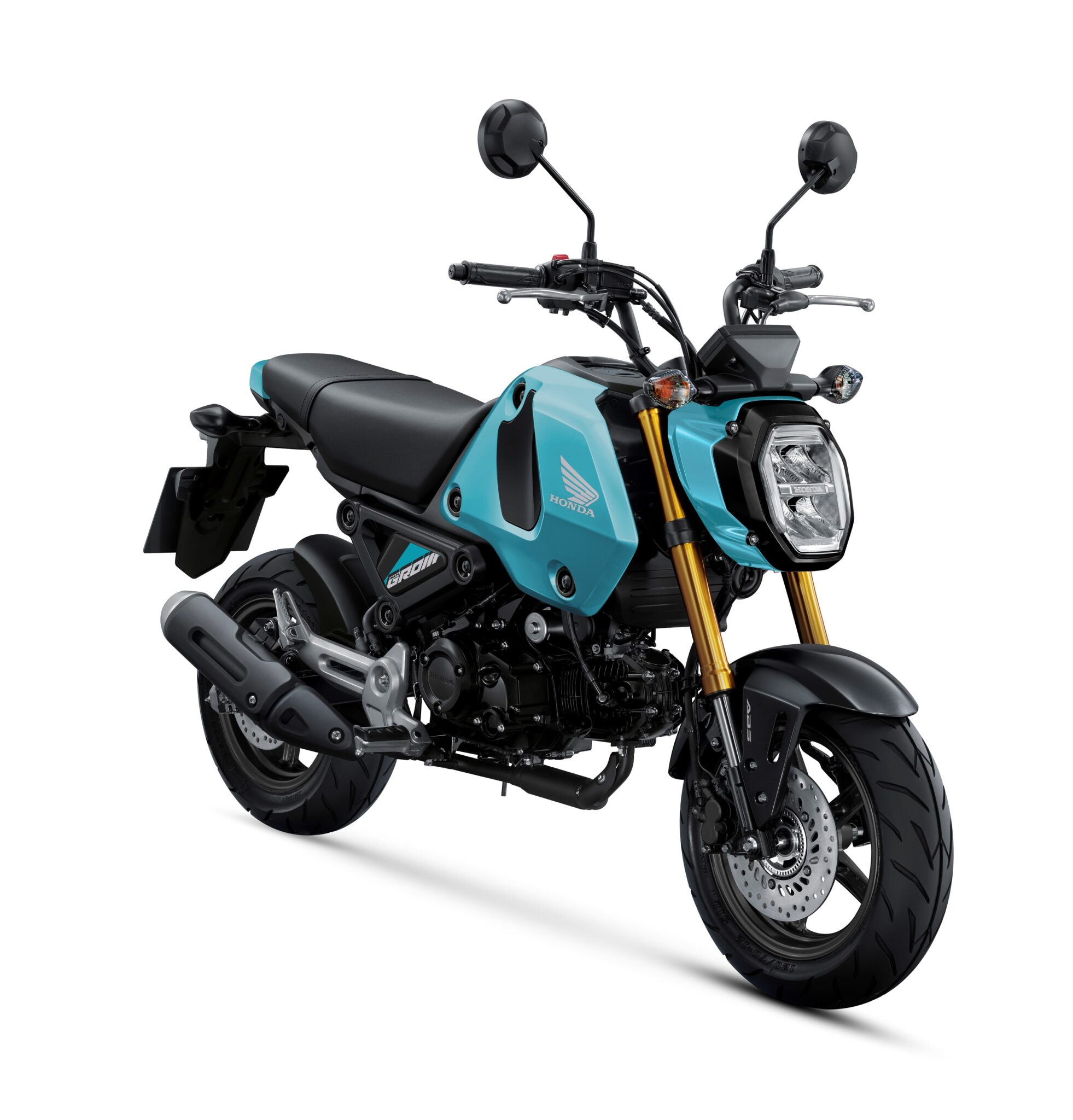

- Splendid Blue **NEW**

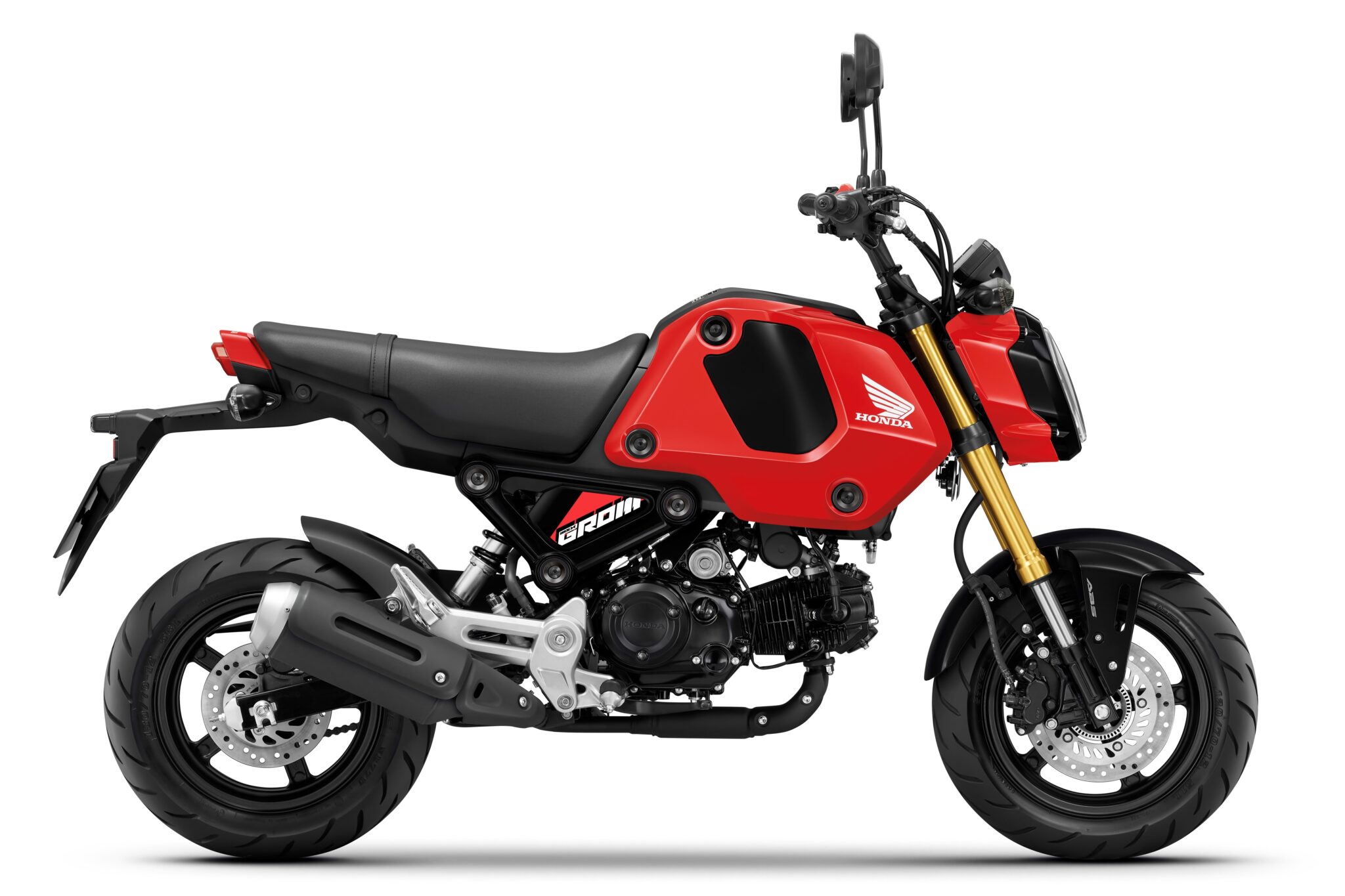

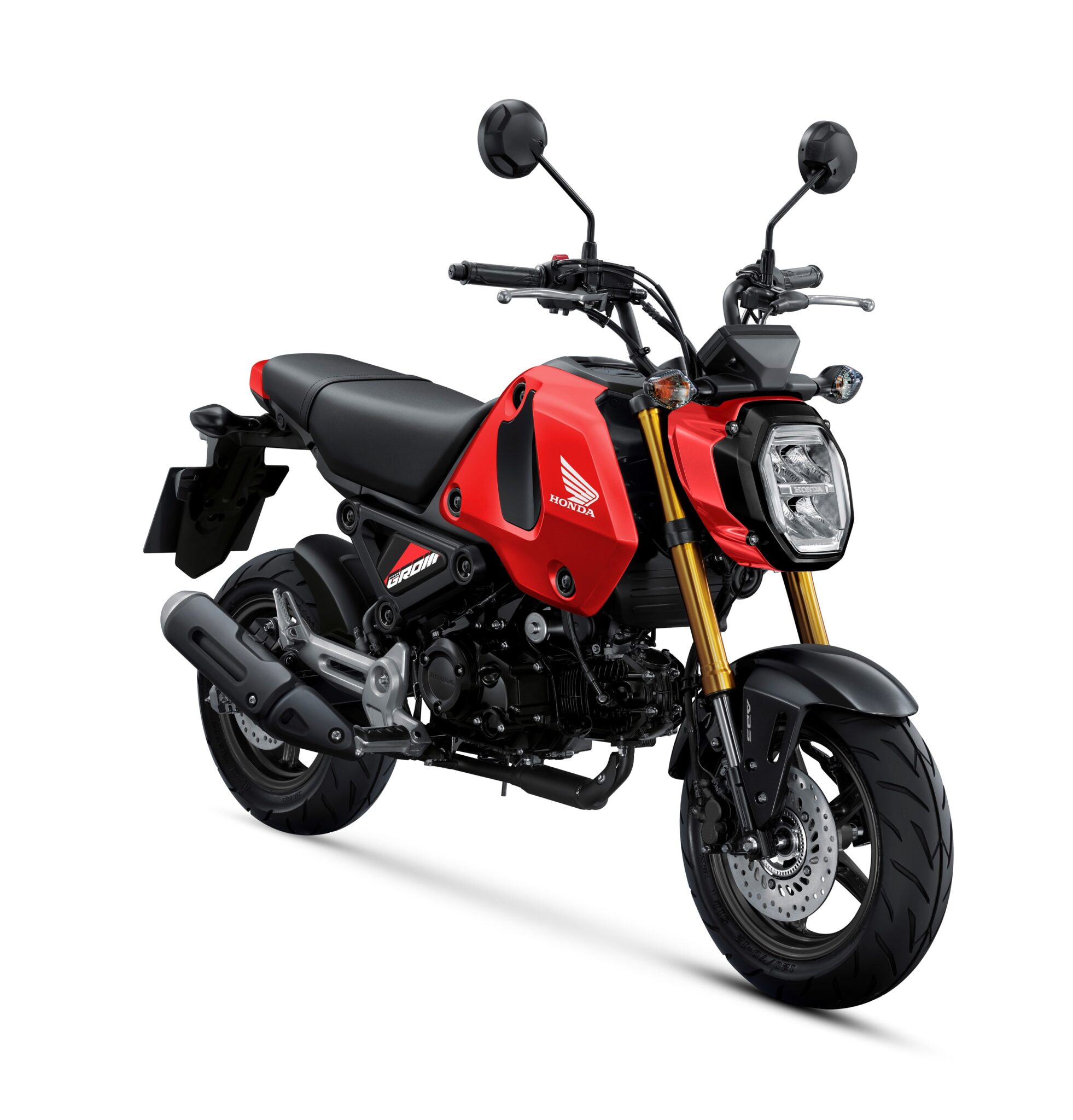

- Gayety Red SE with new black front mudguard
Engine
- 125cc, air-cooled fuel-injected two-valve engine
- 2kW peak power/10.5Nm torque and 66.6km/l (WMTC mode)
- Five-speed gearbox for higher-speed cruising
Chassis
- Steel mono-backbone frame provides central strength; 761mm seat height
- Quality suspension performance from 31mm USD forks and rear monoshock
- 12-inch wheel rims, hydraulic disc brakes front and rear plus IMU controlled ABS braking
Styling & Equipment
- Bodywork with inimitable individuality
- Easy custom potential – all four panels attach with just six bolts each side
- LCD dash includes rev counter and gear position indicator
- Two all-new colours for 23YM
Technical Specifications
|
ENGINE |
|
|
Type |
2-valve air-cooled single cylinder |
|
Displacement |
125cc |
|
Bore & Stroke |
50.0mm x 63.1mm |
|
Compression Ratio |
10.0:1 |
|
Max. Power Output |
7.2Kw @ 7,250rpm |
|
Max. Torque |
10.5Nm @ 5,500rpm |
|
Oil Capacity |
1.1 litres |
|
Noise Level |
Lurban 69.7; Lwot 71.2 |
|
FUEL SYSTEM |
|
|
Carburation |
PGM-FI |
|
Fuel Tank Capacity |
6.0 litres |
|
Fuel Consumption |
65.7km/l |
|
ELECTRICAL SYSTEM |
|
|
Starter |
Electric Motor |
|
Battery Capacity |
12V 3.5AH |
|
ACG Output |
225W/5000rpm |
|
DRIVETRAIN |
|
|
Clutch Type |
Wet multiplate |
|
Transmission Type |
5 speed |
|
Final Drive |
Chain |
|
FRAME |
|
|
Type |
Steel mono-backbone frame |
|
CHASSIS |
|
|
Dimensions (L´W´H) |
1,760mm x 720mm x 1,015mm |
|
Wheelbase |
1,200mm |
|
Caster Angle |
25⁰ |
|
Trail |
81mm |
|
Seat Height |
761mm |
|
Ground Clearance |
180mm |
|
Kerb Weight |
103kg |
|
Turning radius |
1.9 metres |
|
SUSPENSION |
|
|
Type Front |
USD Front Forks, 31mm |
|
Type Rear |
Mono shock, steel square pipe swingarm |
|
WHEELS |
|
|
Type Front |
5 Spoke Aluminium Cast |
|
Type Rear |
5 Spoke Aluminium Cast |
|
Rim Size Front |
MT 2.5-12 |
|
Rim Size Rear |
MT 2.5-12 |
|
Tyres Front |
120/70-12 |
|
Tyres Rear |
130/70-12 |
|
BRAKES |
|
|
Type Front |
Single 220mm disc with hydraulic dual-piston brake caliper |
|
Type Rear |
Single 190mm disc with hydraulic single-piston brake caliper |
|
INSTRUMENTS & ELECTRICS |
|
|
Instruments |
LCD digital dash with speedometer, twin trip meters, fuel gauge and clock. |
|
Headlight |
LED Headlight and Taillight |
All specifications are provisional and subject to change without notice.
# Please note that the figures provided are results obtained by Honda under standardised testing conditions prescribed by WMTC. Tests are conducted on a rolling road using a standard version of the vehicle with only one rider and no additional optional equipment. Actual fuel consumption may vary depending on how you ride, how you maintain your vehicle, weather, road conditions, tire pressure, installation of accessories, cargo, rider and passenger weight, and other factors
