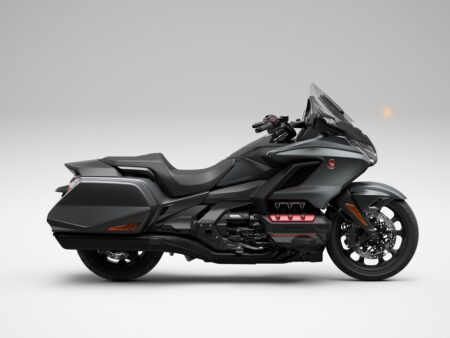

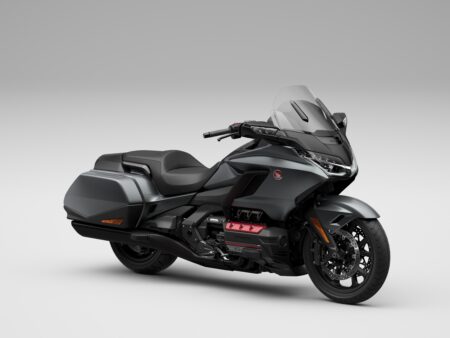

23YM Honda GL1800 Goldwing Bagger

31,499.00

The Gold Wing – Honda’s seminal touring flagship – was completely reborn in 18YM with a radical weight reduction, double wishbone front suspension and brand-new, flat six-cylinder engine. Its status as a flagbearer for new technology is well-founded, with cutting edge features including 7-speed Dual Clutch Transmission (DCT), 7-inch TFT screen, gyrocompass navigation, Apple CarPlay™, Android Auto™, electric screen, Smart Key operation, 4 riding modes and Hill Start Assist.

For 23YM it gains a new Tyre Pressure Monitoring System (TPMS) and arrives draped in a brand-new – and stunning – colour scheme.

**Prices correct as of January 2023 and are subject to change.

Contact us on +353 (0)53 94 22415 or fill in the form below for a callback to find out more about stock and Special offers.

Out of stock

Category: Tags: , ,

Description

Fill in the below for a call-back







    Model Overview

    The Gold Wing’s engine and chassis were designed in unison for the 18YM rebirth, to move the riding position forward and create a much more compact motorcycle. The aluminium beam frame is constructed around a double wishbone front fork, which allows the engine to sit forward in the machine – as the front wheel moves up and down in a more vertical plane – while providing high quality suspension control and front-end stability thanks to its stiffness and reduced friction.

    Optimised for size, the 24V flat six-cylinder engine lost none of its power, avalanche of torque or addictive power delivery. The addition of Throttle By Wire (TBW) control brought with it 4 rider modes: TOUR, SPORT, ECON and RAIN; the operation of the Dual Combined Brake System (D-CBS) alters depending on the mode selected. Hill Start Assist (HSA) and Idling Stop offer ease of use and improved fuel efficiency.

    The DCT features 7-speeds, with clutch feel, shift speed and rpm range of up/downshifts tailored specifically to each riding mode. It also features a ‘creep’ forward and back function.

    The Gold Wing offers a total sense of freedom, with sheer riding enjoyment and performance matched by stylish design. An aerodynamically efficient fairing channels air around the rider, while the electric screen adjusts for preference; the luxurious seats offer all-day comfort. The lightweight audio system and speakers show off incredible sound quality. And features like Smart Key operation, Apple CarPlay™, Android Auto™ and Bluetooth™ provide modern-day convenience and connectivity.

    For 23YM a new Tyre Pressure Monitoring System (TPMS) adds to the technical offering and the GL1800 Gold Wing is available exclusively in a beautiful, brand-new Iridium Gray Metallic/Mat Pearl Morion Black colour way with red detailing on the engine cases.

    Styling & Equipment

    • 7-inch TFT display provides riding, navigation, audio information featuring the Tyre Pressure Monitoring System (TPMS) which for 23YM warns of sub optimal pressures
    • Taut lines with a contemporary edge show off the motorcycle underneath
    • Electric windscreen adjustable for angle and height
    • Cruise control operates smoothly via Throttle By Wire (TBW)
    • Ample luggage capacity for weekend touring
    • Apple CarPlay™ and Android Auto™ allow smartphone use
    • Full LED lighting and auto-cancelling indicators
    • Smart Key control adds convenience for ignition and luggage
    • Two USB Type-C sockets

    Chassis

    • Diecast, aluminium twin-beam frame
    • Double wishbone front suspension and Pro-Arm rear
    • ABS and Dual-Combined Braking System (D-CBS)

    Engine

    • Horizontally opposed, flat six-cylinder SOHC 24-valve engine
    • Throttle By Wire (TBW) with 4 rider modes to tailor power output
    • Riding modes also manage suspension damping and brake force
    • Idling Stop, Integrated Starter Generator (ISG) and Hill Start Assist (HSA)

    Dual Clutch Tranmission (DCT)

    • Third-generation 7-speed DCT as standard equipment
    • Smooth and quiet, with ultra-fast shifting
    • Walking mode allows machine to ‘creep’ forward or back
    • The 4 riding modes also manage DCT for optimised response

    Accessories

    A wide range of genuine Honda accessories have been developed to further enhance The Honda Goldwing ownership experience. These are available either as a pack or individually.

    The Full Option Goldwing includes the following accessories:

    • Pannier Inner Bags & Mats
    • Rear Carrier
    • Main Stand
    • Passenger Backrest
    • High Wind Screen
    • 12V Socket
    • Fog Lamps

    The following accessories are also available:

    • Passenger Audio Switch
    • Power Amplifier
    • Rear Speaker
    • Auxiliary Cord
    • LED Trunk light, LED Brake Light and Trunk Sub-Harness kit
    • Wheel Stripes (Available in 3 different colours)
    • Front Caliper covers (Available in Chrome / Black)
    • Trunk Base, Panels, Inner Bag, Mat, and Lid Organizer
    • Chrome Trunk Rack
    • Chrome Side Stand
    • Full Size or Half Covers (Available in Gray / Black)
    • Tall Passenger Grips
    • Passenger Armrests
    • Custom Seat
    • Upper & Lower Air Deflectors
    • Wider Rider Footpegs
    • Rider Backrest
    • DCT Foot Shifter



    Technical Specification

    ENGINE



    Type

    Liquid-cooled 4-stroke 24 valve SOHC flat-6

    Displacement

    1,833cc

    Valves per cylinder

    4

    Bore x Stroke

    73mm x 73mm

    Compression Ratio

    10.5:1

    Max. Power Output

    93kW/5,500rpm

    Max. Torque

    170Nm/4,500rpm

    Oil Capacity

    5.6 litres (DCT)

    Noise Level (dB)

    Lwot 76, Lurban 69

    CO2 emissions

    127g/km

    FUEL SYSTEM



    Carburation

    PGM-FI electronic fuel injection

    Throttle Bore

    50mm

    Air cleaner

    Viscous, cartridge type paper filter

    Fuel Tank Capacity

    21.1 litres

    Fuel Consumption

    5.5 litres/100km

    ELECTRICAL SYSTEM



    Starter

    Integrated Starter Generator system

    Battery Capacity

    12V/20AH

    ACG Power Generation Capacity

    12V/120A

    DRIVETRAIN



    Clutch Type

    (DCT) Hydraulic, wet, multiplate with oil pressure

    Transmission Type

    7-speed forward and reverse DCT

    Primary Reduction

    1.795 (79/44)

    Gear Ratios

    (DCT) 1st: 2.167    2nd: 1.696    3rd: 1.304                   4th: 1.038    5th: 0.821     6th: 0.667     7th: 0.522 Rev: 1.190

    Final Reduction

    Engine side 0.972

    Rear Wheel side 2.615

    Final Drive

    Enclosed shaft

    FRAME



    Type

    Aluminium die-cast, twin tube

    CHASSIS



    Dimensions (L´W´H)

    L: 2,475mm

    W: 925mm (DCT)

    H: 1,340mm

    Wheelbase

    1,695mm

    Caster Angle

    30.5°

    Trail

    109mm

    Turning radius

    3.4m

    Seat Height

    745mm

    Ground Clearance

    130mm

    Kerb Weight

    DCT: 367kg



    SUSPENSION



    Type Front

    Double Wishbone

    Type Rear

    Pro Link

    WHEELS



    Type Front

    130/70R 18

    Type Rear

    200/55R 16

    Rim Size Front

    18 x MT3.5

    Rim Size Rear

    16 x MT6.0

    BRAKES



    System Type

    Electronically-controlled combined ABS system

    Type Front

    320mm x 4.5mm dual hydraulic disc with 6-piston calliper, floating rotors and sintered metal pads

    Type Rear

    316mm x 11mm ventilated disc with 3-piston calliper and sintered metal pads



    All specifications are provisional and subject to change without notice.

    ** Please note that the figures provided are results obtained by Honda under standardised testing conditions prescribed by WMTC. Tests are conducted on a rolling road using a standard version of the vehicle with only one rider and no additional optional equipment. Actual fuel consumption may vary depending on how you ride, how you maintain your vehicle, weather, road conditions, tire pressure, installation of accessories, cargo, rider and passenger weight, and other factors.
