Model Overview
The Hornet’s brand-new engine packs a great deal of Honda’s engineering prowess into a small space. Headline numbers: 755cc parallel twin-cylinder, 67.5kW peak power and 75Nm torque. With wet weight of 190kg it has a class-leading power-to-weight ratio of 0.36kW per kg / 2.81kg per kW.
Compact, competition CRF-derived Unicam eight-valve cylinder heads employ downdraft air intakes and a Vortex Flow Duct to ensure optimal combustion. A 270° crank delivers feel and character; the primary drive doubles as balance shaft while an assist/slipper clutch manages a six-speed gearbox. Electronic rider aids thanks to Throttle By Wire (TBW) include 3 riding modes (plus USER mode), 3-level Honda Selectable Torque Control (HSTC), Wheelie Control with 3-level Engine Power and Engine Braking adjustment.

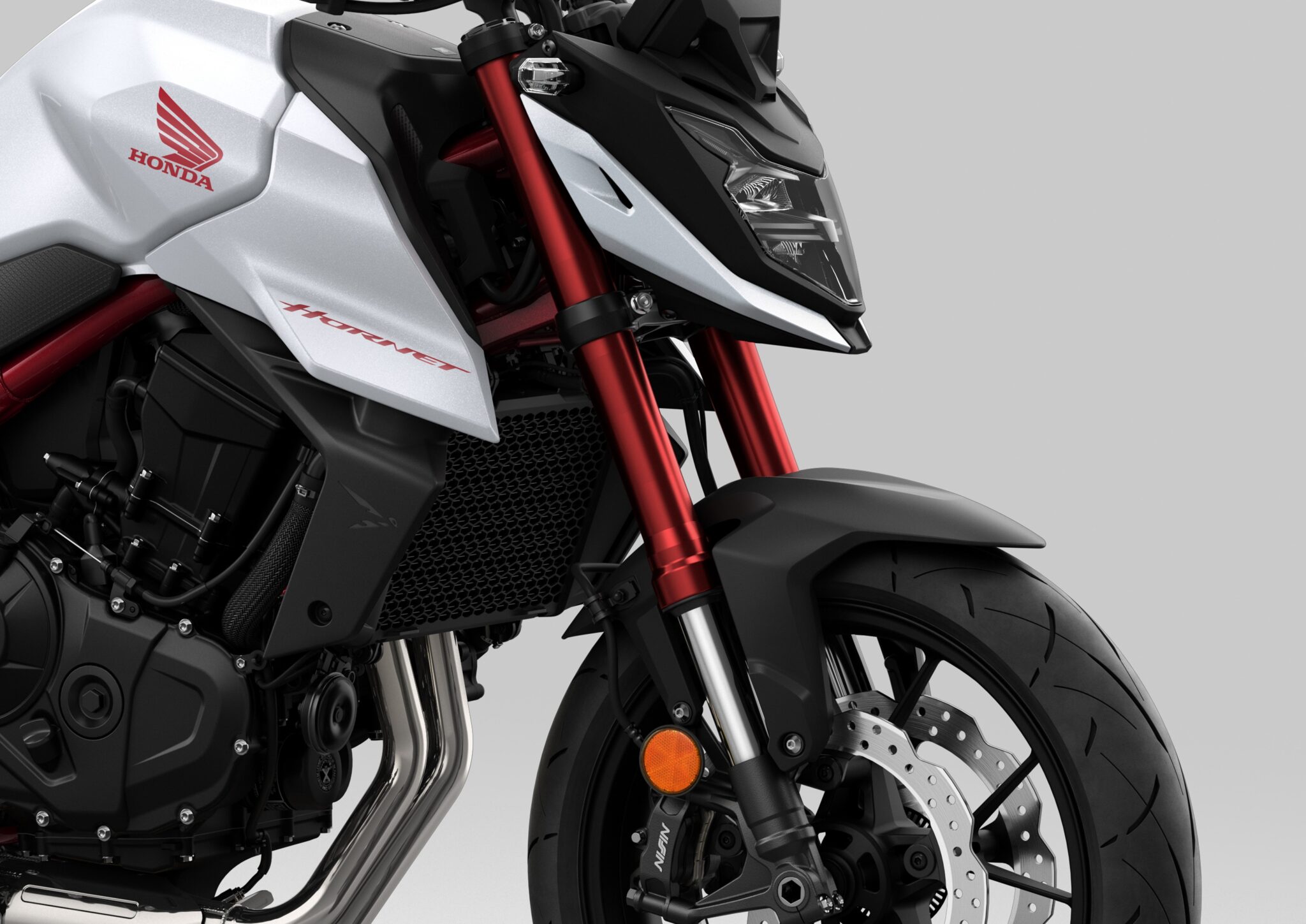

To maximise the new engine’s potential, it’s housed in a totally new steel diamond frame, which is extremely light weight thanks to optimisation of wall/pipe thickness and stiffness. For optimal agility and rider feedback, suspension is top quality: Showa 41mm SFF-BPTM USD forks and rear shock operating through Pro-Link. Dual four-piston, radial-mount calipers stop hard while the tyres are sized to provide perfect levels of grip and agility – a 120-section front matched to 160 rear.

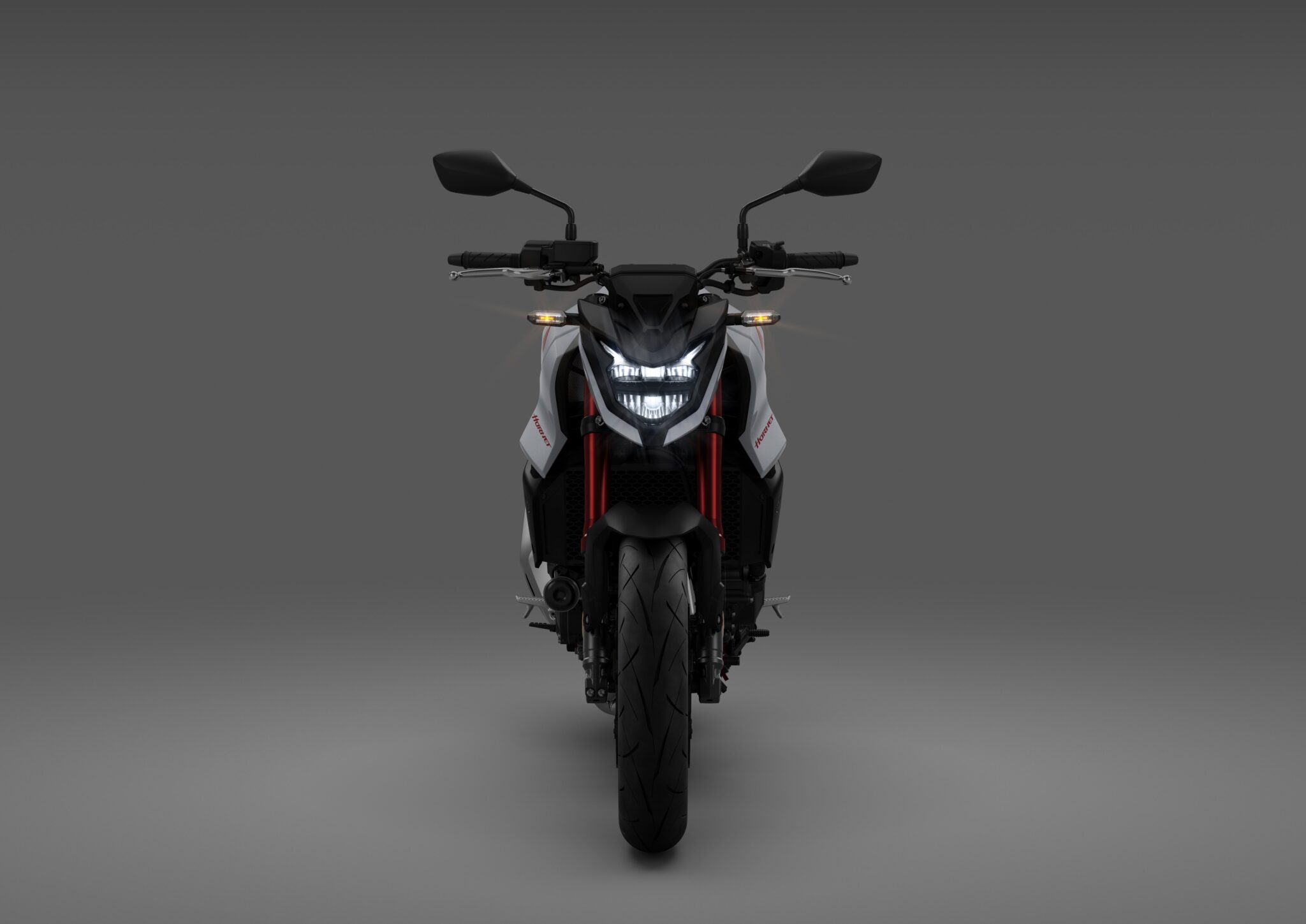

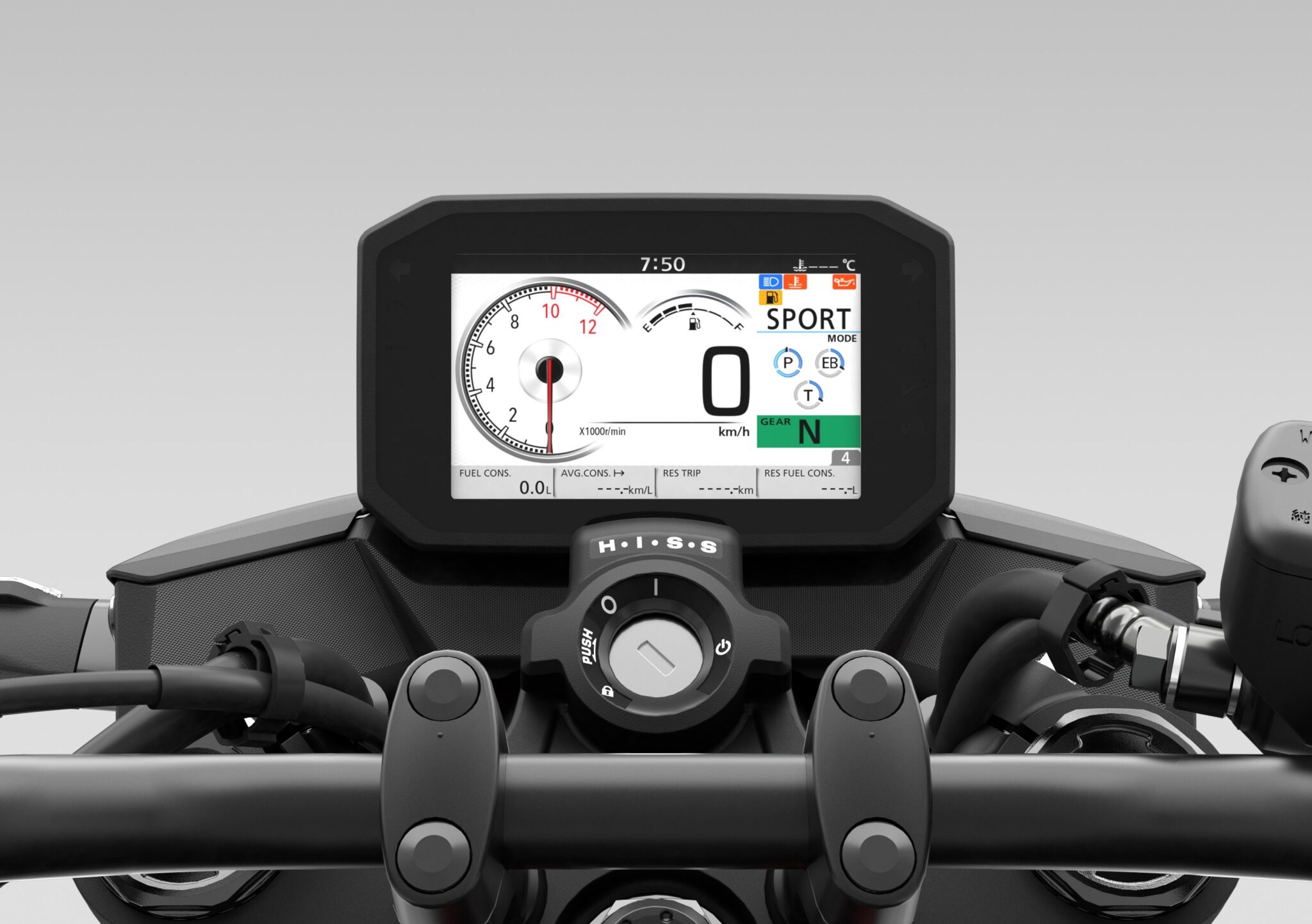

The rich specification list is headlined by a 5-inch TFT colour display which supplies vivid information delivery and management of all systems, as well as the connectivity of Honda Smartphone Voice Control system for both Android and IOS devices. All lighting is LED; the indicators auto-cancel and also include Emergency Stop System (ESS).

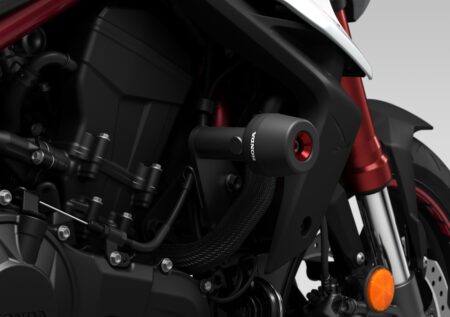

A range of accessories, including a quickshifter, soft luggage, engine protectors and cosmetic enhancements are ready to go, see full list below.

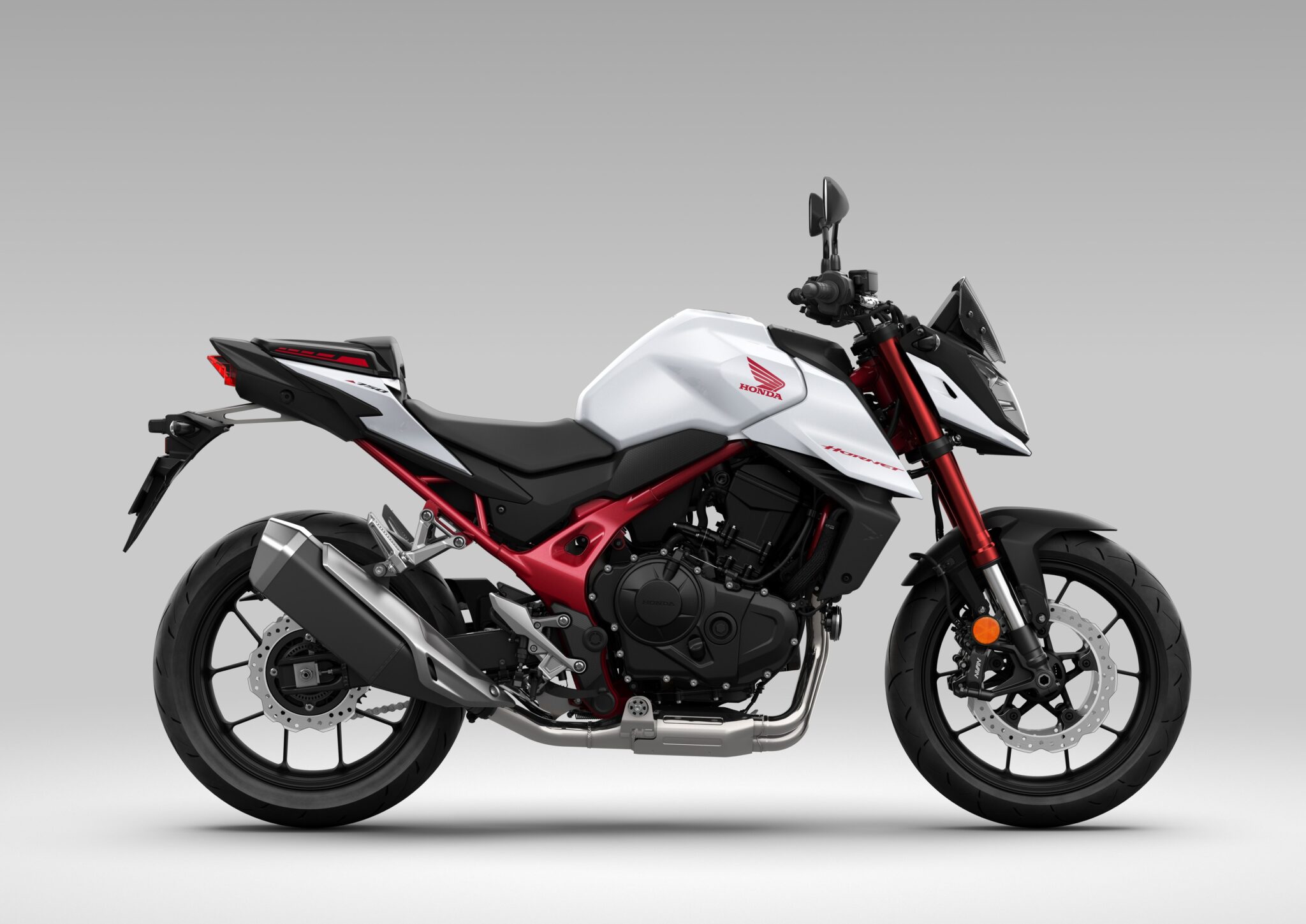

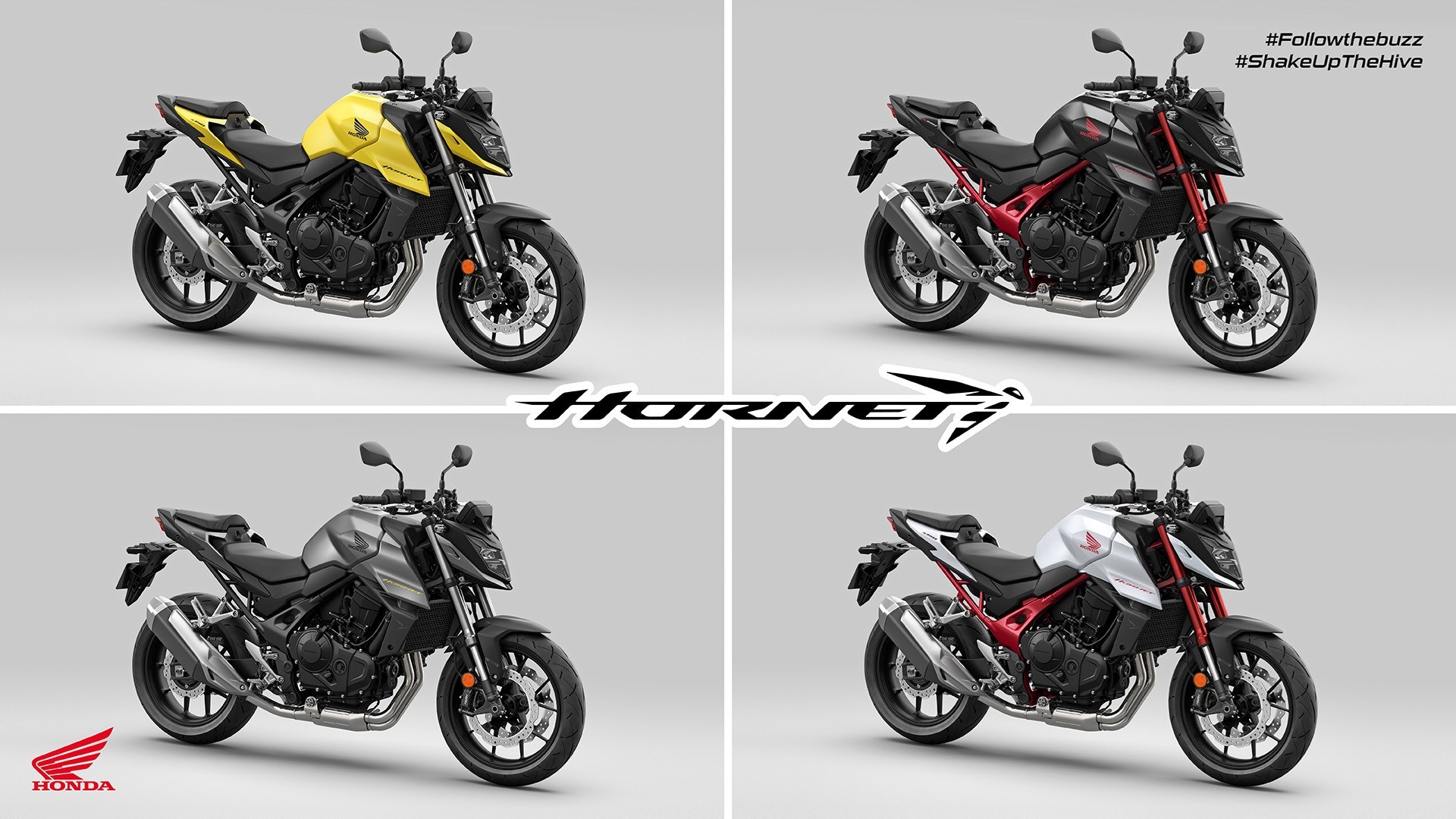

The 23YM CB750 Hornet will be available in the following colour options:

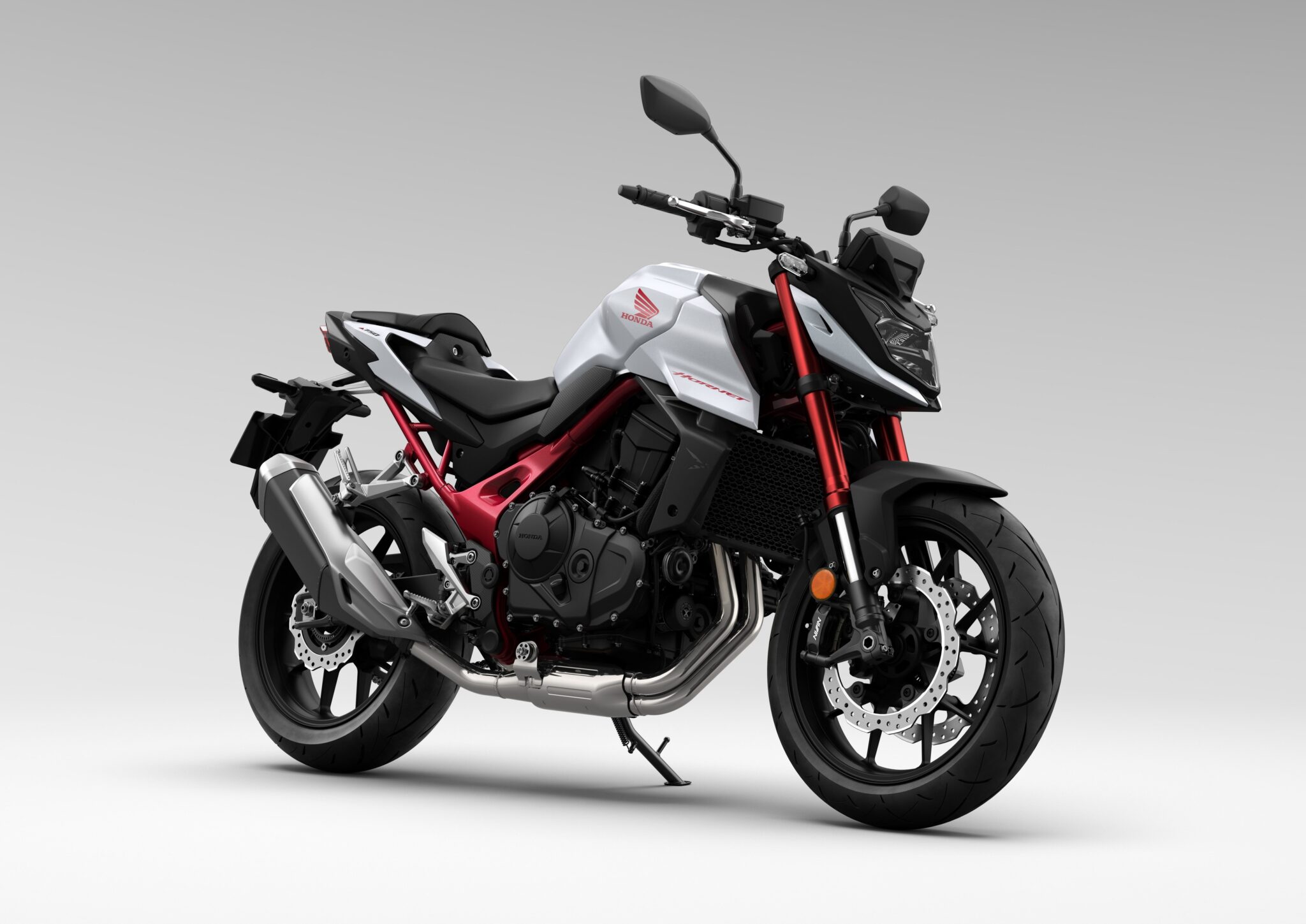

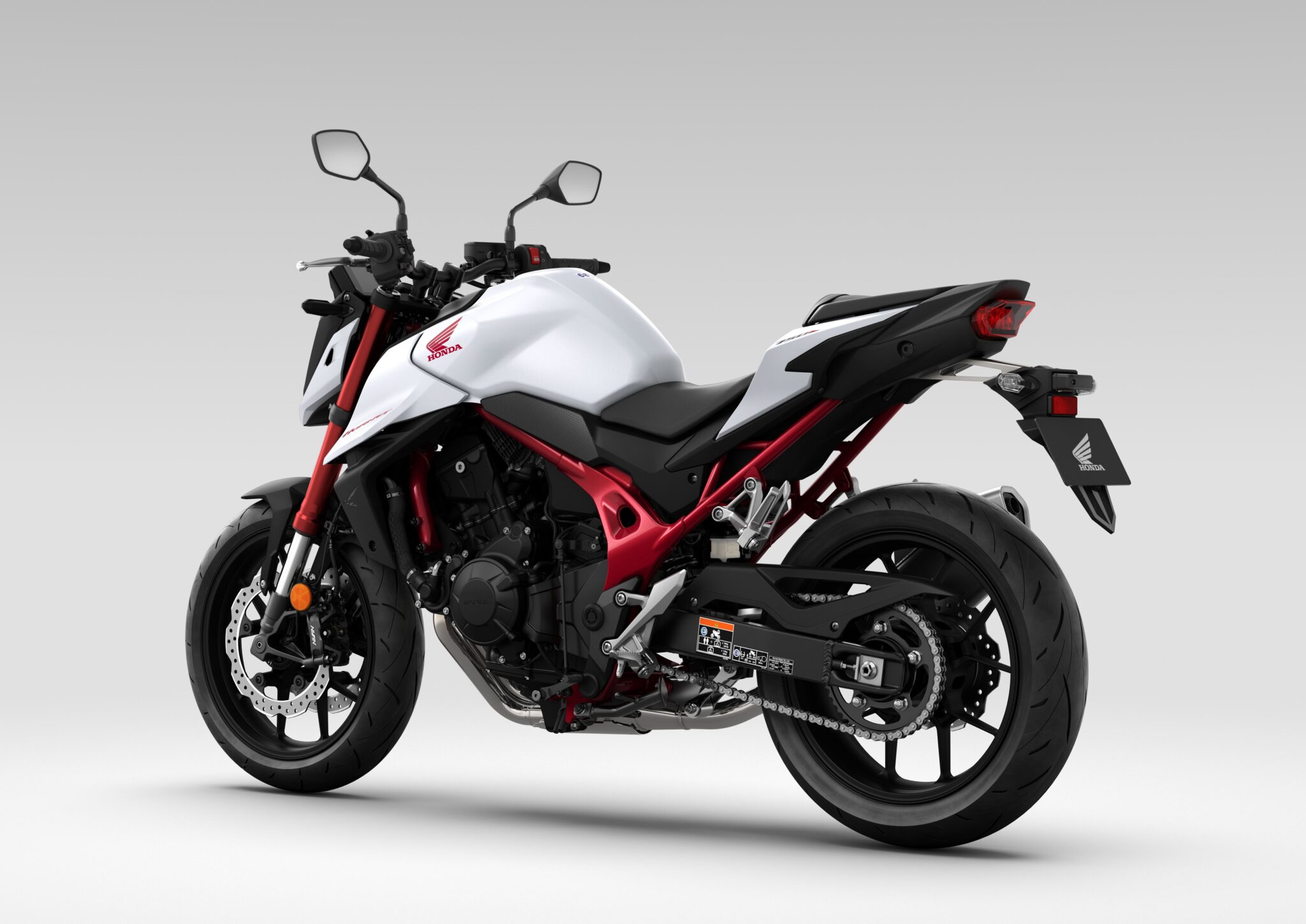

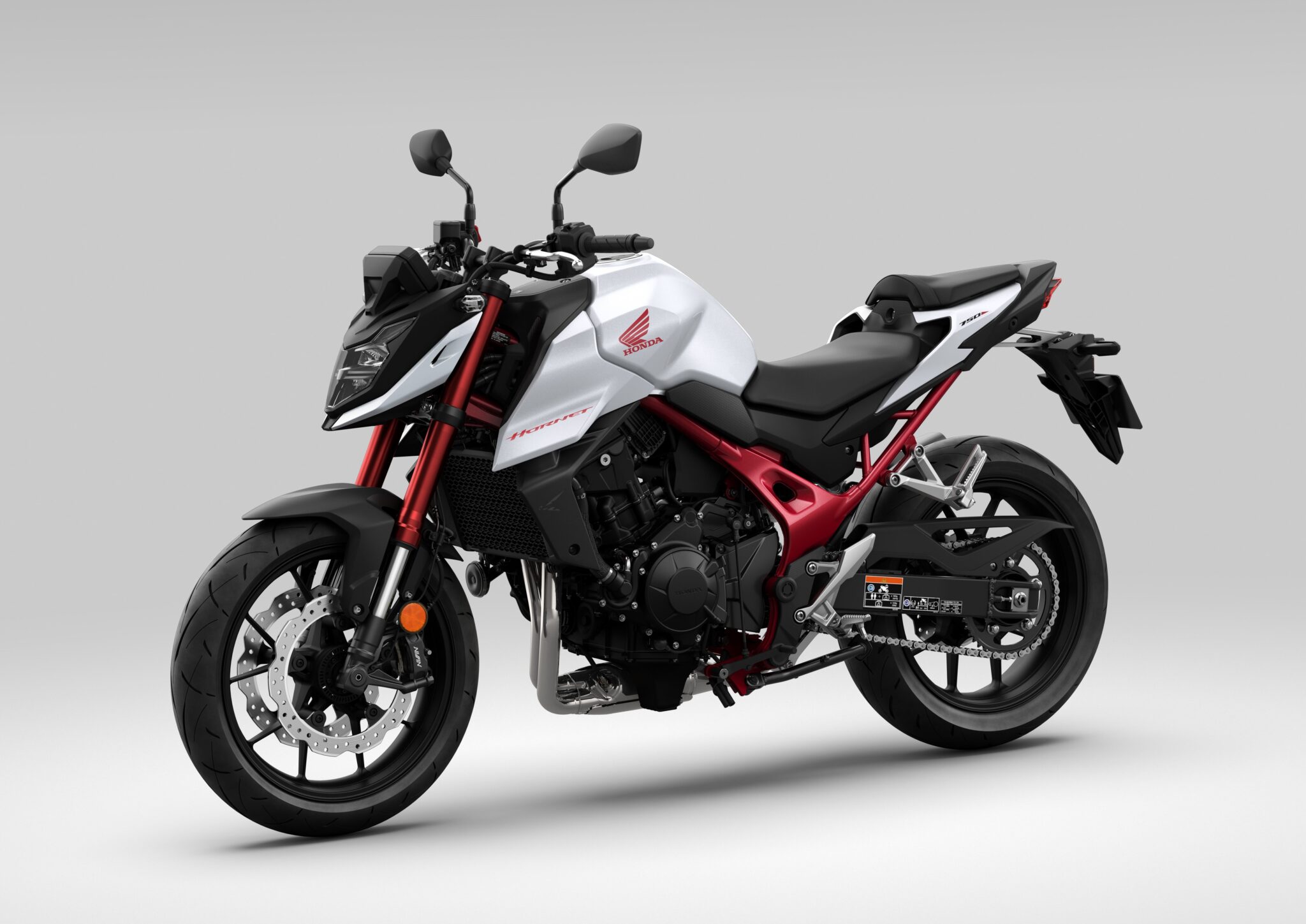

- Pearl Glare White with Metallic Red Flame frame and anodised Red forks

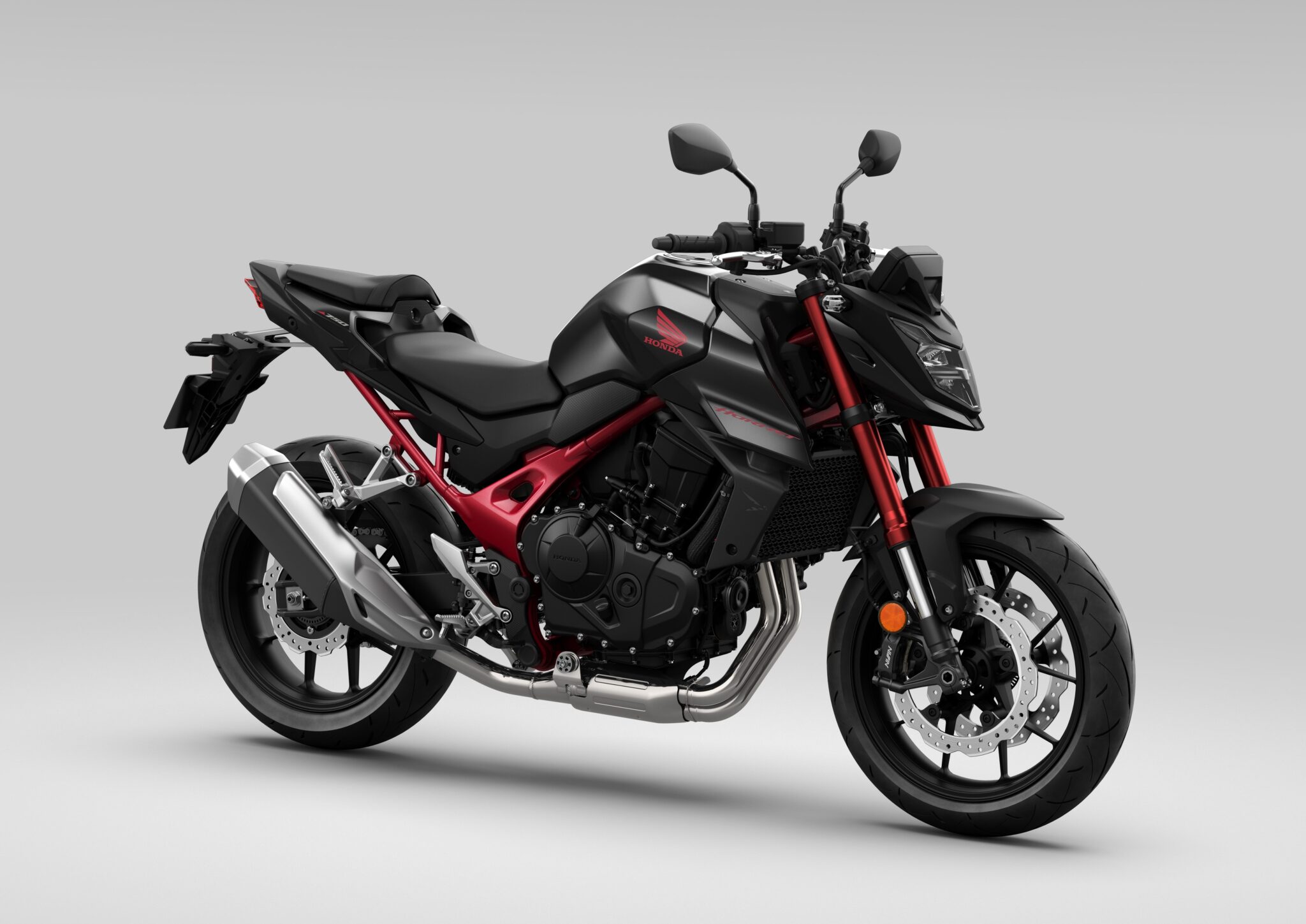

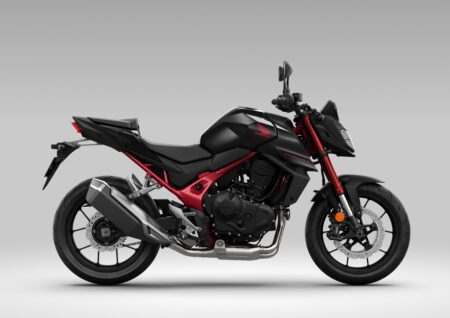

- Graphite Black with Metallic Red Flame frame and anodised Red forks

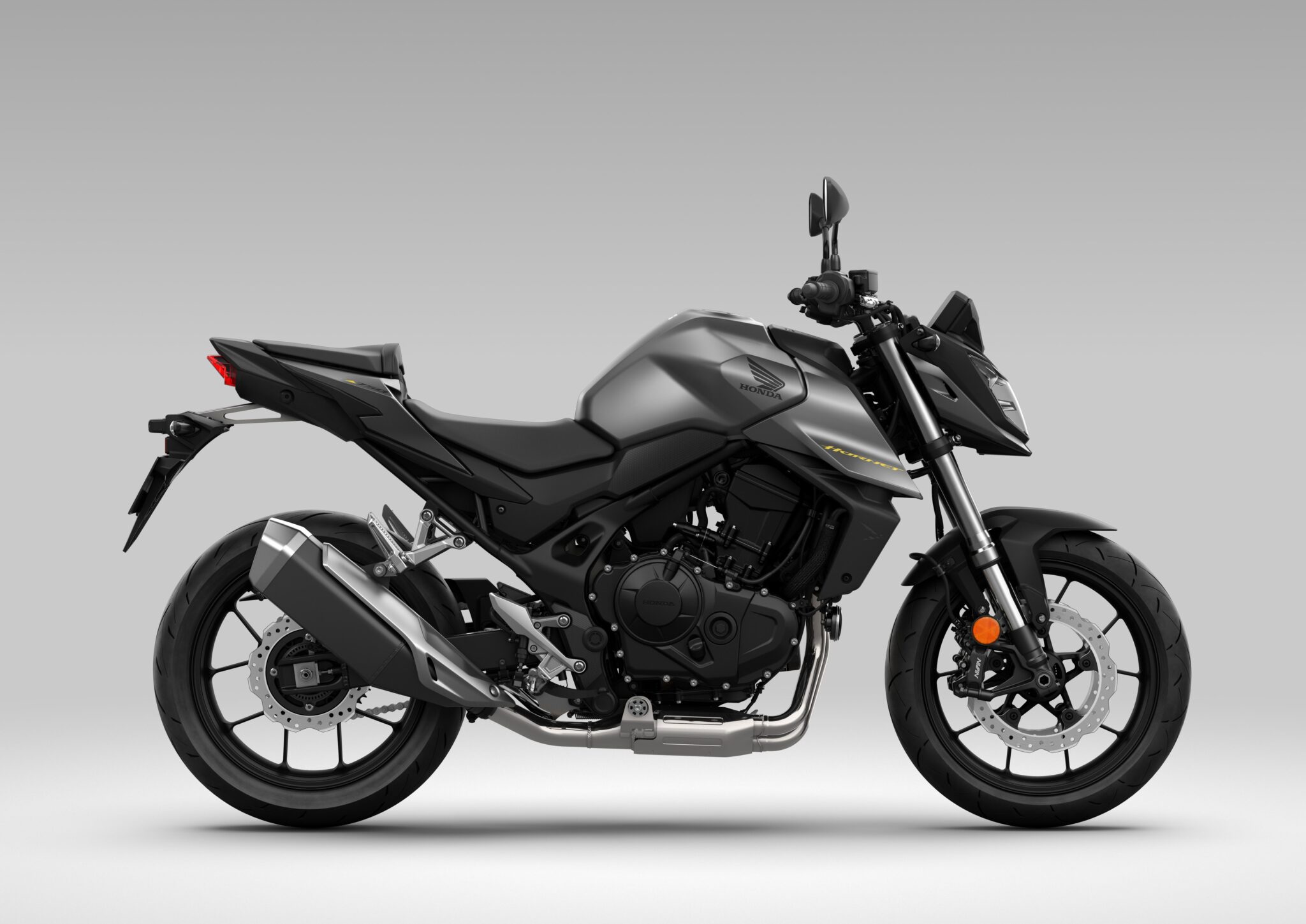

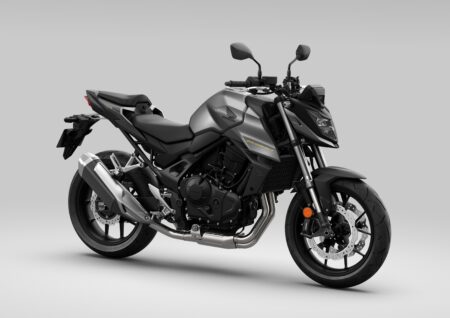

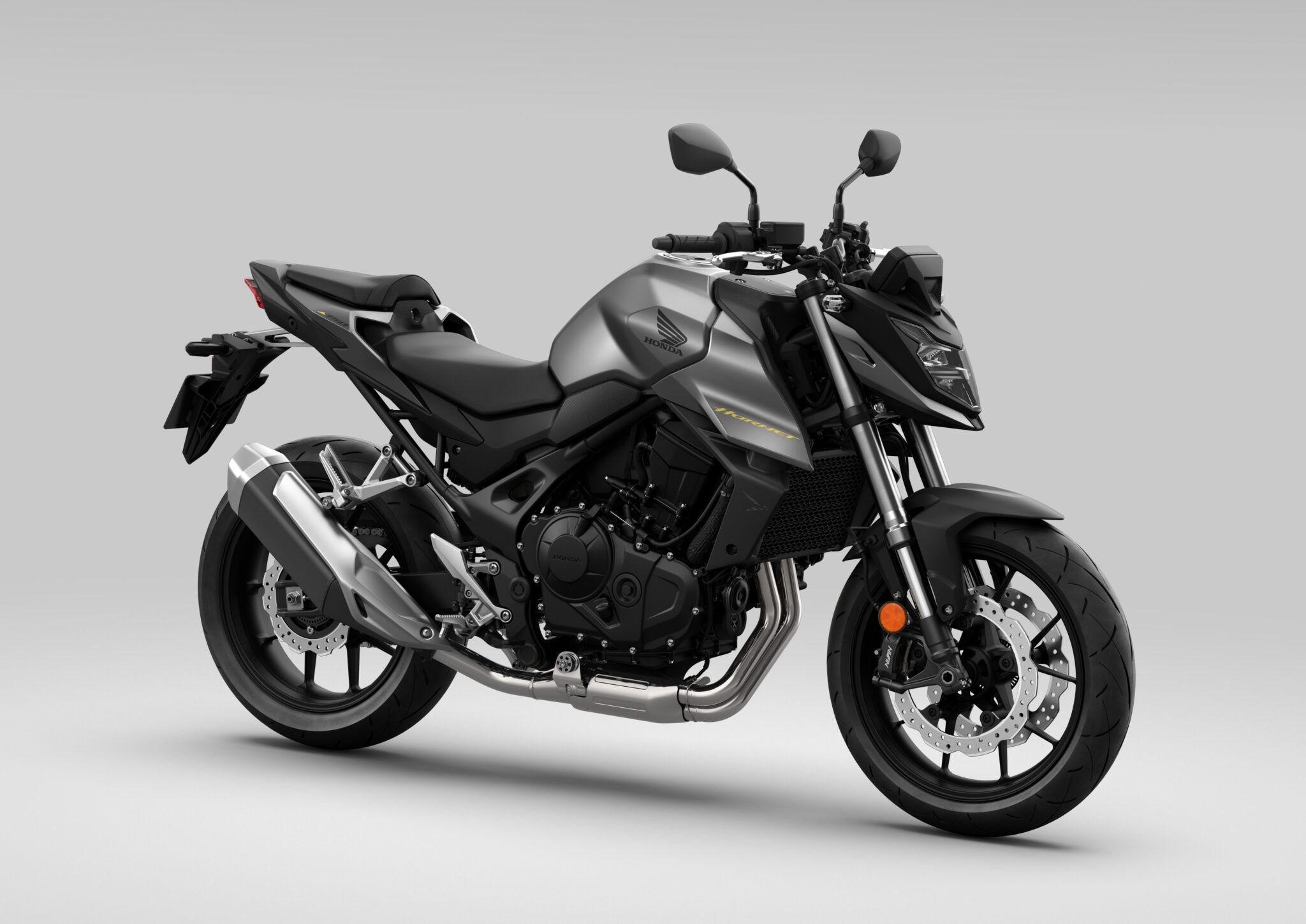

- Matte Iridium Gray Metallic

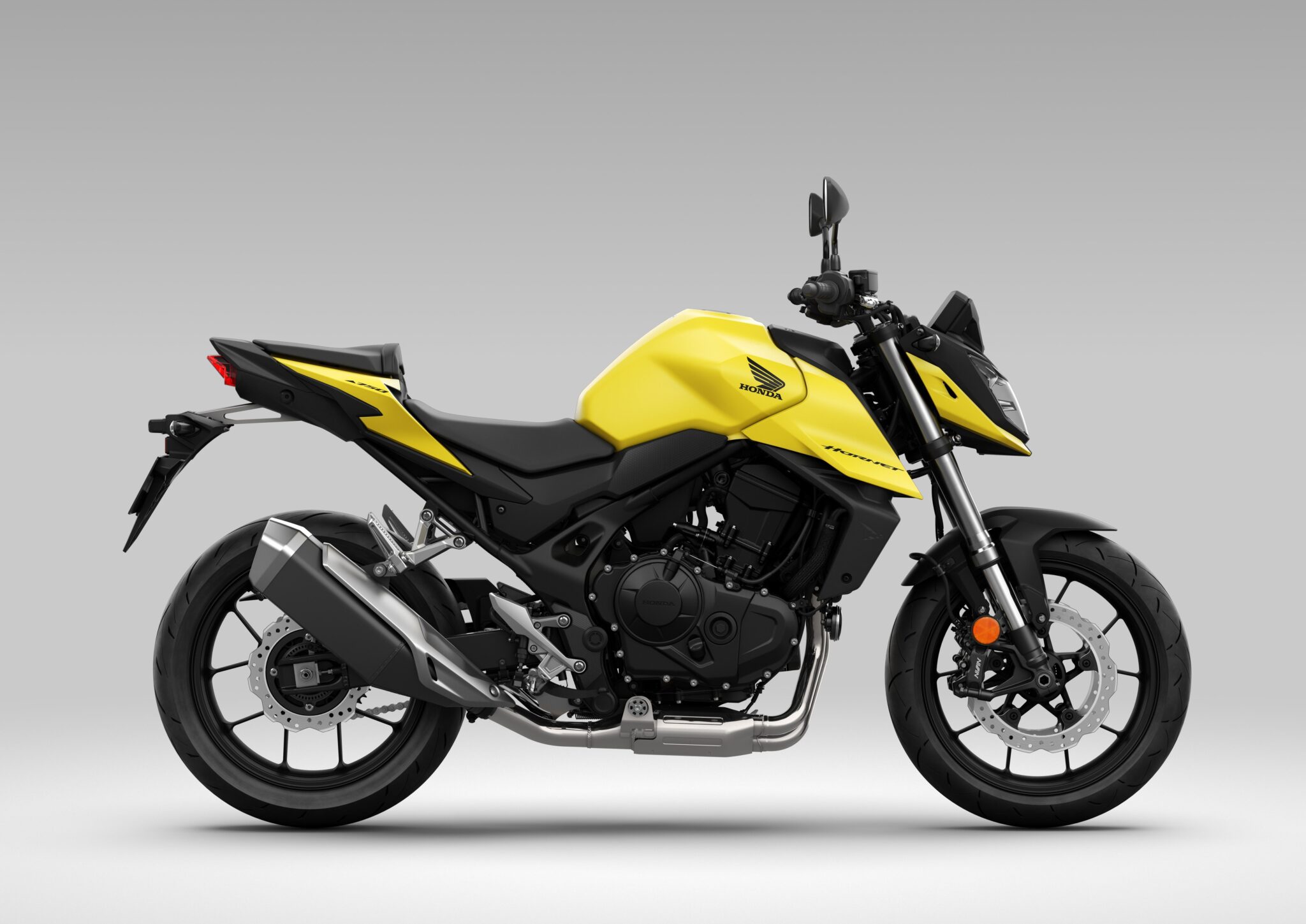

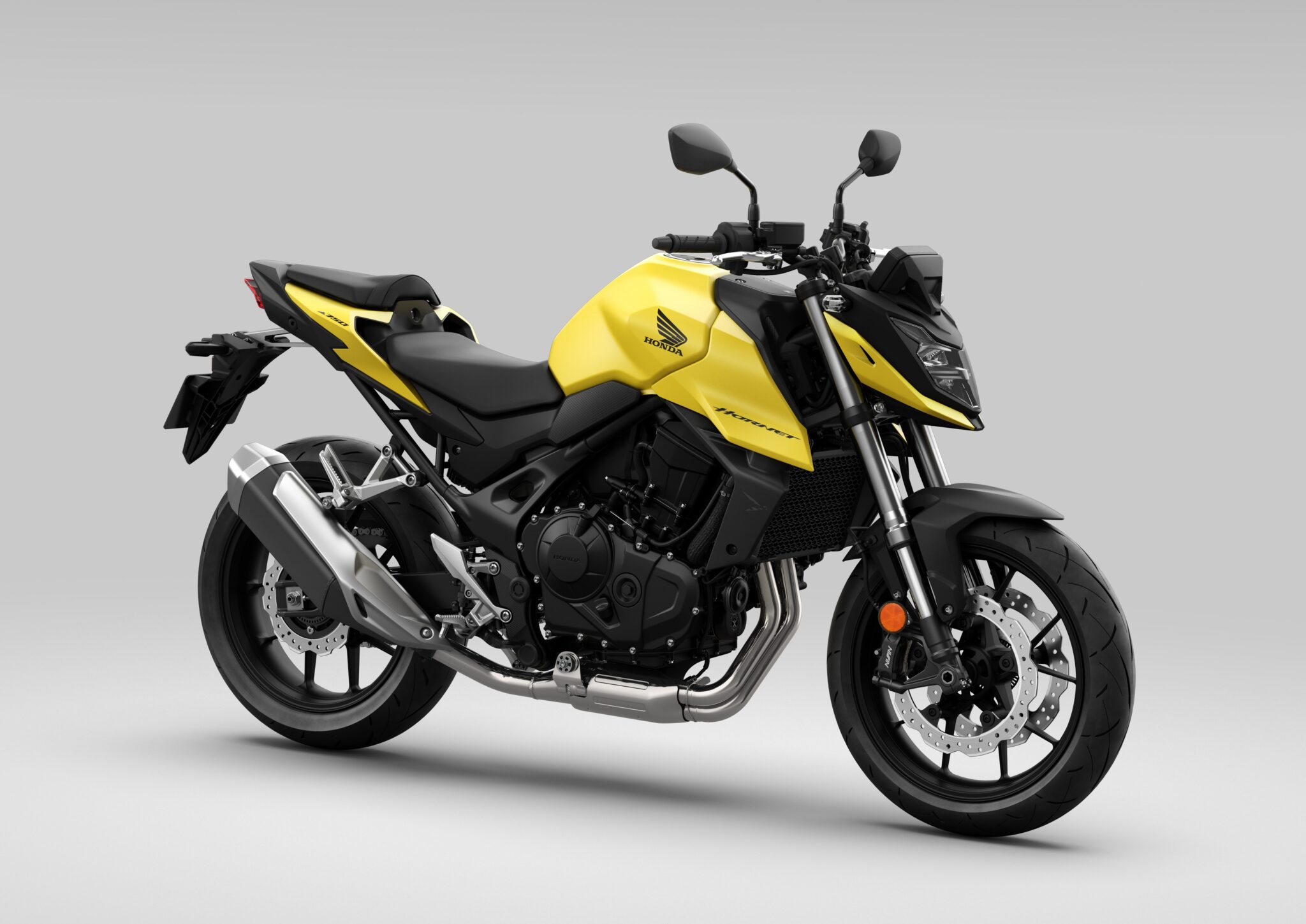

- Mat Goldfinch Yellow
Engine
- All new 755cc parallel twin 8 valve unicam engine
- Max power – 67.5kW @ 9,500rpm
- Max torque – 75Nm at 7,250rpm
- 270° crankshaft and uneven firing order for maximum engine character
- Patented Vortex Air Flow ducts for optimum airflow
- Assist /slipper clutch offers light lever feel and manages rear wheel hop on downshifts
- 23km/l fuel economy with a potential 340km tank range
Engine Electronics
- Three default rider modes; RAIN, STANDARD and SPORT
- Three levels of Engine Power, Engine Brake and HSTC with integrated Wheelie Control
- USER customisation option between the three levels
Styling and Equipment
- New style defines razor-sharp minimalism
- Upright riding position for natural control

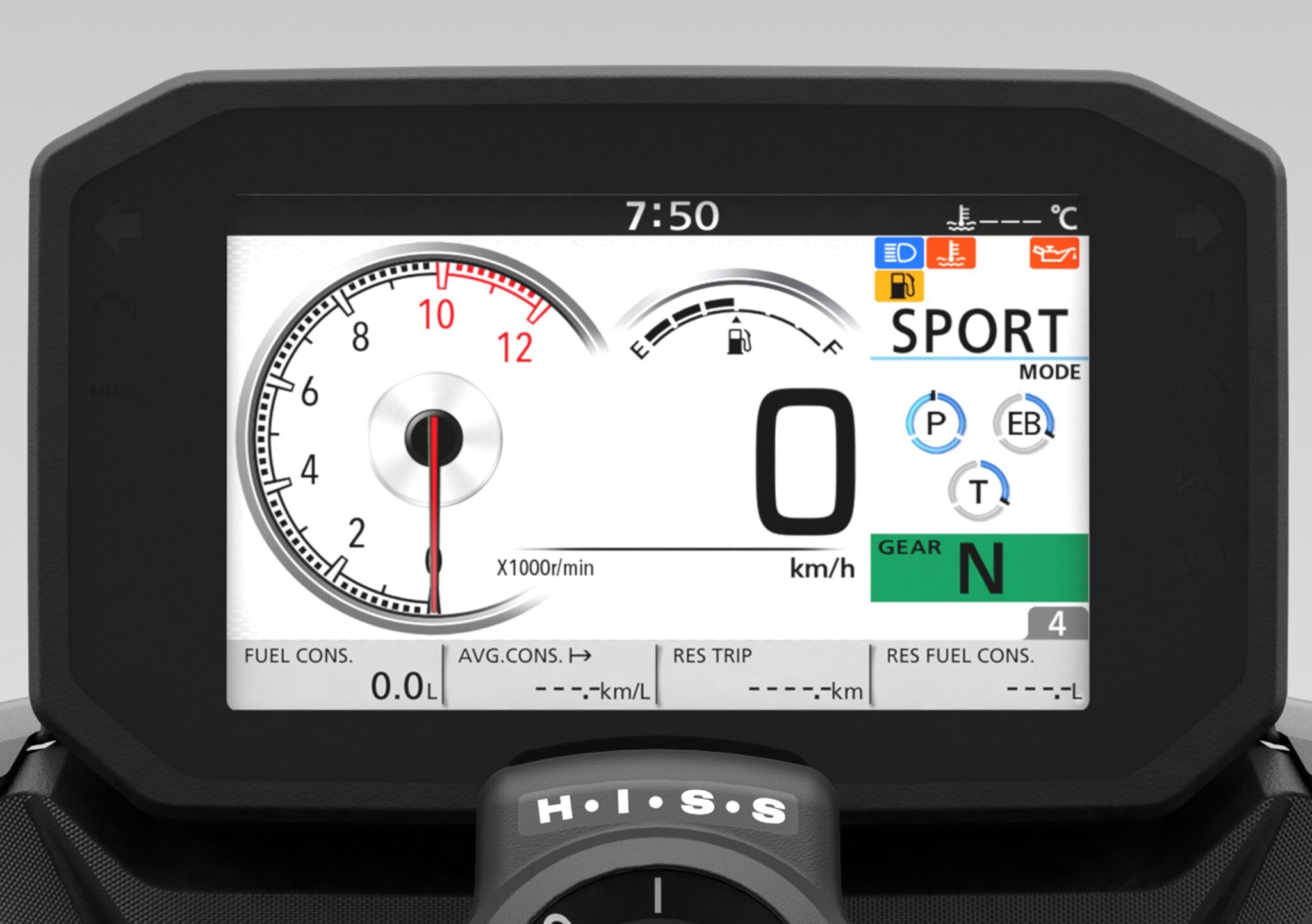

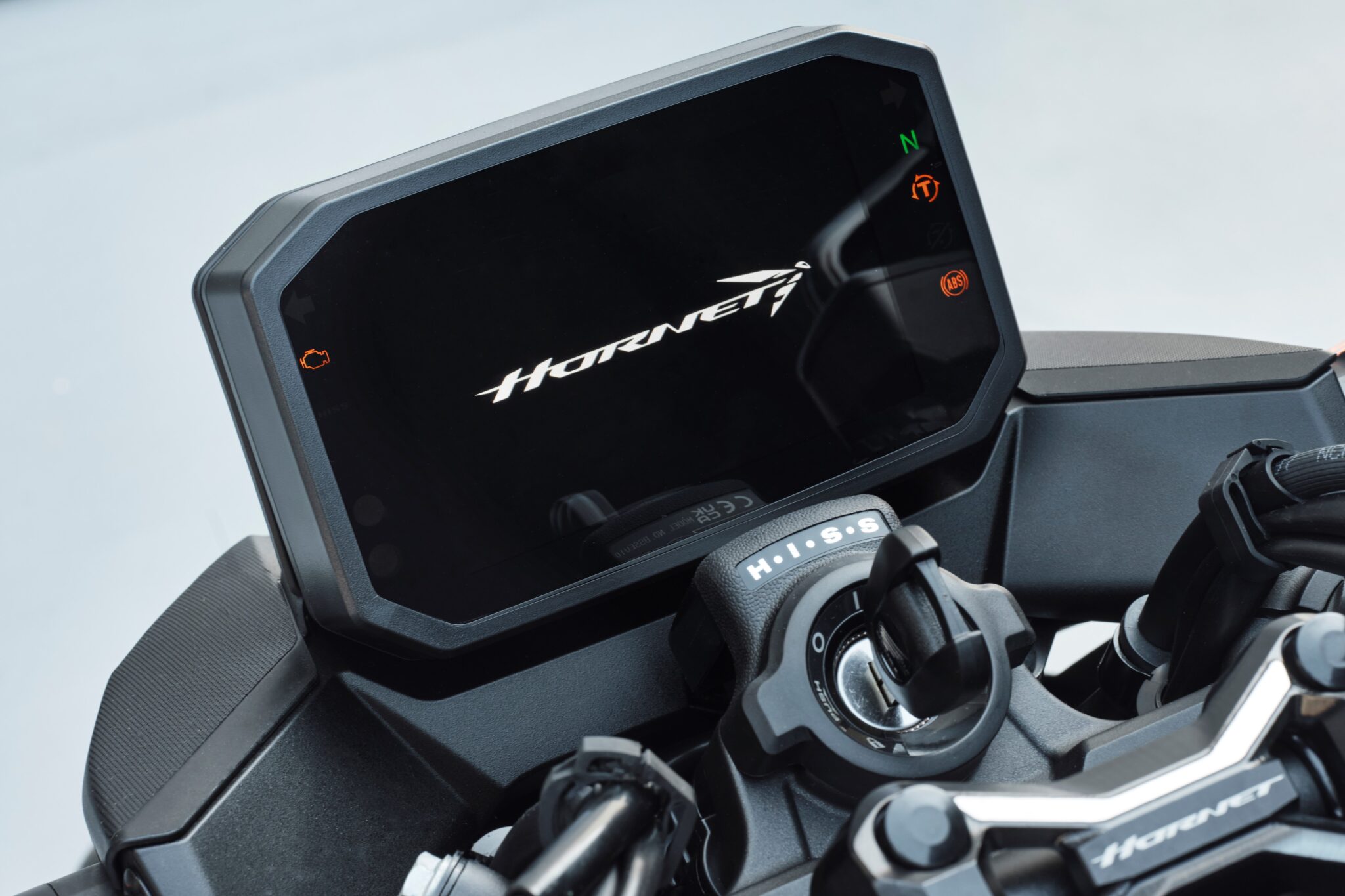

- Customisable, 5-inch TFT display with shift-up indicator
- Honda Smartphone Voice Control system offers Android and IOS smartphone connectivity
- The rear indicators feature Emergency Stop Signal and auto cancel technology
Accessories
A full range of accessories are available for the Hornet, ready for personalisation to an owner’s preference and use.
For aggressive sports riding, or more relaxed touring a quickshifter offers instant, full throttle upshifts and clutch less downshifts with auto blip function. The lever load sensitivity can be adjusted in 3 stages to suit preference.

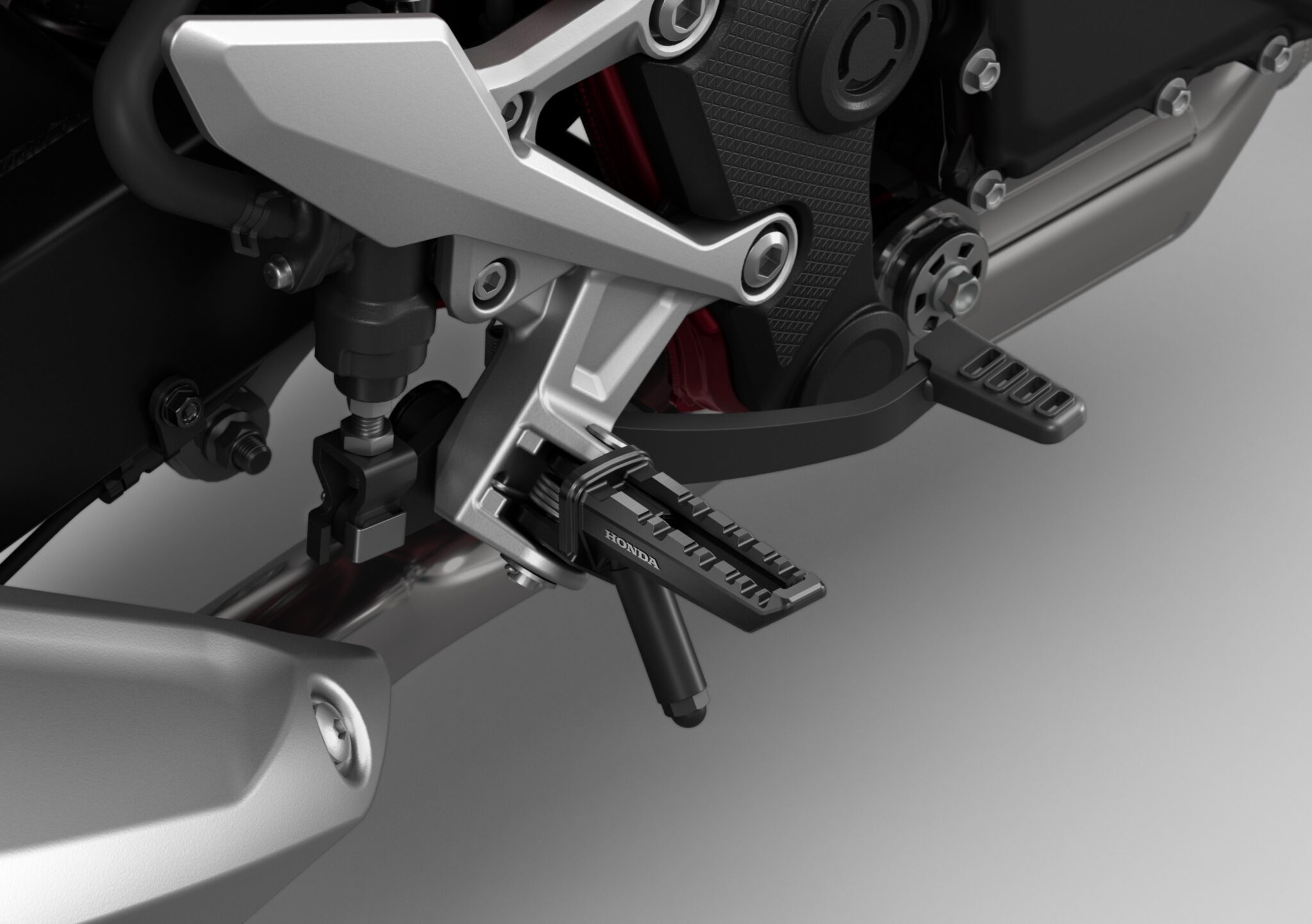

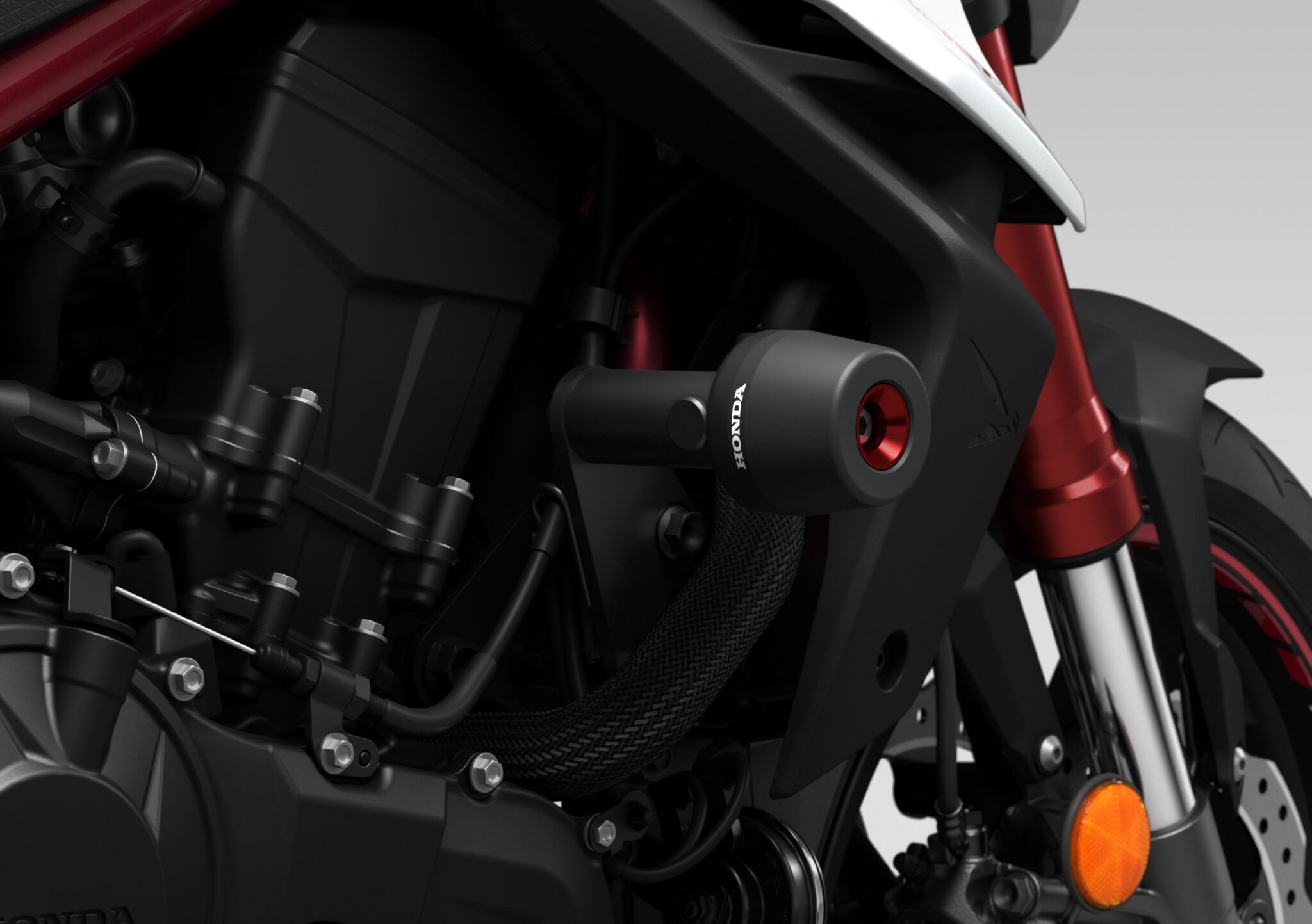

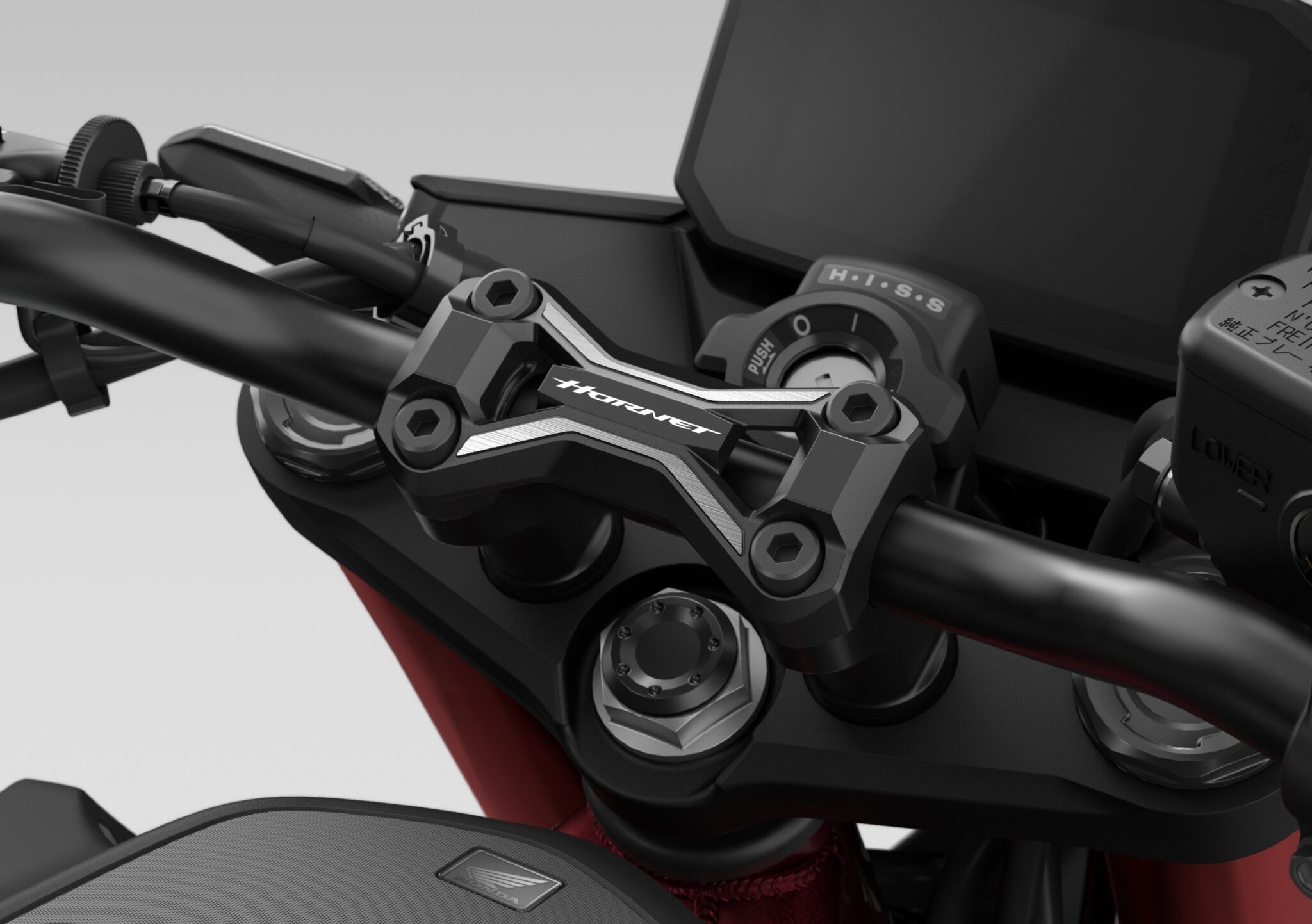

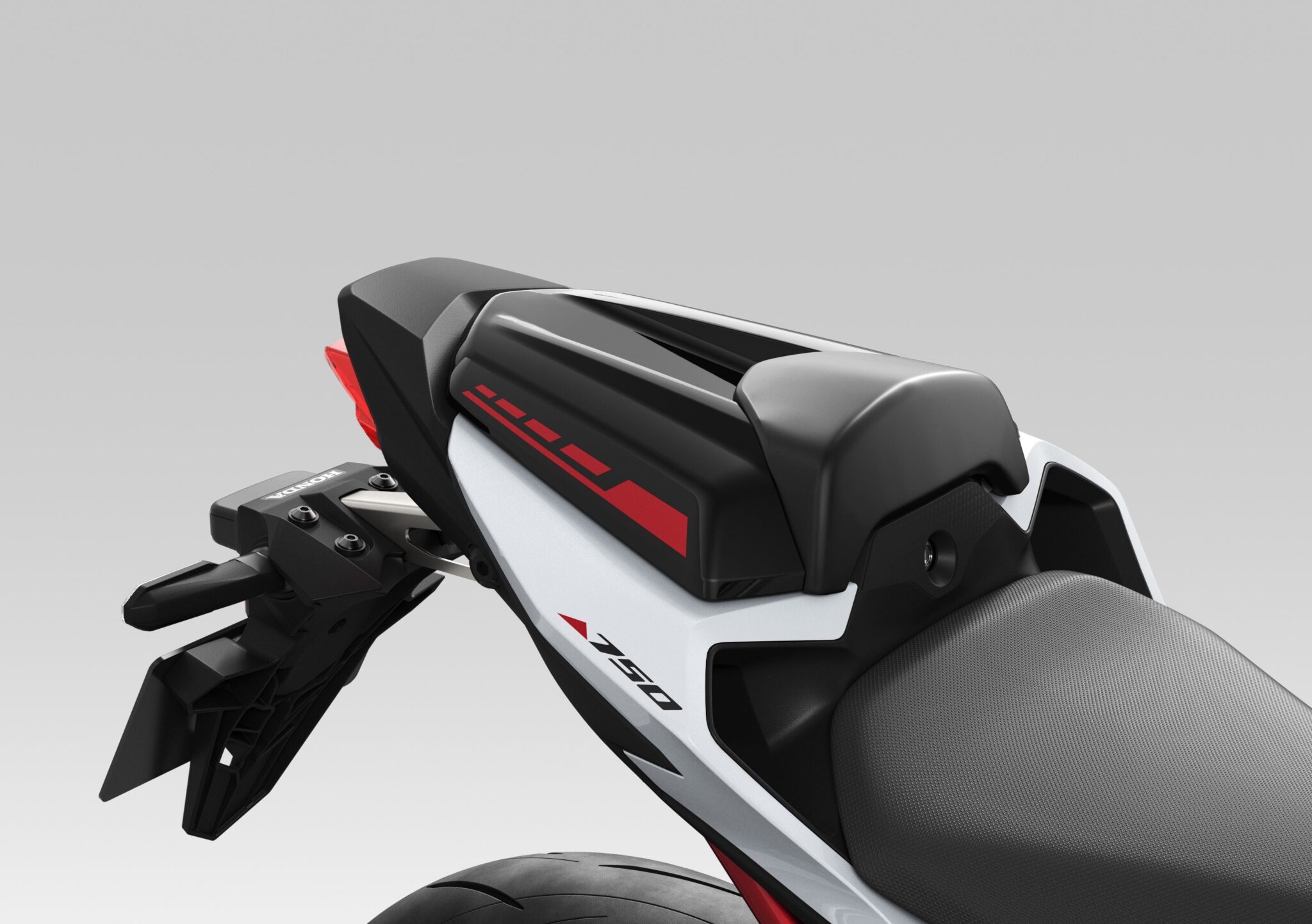

The rear seat cowl adds single-seat sports appeal, while a stitched rider’s seat – a brand-new design finished in grey/black – exudes premium appeal and elevates comfort. Also new are the aluminium bar-end weights, handlebar upper clamp holder, fly screen, wheel stripes, rider footpegs and protective skid bungs.

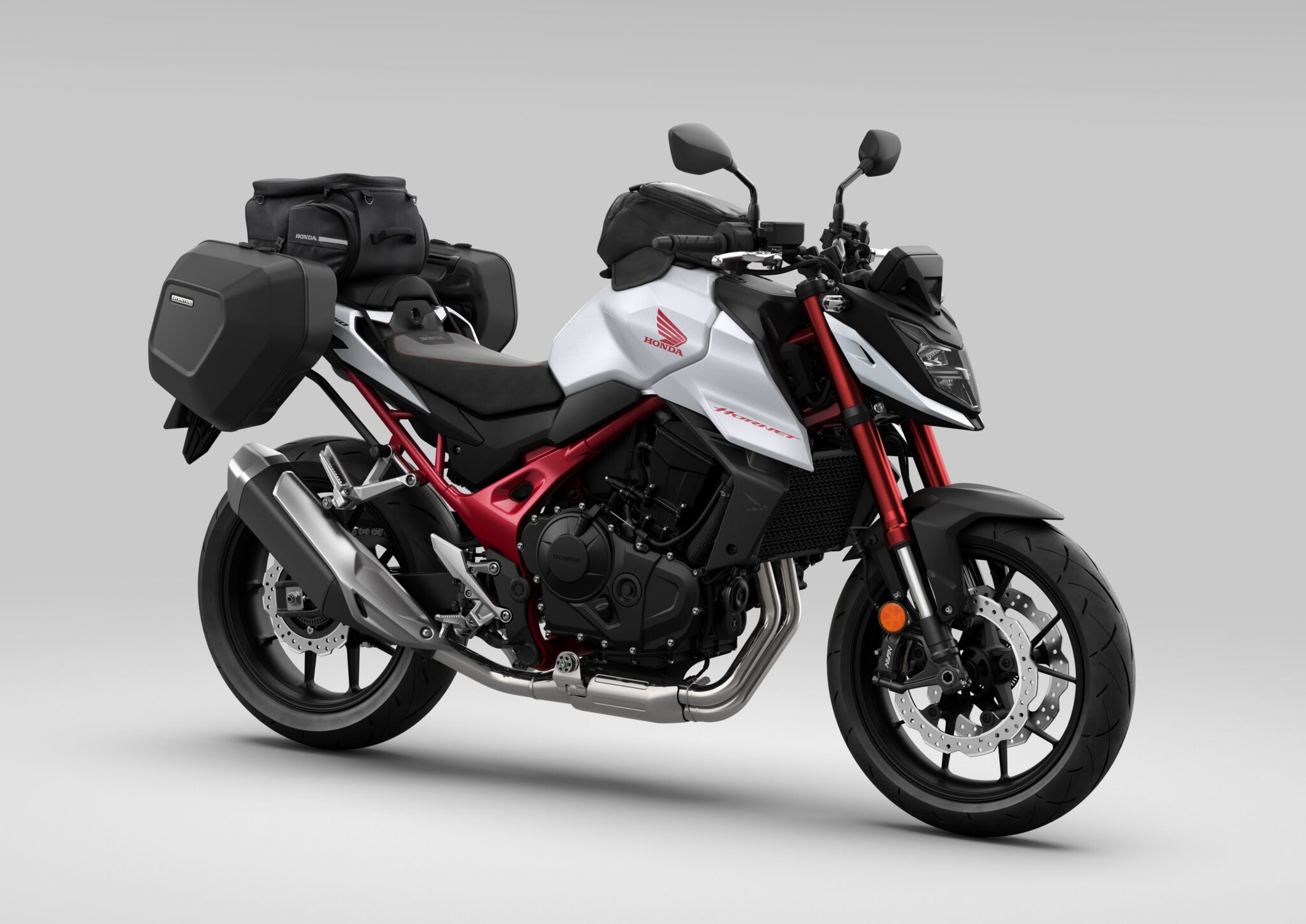

Practicality has not been forgotten. A tank bag and seat bag provide soft-luggage convenience, while a new rear pannier design offers hard-luggage security. For rider comfort, heated grips are also available.
To make it easy for an owner there are 3 packs that group the accessories neatly together:
SPORT PACK
Quickshifter, fly screen, rear seat cowl and rider footpegs
STYLE PACK
Bar end weights, handlebar upper clamp holder, tank pad, wheel stripes and skid bungs.
TOURING PACK
Rear panniers, tank bag and seat bag.
Technical Specification
|
ENGINE |
|
|
Engine Type |
Liquid-cooled OHC 4-stroke 8-valve Parallel Twin with 270° crank and uni-cam |
|
Engine Displacement |
755cc |
|
Bore x Stroke (mm) |
87mm x 63.5mm |
|
Compression Ratio |
11.0:1 |
|
Max. Power Output |
67.5kW @ 9,500rpm |
|
Max. Torque |
75Nm @ 7,250rpm |
|
Noise Level (dB) |
Lwot – 77.5; Lurban – 73.5 |
|
Max Speed |
205 km/h |
|
Oil Capacity |
3.8L |
|
Starter |
Electric |
|
FUEL SYSTEM |
|
|
Carburation |
PGM-FI electronic injection |
|
Fuel Tank Capacity |
15.2L |
|
CO2 Emissions WMTC |
100 g/km |
|
Fuel Consumption |
23km/l – 4.35l/100km |
|
ELECTRICAL SYSTEM |
|
|
Battery Capacity |
12v 7.4Ah |
|
DRIVETRAIN |
|
|
Clutch Type |
Wet multiple, Assisted slipper clutch |
|
Transmission Type |
6 speed Manual Transmission |
|
Final Drive |
Chain |
|
FRAME |
|
|
Frame Type |
Steel diamond |
|
CHASSIS |
|
|
Dimensions (LxWxH) |
2,090mm x 780mm x 1,085mm |
|
Wheelbase |
1,420mm |
|
Caster Angle |
25˚ |
|
Trail |
99mm |
|
Seat Height |
795mm |
|
Ground Clearance |
140mm |
|
Kerb Weight |
190kg |
|
Turning radius |
2.7m |
|
SUSPENSION |
|
|
Suspension Front |
Showa 41mm SFF-BPTMTM USD, 130mm travel |
|
Suspension Rear |
Monoshock damper, Pro-Link swingarm, 150mm travel |
|
WHEELS |
|
|
Wheels Front |
5Y-Spoke Cast Aluminium |
|
Wheels Rear |
5Y-Spoke Cast Aluminium |
|
Tyres Front |
120/70ZR-17 |
|
Tyres Rear |
160/60ZR-17 |
|
BRAKES |
|
|
ABS Type |
2 channel |
|
Brakes Front |
Dual 296mm x 4mm disc with Nissin radial mount 4 piston calipers |
|
Brakes Rear |
Single 240mm x 5mm disc with single piston caliper |
|
INSTRUMENTS & ELECTRICS |
|
|
Instruments |
TFT screen |
|
Headlight |
LED |
|
Taillight |
LED |
|
Connectivity |
HSVC |
|
USB |
Type C |
|
Auto Winker Cancel |
Yes |
|
Security System |
HISS |
|
Additional Features |
ESS, 4 Riding Modes |
All specifications are provisional and subject to change without notice
Please note that the figures provided are results obtained by Honda under standardised testing conditions prescribed by WMTC. Tests are conducted on a rolling road using a standard version of the vehicle with only one rider and no additional optional equipment. Actual fuel consumption may vary depending on how you ride, how you maintain your vehicle, weather, road conditions, tire pressure, installation of accessories, cargo, rider and passenger weight, and other factors.
