Model Overview
The attention-grabbing style of the CB125R is a real standout feature among its peers and sets it apart from the homogeneous crowd.
Peppy and fun to rev, the DOHC 4V engine delivers a healthy 11.0kW power with 11.6Nm torque. And 41mm Showa Separate Function Big Piston (SFF-BP) USD forks bring big-bike suspension quality to a small bike. Braking is equally impressive: a 296mm floating front disc is worked by a radial-mount, four-piston caliper with ABS controlled by Inertial Measurement Unit (IMU).

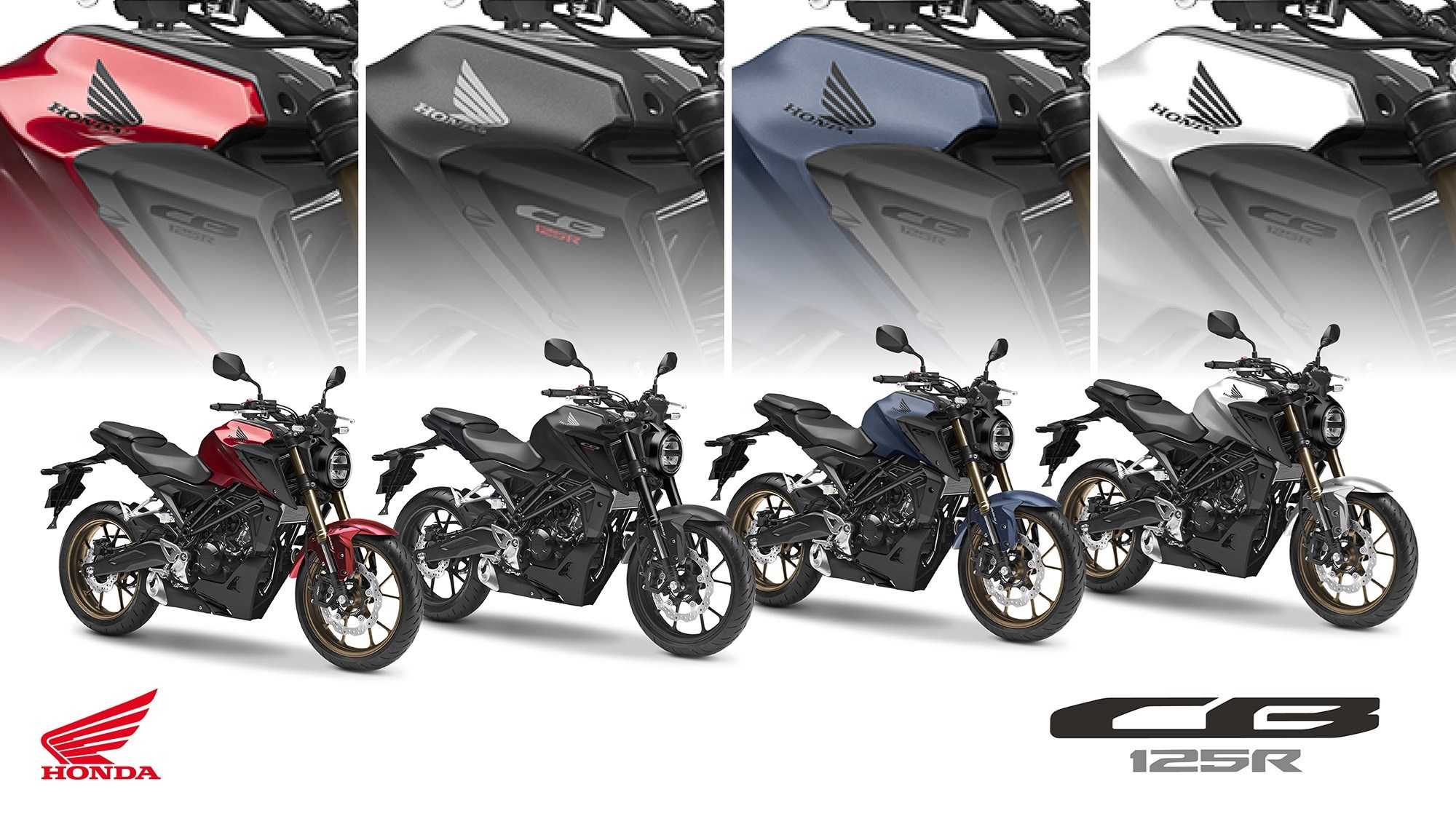

The 23YM CB125R will be available in the following colour options:

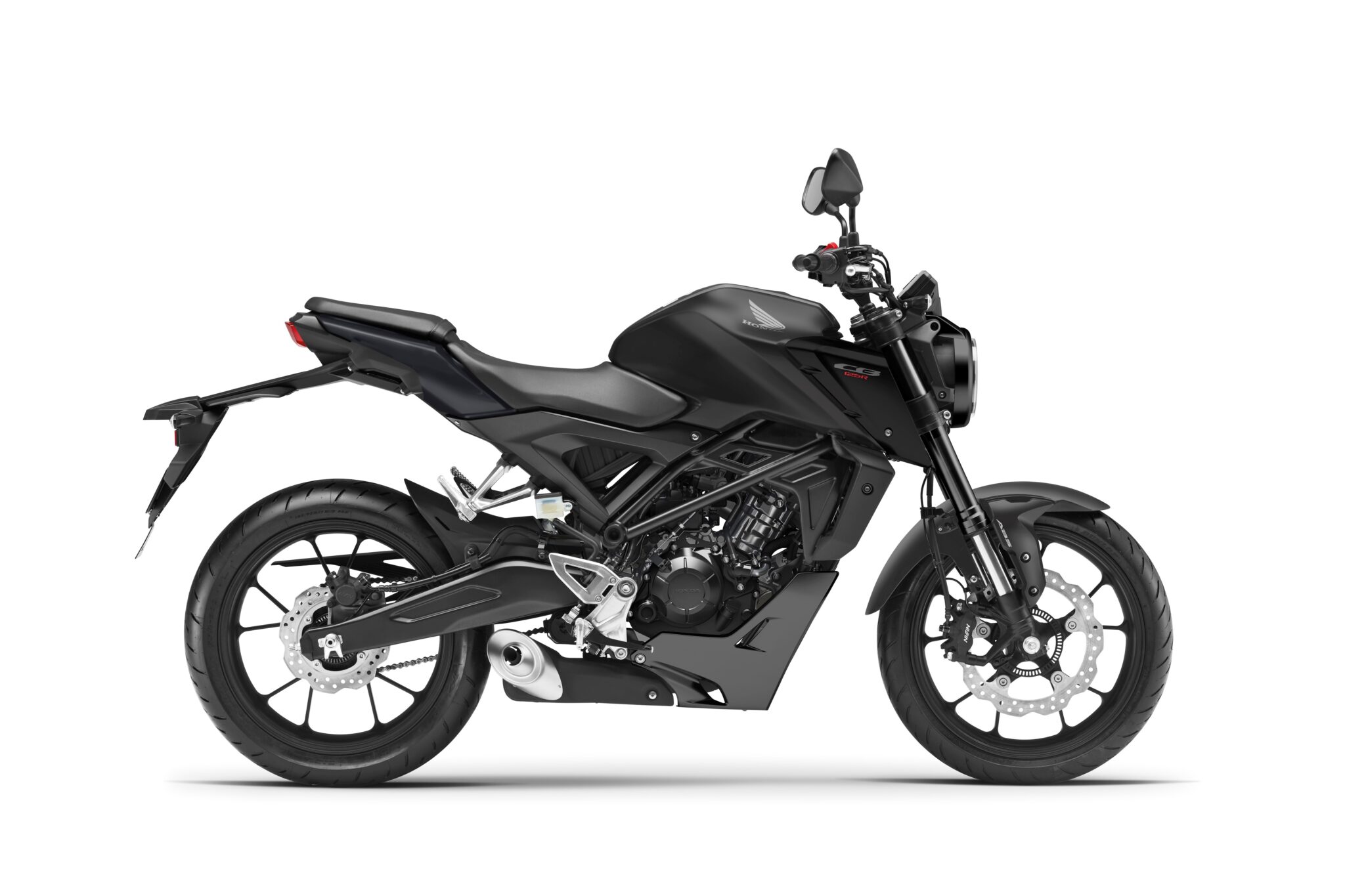

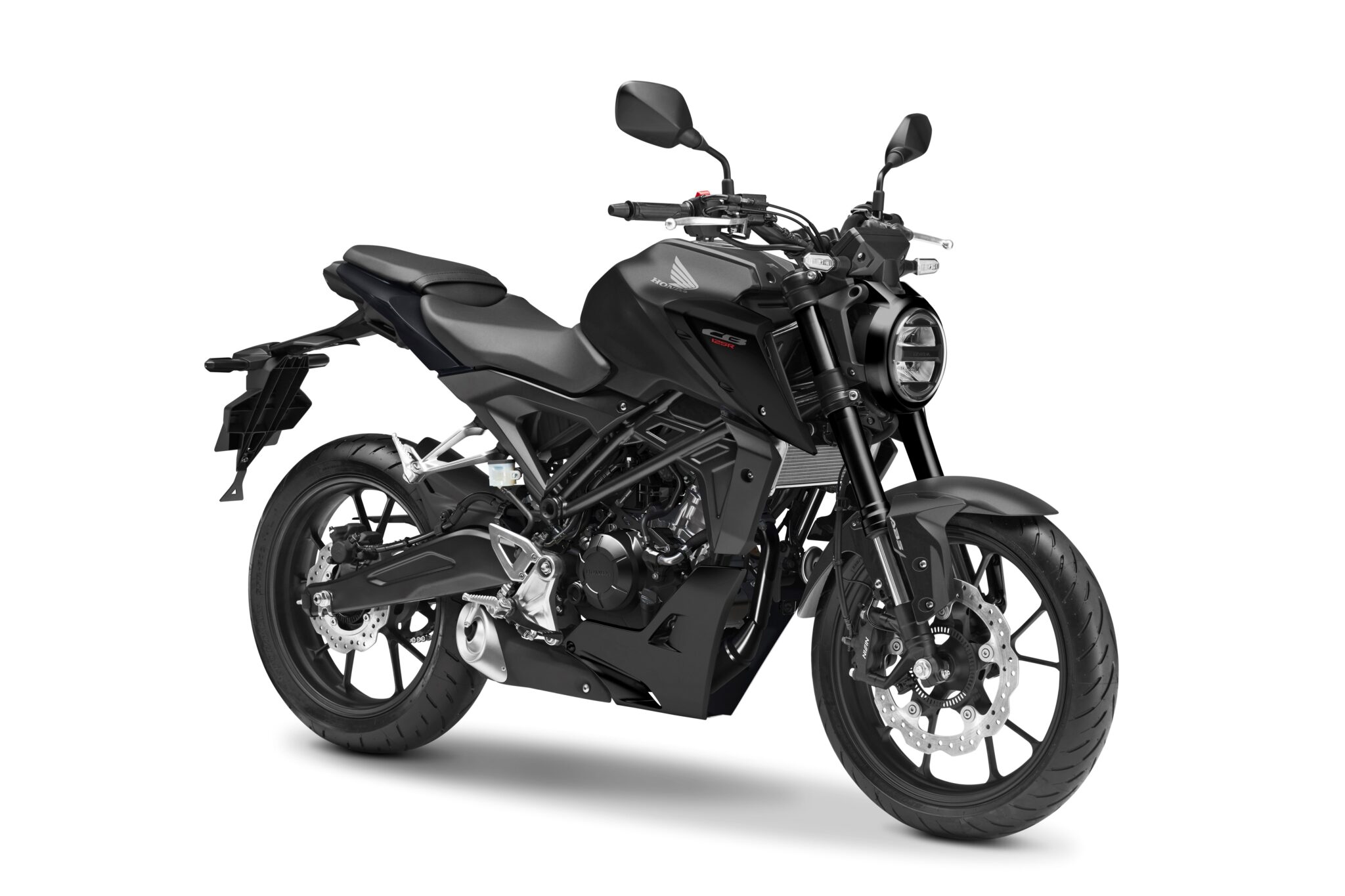

- Matt Gunpowder Black Metallic with new black belly pan, shrouds and front forks

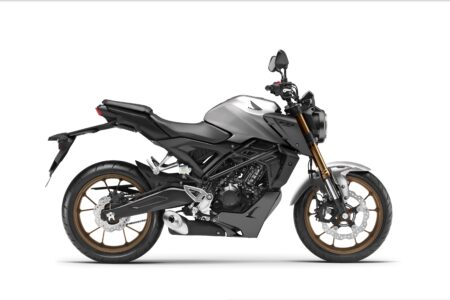

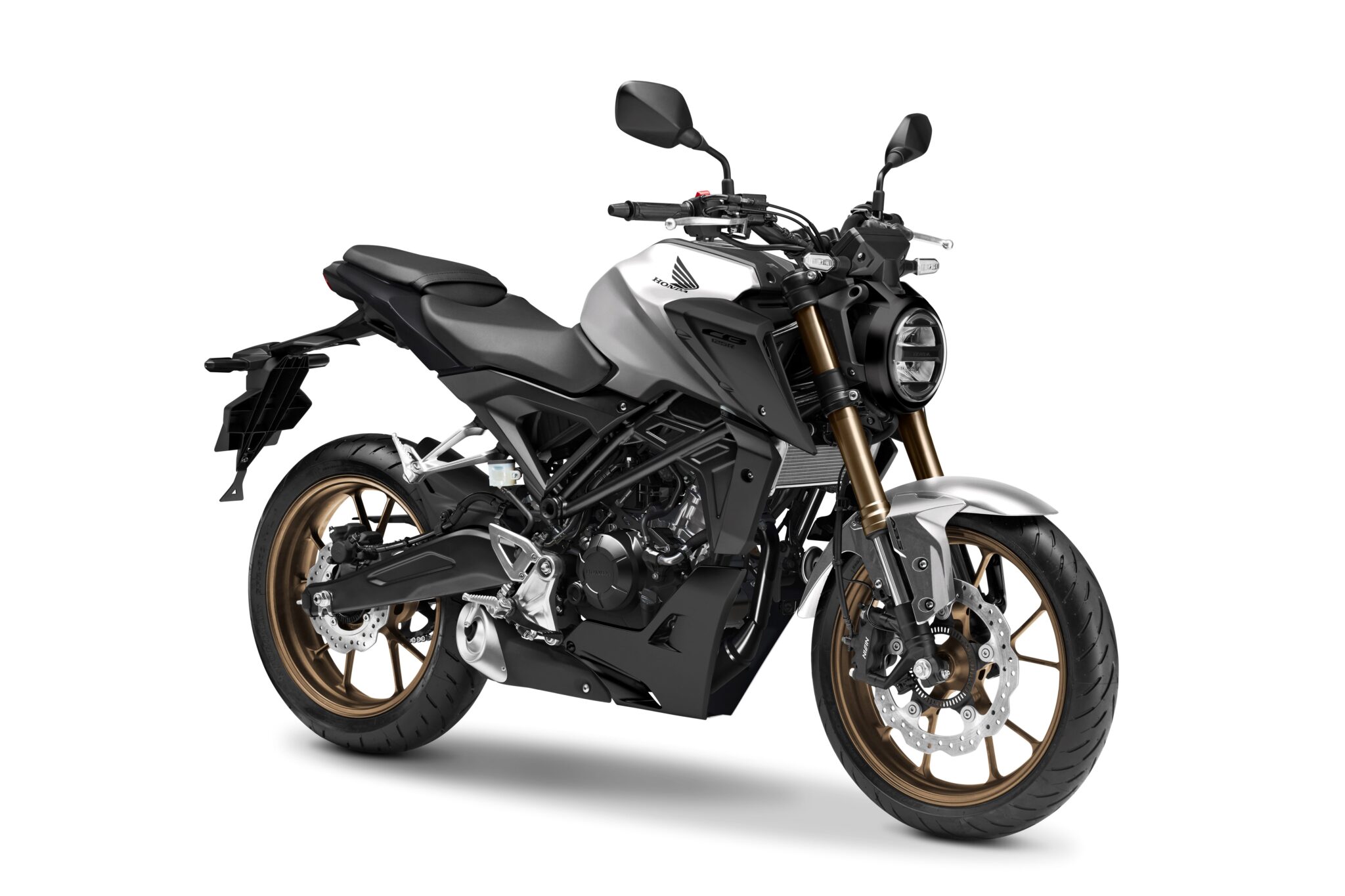

- Matt Crypton Silver Metallic with new black belly pan and shrouds

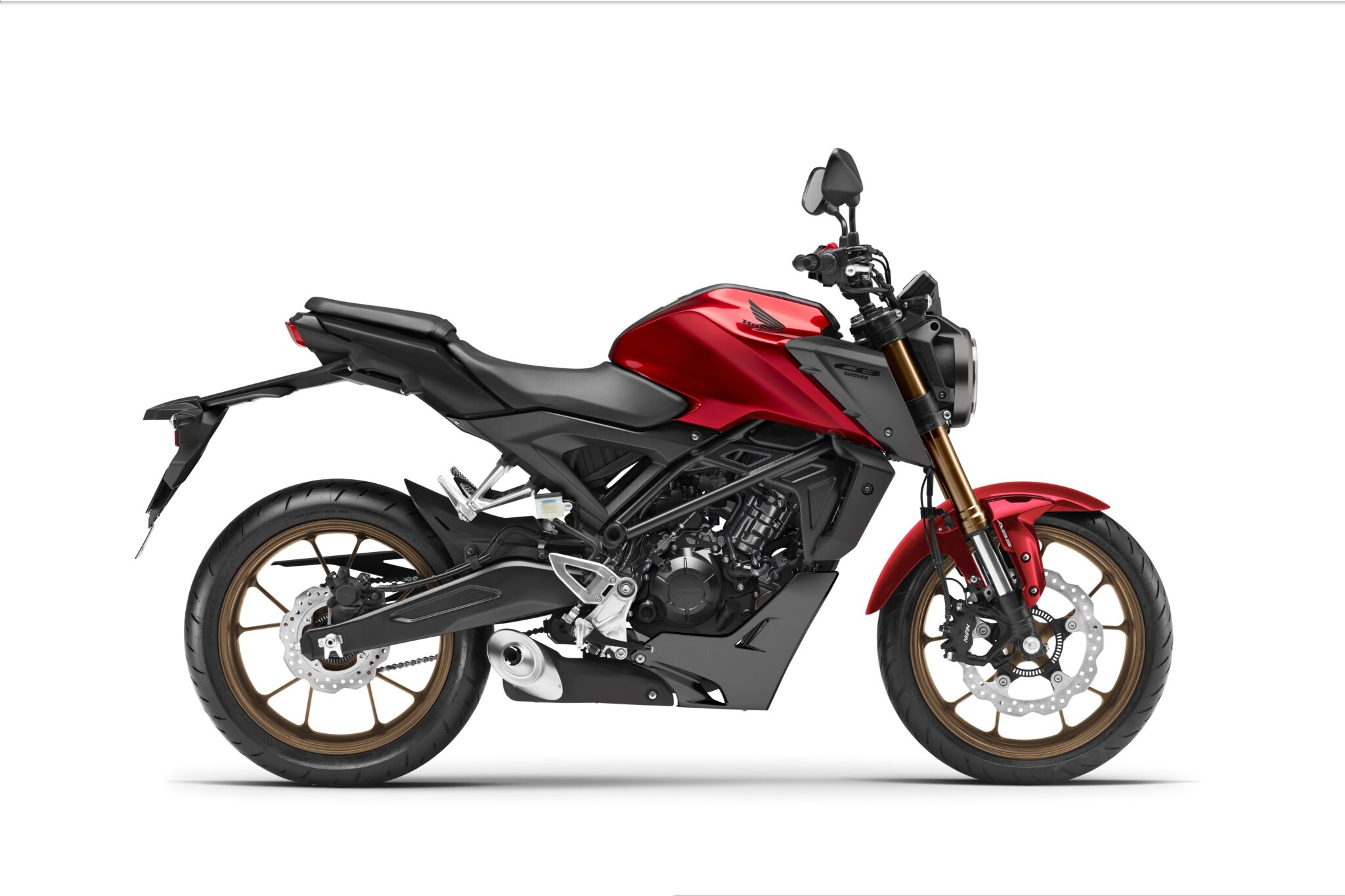

- Candy Chromosphere Red with new black belly pan and shrouds

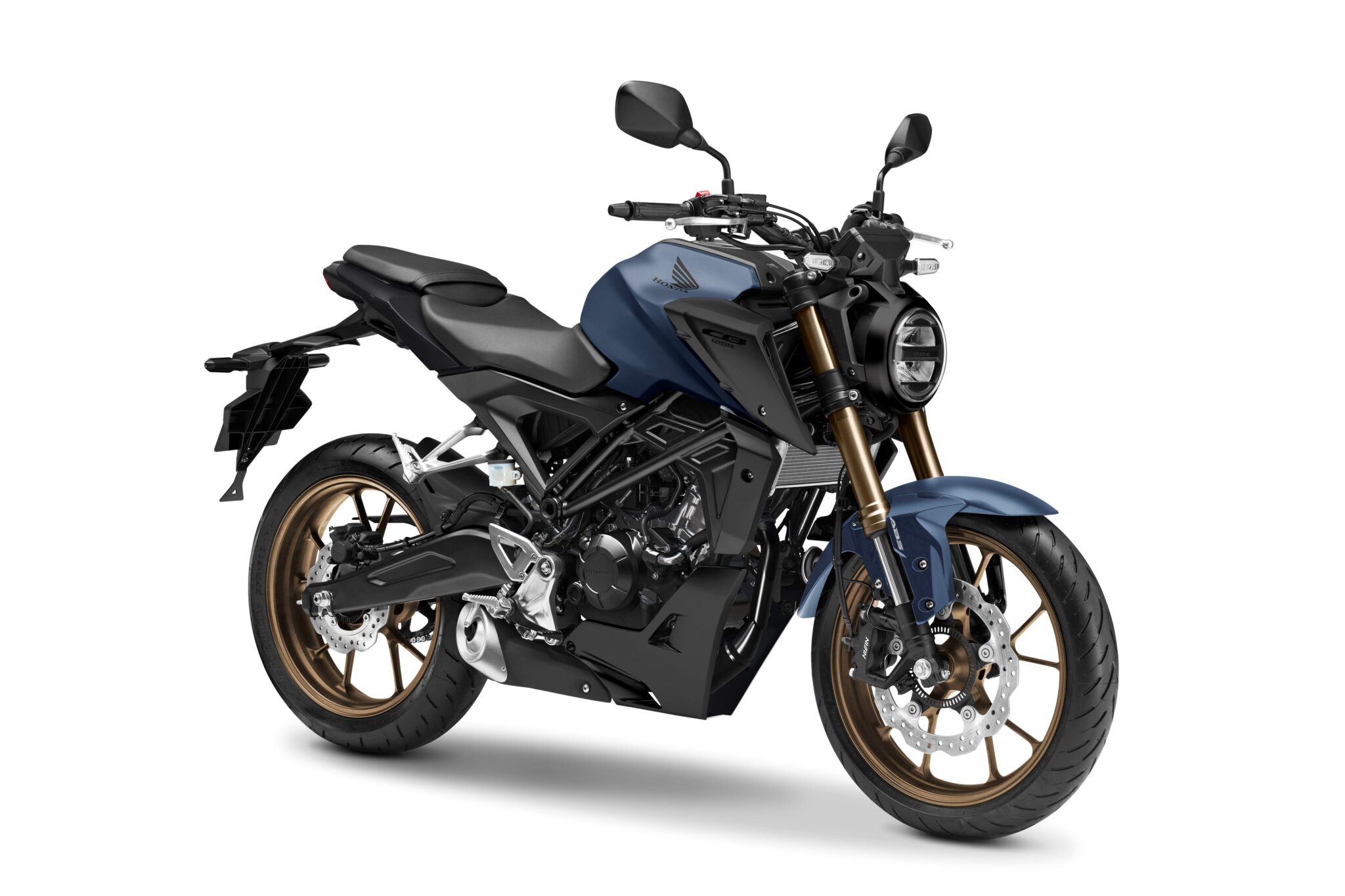

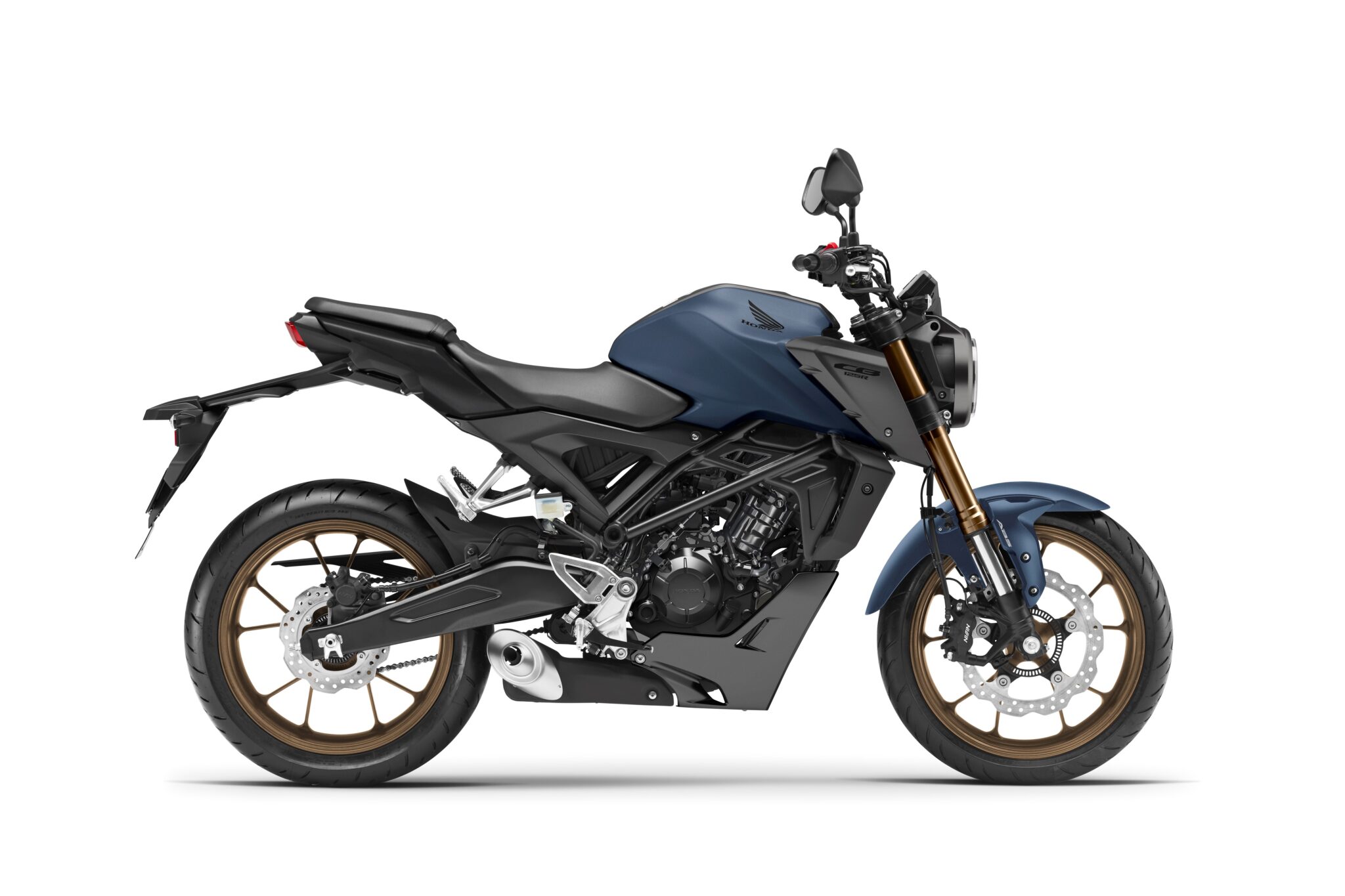

- Matt Jeans Blue Metallic with new black belly pan and shrouds
Engine
- Single-cylinder, DOHC 4V, liquid-cooled
- 11kW peak power, 11.6Nm peak torque
Chassis
- 41mm Showa’s Separate Function Big Piston (SFF-BP) USD forks
- Radial-mount 4-piston caliper and hubless 296mm floating front disc
- ABS works through Inertial Measurement Unit (IMU)
Styling & Equipment
- Industrial minimal styling makes bold visual impact
- Full LED lighting and LCD instrumentation
- 1L fuel tank gives 455km range
Technical Specifications
|
ENGINE |
|
|
Type |
Liquid-cooled 4-stroke 4-valve DOHC single cylinder |
|
Engine Displacement (cm³) |
124.9cc |
|
No. of Valves per Cylinder |
4 |
|
Bore and Stroke (mm) |
57.3mm x 48.4mm |
|
Compression Ratio |
11.3:1 |
|
Max. Power Output |
11.0kW @ 10,000rpm |
|
Max. Torque |
11.6Nm @ 8,000rpm |
|
Oil Capacity |
1.5L |
|
Noise Level |
80.2 Lwot / 77.1 Lurban |
|
FUEL SYSTEM |
|
|
Carburation |
PGM-FI electronic fuel injection |
|
Fuel Tank Capacity |
10.1L |
|
Fuel Consumption |
45.5km/L (WMTC Mode) |
|
ELECTRICAL SYSTEM |
|
|
Starter |
Electric |
|
Battery Capacity |
YTZ6V 12V 5Ah MF |
|
ACG Output |
180W/5000rpm |
|
DRIVETRAIN |
|
|
Clutch Type |
Wet, multiplate with coil springs |
|
Transmission Type |
6-speed |
|
Final Drive |
O-ring sealed chain |
|
FRAME |
|
|
Type |
Inner pivot diamond frame |
|
CHASSIS |
|
|
Dimensions (LxWxH) |
2015mm x 820mm x 1055mm |
|
Wheelbase |
1345mm |
|
Caster Angle |
24.2° |
|
Trail |
90.2mm |
|
Seat Height |
816mm |
|
Ground Clearance |
140mm |
|
Kerb Weight |
130kg |
|
Turning radius |
2.3m |
|
SUSPENSION |
|
|
Type Front |
41mm (SFF-BP) USD forks |
|
Type Rear |
Non-adjustable single-damper |
|
WHEELS |
|
|
Rim Size Front |
17M/C x MT3.00 |
|
Rim Size Rear |
17M/C x MT4.00 |
|
Tyres Front |
110/70R17M/C 54H |
|
Tyres Rear |
150/60R17M/C 66H |
|
BRAKES |
|
|
ABS System Type |
Front & rear independent ABS with IMU |
|
Type front |
296mm hubless floating disc. Radial-mount Nissin 4-piston caliper |
|
Type rear |
220mm single disc a single-piston caliper |
|
INSTRUMENTS & ELECTRICS |
|
|
Instruments |
LCD Display |
|
Headlight |
LED |
|
Taillight |
LED |
All specifications are provisional and subject to change without notice.
Please note that the figures provided are results obtained by Honda under standardised testing conditions prescribed by WMTC. Tests are conducted on a rolling road using a standard version of the vehicle with only one rider and no additional optional equipment. Actual fuel consumption may vary depending on how you ride, how you maintain your vehicle, weather, road conditions, tire pressure, installation of accessories, cargo, rider and passenger weight, and other factors.
