Front tyre grip is heightened with more forward weight bias; handling is further improved by the new swingarm, which is lighter with more lateral flex. The rear shock has new settings to complement the new forks. Redesigned wheels and a lighter radiator save more weight and new fuel injection settings improve engine character. More powerful headlight LEDs and front indicator position lights offer greater visibility.
Chassis & Styling
- New 41mm Showa Separate Function Fork Big Piston (SFFBP) USD forks
- New dual 296mm discs matched to Nissin radial mount two-piston calipers
- Lighter weight wheels and swingarm, plus aluminium foot-pegs
- More forward weight bias for enhanced front tyre grip
- Revised LEDs for the headlight for improved high/low beam
Engine
- Lively twin-cylinder powerplant delivers usable power and torque across the rev-range, plus sporty sound from its dual-exit muffler
- New PGMFI settings improve torque feel and character
- New radiator design more stylish and lighter
- Assist/slipper clutch eases upshifts and manages downshifts
- Homologated for EURO5
Accessories
A range of Genuine Honda Accessories are available for the CB500F. They include:
- 35L top box
- Rear carrier
- Tank bag
- Seat bag
- Smoke windscreen
- Heated grips
- 12V/USB Type-Csockets
- Seat cowl
- Wheel stripes
- Tank pad
- Main stand
Technical Specification
ENGINE
Type – Liquid-cooled 4 stroke, parallel twin
Displacement – 471cc
No of Valves per Cylinder – 4
Bore x Stroke – 67mm x 66.8mm
Compression Ratio – 10.7: 1
Max. Power Output – 35kW @ 8600rpm
Max. Torque – 43Nm @ 6500rpm
Noise Level – L-urban 74dB L-wot 76.4dB
Oil Capacity – 3.2L
FUEL SYSTEM
Carburation – PGM FI electronic fuel injection
Fuel Tank Capacity – 17.1L (inc reserve)
CO2 Emissions – 80 g/km
Fuel Consumption – 3.5L/100km (28.6km/litre)
ELECTRICAL SYSTEM
Battery Capacity – 12V 7.4AH
ACG Output – 23.4A/2000rpm
DRIVETRAIN
Clutch Type – Wet multi-plate, Assisted slipper clutch
Transmission Type – 6 speed
Final Drive – Chain
FRAME
Type – Steel diamond
CHASSIS
Dimensions (L´W´H) – 2080mm x 800mm x 1060mm
Wheelbase – 1410mm
Caster Angle – 25.5 degrees
Trail – 102mm
Seat Height – 789mm
Ground Clearance – 145mm
Kerb Weight – 189kg
SUSPENSION
Type Front – Showa 41mm SFF-BP USD forks, pre-load adjustable
Type Rear – Prolink mono with 5 stage pre-load adjuster, Steel hollow cross swingarm
WHEELS
Type Front – 5Y-Spoke Cast Aluminium
Type Rear – 5Y-Spoke Cast Aluminium
Rim Size Front – 17 x MT3.5
Rim Size Rear – 17 x MT4.5
Tyre Front – 120/70ZR17M/C (58W)
Tyre Rear – 160/60ZR17M/C (69W)
BRAKES
ABS System Type – 2-channel
Type Front – Dual 296mm x 4mm disc with Nissin radial-mount two piston calipers
Type Rear – Single 240mm x 5mm disc with single piston caliper
INSTRUMENTS & ELECTRICS

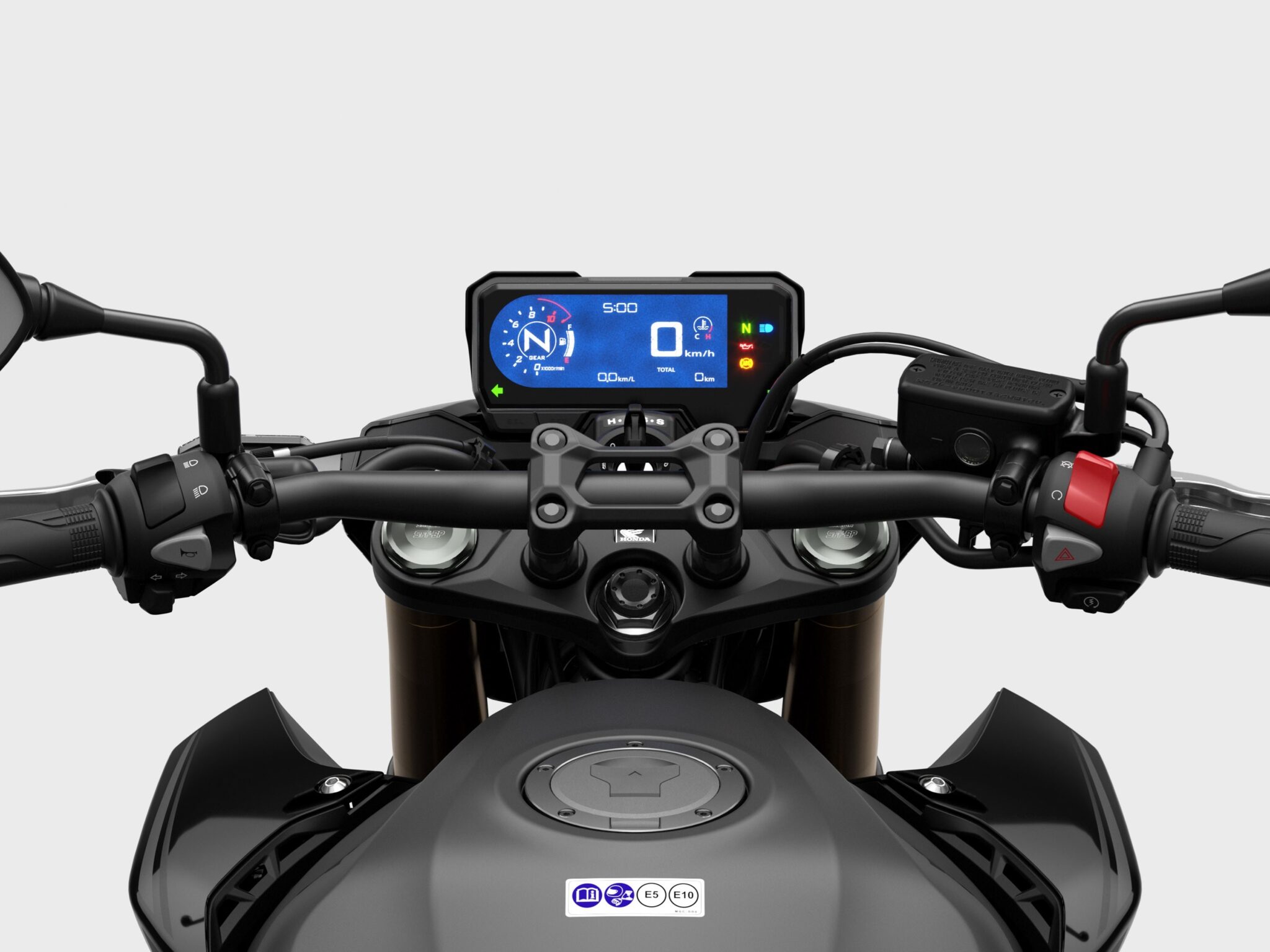

Instruments – LCD Meter with Speedometer, Bar Graph Tachometer, Dual Trip Meters, Fuel Level and Consumption Gauge, Clock, Water Temp, Gear position, Shift UP Indicator
Headlight – LED
Taillight – LED
Security System – HISS (Honda Intelligent Security System)
All specifications are provisional and subject to change without notice.
# Please note that the figures provided are results obtained by Honda under standardised testing conditions prescribed by WMTC. Tests are conducted on a rolling road using a standard version of the vehicle with only one rider and no additional optional equipment. Actual fuel consumption may vary depending on how you ride, how you maintain your vehicle, weather, road conditions, tire pressure, installation of accessories, cargo, rider and passenger weight, and other factors.
