Model Overview

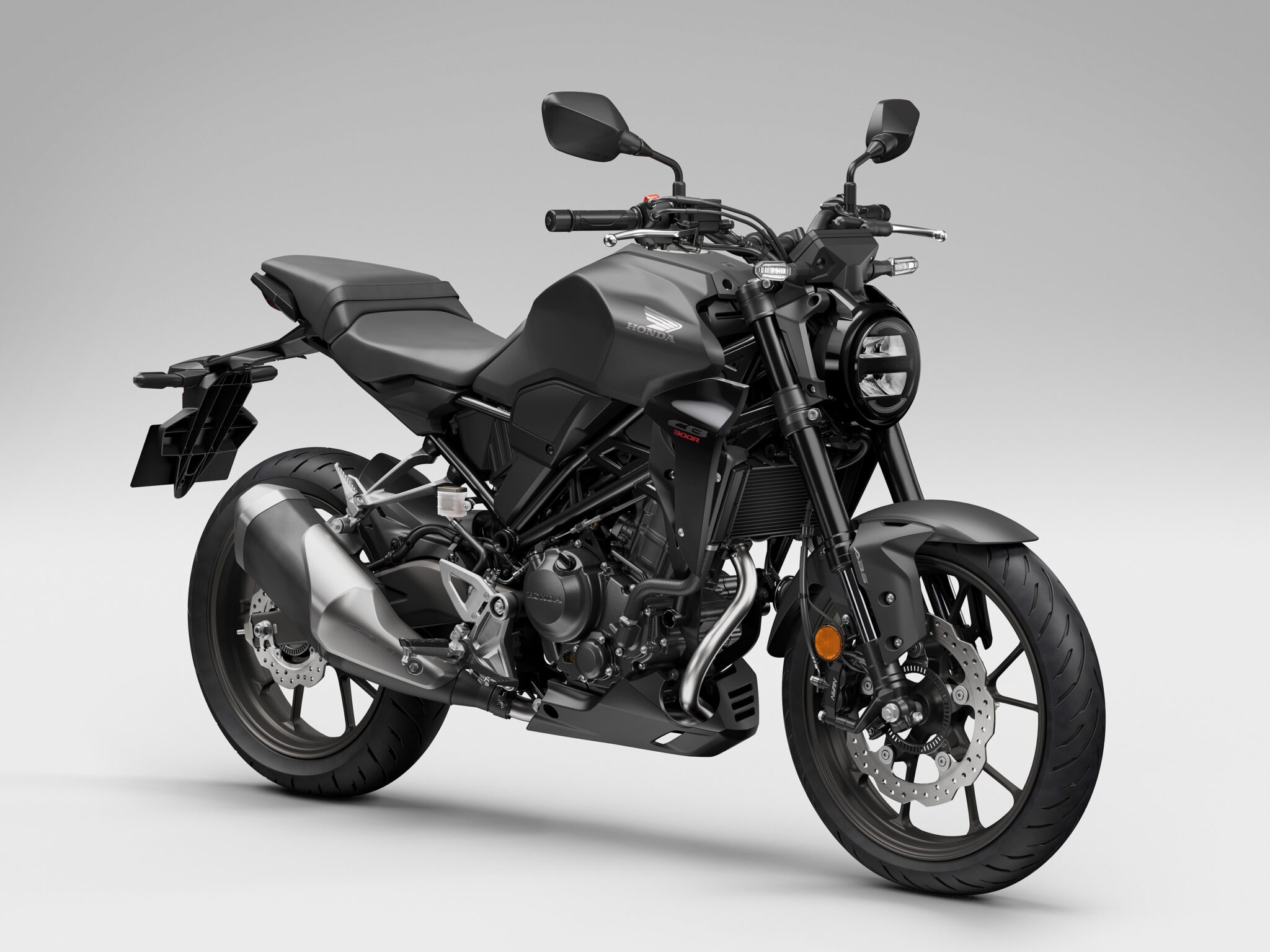

Light weight – the CB300R tips the scales at a wet weight of just 144kg – gives Honda’s small-bore superstar an immediate performance advantage. Mix in a free-revving 286cc liquid-cooled single cylinder engine, with new assist/slipper clutch and EURO5 compliance for 22YM, plus the unique Neo Sports Café naked bike presence and the CB300R has the perfect formula to excite and inspire young riders.
The frame mixes pressed and tubular steel for a tuned rigidity balance that gives great feedback. For 22YM the CB300R now features, as standard equipment, 41mm Showa Separate Function front Fork Big Piston (SFF-BP) USD forks (the same high-quality specification as fitted to the CB650R, with spring rate and damping changes) as well as a radial-mounted 4-piston caliper, hubless floating front disc, IMU-controlled ABS and radial tyres.
A tapered steel handlebar, updated LCD instrument display and full LED lighting exude quality and add to pride of ownership.
The 22YM CB300R will be available in the following colour options:

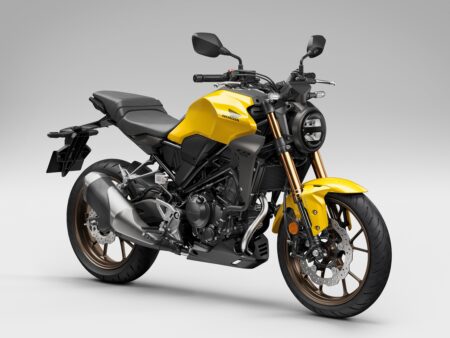

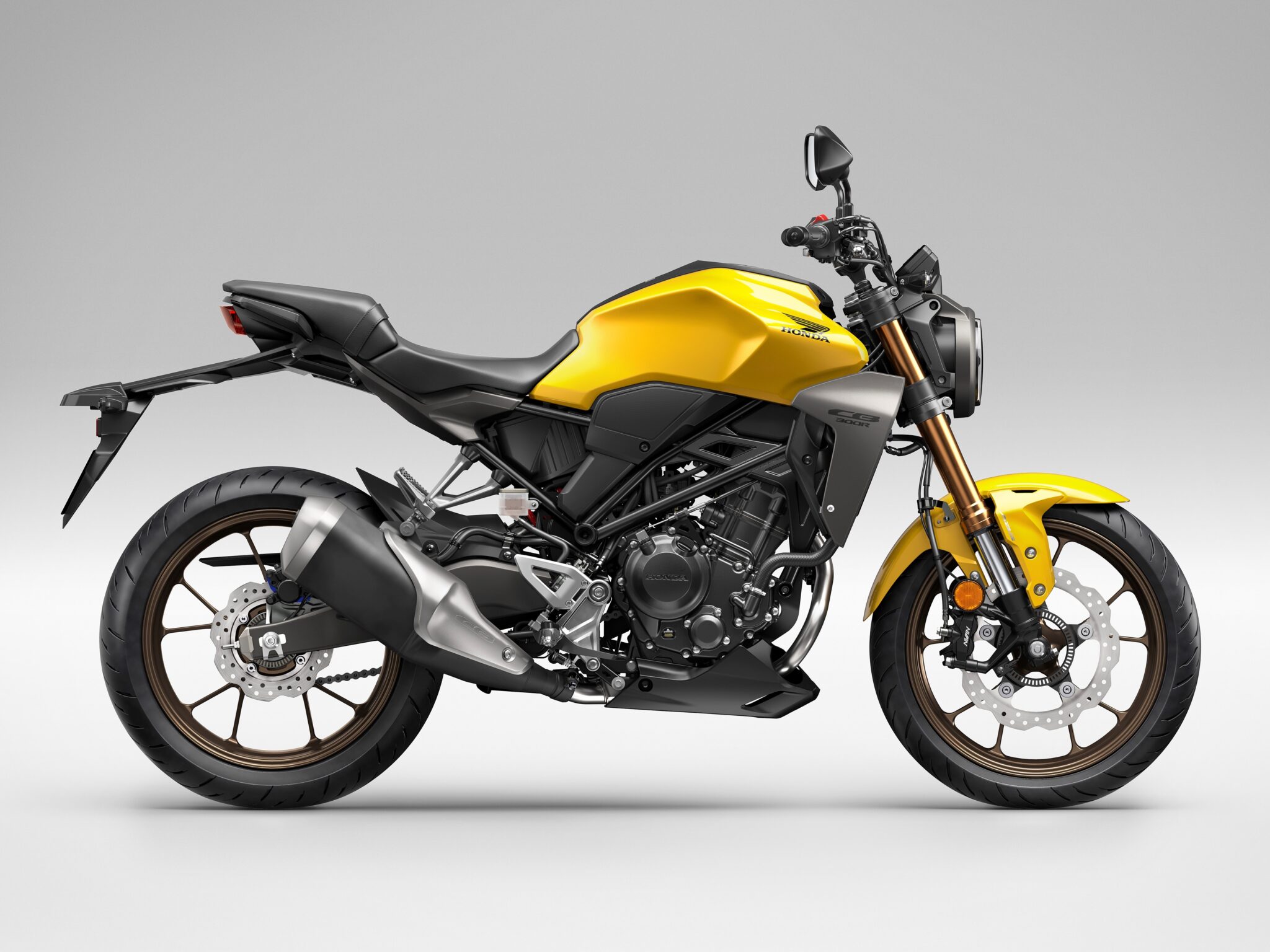

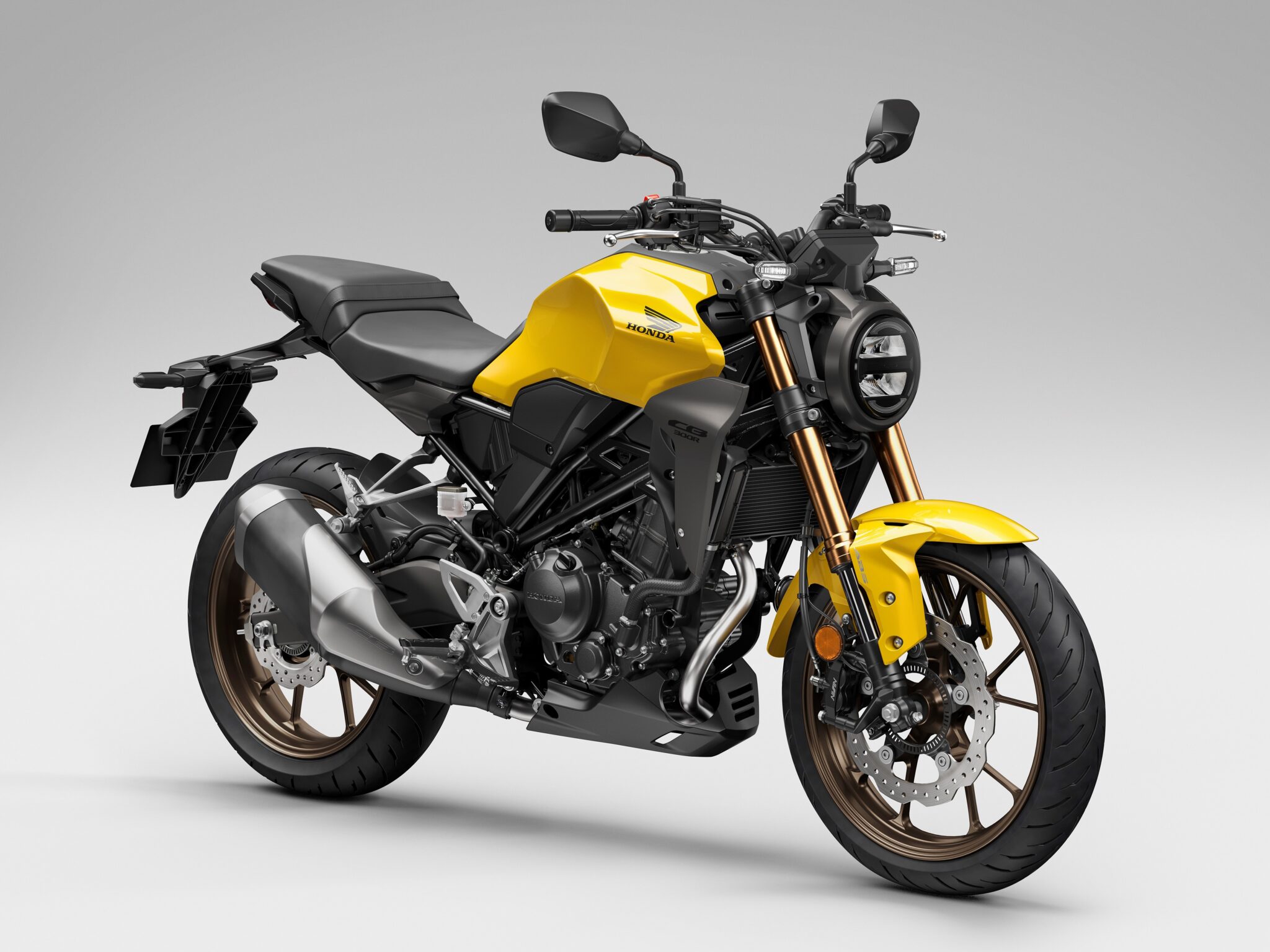

Pearl Dusk Yellow

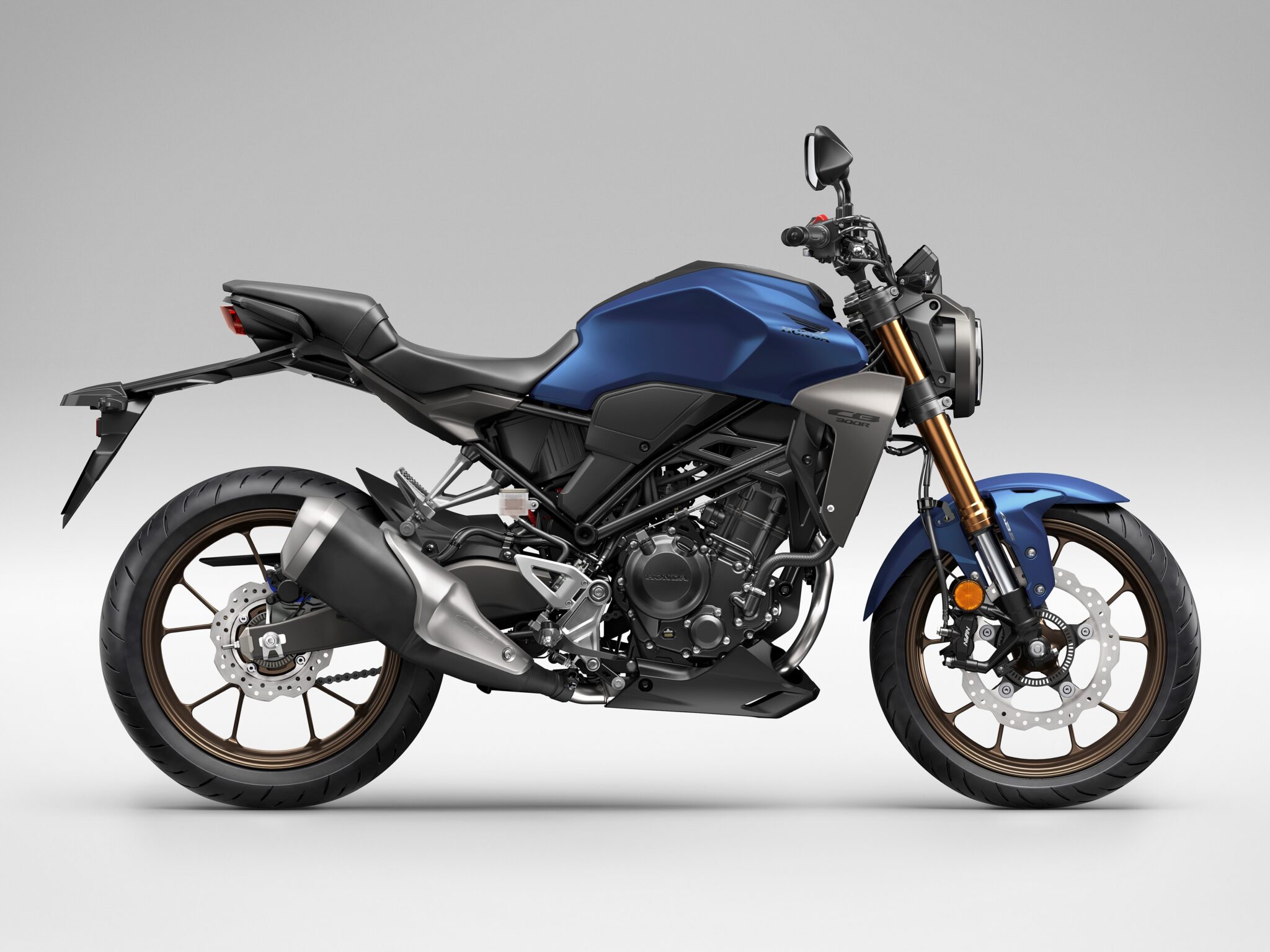

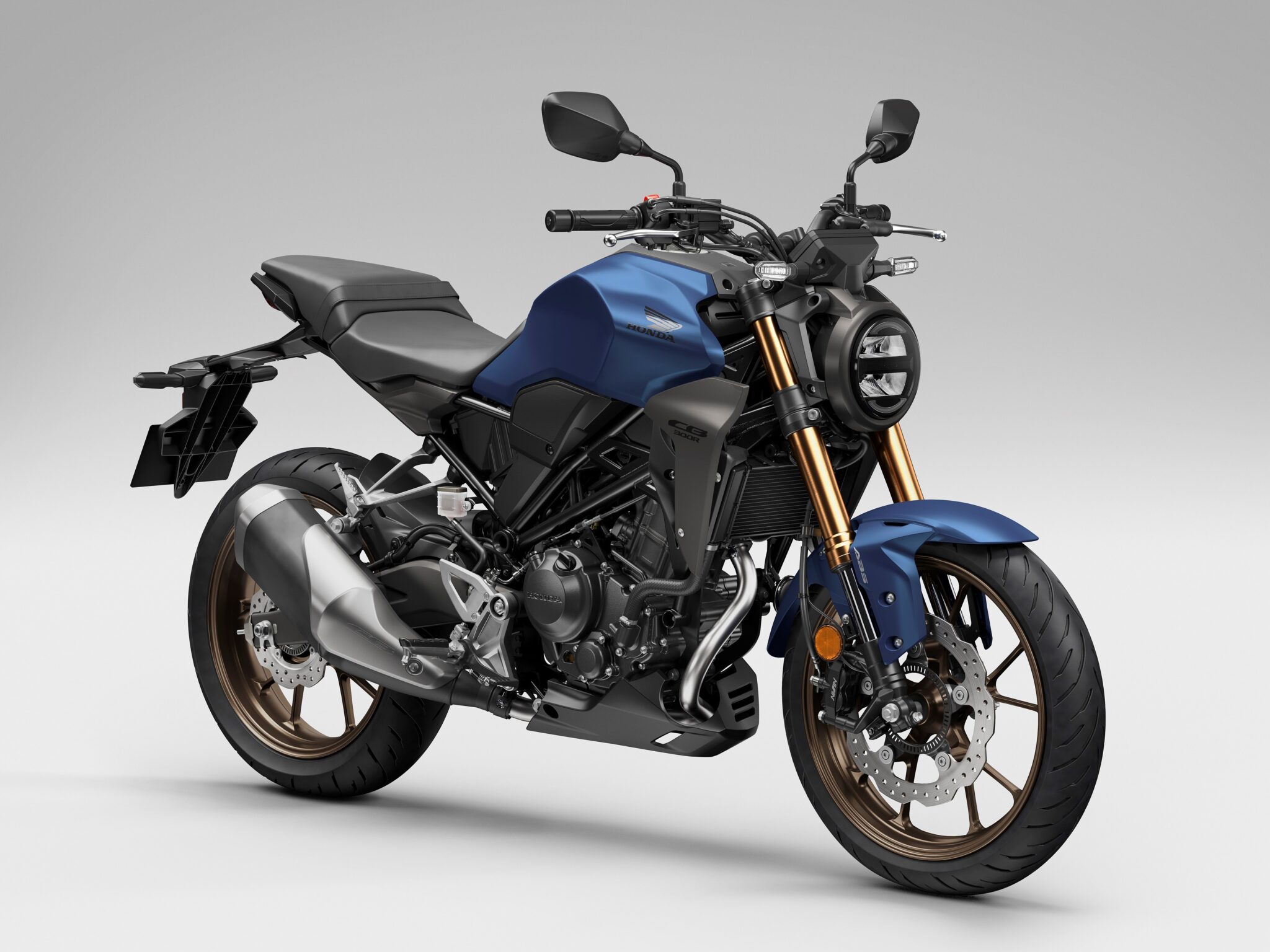

Mat Pearl Agile Blue

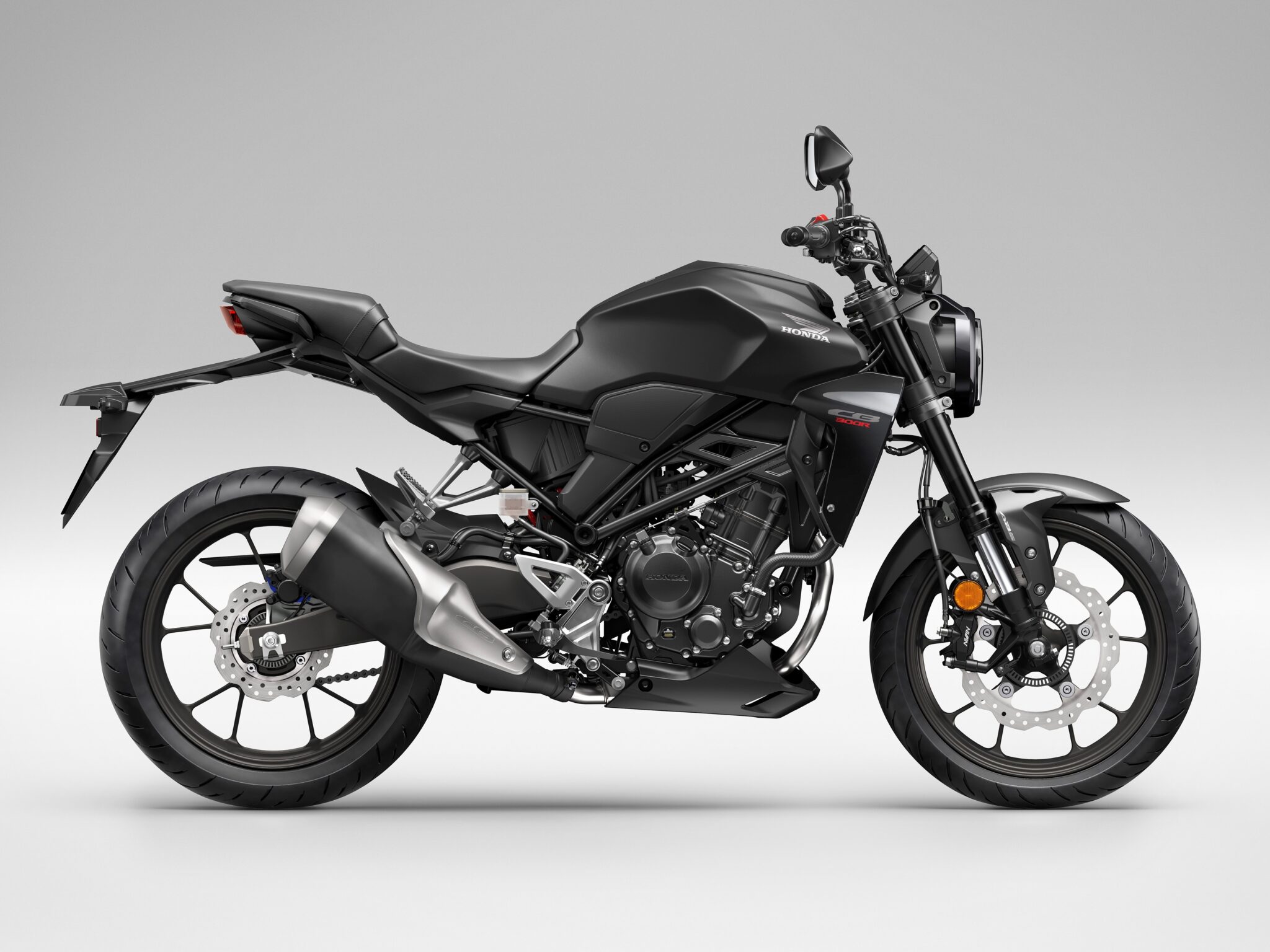

Mat Gunpowder Black Metallic

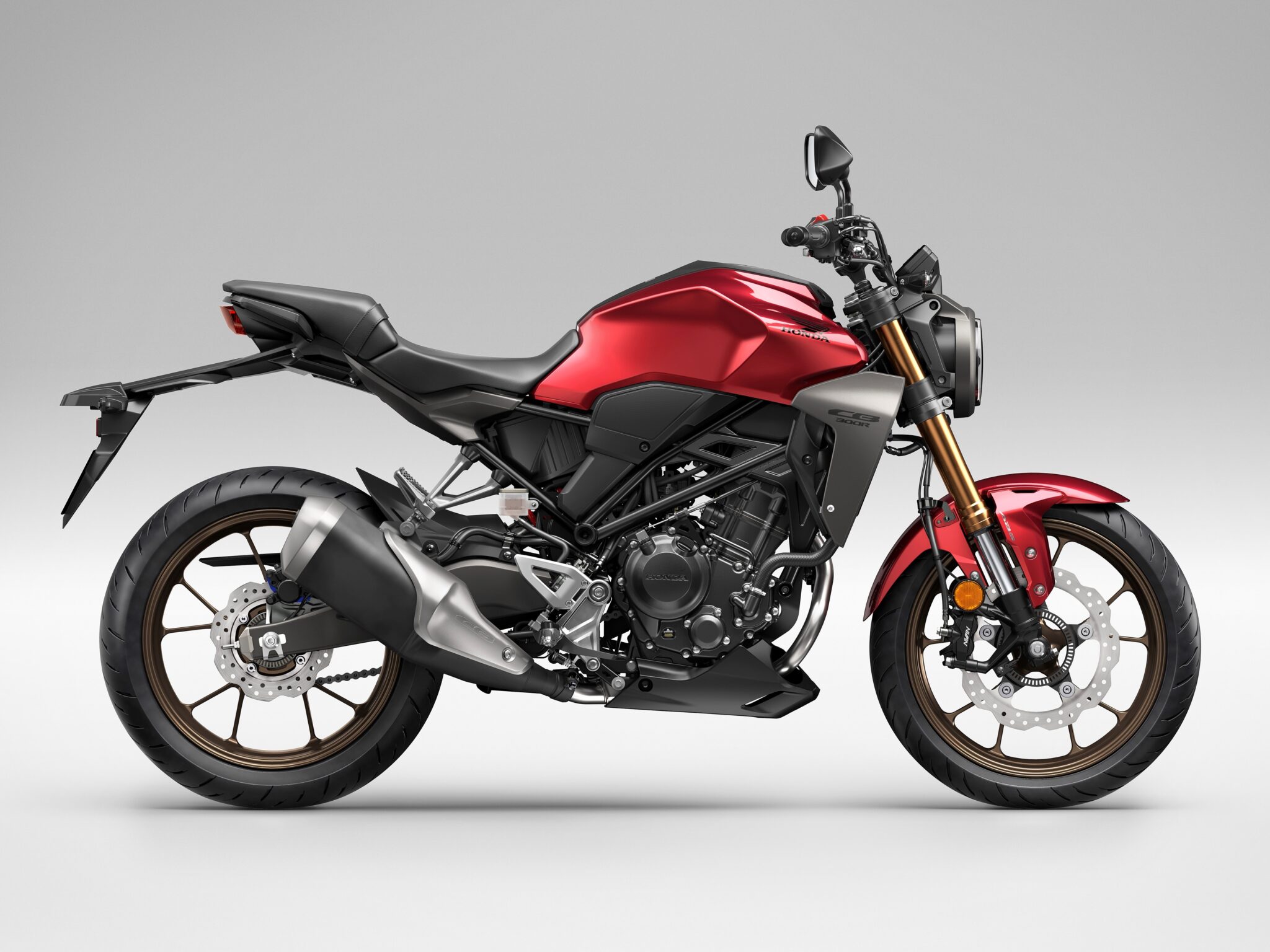

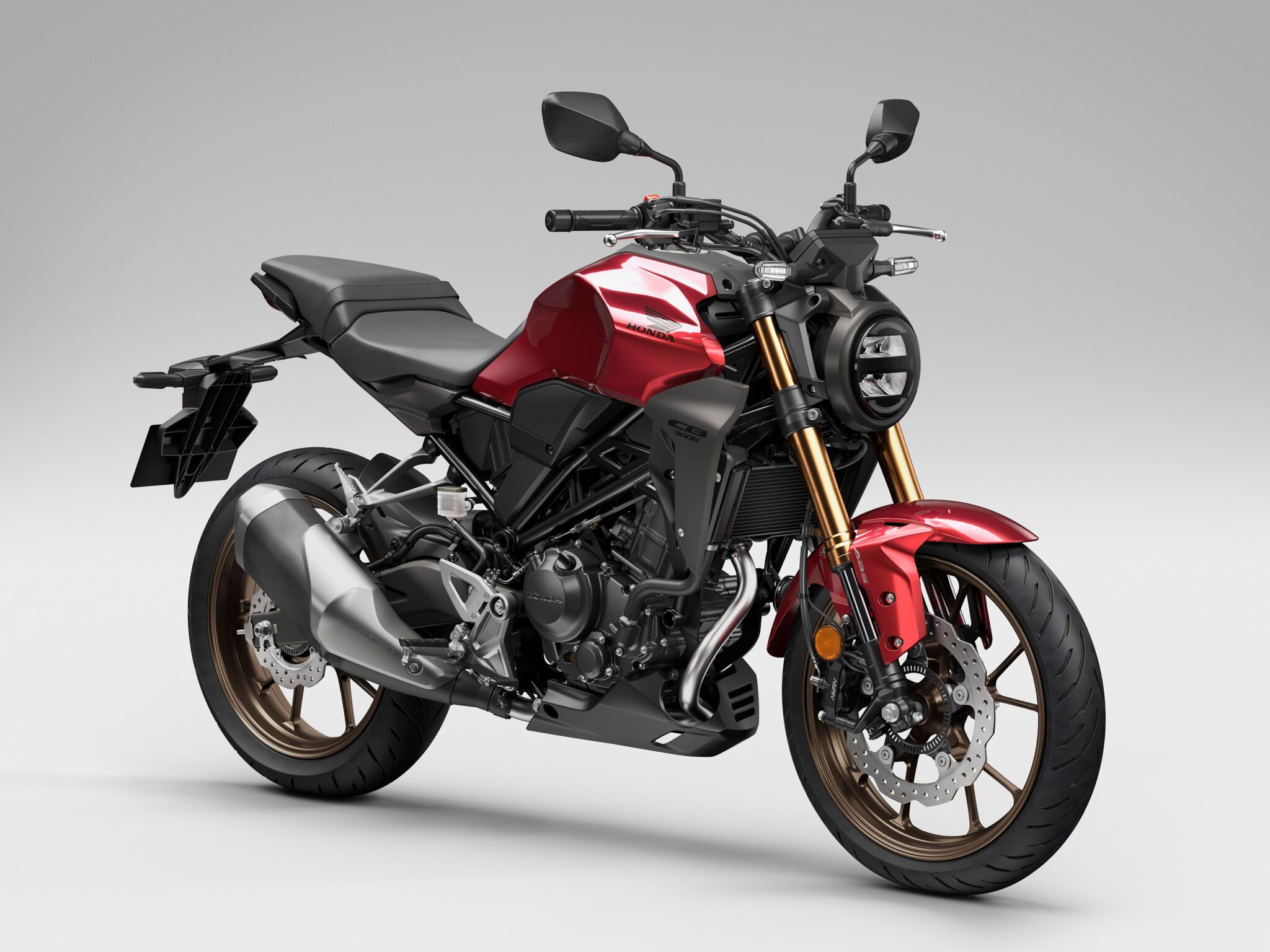

Candy Chromosphere Red
Engine
- Responsive single-cylinder DOHC 4-valve engine
- 9kW peak power/27.5Nm peak torque with EURO5 compliance
- Redesigned underslung side-exit exhaust
- Assist/slipper clutch now managing 6-speed gearbox
Chassis
- New 41mm Showa Separate Function Big Piston (SFF-BP) USD forks
- Radial-mounted 4-piston caliper and hubless 296mm floating front disc
- ABS works through Inertial Measurement Unit (IMU)
Styling & Equipment
- Unique Neo Sports Café style puts the hardware on display
- New seat material improves comfort
- Full LED lighting and LCD dash with updated gear position indicator
Technical Specifications
|
ENGINE |
|
|
Type |
Liquid-cooled 4-valve DOHC single |
|
Engine Displacement (cm³) |
286cc |
|
Bore ´ Stroke (mm) |
76mm x 63mm |
|
Compression Ratio |
10.7:1 |
|
Max. Power Output |
22.9kW @ 9,000rpm |
|
Max. Torque |
27.5Nm @ 7,750rpm |
|
Oil Capacity |
1.8L |
|
FUEL SYSTEM |
|
|
Carburation |
PGM-FI electronic fuel injection |
|
Fuel Tank Capacity |
10.0L |
|
Fuel Consumption |
30.2km/litre |
|
ELECTRICAL SYSTEM |
|
|
Battery Capacity |
12V-7AH |
|
DRIVETRAIN |
|
|
Clutch Type |
Wet, multiplate hydraulic clutch |
|
Transmission Type |
6-speed |
|
Final Drive |
Chain |
|
FRAME |
|
|
Type |
Steel diamond |
|
CHASSIS |
|
|
Dimensions (LxWxH) |
2012mm x 802mm x 1052mm |
|
Wheelbase |
1352mm |
|
Caster Angle |
24.7° |
|
Trail |
93mm |
|
Seat Height |
799mm |
|
Ground Clearance |
151mm |
|
Kerb Weight |
144kg |
|
Turning radius |
2.3m |
|
SUSPENSION |
|
|
Type Front |
41mm Showa Separate Function front Fork Big Piston (SFF-BP) USD forks. 130mm stroke |
|
Type Rear |
Monoshock damper with 5 stage adjustable preload, 107mm travel |
|
WHEELS |
|
|
Rim Size Front |
17inch |
|
Rim Size Rear |
17inch |
|
Tyres Front |
110/70R17M/C 54H |
|
Tyres Rear |
150/60R17M/C 65H |
|
BRAKES |
|
|
ABS System Type |
2 channel; |
|
Front |
296mm hubless floating disc with radial-mount Nissin 4-piston caliper |
|
Rear |
220mm disc with single piston caliper |
|
INSTRUMENTS & ELECTRICS |
|
|
Instruments |
LCD |
|
Headlight |
LED |
|
Taillight |
LED |
|
Connectivity |
No |
|
USB |
No |
|
12V Socket |
No |
|
Auto Winker cancel |
No |
|
Security System |
No |
|
Cruise Control |
No |
|
Additional Features |
No |
# Please note that the figures provided are results obtained by Honda under standardised testing conditions prescribed by WMTC. Tests are conducted on a rolling road using a standard version of the vehicle with only one rider and no additional optional equipment. Actual fuel consumption may vary depending on how you ride, how you maintain your vehicle, weather, road conditions, tire pressure, installation of accessories, cargo, rider and passenger weight, and other factors.
