Model Overview
With its tough stance the ADV350 already stands out from the homogenous crowd, and rugged angles and block colours promote the off-road look. The X-ADV is an obvious style benchmark, but so too is the CRF series of off-road performance machines.
Practicality has not been forgotten: there’s room for two full-face helmets under the seat, USB charger in the glovebox and convenience of Smart Key operation. The screen is height-adjustable and the LCD dash also integrates the Honda Smartphone Voice Control system.
The adventurous styling shows off the ADV350’s front end; the riding position offers natural control and the chassis – which includes 37mm USD forks, tubular steel frame and remote reservoir rear shocks – tuned to deliver agile steering, feedback and feel. Lightweight 15-inch front/14-inch rear wheels wear 120/70-15 front and 140/70-14 rear block-pattern tubeless tyres, allowing the ADV350 ample grip across all conditions. A 256mm single disc is matched to a 240mm rear.
There’s plenty of acceleration on tap, for urban and highway use. A 330cc, enhanced Smart Power+ (eSP+) SOHC four-valve engine delivers peak power of 21.6kW and 31.9Nm torque. Honda Selectable Torque Control (HSTC) and Emergency Stop Signals are standard.

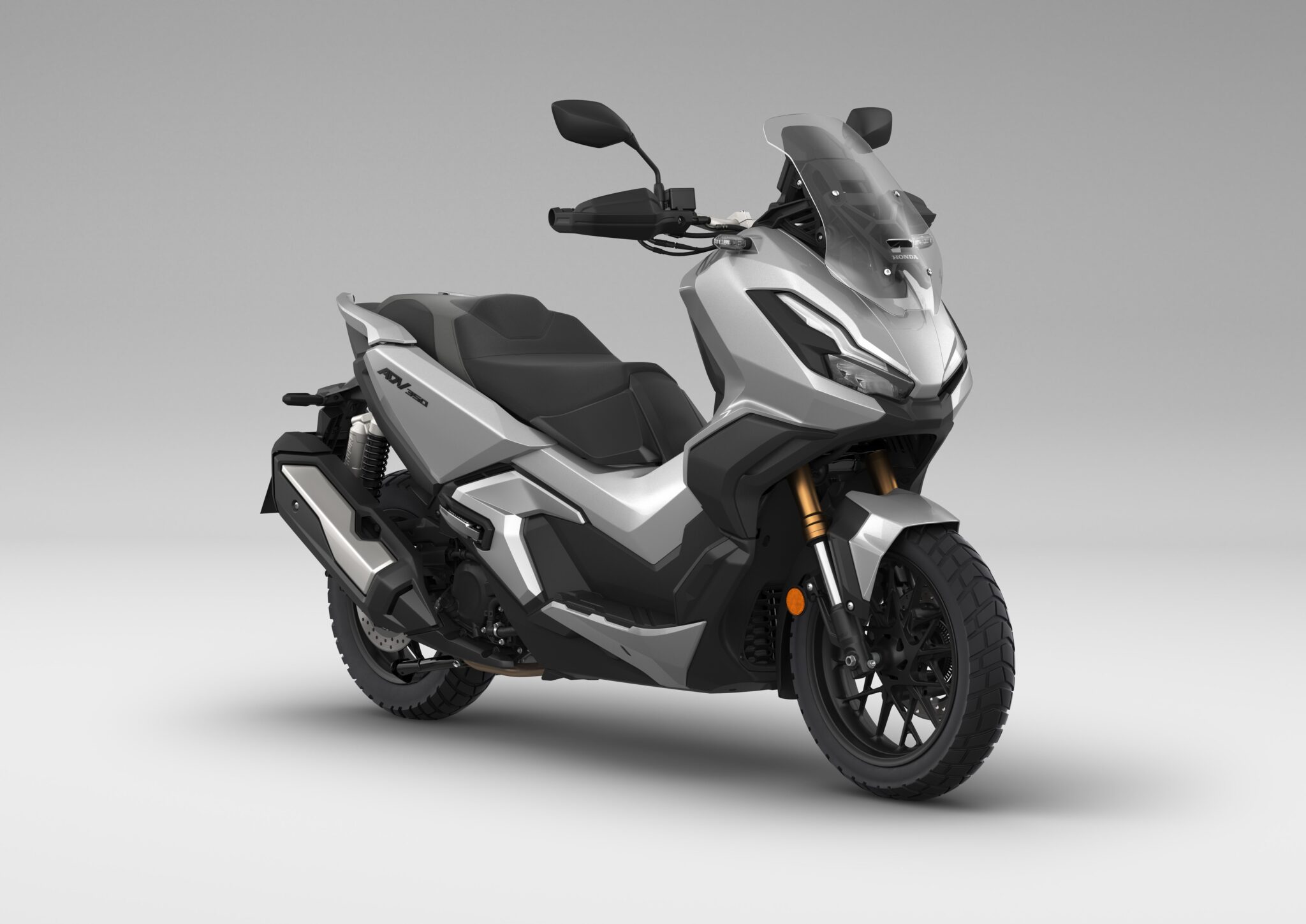

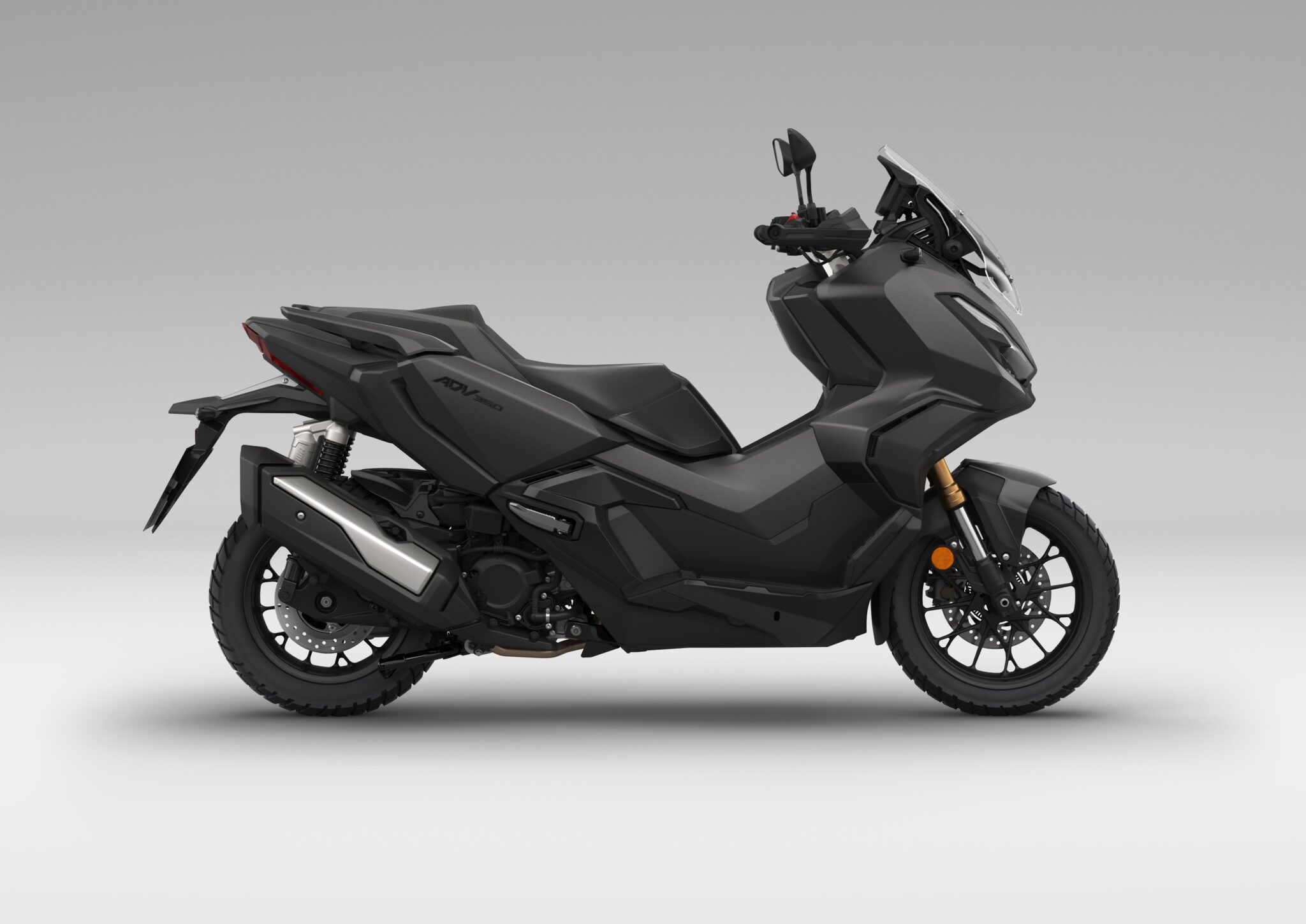

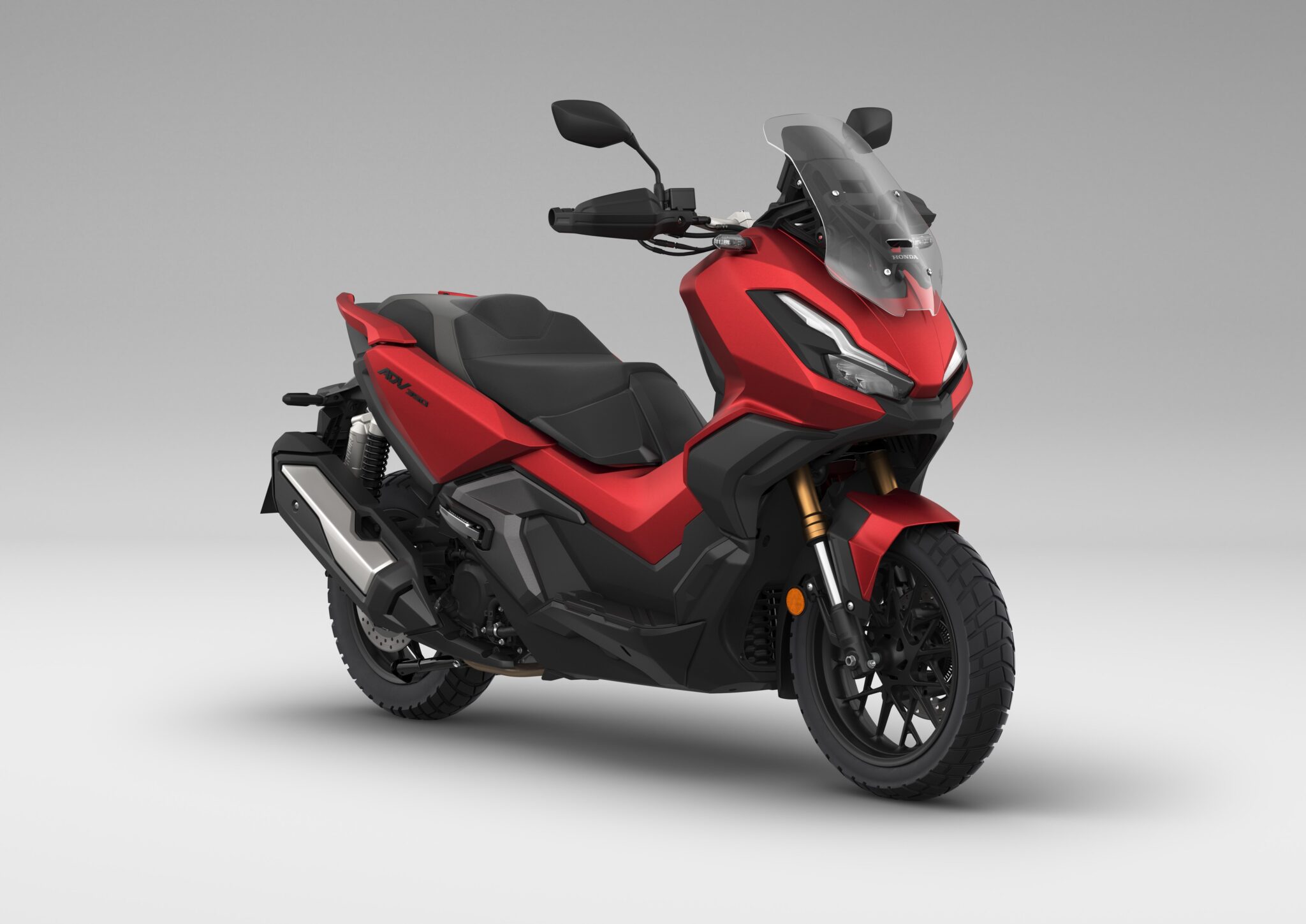

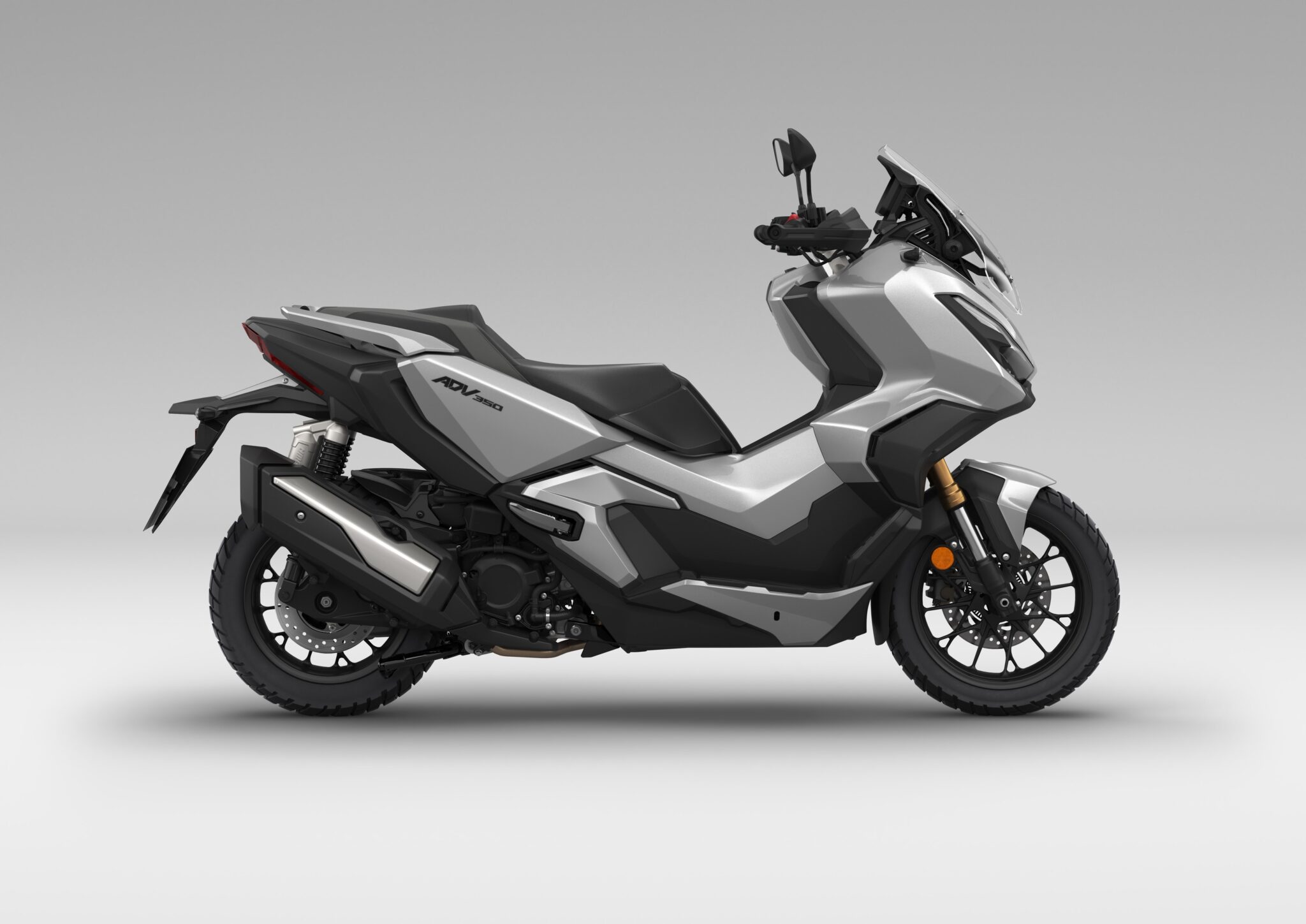

The 22YM ADV350 will be available in the following colour options:
- Spangle Silver Metallic
- Mat Carbonium Gray Metallic
- Mat Carnelian Red Metallic
Styling & Equipment
- Dual LED headlights lead the adventure style, set high above the front wheel
- Two-stage height-adjustable screen
- LCD instruments and Honda Smartphone Voice Control system
- Two full-face helmets can be stored under the seat; USB Type-C socket in the glovebox and Smart Key operation
Chassis
- Lightweight tubular steel frame, 37mm USD forks and remote reservoir rear shocks deliver agile handling and natural control.
- Six-spoke cast aluminium wheels run block-pattern tubeless tyres
- Disc brakes front and rear plus Emergency Stop Signal (ESS) technology
Engine
- 330cc, enhanced Smart Power+ (eSP+) SOHC four-valve engine
- Peak power of6kW @ 7,500rpm, 31.9Nm torque @ 5,250rpm
- Honda Selectable Torque Control (HSTC)
- 5L fuel tank and 30km/l economy (WMTC mode) gives a potential 340km+ range
Accessories
A range of Genuine Honda Accessories are available for the ADV350. They include:
- 50litre
- Smart top box
- Rear carrier rack (direct fitment)
- Inner bags
- Heated grips
- U Lock
- Outdoor cover
Technical Specification
ENGINE
Type – Liquid-cooled 4stroke, 4 valve SOHC single; Euro 5 compliant
Displacement – 330cc
Bore x Stroke – 77mm x 70.8mm
Compression Ratio – 10.5:1
Max. Power Output – 21.5 kW @ 7,500 rpm
Max. Torque – 31.5 Nm @ 5,250 rpm
Noise Level – L-urban 76.9db L-wot 81.9db
Oil Capacity – 1.8 L
FUEL SYSTEM
Carburation – PGM FI electronic fuel injection
Fuel Tank Capacity – 11.7L
CO2 Emissions – 79 g/km
Fuel Consumption – 29.4km/L
ELECTRICAL SYSTEM
Starter – Electric
Battery Capacity – 12V-8.6AH
DRIVETRAIN
Clutch Type – Automatic centrifugal clutch; dry type
Transmission Type – CVT
Final Drive – V-Belt
FRAME
Type – Steel underbone
CHASSIS
Dimensions (L´W´H) – 2200mm x 895mm x 1430mm
Wheelbase – 1,520mm
Caster Angle – 26.5°
Trail – 89mm
Seat Height – 795mm
Ground Clearance – 145mm
Kerb Weight – 186kg
SUSPENSION
Type Front – 37mm Upside down forks 125mm stroke
Type Rear – Twin Shock 130mm travel
WHEELS
Type Front – 15 inch six spoke cast aluminium
Type Rear – 14 inch six spoke cast aluminium
Rim Size Front – 3.5in
Rim Size Rear – 4.0in
Tyre Front – 120/70-15MC 56P
Tyre Rear – 140/70-14MC 62P
BRAKES
ABS System Type – 2channel ABS
Type Front – Single, 2 piston Nissin caliper. Single 256mm disc
Type Rear – Single 1 piston Nissin caliper. Single 240mm disc
INSTRUMENTS & ELECTRICS
Instruments – Full LCD, clock, two trip meters, fuel consumption gauge, Honda SMART Key indicator.
Security System – Immobiliser
Headlight – LED
Taillight – LED
Connectivity – Yes
USB – Yes
Cruise Control – No
Additional Features – HSTC (Honda Selectable Torque Control) and ESS (Emergency Stop Signals)
All specifications are provisional and subject to change without notice.
# Please note that the figures provided are results obtained by Honda under standardised testing conditions prescribed by WMTC. Tests are conducted on a rolling road using a standard version of the vehicle with only one rider and no additional optional equipment. Actual fuel consumption may vary depending on how you ride, how you maintain your vehicle, weather, road conditions, tire pressure, installation of accessories, cargo, rider and passenger weight, and other factors.
